The AC drier filter is the unsung guardian of your entire refrigeration or automotive HVAC loop. It’s a sealed canister packed with a molecular sieve core that adsorbs moisture and traps particulates before they can form damaging acids or ice crystals inside your compressor.
I’m Min — the co-founder and writer behind Gadgets Feed. I spend my weeks comparing the internal volume, brazing quality, and chemical compatibility of filter driers to find which units actually protect your system under real-world contaminant loads.
Whether you’re servicing a mini-split, a heat pump, or a R134a recovery machine, picking the right best ac drier filter means choosing a unit that balances maximum moisture adsorption with minimal pressure drop for your specific connection type.
How To Choose The Best AC Drier Filter
Selecting a drier filter goes beyond matching thread size. You must evaluate the core chemistry, connection type (flare, sweat, or bi-flow), and the maximum working pressure rating against your specific refrigerant. A mismatch here can lead to a system that runs but never fully dries, or worse, a burst shell under high-side pressure.
Connection Type: Flare vs. Sweat vs. Bi-Flow
Flare connections (1/4″ SAE is the most common) allow for quick service replacements without cutting or brazing copper lines. Sweat (ODF) connections require brazing skill but create a permanent, leak-proof joint that handles higher operating pressures. Bi-flow driers use a special internal spring and check valve arrangement so the refrigerant can flow in either direction — mandatory for heat pump systems that reverse the cycle between heating and cooling modes.
Core Composition and Capacity
A high-quality drier core uses a blend of 80% molecular sieve and 20% activated alumina. The sieve grabs water molecules down to very low PPM levels, while the alumina neutralizes acids that form when moisture reacts with refrigerant and oil. Always check the stated cubic-inch element volume — a 3 cubic inch element handles a typical 1-5 ton residential AC or refrigeration circuit, whereas larger commercial systems may require 10+ cubic inch elements.
Refrigerant Compatibility and Pressure Rating
Not all driers are rated for the high pressures of R410A, which can exceed 650 PSIG in hot-weather operation. Verify the max working pressure and ensure the unit is listed as compatible with your specific refrigerant (R134a, R22, R404A, R410A, R1234yf). Using a drier meant for R22 on an R410A system risks catastrophic shell failure.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Appli Parts APFD-032 | Mid-Range | Universal liquid line replacement | 3 cu.in. element / 650 PSIG | Amazon |
| Four Seasons 33589 | Mid-Range | Vehicle-specific automotive AC | Includes O-rings / pad mount | Amazon |
| Danfoss DCL032 | Mid-Range | Universal refrigeration drop-in | Bronze flare / 80% molecular sieve | Amazon |
| Robinair FLCK-1 | Premium | Recovery machine retrofit | Conversion kit / deep knurling | Amazon |
| Buck BFK-083S | Premium | Heat pump bi-flow systems | 3/8″ ODF sweat / 1-5 tons | Amazon |
| REAXOAL 10-Pack | Budget | Multi-unit bulk replacements | 25GR / 1/4″ flare with valve | Amazon |
| Robinair 13172 Kit | Premium | R12/R134a machine maintenance | Includes filter + vacuum pump oil | Amazon |
In‑Depth Reviews

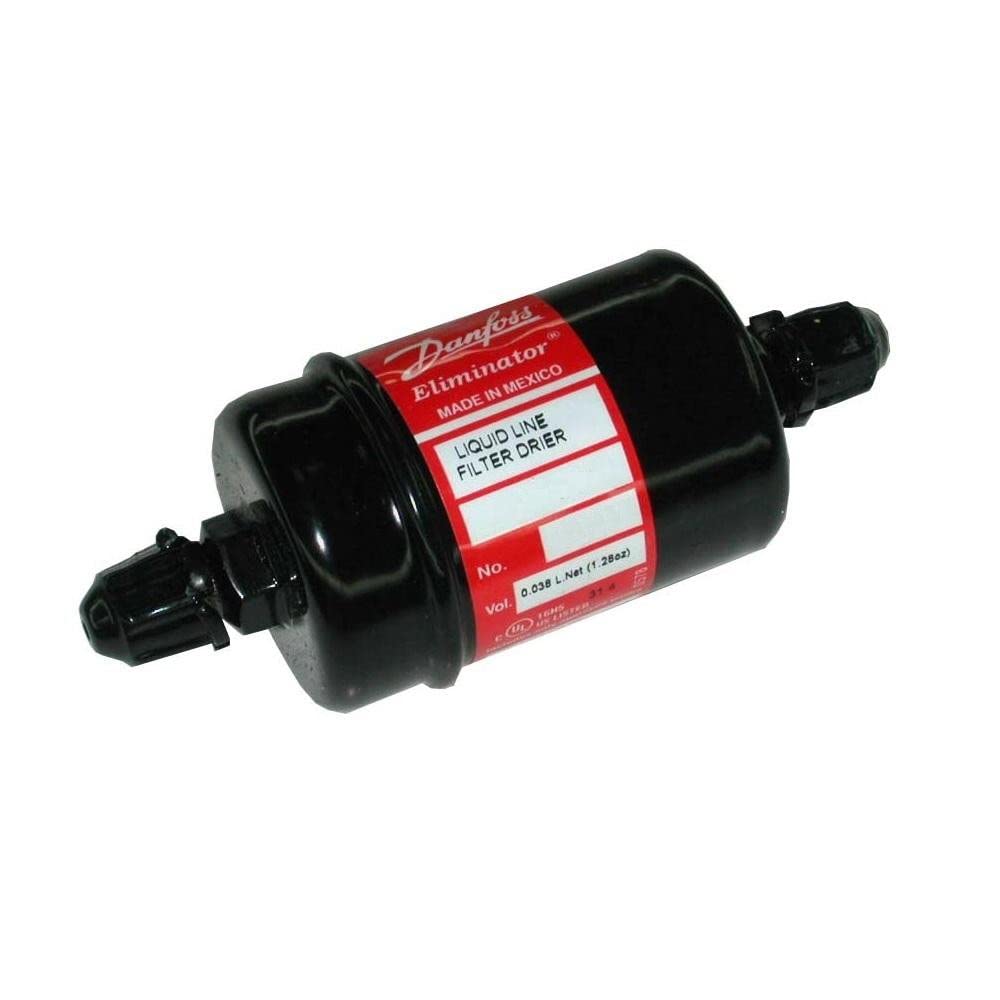

1. Danfoss DCL032 1/4″ Flare Filter Drier
The Danfoss DCL032 uses solid bronze inlet and outlet flare connections, which resist corrosion far better than the powder-coated steel you will find on budget driers. Its core is an 80% molecular sieve and 20% activated alumina blend — exactly the right ratio for adsorbing moisture while neutralizing circulating acids that can degrade compressor windings over time.
This unit works with most common refrigerants, including R134a, R404A, R410A, R22, R1234yf, and even hydrocarbon refrigerants like R290 and R600. The temperature range from -40°F to 160°F makes it suitable for both freezer cases and hot-side liquid lines in residential AC systems without degrading the core materials.
It replaces over a dozen part numbers including DRYL032, ADK032, H032, and APFD-032, so you can confidently swap it into nearly any 3 cubic-inch liquid line application. Just be aware the 1/4″ SAE flare limits you to smaller circuits — for a 5-ton heat pump, you will need a larger bi-flow unit.
Why it’s great
- Bronze connections resist corrosion and stripped threads better than steel
- Core blend handles moisture and acid simultaneously for better system protection
- Extreme temperature tolerance suits both freezer and high-side AC use
Good to know
- 1/4″ flare limits application to smaller liquid lines only
- Does not include a charging valve port for pressure testing

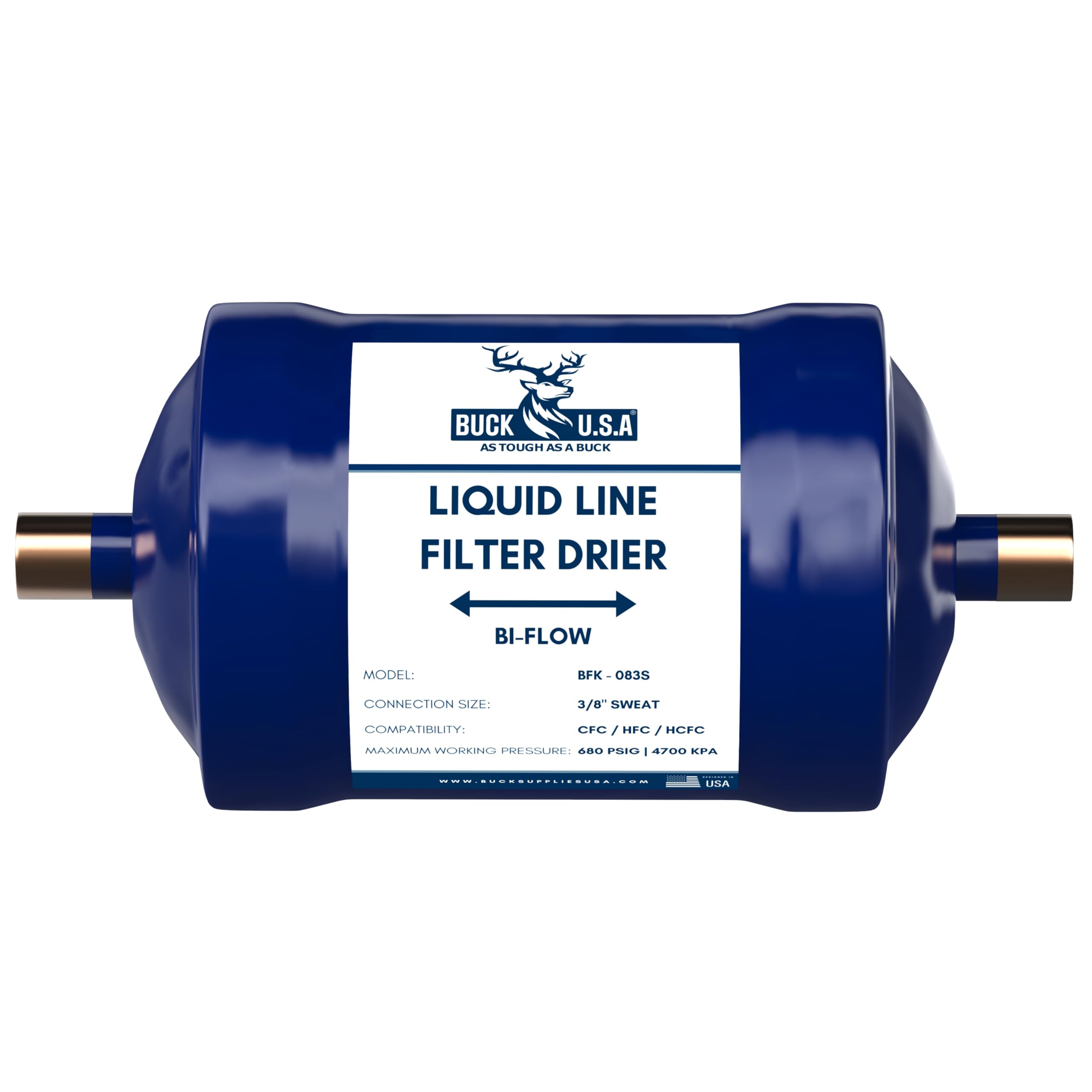

2. Buck Bi-Flow BFK-083S 3/8″ ODF Sweat Filter Drier
The Buck BFK-083S is a bi-flow filter drier with 3/8″ ODF sweat connections, purpose-built for heat pump systems that reverse refrigerant flow between heating and cooling modes. Its internal check-valve and spring arrangement allows unrestricted flow in both directions, so you do not need two separate driers on a reversing loop.
Rated for systems from 1 to 5 tons, this unit handles the higher mass flow rates of larger residential and light commercial split systems. Customers report the sweat fittings have an extra-thick wall that resists burning during brazing, making installation less stressful for technicians who worry about overheating the connection.
The corrosion-resistant steel shell is compatible with CFC, HCFC, and HFC refrigerants, including the high-pressure R410A common in modern mini-splits. If you own a heat pump, this is the correct design — do not use a standard unidirectional liquid-line drier on a heat pump or you will create a pressure drop that kills efficiency.
Why it’s great
- True bi-flow design works in both heating and cooling refrigerant paths
- Thick-walled sweat fittings allow heavy brazing without burn-through
- Rated for 1-5 ton systems covering most residential heat pumps
Good to know
- Requires soldering skill and a torch to install — not a screw-on replacement
- No included flare adapters for service gauge attachment
3. Appli Parts APFD-032 Liquid Line Filter Drier
The Appli Parts APFD-032 delivers a solid 3 cubic-inch molecular sieve element inside a powder-coated steel shell, matching the cubic-inch capacity of mid-tier brands at a fraction of the service call cost. Its 1/4″ SAE flare connections fit the most common liquid line size found in residential AC and refrigeration circuits up to around 5 tons.
With a max working pressure of 650 PSIG, this unit is safe for R410A systems, R134a, R404A, R22, and their approved substitutes. The powder coating is a welcome upgrade over raw steel — it resists the surface rust that can develop when driers sit in damp basements or truck toolboxes before installation.
Customers consistently note that the unit arrives sealed and stays sealed when you keep the caps on between fittings. One practical tip from long-time users: always cap the open ports immediately if you pre-fit the drier before brazing the rest of the line set, because the molecular sieve will adsorb ambient moisture within minutes if left exposed.
Why it’s great
- Powder-coated shell resists corrosion from damp storage environments
- 3 cubic-inch element handles moisture loads for typical residential systems
- Compatible with R410A up to 650 PSIG for modern high-pressure systems
Good to know
- Flare nuts are steel — use a wrench, not pliers, to avoid rounding
- No activated alumina in the core, so acid removal is less aggressive
4. Robinair FLCK-1 Filter Conversion Kit
The Robinair FLCK-1 is not a stand-alone drier — it is a conversion kit that replaces the obsolete swivel fitting on older Promax recovery and recycling units, allowing you to use standard male/male inline filters. If you own an aging recovery machine, this kit keeps it serviceable without replacing the entire unit.
The kit includes a 4-inch braided hose, a male/male inline filter drier, and a brass adapter. The coupler nuts feature deep knurling that lets you finger-tighten quickly in tight spaces, and the hose ends use a six-sided crimp that stays secure under the peak pressures a recovery machine generates during liquid push-pull operation.
Multiple user reports confirm this kit prevents the compressor slugging issue that occurs when liquid refrigerant and contaminants bypass a worn-out internal filter. If you are already capping the drier ends when not in use, you will extend the life of your recovery machine significantly — that habit alone prevents the molecular sieve from saturating with atmospheric moisture between services.
Why it’s great
- Restores older Promax units to service with standard inline filters
- Knurled coupler nuts allow tool-free finger tightening in confined panels
- Six-sided hose crimp prevents leaks under peak recovery pressure
Good to know
- Only for recovery/recycle machines — not a liquid line drier for system install
- Short 4-inch hose may require careful routing in some chassis
5. Robinair 13172 R-12/R-134a Maintenance Kit
The Robinair 13172 kit bundles the genuine 34724 quick-change filter drier with a 16-ounce bottle of Robinair premium high-vacuum pump oil. This is the exact combination required for annual maintenance on most Robinair RRR machines in the 34700, 34800, and 34900 series, including the popular 34788 and 34788NI models.
The drier is a quick-change cartridge design that slides into the machine’s filter housing in seconds — no wrenches, no thread sealant. The included pump oil is a low-viscosity mineral oil optimized for rotary-vane vacuum pumps, ensuring you maintain the ultimate vacuum needed to pull a deep dehydration on a freshly repaired AC system. Running a wet pump with the wrong oil destroys vacuum performance almost immediately.
Customers who service their machines annually with this kit report consistently lower end-of-cycle vacuum readings and fewer moisture-related callbacks. The kit saves roughly 15% compared to buying the filter and oil separately, which adds up when you maintain multiple recovery machines across a shop floor.
Why it’s great
- Includes both the filter drier and the correct vacuum pump oil in one box
- Quick-change cartridge installs without tools in compatible Robinair machines
- Genuine OEM parts ensure warranty compliance and proper machine operation
Good to know
- Only fits specific Robinair RRR station models — verify compatibility first
- Disposable cartridge design generates more plastic waste than a metal shell

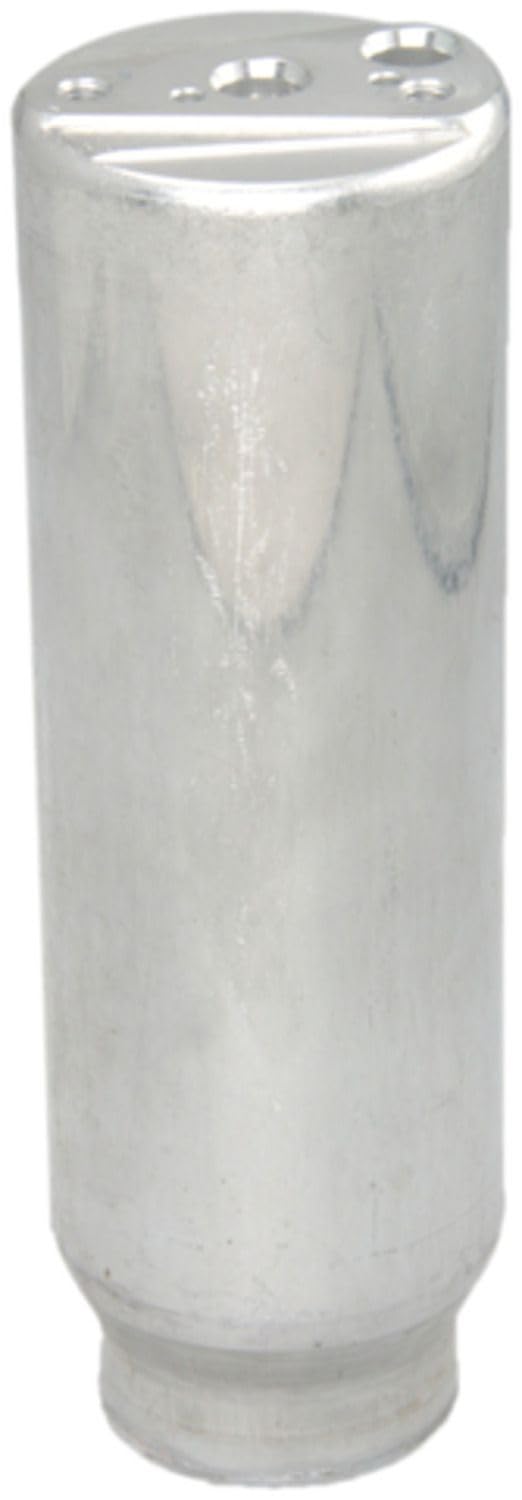

6. Four Seasons 33589 Filter Drier
The Four Seasons 33589 is a vehicle-specific aluminum filter drier designed with a built-in mounting pad that bolts directly to OEM brackets on many Toyota, Land Cruiser, and Lexus models from the 90s and 2000s. The pad mount ensures the drier stays firmly in the airflow path of the condenser fan, which is critical for proper subcooling in automotive AC systems.
This unit ships with the correct O-rings pre-installed on the connection ports, saving you a trip to the parts counter for sealing rings that can vary in thickness and material between manufacturers. The aluminum body weighs only 14.4 ounces — about half the weight of a comparable steel drier — which reduces vibration fatigue on the mounting bracket over rough road surfaces.
One important note from the community: while the 33589 fits many Toyota 80-series and 100-series Land Cruisers, the locating pin positions on the block connectors can differ between model years. Technicians recommend holding your original drier up to the new unit before disconnecting any lines to confirm the guide pins align with your vehicle’s specific compressor block.
Why it’s great
- Pad mount design matches OEM brackets for a precise bolt-in replacement
- Aluminum shell resists corrosion and reduces weight on vehicle mounts
- Includes O-rings so no additional sealing parts are needed
Good to know
- Vehicle-specific fit — verify guide pin positions before ordering
- R134a only — not compatible with R1234yf systems without adapters

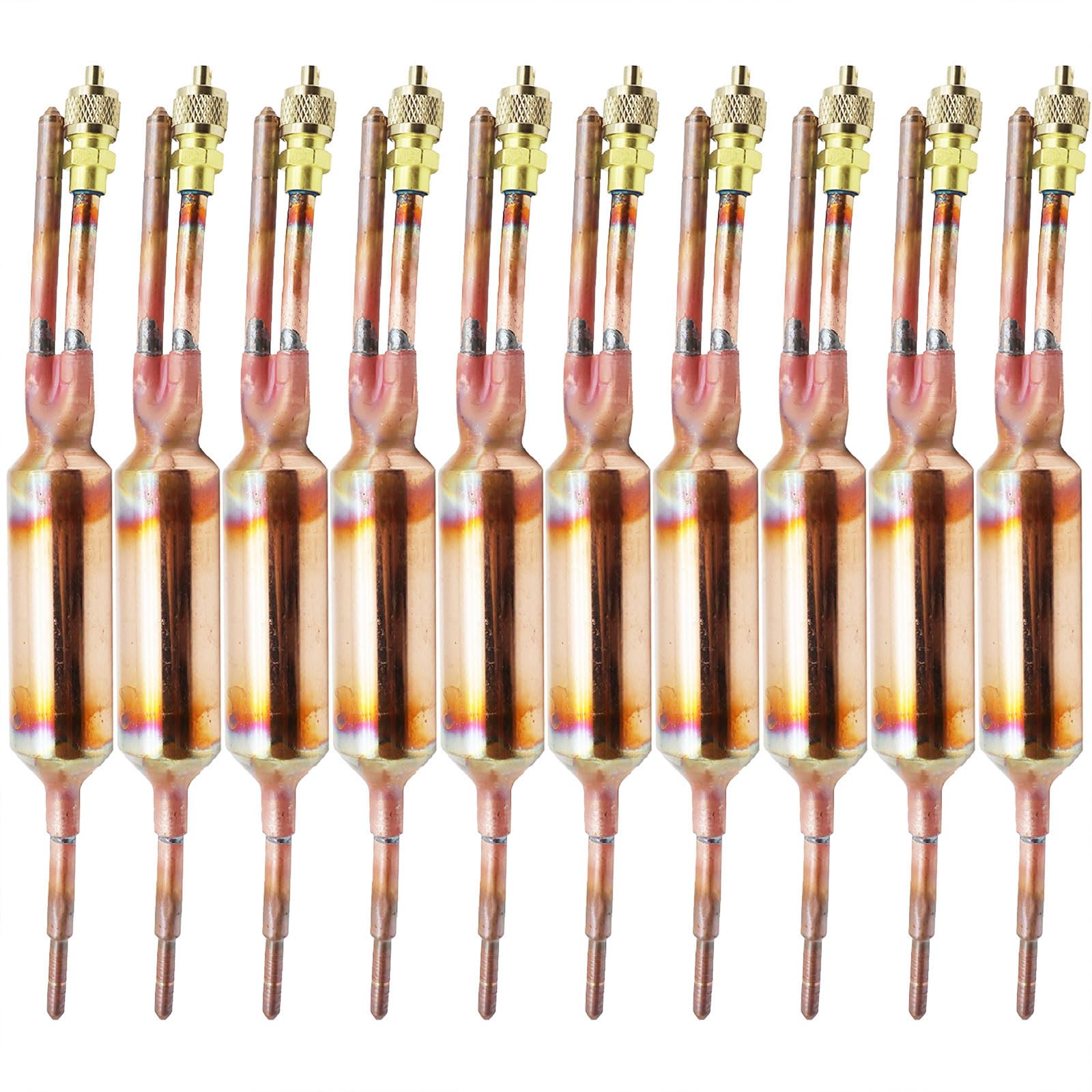

7. REAXOAL 10-Pack Filter Drier with Charging Valve
The REAXOAL 10-pack offers twenty-five-gram (25GR) filter driers with integrated charging valve ports on each unit. The built-in valve port is a major convenience for technicians who need to attach manifold gauges directly at the drier for pressure readings or refrigerant charging without adding a separate T-fitting to the line.
Each drier uses 1/4″ male flare connections and is compatible with R12, R22, R502, R134a, and R407C, covering the vast majority of older residential and light commercial systems still in service. The core material is suitable for basic moisture adsorption and particulate filtration, though it lacks the activated alumina component found in premium driers for aggressive acid removal.
A technician who bought this pack specifically to service multiple window units and small refrigerators noted that the brazing around the flare connections held up well during soldering, and the valve cores sealed properly after repeated gauge connections. For technicians maintaining a fleet of older equipment, buying a 10-pack reduces per-unit cost and ensures you always have a drier on hand for emergency service calls.
Why it’s great
- Built-in charging valve eliminates the need for a separate service port
- 10-pack pricing drops the per-unit cost significantly for fleet servicing
- Works with legacy refrigerants R12, R22, R502 plus modern R134a
Good to know
- No activated alumina in the core — less effective at neutralizing acids
- Not rated for R410A high-pressure systems — check compatibility first
FAQ
Should I use a bi-flow drier on a straight cool system?
How often should I replace the drier during AC service?
Can I use an R22 drier on an R410A system?
Final Thoughts: The Verdict
For most users, the best ac drier filter winner is the Danfoss DCL032 because its bronze construction and balanced 80/20 core blend deliver reliable moisture and acid protection across the widest range of common refrigerants. If you need a Buck BFK-083S for a heat pump’s reversing flow, its sweat connections and 1-5 ton rating make it the proper choice. And for Appli Parts APFD-032 offers dependable liquid line dryness at a price that makes skipping replacement unjustifiable on any service job.
