An access control cable is the hidden backbone of any secure entry system — the physical link that carries power and data from your control panel to the maglock, electric strike, or keypad reader. The wrong gauge, the wrong conductor material, or a jacket that can’t handle the environment will leave your door unlocked when you need it locked most.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent thousands of hours researching low-voltage infrastructure cables, cross-referencing UL ratings, conductor counts, and real-world failure rates to separate the wire that works from the wire that wastes your time.
Whether you’re wiring a single door for a home office or designing a multi-point access network, this guide breaks down the best access control cable options across gauge, conductor material, jacket rating, and total run length to match your exact installation scenario.
How To Choose The Best Access Control Cable
Picking the wrong wire for an access control system is a common and costly mistake. A cable that works for a thermostat will fail in a maglock circuit. Here are the critical specs you need to get right before you start pulling cable.
Gauge and Voltage Drop
22 AWG is the most common for single-door readers and request-to-exit (REX) sensors, but if your run exceeds 100 feet you must step up to 18 AWG to avoid voltage drop that can prevent a magnetic lock from holding. For multi-door panels or long home runs from the power supply, 18 AWG or even 12 AWG is required to maintain consistent current delivery.
Conductor Count and Purpose
A basic maglock setup needs two wires for power and two wires for the door position switch — a minimum of 4 conductors. If you also need to power a reader keypad or run a daisy chain to multiple locking devices, you’ll want 6, 7, or even 8 conductors inside a single jacket to avoid a mess of parallel wires.
Jacket Rating: CL2, CL3, Riser, Plenum
For in-wall installation in residential or commercial buildings, you need a CL2 or CL3 power-limited cable. If the cable runs between floors through a riser shaft, a CMR (riser-rated) jacket is required by fire code. For air-handling spaces like drop ceilings, only a CMP (plenum-rated) jacket is legal. Exposed outdoor runs call for a sunlight-resistant jacket.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Voltive 22/4 Plenum | Plenum Rated | Commercial & Plenum Runs | 1000 ft, OFC, CL3P, 7-strand | Amazon |
| Syston 18/2 Riser | Riser Rated | Doorbell & Short HVAC | 500 ft, Solid Copper, 300V CL3 | Amazon |
| Southwire 12/2 MC Cable | Metal Clad | High-Power Locks & Long Runs | 50 ft, Soft Drawn Copper, 6 Gauge | Amazon |
| Cables Direct 22/4 CCA | Value Spool | Budget-Friendly Alarm Install | 500 ft, CCA, 4-Conductor, 22 AWG | Amazon |
| Southwire 18/7 Thermostat | Multi-Conductor | Multi-Device Wiring | 50 ft, Solid Copper, 7-Conductor | Amazon |
| Bingotec 22/2 Stranded | OFC Bulk | Custom Low-Voltage Projects | 100 ft, Tinned Copper, 17-Strand | Amazon |
| BOZZON Access Panel | Wall Termination | Service Opening for Cable Access | 18×18 in, Insulated, No-Frame Mount | Amazon |
In‑Depth Reviews

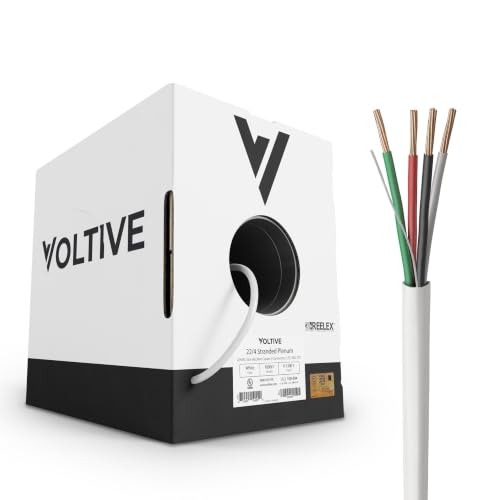

1. Voltive 22/4 Stranded Alarm Wire, Plenum CL3P
The Voltive V-1300-1 is the premium choice for any installation where fire code compliance and signal integrity matter most. Each 22 AWG conductor uses 7 strands of oxygen-free bare copper — not copper-clad aluminum — so you get maximum conductivity and minimal signal loss over long cable pulls up to 1000 feet.
The CL3P plenum rating means this cable is legally safe for installation in air-handling drop ceilings and between floors, which makes it mandatory for commercial access control projects. The jacket includes a nylon ripcord for fast stripping, foot markers for accurate measurement, and a reinforced dispensing box with a large payout hole that prevents kinks and tangles during installation.
While the outer jacket tears more easily than some armored alternatives, a simple cable clamp or heat-shrink at the termination point solves this completely. For commercial-grade reliability from panel to reader, this is the benchmark.
Why it’s great
- Genuine oxygen-free copper with 7-strand conductors for superior signal integrity
- CL3P plenum rating allows installation in any air-handling space without violating code
- Ripcord, foot markings, and kink-free box design dramatically reduce installation time
Good to know
- Outer jacket is prone to tearing longitudinally once cut; reinforce terminations with shrink tubing
- Premium price is justified for code-compliant commercial work but may exceed budget for small residential jobs

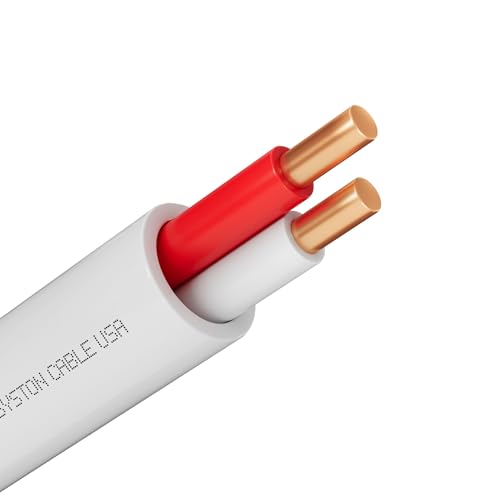

2. Syston 18/2 Thermostat Doorbell Cable
For wiring smart doorbells, REX buttons, or short-run thermostat connections to an access panel, the Syston 18/2 delivers pure 100% solid copper conductors in a durable white jacket that resists sunlight and abrasion. The larger 18 AWG gauge keeps voltage drop negligible even on 100-foot doorbell transformer circuits.
The CMR/CL3R riser rating is the correct fire classification for cable routed between floors inside walls, giving you code compliance without the higher cost of full plenum-rated wire. The PVC jacket strips cleanly with standard wire strippers, and the two-conductor construction makes it ideal for simple power-only connections to a single maglock or electric strike.
At 500 feet per spool, this is a generous amount of premium solid copper for mid-range installations. Just note that solid wire is less forgiving of repeated flexing than stranded, so avoid routing it through moving door frames without a service loop.
Why it’s great
- 100% solid bare copper conductors deliver maximum conductivity and signal reliability
- Riser-rated jacket meets residential and commercial fire code for in-wall installation
- Sunlight-resistant jacket suitable for protected outdoor runs like doorbell transformers
Good to know
- Solid copper is less flexible than stranded; avoid repeated bending at terminations
- Only 2 conductors limit use to simple power-only applications without combined data lines
3. Southwire 12/2 Type MC Cable Aluminum
When an access control system requires high current — such as powering multiple heavy-duty maglocks from a central panel, or a long home run exceeding 200 feet — standard low-voltage cable won’t cut it. The Southwire 68580052 is a 12-gauge, 2-conductor metal-clad (MC) cable built with soft drawn copper that can handle higher loads without overheating.
The aluminum armor provides exceptional physical protection against rodents, accidental drilling, and construction damage, making it the right choice for exposed runs in basements, garages, or mechanical rooms. The binder tape bearing the print legend keeps the conductors organized during installation, and the MC jacket is compatible with standard MC connectors and boxes.
At 50 feet per coil, this is a short but heavy-duty solution for point-to-point high-demand circuits. The 6-gauge equivalent rating inside the armor is actually two 12 AWG conductors, so this is strictly a power cable — pairing it with a separate data cable is necessary for integrated reader communication.
Why it’s great
- 12 AWG soft drawn copper conductors support high current to multiple maglocks or long runs
- Aluminum MC armor provides superior physical protection in exposed or high-traffic areas
- Priced below equivalent big-box store options without sacrificing quality
Good to know
- Only 2 conductors limit this to power-only; a separate data cable is needed for reader communication
- Short 50-foot length means you may need multiple coils for large installations
4. Cables Direct Online 500ft 22/4 Alarm CCA Cable
For budget-conscious residential alarm and access control installations where runs stay under 150 feet per zone, the Cables Direct 22/4 delivers a full 500 feet of 4-conductor cable at a price that beats pure-copper equivalents by a wide margin. The copper-clad aluminum (CCA) construction keeps costs low and reduces overall weight during installation.
The 4-conductor configuration is perfect for a basic door or gate setup: two wires for lock power and two wires for the door position sensor (DPS), all running through a single jacket. The anti-stretch fiber inside the bundle prevents the wire from deforming during pulls, and the white jacket is UV-resistant for occasional outdoor use in protected locations.
Be aware that CCA has higher DC resistance than pure copper, which means voltage drop becomes a real issue on runs much longer than 200 feet. Reviews also occasionally report a mix of stranded and solid wire on the same spool, so inspect the first few feet before committing to a pull.
Why it’s great
- Very cost-effective per foot for alarm and access control projects with short-to-medium runs
- 4-conductor design supports both lock power and a door position sensor in one jacket
- Anti-stretch fiber and dispenser box design reduce tangling during installation
Good to know
- Copper-clad aluminum has higher resistance; avoid runs over 200 feet to prevent voltage drop
- Some spools may contain a mix of stranded and solid wire; verify before full installation
5. Southwire 18/7 Solid Copper Thermostat Wire
When your access control panel must communicate with multiple devices — a keypad reader, a door position switch, a request-to-exit button, and a remote buzzer — you need more than 4 conductors. The Southwire 18/7 provides 7 individual 18-gauge solid copper wires within a single brown jacket, giving you the flexibility to power and control a full door station without spaghetti wiring.
The 18 AWG gauge handles voltage drops much better than 22 AWG, making this cable suitable for runs of 150 to 200 feet where a standard alarm cable would start losing voltage. Each conductor is color-coded for easy termination, and the solid copper construction ensures a reliable, corrosion-resistant connection at every punchdown block or screw terminal.
This is Class 2 power-limited cable rated at 150V, which is more than sufficient for any 12V or 24V access control circuit. The 50-foot coil is a practical length for a single door station or for running from a central panel to a nearby junction box.
Why it’s great
- 7-conductor configuration handles lock power, a door sensor, and card reader communication in one jacket
- 18 AWG solid copper minimizes voltage drop on runs up to 200 feet
- Color-coded conductors simplify punchdown and reduce wiring errors
Good to know
- Solid wire is not suited for applications requiring repeated flexing at the termination
- 50-foot coil may be short for panel-to-far-door installations; plan your conduit path carefully
6. Bingotec 100ft 22/2 Tinned Copper Wire
For small-scale projects like wiring a single electric door strike, a gate release, or a custom pedal-board controller, the Bingotec 22/2 delivers an entry-level price point with genuine oxygen-free tinned copper — not CCA. Each conductor uses 17 strands of 0.14 mm tinned copper, making it highly flexible and resistant to corrosion in humid environments.
The 22 AWG gauge is adequate for runs under 75 feet in a 12V system, and the 300V rating offers a generous safety margin for low-voltage circuits. The white PVC jacket is RoHS-compliant, resistant to sunlight and chemicals, and easy to strip with standard tools, which is useful if you’re soldering custom-length jumpers for a controller board.
At only 2 conductors, this is strictly a power cable — you’ll need a separate run for any data or sensor wiring. But if you need a small, flexible, affordable spool of real tinned copper wire for a focused access control job, this is a solid pick.
Why it’s great
- Oxygen-free tinned copper with 17-strand construction resists corrosion and stays flexible
- Easy-to-strip PVC jacket is UV and chemical resistant for semi-outdoor use
- Very economical for short-run power connections to a single door or strike
Good to know
- Only 2 conductors limit this to simple power-only applications without data lines
- 22 AWG gauge may cause voltage drop on runs exceeding 75 feet in a 12V system
7. BOZZON 18×18 Insulated Drywall Access Panel
Once you run the cable, you need a clean, code-friendly way to terminate it at the door frame or reader. The BOZZON 18×18 insulated access panel provides a professional-looking service opening for reaching wiring connections, power supplies, and control board terminations hidden inside walls or ceilings.
The plastic panel includes a 7 mm foil-backed insulation layer that improves thermal performance and adds sound-dampening — a useful feature when the access point is in a finished interior wall. Installation requires no framing or screws: trace the flange, cut the drywall, apply construction adhesive, and press the panel into place. The hinged door opens a full 180 degrees and is removable for maximum clearance during maintenance.
At 18 by 18 inches, this panel is large enough to provide easy access to a multi-door control board, power transformer, or a bundle of cable termination blocks. The flush-mount design sits nearly level with the surrounding drywall, blending into a finished room without looking like an industrial utility door.
Why it’s great
- Easy no-screw installation with construction adhesive saves time compared to metal access frames
- Foil-backed insulation improves thermal efficiency and reduces noise transmission through the opening
- Large 18×18 inch opening accommodates control boards, transformers, or multiple cable bundles
Good to know
- Plastic construction may feel less rugged than metal panels; latch is tight and requires a screwdriver to open
- Not weather-rated for exterior installation; use indoors or in sheltered service closets only
FAQ
What gauge wire do I need for a maglock installed 150 feet from the power supply?
Can I use standard thermostat wire for access control readers?
What is the difference between CL2, CL3, and plenum-rated cable for access control?
Final Thoughts: The Verdict
For most users, the best access control cable winner is the Voltive 22/4 Plenum because it combines oxygen-free copper with a code-compliant CL3P jacket and a 1000-foot spool that handles everything from a single reader to a multi-door system. If you need a higher gauge for a long-run lock circuit, grab the Southwire 12/2 MC cable for its armored reliability. And for a budget-friendly multi-conductor option that keeps your installation organized, nothing beats the Southwire 18/7 thermostat wire.
