Standard heat shrink tubing just insulates — it doesn’t seal. The moment moisture creeps past a bare wire end, corrosion begins silently eating your connection from the inside out. Adhesive lined heat shrink solves this by fusing a hot-melt glue layer around your splice, creating a permanent, waterproof, strain-relieved bond that ordinary tubing simply cannot deliver.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent hundreds of hours analyzing the technical specs, shrink ratios, adhesive formulations, and real-world user durability reports across dozens of adhesive lined heat shrink kits to separate the stuff that actually waterproofs from the kits that leave you with sliding, leaky sleeves.
This guide breaks down the specific shrink ratios, wall thicknesses, and size assortments that matter most so you can confidently choose the best adhesive lined heat shrink for your automotive, marine, or electrical project.
How To Choose The Best Adhesive Lined Heat Shrink
Selecting the right adhesive lined heat shrink kit is not about buying the biggest box of tubes — it is about matching the shrink ratio, adhesive volume, and diameter assortment to your actual wiring work. A kit packed with tiny 3/32” pieces is useless if you are sealing 4-gauge battery cables, and a 2:1 ratio tube will never grip a stepped connector tightly enough to waterproof it.
Shrink Ratio — The Most Critical Spec
The shrink ratio, written as 2:1, 3:1, 4:1, or 5:1, tells you how much the tubing diameter reduces when heated. A 3:1 tube shrinks to one-third of its original diameter, while a 5:1 tube shrinks to one-fifth. Higher ratios (4:1 and 5:1) are essential for wrapping around irregular shapes like spade terminals, ring connectors, or butt splices where a standard 2:1 tube would never fully tighten. The adhesive lining in higher-ratio tubes is also usually thicker because there is more space between the tube wall and the wire before shrinking.
Adhesive Volume and Wall Construction
Dual-wall construction means an outer polyolefin shell and an inner layer of hot-melt adhesive. When heated, the adhesive melts and flows into every crevice of the connection, then cools into a solid, waterproof, and strain-relieving jacket. Premium kits use more adhesive per inch of tubing, which you can often see oozing out of the ends after shrinking — a good sign of a complete seal. Cheap kits may have a thin, barely visible glue layer that fails to seal under vibration or moisture exposure.
Diameter Assortment and Length
Most kits include between 6 and 8 different diameters, typically ranging from 3/32” to 1”. For automotive and marine work, you need diameters from 1/8” up to at least 1/2” to cover common wire gauges (18 AWG through 4 AWG). The total linear footage matters too — boxed kits with many short pieces (under 2 inches) limit your ability to cover long wire runs or multiple connections on a single harness. Rolled kits let you cut custom lengths but require more storage organization.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Wirefy 1/4″ 4:1 Roll | Premium Single Roll | Permanent waterproof connections on a single gauge | 4:1 ratio, 50 ft roll | Amazon |
| haisstronica 4:1 Kit | Premium Multi-Size | Heavy-duty marine and automotive harnesses | 4:1 ratio, 600 pieces | Amazon |
| HUAKAYO 5:1 Roll (54 ft) | Premium Multi-Ratio | Large connectors and irregular splices | 5:1 ratio, 7 sizes | Amazon |
| HUAKAYO 5:1 Roll (39 ft) | Value Roll Set | Custom lengths with maximum shrink ratio | 5:1 ratio, 39 ft total | Amazon |
| SELTERM Large Size Kit | Large Diameter | Battery cables and thick wiring (1/0 to 4 AWG) | 3:1 ratio, up to 1″ diameter | Amazon |
| ALEKOR 240 PCS Kit | Mid-Range Assortment | General electrical and automotive repairs | 3:1 ratio, 50 mm length | Amazon |
| MILAPEAK 130 PCS Kit | Entry-Level Assortment | Light DIY and occasional solder joint protection | 3:1 ratio, 6 sizes | Amazon |
In‑Depth Reviews
1. Wirefy 1/4″ 4:1 Heat Shrink Tubing Roll
The Wirefy 1/4″ roll is the benchmark for adhesive lined heat shrink performance. Its 4:1 shrink ratio recovers to one-quarter of its original diameter, which means it tightens aggressively around spade terminals, ring connectors, and even slightly irregular splices where a 3:1 tube would leave gaps. The adhesive lining is noticeably thick — when you apply heat, the glue flows out visibly from both ends, confirming a complete waterproof seal that will not slide along the wire after curing.
This is a single-diameter roll (50 feet of 1/4″ tubing), so it is ideal if you standardize on one common wire gauge for your harness work. Users rewiring custom truck harnesses and boat electrical systems report that once shrunk, the bond is structurally permanent — you cannot pull the tubing off without destroying it. The outer wall provides excellent abrasion resistance, and the 4:1 ratio eliminates the need for multiple size steps when covering connectors that are slightly larger than the wire itself.
The trade-off is the lack of size variety. You get 50 feet of one diameter, so this works best if you know your typical wire size is around 1/4″ (covering roughly 12 to 10 AWG wire). For projects requiring multiple diameters, you would need to pair this roll with another size or buy a multi-size kit. Still, for pure sealing performance on a single wire gauge, nothing in this lineup beats the Wirefy 4:1 roll.
Why it’s great
- True 4:1 shrink ratio grips irregular connectors tightly
- Thick adhesive lining creates structural, permanent waterproof bond
- 50-foot continuous roll eliminates waste from short pieces
Good to know
- Single diameter only — not a multi-size assortment
- Best suited for 12-10 AWG wire range

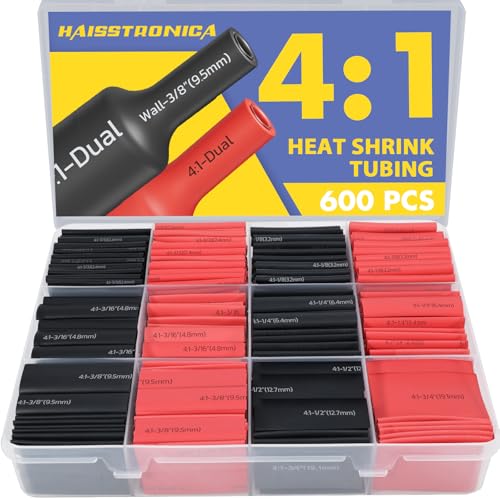

2. haisstronica 4:1 Heat Shrink Tubing Kit
The haisstronica 4:1 kit delivers premium-level shrink performance in a multi-size bundle that covers 7 diameters from 3/32″ up to 3/4″. The 4:1 ratio is genuine — verified by users who have measured the shrink — and the adhesive lining is dense enough that it oozes from the ends when properly heated, signaling a full seal. The dual-wall construction provides both abrasion resistance and a rigid, strain-relieving jacket around the connection.
This is the kit to buy when you are rewiring an entire boat, building out a vehicle harness, or doing industrial electrical work that demands a reliable waterproof seal on every splice. The 600-piece count offers real longevity; users report going through multiple sizes daily and still having inventory months later. The included sizes are practical — skipping useless micro-tubes and focusing on diameters that matter for marine and automotive wiring.
The finished product becomes notably stiff after shrinking. This is excellent for strain relief, but if you need flexible tubing that bends around tight corners, the haisstronica may be too rigid. Also, the 3/4″ diameter tube in the kit measures nearly 1.25″ wide when flattened, so double-check your connector width before selecting that size. For most heavy-duty applications, this kit is a top-tier choice.
Why it’s great
- Verified 4:1 shrink ratio across all 7 diameters
- Dense adhesive lining produces visible waterproof seal
- High piece count with practical, usable sizes
Good to know
- Becomes very rigid after shrinking — limited flexibility
- Largest size may be wider than expected when flattened

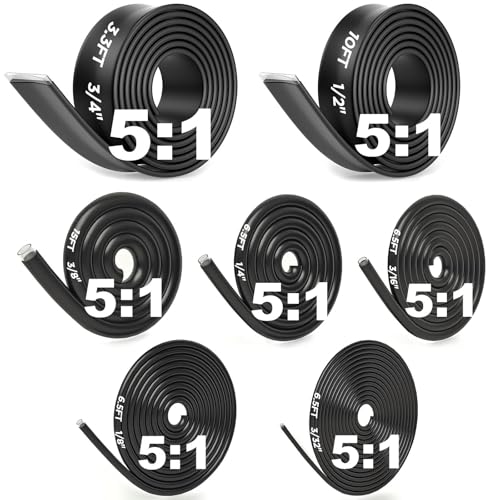

3. HUAKAYO 5:1 Heat Shrink Tubing Roll Kit (54 ft)
The HUAKAYO 5:1 kit pushes shrink ratio to the extreme — the tubing reduces to one-fifth of its original diameter, making it the best solution for stepping down over large connectors, battery terminals, or irregularly shaped splices. The adhesive lining volume is roughly double that of a standard 3:1 tube, which translates to a thicker glue layer that flows more aggressively into gaps. Users report the adhesive visibly blips out of the ends, confirming a full 360-degree seal.
The rolled format is a major advantage for efficiency. You cut exactly the length you need rather than wasting short precut sections that might be too long or too short. The 7 diameters cover 3/32” through 3/4”, with the most generous lengths going to the medium sizes (1/4” and 3/8” get 6.5 feet each). For large-scale harness building, this eliminates the frustration of running out of a critical diameter mid-project.
One practical note: the tubing arrives folded rather than rolled on spools, so you will need to straighten each diameter before cutting for accurate lengths. The tubing also stiffens noticeably after shrinking, which helps with strain relief but limits routing around tight bends. For any application requiring maximum shrink range and superior adhesive volume, this kit delivers unmatched versatility.
Why it’s great
- True 5:1 ratio for covering large and irregular connectors
- Double the adhesive lining compared to 3:1 tubing
- Rolled format lets you cut custom lengths, reducing waste
Good to know
- Tubing stored folded, not rolled — requires straightening
- Becomes rigid after shrinking; less flexible than some kits
4. HUAKAYO 5:1 Heat Shrink Tubing Roll Kit (39 ft)
The smaller HUAKAYO 5:1 kit (39 total feet) offers the same premium shrink ratio and dual adhesive volume as its larger sibling but at a lower entry point. The 7 diameters are identical: 3/32” through 3/4”, with the larger sizes (1/2” and 3/4”) limited to 2 feet each. This kit is ideal if you need 5:1 performance for occasional large connectors but do not need the extended footage of the 54 ft version.
The tubing itself is the same thick, textured dual-wall material that users praise for not splitting during shrinking and for holding tightly even under mechanical stress. The adhesive lining is generous — enough that it pools at the ends when heated, creating a visible ring of glue that signals a complete moisture barrier. Multiple user reports confirm the tubing withstands outdoor exposure, including buried landscape lighting wiring that survived a full winter season.
The trade-off is storage practicality. Since the tubes are folded rather than individually labeled, you will want to mark each diameter after cutting to avoid confusion. Also, the large diameter pieces run short quickly — with only 2 feet of 1/2” and 3/4” tubing, a few long connections can exhaust those sizes. For budget-conscious buyers who prioritize shrink ratio over total footage, this kit offers excellent value.
Why it’s great
- Same 5:1 adhesive performance as premium version at lower cost
- Thick wall construction resists splitting during shrink
- Covers 7 diameters for versatile project use
Good to know
- Large diameters (1/2″, 3/4″) only 2 feet each
- Folded storage without labels requires organization
5. SELTERM Large Size Heat Shrink Tubing Kit
The SELTERM kit is built specifically for large-diameter applications — it includes 1/2”, 5/8”, 3/4”, and 1” tubing in both black and red. This is the go-to kit for sealing battery cable lugs, 1/0 and 4 AWG wire terminations, and heavy-duty marine connections. The 3:1 shrink ratio is sufficient for most large connectors, and the dual-wall adhesive lining forms a rigid, waterproof jacket that users describe as “heavy duty.”
Users working on battery cable assemblies praise the kit for its ability to seal folded-over connections: you can shrink one piece over the terminal, fold the excess, then apply a second piece over the fold for a completely encapsulated seal. The adhesive visibly oozes out when properly heated, and the resulting bond is stiff enough to provide strain relief on heavy cables. The 108-piece count with 40 pieces in the most used sizes (1/2” and 3/4”) gives you real working inventory for large projects.
The primary limitation is the short length of each piece — most are around 1.75 to 2 inches. For long battery cable runs, you may need to overlap multiple pieces, which works but adds time. Also, the 3:1 ratio is not as aggressive as 4:1 or 5:1 kits, so very large connectors (like 2/0 lugs) may require the next size up. For standard battery terminal and large wire work, this kit is purpose-built and effective.
Why it’s great
- Includes large 1″ diameter — rare in multi-size kits
- Black and red color coding for polarity identification
- Heavy-duty adhesive forms stiff, waterproof jacket on big cables
Good to know
- Short individual pieces (~1.75″) require overlapping for long runs
- 3:1 ratio less aggressive than 4:1 or 5:1 alternatives

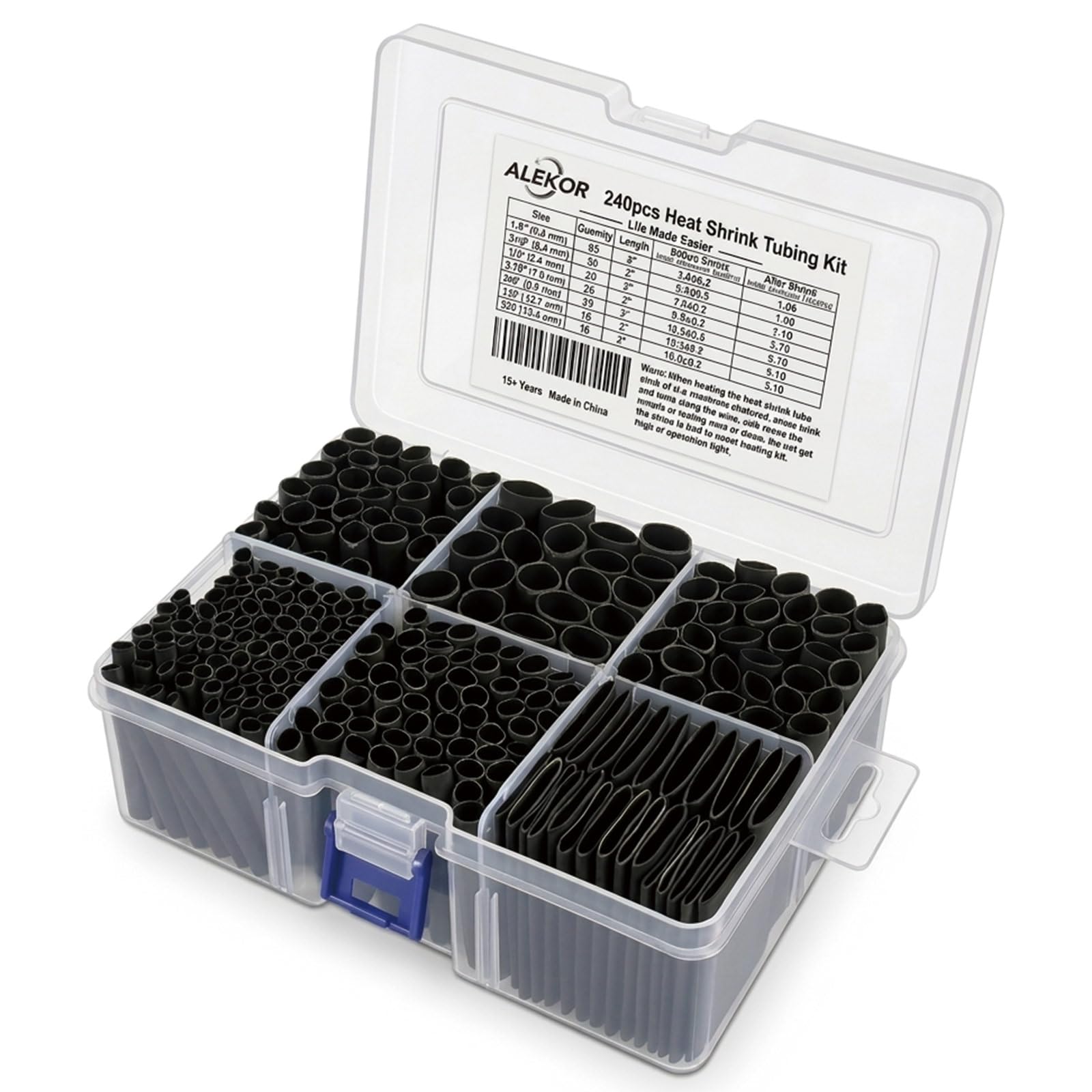

6. ALEKOR 3:1 Heat Shrink Tubing Kit, 240 PCS
The ALEKOR kit delivers a solid mid-range option with a practical feature: each piece is 50 mm (roughly 2 inches) long, which is 5 mm longer than standard precut tubing. This extra length ensures full terminal coverage and better strain relief, especially on ring terminals and spade connectors where standard short pieces barely cover the crimped barrel. The 3:1 shrink ratio provides reliable tightening over stepped connectors without requiring the extreme shrink of 5:1 tubing.
The diameter selection is focused on practical sizes — 1/8” through 5/8” — skipping the tiny 3/32” pieces that tend to accumulate unused in many kits. Users consistently praise the glue volume, noting that it creates a waterproof seal suitable for automotive wiring where moisture and corrosion are constant threats. The material is flame-retardant polyolefin rated from -67°F to 257°F, making it suitable for engine bay and high-heat environments.
Some users note that the tubing could be slightly thicker for heavy-duty marine use, and the 3:1 ratio may not tighten enough on very large connectors. But for general electrical repairs, automotive work, and DIY projects where reliable waterproof sealing is required without the premium cost of 4:1 kits, the ALEKOR 240 PCS kit is a balanced, practical choice that delivers predictable results.
Why it’s great
- 50 mm length provides better terminal coverage than standard 1.5″ pieces
- Practical size range skips useless micro diameters
- Flame retardant and rated for high-temperature environments
Good to know
- Wall thickness is moderate, not heavy-duty
- 3:1 ratio may not seal very large connectors tightly
7. MILAPEAK 130 PCS 3:1 Adhesive Heat Shrink Tubing Kit
The MILAPEAK kit is the most budget-friendly entry point into adhesive lined heat shrink. It includes 130 pieces across 6 diameters (3/32” up to 1/2”), each 3.5 inches long — notably longer than the standard 1.75-inch pieces found in many competing kits. This extra length makes it easier to cover longer splices or double-layer over a connection for extra protection. The 3:1 shrink ratio is consistent and reliable when applied with a heat gun at the recommended 212°F.
The adhesive lining performs well for the price tier — users report successful waterproof seals on pool pump cables and automotive wiring exposed to wet conditions. The tubing is UL and CSA certified for up to 600V and 257°F, and the material is RoHS compliant and formaldehyde-free. The included plastic storage box keeps the 6 sizes organized, though you will likely need to sort them yourself initially as the sizes are not individually labeled inside the case.
The main limitation is the adhesive volume — it is adequate for light-duty sealing but visibly thinner than the adhesive in 4:1 or 5:1 kits. For heavy marine exposure or permanent structural sealing, a premium kit is a better bet. But for occasional DIY projects, solder joint protection, or organizing wires in a clean, corrosion-resistant way, the MILAPEAK kit works well without over-investing.
Why it’s great
- Long 3.5-inch pieces provide more coverage than standard short tubes
- UL/CSA certified for electrical safety and heat rating
- Budget-friendly entry point with decent adhesive performance
Good to know
- Adhesive layer thinner than premium 4:1 and 5:1 kits
- Sizes not individually labeled in the storage box
FAQ
Can I use a lighter instead of a heat gun for adhesive lined heat shrink?
How do I know the adhesive has fully sealed my connection?
Why does my heat shrink slide along the wire after cooling?
Final Thoughts: The Verdict
For most users, the best adhesive lined heat shrink winner is the Wirefy 1/4″ 4:1 Roll because it delivers the most aggressive shrink ratio and thickest adhesive lining in a continuous 50-foot roll, ensuring every connection gets a permanent, waterproof seal. If you need multiple diameters for boat or vehicle rewiring, grab the haisstronica 4:1 600-piece kit for premium coverage across all common wire sizes. And for large battery cable work where 1″ tubing is required, nothing beats the SELTERM Large Size Kit for its heavy-duty adhesive and big-diameter assortment.
