The moment your compressor tank holds pressure and the motor cuts out at exactly the right PSI is the moment you stop worrying. A flaky pressure switch that chatters, drifts, or fails to shut off turns a reliable tool into a hazard and a headache. Getting the right 220V switch with consistent cut-in and cut-out pressure and a durable contact set is the only way to keep your compressor cycling properly for years.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent hundreds of hours combing through technical datasheets and real owner feedback to separate the switches that hold their calibration from the ones that cause nuisance shutdowns or safety risks.
Whether you’re refurbishing an old tank or upgrading a new build, nailing the right air compressor pressure switch 220v means matching your motor’s amperage draw to a switch with a solid mechanical differential and reliable contact material that won’t weld shut under load.
How To Choose The Best Air Compressor Pressure Switch 220V
Selecting a 220V pressure switch for your air compressor involves more than just matching the port size. You need to evaluate the pressure range, the differential, the contact material, and whether the switch includes an unloader valve. A wrong choice means either short cycling, motor burn-out, or a tank that refuses to refill.
Pressure Range and Differential
The cut-in and cut-out settings determine when your compressor kicks on and off. The differential is the gap between these two numbers. Fixed-differential switches are simpler and more reliable for basic single-stage compressors, while adjustable differential models let you fine-tune the operating band for specific tools or tank sizes. A wider differential reduces motor wear by limiting start cycles.
Contact Material and Current Rating
For a 220V motor pulling 15 to 20 amps, the internal contacts need to handle the arcing that happens every time the compressor stops. Silver-alloy contacts resist welding and pitting far better than plain brass. If your switch lives on a heavy-use compressor, prioritize a model with silver alloy or tungsten-tipped contacts rated for 40 amps or more.
Unloader Valve and Port Configuration
The unloader valve releases trapped pressure in the head and delivery line so the motor can start unloaded. Without it, the motor stalls or draws excessive starting current. Single-port switches work for basic retrofits, but four-port designs give you the flexibility to add a gauge, safety valve, and additional accessories without tee fittings.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Square D Pumptrol 9013FHG42J59M1X | Premium 2-Stage | High-Pressure 2-Stage Compressors | 135-175 PSI / 40 PSI Differential / IP54 | Amazon |
| Furnas / Hubbell 69JF7LY2C | Premium 4-Port | Heavy-Duty Shop Compressors | 95-125 PSI / 4-Port / Manual Lever | Amazon |
| Square D 9013FHG12J52M1X (Paks) | Mid-Range 1-Port | Standard Single-Stage Replacement | 95-125 PSI / Unloader & On/Off Lever | Amazon |
| Telemecanique 9013FHG12J52M1X | Mid-Range 2-Way | Durable Drop-In Upgrade | 125 PSI Set Off / 30 PSI Fixed Diff | Amazon |
| Telemecanique 9013FSG2J24 | Mid-Range OEM | OEM Replacement for Older Pumps | 40-60 PSI / 20-65 PSI Cut-Out / 40A | Amazon |
| I.E.E. LF10-L4 Gauge + Popoff | Budget-Friendly Kit | Small Compressor Refurbishment | 95-125 PSI / 4-Port / 0-200 PSI Gauge | Amazon |
| Ingersoll-Rand 23474661 | Premium OEM | Direct Fit for IR SS3/SS5 Models | 100 PSI Cut-In / 135 PSI Cut-Out | Amazon |
In‑Depth Reviews
1. Square D Pumptrol 9013FHG42J59M1X 135-175 PSI
The Square D Pumptrol 9013FHG42J59M1X is the gold standard for two-stage compressors that need a higher pressure ceiling. Preset at 135 PSI cut-in and 175 PSI cut-out, with a 40 PSI fixed differential, it handles the demanding duty cycle of a 220V single or three-phase motor without drifting. The IP54-rated enclosure keeps dust and moisture out, which matters in a gritty shop environment.
Owners report it bolts on as a direct replacement for aging compressors like the Saylor Beall, with the unloader valve and on/off lever working reliably out of the box. The stainless steel contact material resists the pitting that plagues cheaper brass contacts under repeated 240V cycling. Some users note the plastic cover feels lighter than older metal housings, but it still meets NEMA 1 safety standards.
If you need a switch that holds calibration at higher PSI ranges and can handle the current draw of a 5+ HP motor, this Square D delivers the consistency that keeps production on track. The 1/4″ NPT port and compression unloader connection make plumbing straightforward for most two-stage setups.
Why it’s great
- Preset 135-175 PSI range ideal for 2-stage compressors
- IP54 rated against dust and water splash
- Stainless steel contacts resist arcing at 220V
Good to know
- Only one 1/4″ NPT port limits accessory expansion
- Plastic cover less robust than older metal versions

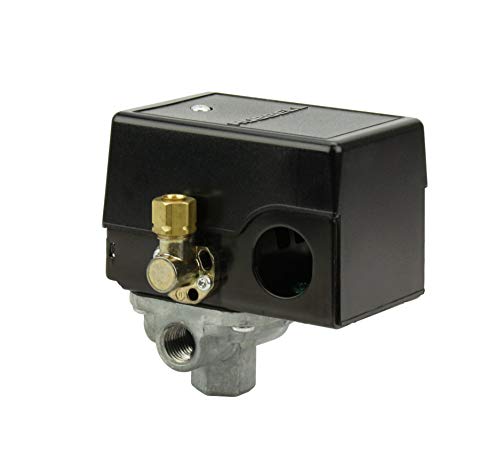

2. Furnas / Hubbell 69JF7LY2C 95-125 PSI Four Port
The Furnas / Hubbell 69JF7LY2C gives you four 1/4″ female NPT ports on a compact cast-aluminum body, making it the most versatile option for compressors that need a gauge, safety valve, and delivery line without stacking adapters. Preset at 95-125 PSI with a 30-40 PSI adjustable differential, it suits both single-stage and some smaller two-stage pumps running on 220V.
Real-world users report it works as a drop-in on 30-year-old Campbell Hausfeld 60-gallon tanks and Sandborn 11-gallon shop compressors, with the manual on/off lever adding convenience. The 10 amp current rating means it’s best paired with motors under roughly 2 HP unless you switch to a contactor. The brass contact material is adequate for moderate duty, but heavy cycling may eventually cause pitting.
Where this switch excels is plumbing flexibility — you can fit a blow-down valve, a second gauge, or a remote unloader without drilling new holes. The compression unloader connection accepts 1/4″ OD copper tubing cleanly. Just be careful tightening the ports to avoid cracking the cast aluminum housing.
Why it’s great
- Four 1/4″ NPT ports for easy gauge and valve addition
- Adjustable differential from 30 to 40 PSI
- Compact cast-aluminum body fits tight spaces
Good to know
- 10 amp rating requires contactor for larger HP motors
- Brass contacts may wear faster than silver alloys under heavy use
3. Square D 9013FHG12J52M1X (Paks) 95-125 PSI
This Square D 9013FHG12J52M1X (Paks version) is the mid-range workhorse for single-stage compressors that need a simple, reliable 95-125 PSI switch with an unloader. The single 1/4″ NPT port keeps the installation clean if you already have a tank-mounted gauge and safety valve. The built-in unloader and manual on/off lever give you basic control without frills.
Multiple owners highlight that the cut-out pressure is adjustable via the center spring nut — turning clockwise raises the set point, counter-clockwise lowers it. The on/off lever has a flimsier feel without the cover installed, but once the cover is secured it works fine. Some users were surprised to receive a unit without the Square D logo on the cover, but the internals are genuine Schneider Electric.
For the price, this switch provides the same contact reliability as the premium Square D models but in a single-port housing. If you only need to replace a failed switch on a standard 220V compressor and want the trusted Pumptrol design without paying for extra ports, this is the sweet spot.
Why it’s great
- Adjustable cut-out pressure via center spring nut
- Includes unloader valve and on/off lever
- Trusted Square D / Schneider Electric quality
Good to know
- Single port limits accessory connections
- On/off lever feels weak when cover is removed

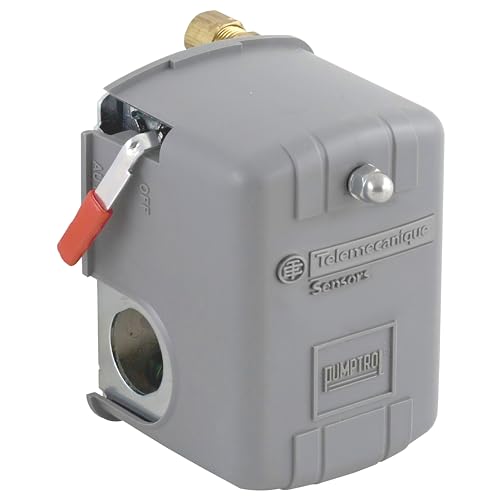

4. Telemecanique 9013FHG12J52M1X 125 PSI Fixed Differential
The Telemecanique 9013FHG12J52M1X is essentially the same diaphragm-actuated design as the Square D Pumptrol, but sold under the Telemecanique brand (now a Schneider Electric subsidiary). It offers a 125 PSI set-off pressure with a fixed 30 PSI differential, meaning the compressor kicks in around 95 PSI and cuts out at 125 PSI. This fixed differential simplifies setup for users who don’t want to fine-tune spring tension.
Owners who replaced cheap plastic switches that failed immediately confirm this unit’s build quality is night-and-day better. The wiring diagram inside the cover is clear, and the 2-way pressure release valve vents head pressure reliably. Some units arrived with the ground screw missing or in a torn box, which suggests quality control at the distributor level can vary, but the switch itself functions perfectly once installed.
If you’re looking for a sturdy, no-fuss upgrade from a budget switch that failed, this Telemecanique model delivers the durability of an industrial brand without the premium markup of the Square D badge. The auto/off lever is a bit flimsy, but leaving it in the auto position is the intended use case anyway.
Why it’s great
- Fixed 30 PSI differential for simple operation
- Industrial Telemecanique / Schneider quality
- 2-way release valve for reliable unloading
Good to know
- Some units arrive with missing hardware
- Auto/off lever feels flimsy
5. Telemecanique 9013FSG2J24 40-60 PSI
The Telemecanique 9013FSG2J24 is a different beast than the typical 95-125 PSI compressor switch — it’s designed for lower-pressure applications like water pumps and irrigation systems, with a pressure setting range of 40-60 PSI and a cut-out up to 65 PSI. However, its massive 40-amp current rating and adjustable differential (15-30 PSI) make it an interesting option for specialized 220V compressor builds that need to cycle frequently at low pressure.
This is the classic Square D / Telemecanique design that has been in production for decades, now made in Mexico rather than France. Owners report it works flawlessly for well pumps and car wash systems where water is the lifeblood, but the low PSI rating limits its use for standard air compressors that need 90+ PSI cut-in. The phosphor bronze contacts are robust, and the hinge lever actuator is simple to adjust.
If you’re running a custom low-pressure compressor setup — for example, a large-volume tank used for dust collection or material agitation — this switch gives you the ampacity to handle a 5+ HP 220V motor while keeping the pressure band tight. Just confirm your compressor’s pressure requirements before buying, because 65 PSI cut-out won’t fill a standard 150 PSI tank.
Why it’s great
- 40 amp rating handles large 220V motors
- Adjustable differential from 15 to 30 PSI
- Proven Square D/Telemecanique reliability
Good to know
- Maximum cut-out only 65 PSI — not for standard compressors
- Settings require careful adjustment for accurate cut-in
6. I.E.E. LF10-L4 Gauge + Popoff 95-125 PSI
The I.E.E. LF10-L4 is the budget-friendly one-stop kit for refurbishing a small compressor on a tight budget. It comes with a 0-200 PSI gauge, a 150 PSI pop-off safety valve, and a four-port metal body all in one package. Preset at 95 PSI cut-in and 125 PSI cut-out, it works reliably on older compressors that just need a basic functional switch without bells and whistles.
Real owners praise its consistent cut-in and cut-out pressure with no leaks or chatter, and many report it revived 30-year-old compressors that had been sitting dead. The included gauge reads accurately, and the 150 PSI pop-off provides a safety margin. However, the blow-off valve on some units lacks an internal automatic stem, causing constant air loss if the unloader tube is connected, which forced some users to add a manual valve.
If you’re on a strict budget and need a complete kit to get an old compressor running again, this I.E.E. switch offers surprising value. Just be aware that the blow-off valve may need a workaround, and the 20-amp maximum current rating means it’s best suited for motors under roughly 2 HP on 220V.
Why it’s great
- Complete kit with gauge and pop-off valve included
- Consistent 95-125 PSI cut-in/cut-out performance
- Four-port metal body for flexibility
Good to know
- Blow-off valve may not function as an automatic unloader
- 20 amp max rating limits use to smaller 220V motors
7. Ingersoll-Rand 23474661 100-135 PSI
The Ingersoll-Rand 23474661 is the genuine OEM replacement for SS3 and SS5 single-stage reciprocating compressors from IR. It comes pre-calibrated at 100 PSI cut-in and 135 PSI cut-out, with a NEMA 1 type enclosure that keeps wiring protected. For owners of these specific IR models, this switch is a bolt-on affair that maintains the factory pressure settings and unloader configuration.
Users who replaced failed switches after 12 years of service report that it’s a direct fit with identical part numbers, and the installation is straightforward with standard Teflon tape on the 1/4″ NPT port. The pre-calibration saves adjustment time, though some noted that the unloader tube may need to be re-bent using brake line pliers if the original was damaged. The 10-amp rating is fine for the SS3/SS5 motors, but larger compressors will need a contactor.
If you own an Ingersoll Rand SS3 or SS5 and want a pressure switch that matches the factory spec without guesswork, this OEM part is the cleanest solution. The main downside is the low 10-amp current rating and the fact that it’s tied to specific IR models, so it won’t work as a universal replacement on other brands without modifications.
Why it’s great
- Genuine OEM fit for IR SS3 and SS5 compressors
- Pre-calibrated at 100 cut-in / 135 cut-out PSI
- Includes shut-off switch on side
Good to know
- 10 amp rating limited to smaller IR motors
- Not universal — specific to SS3/SS5 models
FAQ
What is the difference between a single port and a four port pressure switch for a 220V compressor?
Can I use a 110V pressure switch on a 220V compressor motor?
How do I adjust the cut-out pressure on a Square D Pumptrol switch?
Final Thoughts: The Verdict
For most users, the air compressor pressure switch 220v winner is the Square D Pumptrol 9013FHG42J59M1X because its 135-175 PSI range and IP54 rating handle heavy two-stage duty cycles without pressure drift. If you want maximum plumbing flexibility with four ports, grab the Furnas / Hubbell 69JF7LY2C. And for a no-surprise OEM replacement on an Ingersoll Rand SS3 or SS5, nothing beats the Ingersoll-Rand 23474661.
