If your air conditioner runs but ignores the thermostat, or a heat pump refuses to switch modes, the fix is usually a single circuit board — not a whole new system. This guide covers the seven replacement boards worth considering, with the specs that decide whether a board actually fits your unit. The boards here cover everything from a budget fan control board for a Carrier or Bryant air handler to a full universal PTAC upgrade kit with a transformer.
I’m Min — the founder and writer behind Gadgets Feed. This guide is built by comparing the manufacturers’ published specifications and the patterns across verified customer reviews, so you get each pick’s real strengths and trade-offs instead of marketing spin.
Every board here shares one rule: wiring and part numbers come first, and the Amana RSKP0009 Universal Control Board leads this list as the only pick that converts old dial controls to digital. When you are deciding which air conditioner control board to buy, fitment beats every other spec on the page.
Our Picks at a Glance
How To Choose The Best Air Conditioner Control Board
A control board is the small circuit panel inside your air handler, PTAC unit, or rooftop air conditioner that reads the thermostat signal and tells the blower, compressor, and heater what to do. When it fails, the rest of the system usually still works — which is why replacing the board is far cheaper than replacing the unit. The board has to match your system’s part number and wiring, so the first job is confirming what you already have.
Match the part number before anything else
Your old board has a part number printed on it, and matching that number exactly is what gets you a board that works. The Amana RSKP0009 replaces the old knob-style control setup in Amana PTAC units. The HK61EA002 replaces a long list of Carrier, Bryant, Payne, and ICP numbers, including CESO130003-01 and 1005-161. The Coleman Mach 6535C3209 is the fourth upgrade released for that air series. A near-match is not a match.
Check your voltage and wiring setup
Getting the voltage wrong is the most common reason a board arrives and does not work. Residential air handlers typically run low-voltage control circuits, while rooftop RV units often use 12VDC controllers (12-volt direct current, the same voltage as a car battery). The Coleman box in this guide runs on 12VDC low-voltage control and supports up to 1A continuous current (1 amp, enough to drive the control relays). Some boards are universal — the HVAC YELLOW HAT set works on 110V-220V — and some are fixed, like the 12VDC Coleman box.
Decide whether you are installing it yourself
Most of these boards install with labeled terminals and an organized layout, which keeps wiring errors down. But several manufacturers state plainly that HVAC parts should only be installed by qualified technicians, and one reviewer noted that an analog-to-digital conversion takes longer because of new thermocouple installs. If you are not comfortable working around line voltage, budget for a technician and let them do the board swap.
Quick Comparison
| Model | Best For | Compat. | Control Type | Install | Amazon |
|---|---|---|---|---|---|
| Amana RSKP0009 Universal Control Board★ Best Overall | Older Amana PTAC knob-to-digital upgrades | Amana PTAC units | Digital | Moderate | Amazon |
| HK61EA002 Fan Control BoardCleanest Install | Carrier, Bryant, Payne, and ICP air handler blower faults | Carrier / Bryant / Payne / ICP air handlers | Thermostat signal | Simplified | Amazon |
| Universal AC Control System Board Set | DIY and RV retrofits on mixed-voltage systems | Universal, 110V-220V | Push button | DIY-friendly | Amazon |
| Duo Therm AC Relay Analog Control Board | Dometic air conditioner relay replacements | Dometic air conditioners | Automatic | Surface mount | Amazon |
| 8330-752 Air Conditioner Control Box | Coleman Mach non-ducted 2-dial to thermostat conversions | Coleman Mach non-ducted ceiling assemblies | 12VDC | Easy | Amazon |
| Supplying Demand 47-102684-204 Defrost Control Board Kit | Heat pump defrost cycle failures | Major brand heat pumps | Defrost sensor | Moderate / pro | Amazon |
| Coleman Mach 6535C3209 Board Circuit | Coleman Mach RV air and heat pump replacements | Coleman Mach RV units | PC board | Moderate | Amazon |
In-Depth Reviews
1. Amana RSKP0009 Universal Control Board
Our pick — over 4★ from 70+ verified ratings; the strongest balance of quality and price.
The board that replaces an Amana PTAC’s twist knobs with a 7-button digital face plate.
If you own an older Amana PTAC unit with the original analog twist knobs, this is the upgrade that changes how the whole thing feels to use. The kit is built around a 7-button face plate, a membrane touchpad, thermistors made with superior grade semiconductors, and a 24V transformer.
The transformation is the selling point. One owner converted a 2001 Amana PTAC in 35-40 minutes, and the result was precise temperature presets plus one-button switching between heat and cool. Another described watching the unit go from unresponsive to fully functional, with auto air sampling every 5-15 minutes to nudge the temperature based on how far it has drifted from your set point. What wins people over most is the build quality of the board itself, followed closely by how straightforward the install turns out to be.
Measure your existing panel cavity before you order, because this board needs room. At 11.6 x 6.5 x 3.3 inches, it is a much larger footprint than the compact 2.9 x 3.8 x 0.8-inch HK61EA002 below — roughly a 4.0x gap in dimensions. The one honest caveat is compatibility: a 1996-vintage Amana heat pump is not a supported match, and at least one owner found the return process unhelpful when it did not fit their older system. The Amana RSKP0009 holds a strong reputation among PTAC owners, and the pattern across its reviews is clear: quality and installation both land as positives, with value close behind.
What owners keep praising
- Converts analog knob controls to modern LED-based digital controls in a single install.
- The 7-button face plate and membrane touchpad deliver precise temp presets and one-button heat/cool switching.
- Arrives with sensors, cables, manuals, and the 24V transformer — not just the board.
- Built with thermistors manufactured from superior grade semiconductors and backed by a 100% satisfaction-guaranteed warranty.
Where it can trip you up
- 11.6 x 6.5 x 3.3 inches is a large footprint — measure your cavity before ordering.
- Not compatible with every older Amana system, including some 1990s heat pumps.
- Some owners find the price hard to swallow for a single board.
- Install is straightforward only for those experienced with high voltage.
Reach for this if: you have an older Amana PTAC with twist knobs and you want digital presets and one-button heat/cool switching.
Skip past it if: your unit is a 1990s-era Amana heat pump, or your panel cavity cannot take an 11.6 x 6.5 x 3.3-inch board.

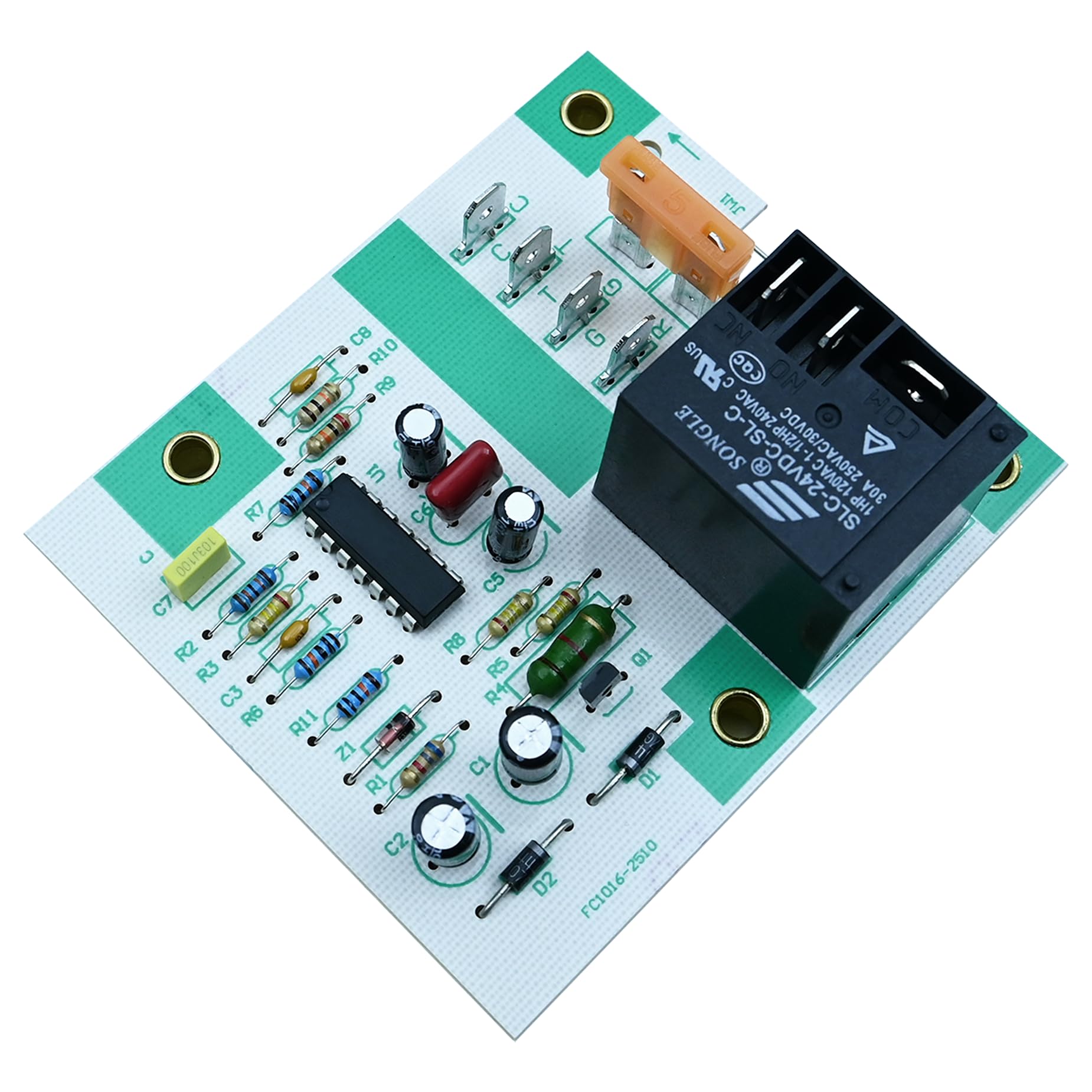

2. HK61EA002 Fan Control Board for Carrier Bryant Payne ICP Air Handler
A Carrier-line blower board with labeled terminals that match your existing wiring wire-for-wire.
When an air handler runs but the blower will not kick on, this board is where most Carrier, Bryant, Payne, and ICP owners end up. It replaces a long list of part numbers, including CESO130003-01, CESO130003-00, 1005-161, 1005-83-164a, 1022, 00662442478320, and 1005-83-166A. It processes thermostat signals, manages the blower, and coordinates communication between the key components of the system.
Two timing details matter here. The board includes integrated relay timing with a 1-second startup delay and a default 90-second blower off delay — that pause lets the system finish moving air before the blower shuts down. Overload and short-circuit protection help guard the control system during daily operation, and the board is built to resist interference in demanding HVAC environments. The size also helps: at 2.9 x 3.8 x 0.8 inches and 3.2 ounces, it slots into tight air handler cabinets far more easily than the much larger Amana board above.
Clearly labeled terminals and an organized circuit layout keep wiring errors down, and that is what buyers notice most. Most reports describe a wire-for-wire match that went in within minutes and had everything running correctly, and a service tech using one to get a customer back up and running is a common pattern. The honest catch is that a board swap does not fix every blower fault: one owner who is upfront about it noted the replacement did not solve their problem, pointing to the fan motor modulator as the likely culprit instead. Free return and exchange is covered within six months, which softens that risk.
Where the value sits: the low-volt replacement bracket for a whole family of Carrier, Bryant, Payne, and ICP air handlers, with a wiring layout built to prevent mistakes.
Best matched to: a Carrier-line air handler with a dead or erratic blower, especially if you want a drop-in replacement that matches the existing wiring.
Look elsewhere when: the fault traces to the fan motor modulator or the motor itself — this board will not mask a failed motor.
3. Universal AC Control System Board Set with Accessories 110V-220V
A universal 110V-220V control panel with 5 modes and 3 fan speeds for retrofits where touch controls have died.
This is the pick for anyone working on an old RV or a split system with discontinued parts. The HVAC YELLOW HAT set runs on universal 110V-220V, packs 5 working modes, and layers in 3 fan speeds plus a sleep function. The control method is push button, on-unit, with a no-inverter split-system form factor, and the package includes screws, mounting hardware, and a user manual.
Owners with older RVs and discontinued air conditioning parts describe buying a few of these rather than replacing whole units. One mentioned that a couple got damaged from using too small a wire on a homemade jumper harness, and rerunning 10g wire (10-gauge wire, a thicker wire that carries more current) sorted it out. If you are building your own harness, go bigger on the wire than you think you need. One reviewer even said it was a genuine match: “es verdadera mente universal.”
“Universal” is not always universal. One RV rooftop heat pump user gave it three stars because it needs a remote thermostat to display Fahrenheit and an additional NC/NO relay (a normally-closed/normally-open relay, a switch that flips the reversing valve) — two extras that would have made it a five-star part. Another Spanish-speaking owner reported it could not be installed at all in their setup. The manufacturer asks you to confirm dimensions and other parts closely match the original before ordering, and that step matters most on this board.
what separates it: five working modes, three fan speeds, and a sleep function across both 110V and 220V — a lot of flexibility for a retrofit panel.
The fine print to read: confirm dimensions and parts match your original before you order, especially on RV rooftop heat pumps that need extra thermostat and relay hardware.
Pick this one when: you are retrofitting an old RV or mixed-voltage system and want a flexible board with mounting hardware included.
Think twice when: your rooftop heat pump needs a Fahrenheit thermostat display or a reversing-valve relay — neither is included.

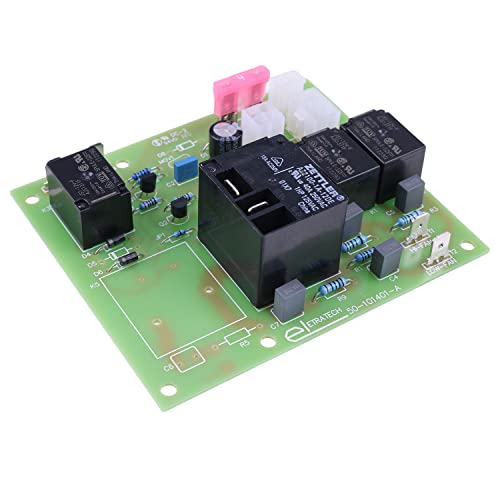

4. Duo Therm AC Relay Analog Control Board 3311924.000 3106996.022
The analog relay board that replaces Dometic part numbers 3311924.000 and 3106996.022.
Dometic owners know this board by its numbers: 3311924.000, 3106996.022, 3311924000, 3106996022. The Holdia replacement is a single analog CF relay board with normally open contacts, automatic operation mode, a surface mount design, and a one-count pack. It is compatible with Dometic air conditioners, and the appeal is that these numbers are genuinely hard to track down elsewhere.
For owners who have found it, the experience is short and sweet. “Hard to find,” one buyer titled their review, then added that it worked excellently. Another said it “changed out flawlessly.” That is the whole story for a board like this — you either get the correct part number and it slots in, or you do not.
Not every unit cooperates, which is worth knowing upfront. One buyer mentioned a thermostat error message, no heater operation, and a board that would not fit into the original electrical box. Given how specific Dometic chassis layouts are, the most useful thing you can do before ordering is check the physical dimensions and connector pattern of your existing board against the replacement. The seller invites questions about the model or installation before purchase, and it is worth using that channel if you are unsure your unit takes this exact relay.
What works in its favor
- Replaces the hard-to-source 3311924.000 and 3106996.022 part numbers.
- Automatic operation with normally open contacts and a simple surface mount design.
- Owners describe the swap as a flawless changeout.
Where caution belongs
- At least one buyer found the board neither worked nor fit the original electrical box.
- Physical size matters — the seller recommends confirming your model before ordering.
Fits the shelf for: Dometic owners who have already confirmed the 3311924.000 or 3106996.022 part number on their old relay board.
Not the one for: anyone installing without first checking that the board physically drops into their existing electrical box.

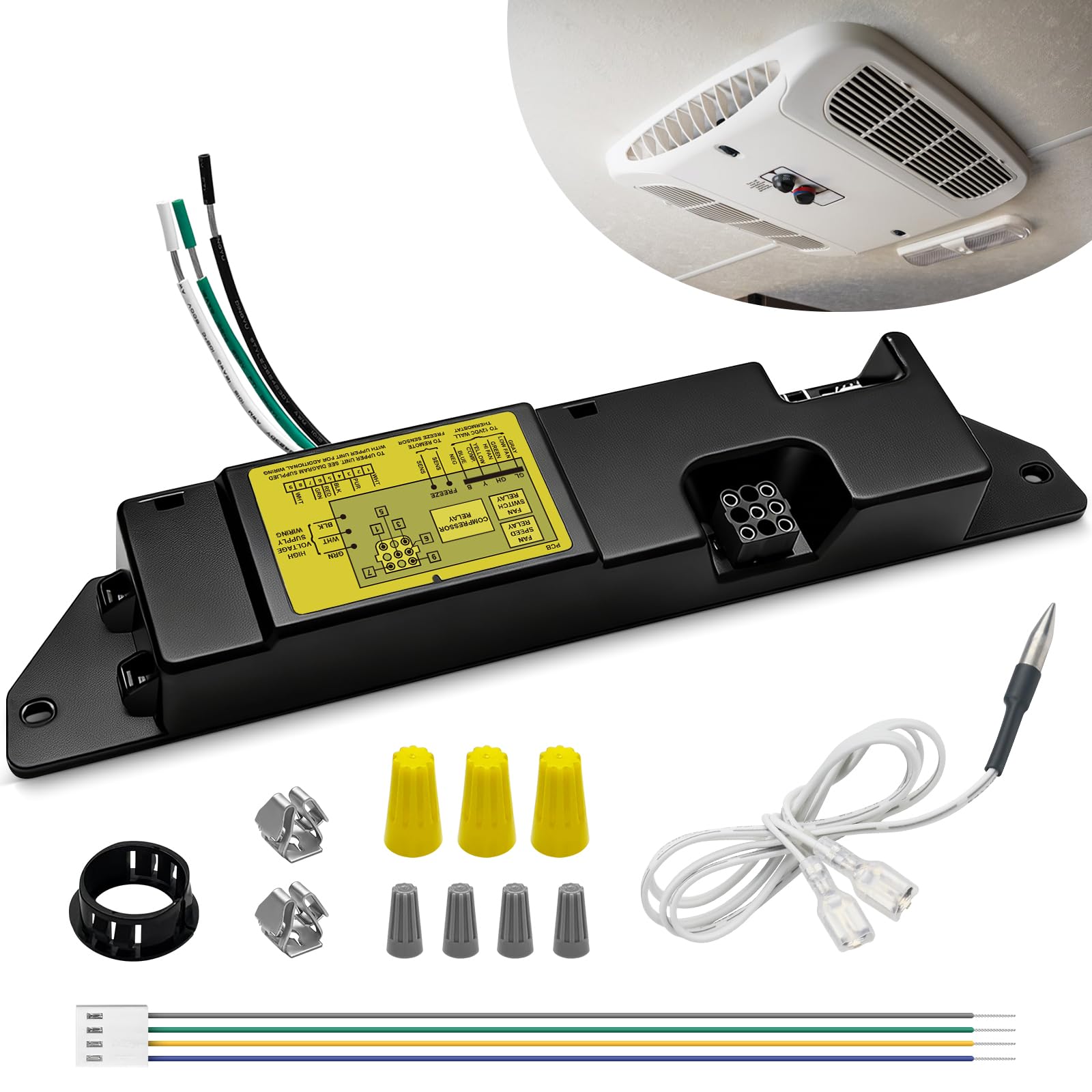

5. 8330-752 Air Conditioner Control Box for Coleman Mach Non-Ducted Ceiling Configurations
Converts a two-dial Coleman Mach non-ducted roof unit to 12VDC wall-thermostat control.
Older Coleman Mach air conditioning runs on two dials — one for fan, one for temperature. This Pirjeco control box is the piece that converts that setup to standard wall-thermostat control, and it is designed specifically for non-ducted systems. It fits multiple part numbers, including 7330D3211, 7330B5551, 7330C5551, 7330A751, 7330B751, 8330-752, 8330-5551, and 8330-3851.
The wiring is the reason this board earns its keep. The box runs 12VDC low-voltage control, supports up to 1A continuous current, and works with rooftop air conditioners and furnaces. The package ships with 2 spring nuts, 4 thermostat wire nuts, 3 110VAC wire nuts, a cable clamp, a freeze sensor, and a thermostat cable assembly.
Fitment covers a long list of Coleman ceiling assemblies and grilles, so if you are running any of those plenum configurations, this box is likely the one. One 2014 Coleman Mach 3 owner reported having to snip the lugs off the thermostat wires and use the included wire nuts for the 4-pin connector, which turned a tricky step into an easy one. The unit is backed by a one-year manufacturer warranty. The only real caveat is the one this category always carries: it is for non-ducted systems with wall thermostats, so a ducted setup is not a match.
The mechanism that matters: five color-coded wires plus a complete accessory pack — spring nuts, wire nuts, cable clamp, freeze sensor, and thermostat cable — turn a two-dial conversion into a plug-and-play job.
Made for: Coleman Mach owners running a non-ducted ceiling assembly who want to ditch the two-dial panel for a wall thermostat.
Not aimed at: ducted systems or anyone who does not already have a wall thermostat in the plan.
6. Supplying Demand 47-102684-204 HVAC Heat Pump Defrost Control Board Replacement Kit
A heat pump defrost kit with board and sensor included, for units stuck in a failed defrost cycle.
A heat pump that ices up and never runs a defrost cycle is running on a dead board, and this is the replacement. The Supplying Demand 47-102684-204 kit includes both the control board and the sensor — a pairing that matters because the defrost logic depends on the sensor reading. It is designed to control the defrost cycle and keep the system operating correctly, with an operating temperature rating of 50 °C. The board uses an LCD or LED display type and comes in white, in Supplying Demand packaging.
If you are facing a service quote, the math is simple. Owners describe the install as easy and the part as working without issue for two years running. One owner was buying their third unit for three different 20-year-old heat pumps and planned a fourth as a cold-standby spare. Another recounted getting a quote for the repair with install included, then holding off while the part waited about a week to ship, canceling, buying the board here instead, and having the AC fixed within an hour of arrival.
This is also the one board in the group that adds a genuine caution. The manufacturer states plainly that HVAC parts should only be installed by qualified technicians, and the warranty is a 30-day return for new and unopened items plus a 90-day limited manufacturer’s warranty on compatible models. One long-term owner did report getting just over a year out of the board before the relays welded, so if your heat pump cycles hard and often, that is worth keeping in mind. Everyone else’s story here is about saving a service call, not replacing the part twice.
Why it holds up
- Board and sensor ship together, so you are not chasing a second part.
- Controls the defrost cycle directly, keeping heat pump operation on track.
- Buyers report running it for two years and buying repeat units for older systems.
- Save-yourself-the-service-call appeal — one buyer fixed a unit within an hour of the part arriving.
What to weigh first
- Manufacturer advises installation by qualified technicians only.
- 30-day return window applies to new and unopened items, with coverage on models limited to 90 days.
- A heavy-cycling heat pump can be hard on relays over time.
The right call for: a heat pump stuck in a failed defrost cycle, especially if you are weighing whether to DIY or call a tech.
Better with a pro: if you are not experienced with line voltage and board-level repair, this is a job to hand off.
7. Coleman Mach 6535C3209 Board Circuit
The fourth-generation Coleman Mach board, shipped with instructions and a new wiring schematic sticker.
If you own a Coleman Mach rooftop air conditioner or heat pump, you have probably been told which revision board your unit needs. This 6535C3209 is the fourth upgrade released for that line, and it replaces the original main component with a simplified design. It ships as the main board only, in multicolor, with a warranty that covers issues within 30 days of receipt.
What makes this revision stand out is the documentation. One owner swapping into a 2002 Winnebago Adventurer called it a different design than the original but an exact fit, and specifically praised the instructions. Another said the kit included directions and a new wiring schematic sticker for the panel, and had about three hours into the swap. The board also arrived double boxed, which owners clearly appreciated — one owner reported ordering it Wednesday afternoon and having it a day later.
The fitment record is solid across multiple vintages. It slots into 2002 Adventurer units, and it worked on the basement air on a 1996 Winnebago as well. The 8 x 5.5 x 4.5-inch board is a sizable panel, so if you are working in a cramped rooftop cavity, expect to take your time routing the wiring. The instructions and schematic sticker do most of the heavy lifting on that front. For a board priced at the premium end of this group, the promise is straightforward: a current-generation replacement with the paperwork to match.
The standout detail: instructions plus a new wiring schematic sticker included with every board — the exact thing that turns a three-hour swap into a manageable one.
The honest note: this is the main board only, so if your unit needs a bracket or mounting hardware, plan to source those separately.
You want this if: you are replacing a board in a Coleman Mach rooftop unit and want the current revision with clear wiring documentation.
Look at the 8330-752 instead if: you are converting a non-ducted two-dial Coleman setup to wall-thermostat control — that box does the conversion this board does not.
Understanding the Specs
Voltage and control type
Every board here runs on one of two control styles: low-voltage, or line voltage. Residential air handler boards like the HK61EA002 work off the low-voltage thermostat circuit, while the 12VDC Coleman box is built around a low-voltage controller that supports up to 1A continuous current. The YELLOW HAT universal board takes the flexible route, working on 110V-220V and handling both cooling and heating modes. Getting the voltage class wrong is the fastest way to buy a board that will not run your system.
Wiring layout and terminals
Clearly labeled terminals and an organized circuit layout do more for a successful install than any other design choice on this list. Compare that to a bare board that relies on a wiring diagram sticker — like the Coleman Mach 6535C3209, which ships with instructions and a new schematic for the panel. If you are doing the install yourself, prioritize labeled leads over a lower price on a board with cryptic connections.
Relay timing and delays
Timing is the invisible part of any control board. The HK61EA002 pairs a 1-second startup delay with a default 90-second blower off delay, which is what lets the system finish moving air before the fan shuts down. These delays do not show up in marketing copy, but they shape how smooth the system feels in daily use — and they are one of the reasons a replacement board can actually improve on the part it replaces.
Protection and compatibility
Overload and short-circuit protection help safeguard the control system during daily operation — the HK61EA002 has both. The Amana RSKP0009 leans on thermistors made from superior grade semiconductors for its temperature reads. None of that matters if the board does not match your unit, though. Every pick here lists the part numbers it replaces, and the most important step in any control board purchase is matching that number to the one on your old board before you order.
FAQ
How do I know which air conditioner control board fits my unit?
Can a universal air conditioner control board work in any system?
How long does it take to replace a control board?
Is it safe to install a control board myself?
What does a defrost control board do on a heat pump?
Why does my replacement control board not turn on the blower?
Can I upgrade my old knob-style PTAC to digital controls?
How long do air conditioner control boards typically last?
Do replacement control boards come with a warranty?
What is the difference between a fan control board and a defrost control board?
Final Thoughts: The Verdict
For most buyers, the air conditioner control board to start with is the Amana RSKP0009 Universal Control Board — it is the only pick here that upgrades an analog PTAC to digital controls with a 7-button face plate and a 24V transformer, and it carries the 100% satisfaction-guaranteed warranty to back it up. If you want cleaner wiring and a blower board that matches wire-for-wire, grab the HK61EA002. And for a Coleman Mach RV conversion to wall-thermostat control, the Pirjeco 8330-752 control box is the one to reach for. Whichever board matches your part number, the buy worth making is the one that fits — check your number, check your voltage, and order once.
