That rhythmic clicking from deep inside your dashboard isn’t a random noise — it’s the sound of a tiny electric motor with stripped plastic gears failing to rotate a flapper that directs your vehicle’s heated or cooled air. When the air door actuator stops moving, your cabin becomes a guessing game: defrost when you want face-level vents, or scalding heat with the AC set to max cold. The repair is a specific part swap, but choosing the wrong sub-model means redoing the labor.
I’m Min — the co-founder and writer behind Gadgets Feed. This guide is the result of cross-referencing thousands of buyer reports, fitment data sheets, and OE part numbers to separate the actuators that perform from those that fail within months.
Whether you drive a Silverado, an Impala, or a Camry, sourcing the right best air door actuator means matching your exact vehicle’s position code and spline geometry — a detail aftermarket brands handle with varying precision.
How To Choose The Best Air Door Actuator
The air door actuator market is deceptive: dozens of parts look identical from the outside but differ in rotational direction, connector pinout, and stop-position geometry. Choosing the wrong one means your mode door might rotate backward, or the actuator may hammer against its internal hard stop until it self-destructs. Focus on these factors before you buy.
Position Compatibility: Blend, Mode, or Recirculation
A single vehicle generation can house three distinct actuators. The blend door actuator mixes hot and cold air across the heater core; the mode door actuator routes air between defrost, panel, and floor vents; the recirculation actuator opens the fresh-air inlet. Manufacturers assign different OE numbers to each. Cross-reference your old part number — not just your model year — against the replacement’s interchange list.
Spline Count and Gear Material
The output shaft spline — typically a D-shape or a multi-tooth pattern — must match your HVAC case exactly. A mismatch strips the plastic arm within a few cycles. Gear material separates the budget-tier parts from mid-range and premium options. All-plastic gears are lightweight but fail under repeated torque. Premium units use metal output shafts or high-durability nylon compound gears that resist cracking in extreme interior cabin temperatures.
Re-Calibration Procedure
After replacing any climate control actuator, modern vehicles require a calibration sequence to teach the new motor its full range of motion. Skipping this step leaves the actuator unable to find its home position, causing inconsistent temperatures or clicking on startup. Some models self-calibrate after a battery reconnect; others need a specific key-on-off pattern. Read your vehicle’s procedure before installing.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| GM Genuine 15-74349 | Premium OE | GM mode door fix guaranteed fit | 3.2 oz, GM OE specification | Amazon |
| A-Premium B0D4Z3X9B6 | Premium Multi-Position | Chevy Impala/Corvette multi-actuator replacement | 12.6 oz, covers blend/mode/inlet | Amazon |
| RLP 3-Pack (B0CNVMGRQB) | Premium Multi-Pack | Buick/Chevy fleet coverage | 0.1 kg per actuator, 3 units | Amazon |
| A-Premium B07DRHQBD8 | Mid-Range Import | Toyota Camry/Highlander driver side | 5.6 oz, OE 8710607120 | Amazon |
| A-NAFTULY 2-Pack (B0C7CCNZNH) | Mid-Range Twin Pack | GM truck/Sierra dual-actuator swap | 9.3 oz, fits 89018365/604-106 | Amazon |
| Dorman 604-107 | Value Mid-Range | GMT400 pickup blend door | 100 RPM, plastic housing | Amazon |
| Motorcraft YH-1769 | Budget OE Replacement | Ford F-150/Explorer mode door | 4.23 oz, metal construction | Amazon |
In‑Depth Reviews
1. GM Genuine Parts 15-74349 (22838102)
The GM Genuine Parts 15-74349 is the definitive fix for the mode door actuator in 2014-2018 Chevrolet Silverado 1500/2500 HD and related GMT K2XX trucks. Weighing just 3.2 ounces, this compact actuator replicates the exact rotational sweep and connector orientation of the original factory component — eliminating the calibration confusion that often plagues aftermarket parts on GM’s automatic climate control systems.
Buyers with a 2015 Silverado High Country 3500 HD confirm it fits the driver-side mode door location perfectly, restoring pane, floor, and defrost selection without the intermittent failure common to third-party units. The painted exterior shell is a minor visual cue that this part was built to ACDelco’s production tolerances, not a generic mold.
The only catch is accessibility: installers with large hands report spending over an hour contorting beneath the dashboard to reach the mounting screws. Once in place, the actuator works silently and reliably, making this the premium choice for owners who prioritize guaranteed GM-spec fit over saving a few dollars.
Why it’s great
- Exact GM OE part number 22838102, no guesswork
- Works with Silverado/Sierra mode door without re-calibration issues
- Lightest unit at 3.2 oz, reduces stress on HVAC case tabs
Good to know
- Only covers mode door position, not blend or recirculation
- Installation is tight for larger hands — expect 60+ minutes
2. A-Premium Blend Door Actuator B0D4Z3X9B6
A-Premium’s B0D4Z3X9B6 is a heavy-duty actuator (12.6 ounces) designed for the 2004-2016 Chevrolet Impala, Corvette, and Buick LaCrosse platforms where a single part must serve blend, mode, and air inlet positions depending on vehicle configuration. The reference number list spans 12 OE crossovers, from 604-108 to 52409974, making it the most versatile single actuator in this comparison.
Buyers fitting this into a 2010 Chevy Impala note that it eliminates both the clicking sound from the passenger side and the temperature discrepancy (driver hot/passenger cold) that plagued earlier replacements. The unit leverages a robust internal circuit board design that resists the electrical burnout common to cheap actuators driven by pulse-width-modulated HVAC controls.
The main trade-off is that some vehicles require identical actuators for both driver and passenger blend doors, so you may need to buy two units if you are replacing both simultaneously. The installation difficulty varies dramatically — passenger side can be done in 10 minutes, while the driver side on a 2010 Impala often demands removing the under-dash panel and contorting around the steering column.
Why it’s great
- Covers blend, mode, and inlet positions with one part number
- Heavier internal build reduces gear strip failures
- Proven fix for Impala/Malibu temperature imbalance and clicking
Good to know
- 12.6 oz weight is noticeably heavier than OEM plastic units
- Driver-side location on some GM cars is extremely tight

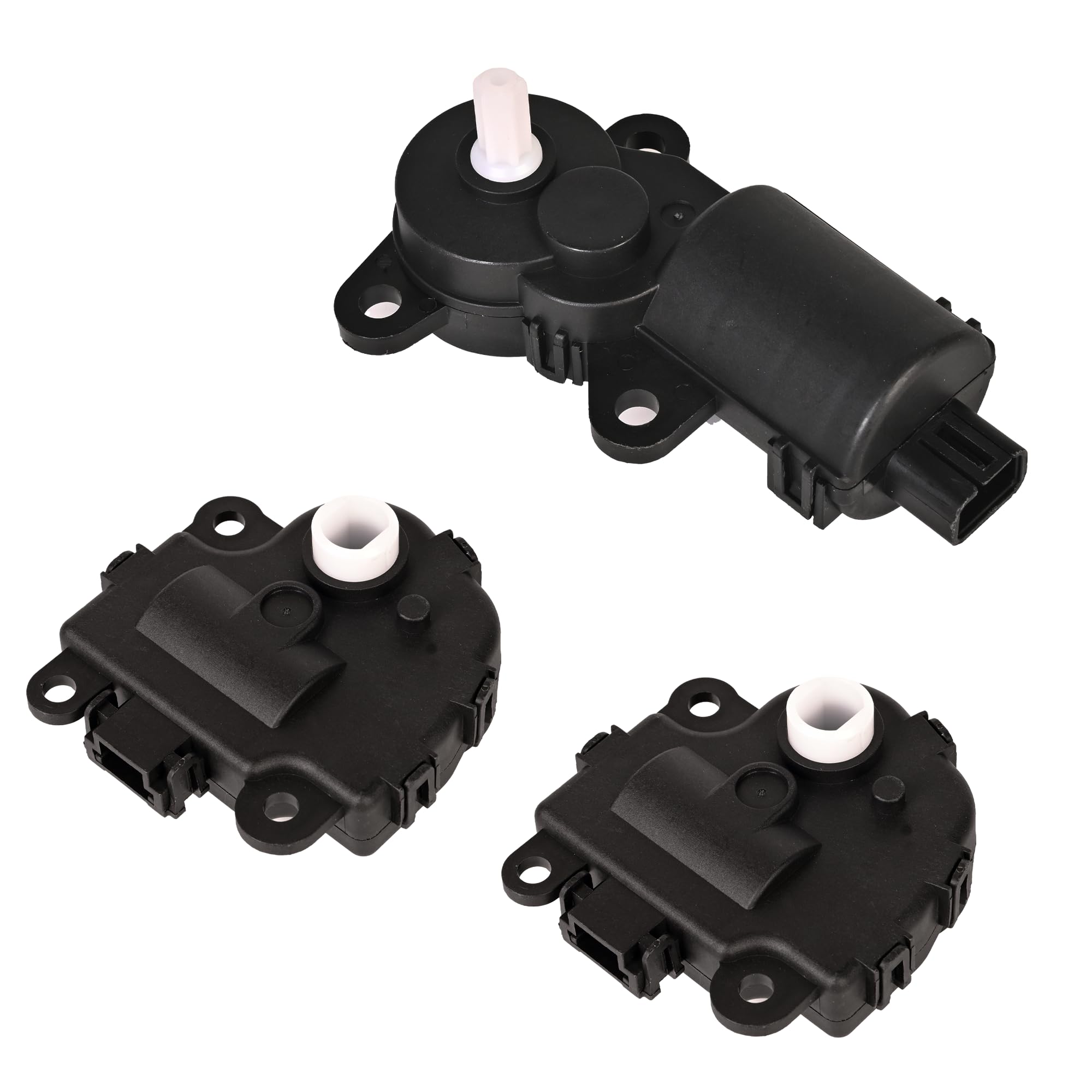

3. RLP HVAC Blend Door Actuator 3-Pack (B0CNVMGRQB)
The RLP 3-pack bundles two 604-108 actuators and one 604-134 actuator specifically targeting GM W-body cars including the Buick LaCrosse, Chevy Impala, Monte Carlo, and the Corvette. For owners of 2005-2013 Impalas that use three separate actuators for the HVAC case, this kit provides a one-stop replacement without hunting individual part numbers.
Common complaints with original actuators on these platforms include stripped plastic output gears and motor brush failure after 80,000 miles. RLP uses a higher-durometer plastic housing and thicker internal gears, which buyers of 2010-2013 Impala Limited vehicles report surviving longer than the factory units. The 604-108 actuator handles both temperature and mode functions on many W-body trims, while the 604-134 covers the recirculation or auxiliary blend position.
Installation remains the hardest part — multiple reviewers note that the rear position behind the glovebox on a 2010 Impala LT requires removing the glovebox liner and may necessitate disconnecting the HVAC duct to reach the lower screw. The parts themselves fit perfectly, but be prepared for a 45-minute job per actuator the first time through.
Why it’s great
- Complete 3-actuator set for W-body GM cars
- Covers temperature, mode, and air inlet in one purchase
- Thicker gear construction than some original equipment
Good to know
- Not compatible with drivers who need 604-106 or 604-107 variants
- Rear actuator position still requires removing glovebox and ductwork
4. A-Premium HVAC Blend Door Actuator B07DRHQBD8
This A-Premium actuator directly replaces Toyota/Lexus part 87106-07120 and fits the driver-side blend door position on the 2007-2017 Toyota Camry, 2005-2018 Avalon, 2010-2016 Highlander, and 2011-2016 Sienna. At 5.6 ounces, it is lighter than many GM counterparts but matches the exact spline orientation and mounting footprint of the factory Denso actuator.
Buyers report that a 2013 Toyota Highlander Limited with automatic climate control fixed its 90-second delay before blowing cold air and the driver-side vent temperature mismatch within five minutes of installation. The white plastic calibration teeth on the shaft must be aligned before tightening — reviewers advise loosely installing the two Phillips screws, connecting the electrical connector, then pushing the white teeth upward until you hear a click before fully tightening.
The critical distinction here is that this actuator only fits the driver-side blend door on most applications. The passenger side Highlander actuator uses a different part number. Double-check that your failed actuator is the main/left unit before purchasing; the Amazon fitment filter is fairly accurate for U.S.-built Camry, Highlander, and Sienna trims but can be unreliable for Japanese-built models.
Why it’s great
- Drop-in replacement for Toyota Camry/Highlander/Sienna blend door
- Installation takes under 5 minutes on most vehicles
- No recalibration needed on many automatic climate models
Good to know
- Only covers driver-side/main position, not passenger side
- Fitment varies between U.S.-built and Japanese-built Toyotas
5. A-NAFTULY 2-Pack HVAC Blend Door Actuator (B0C7CCNZNH)
The A-NAFTULY twin pack delivers two actuators cross-referenced to 89018365 and 604-106, covering 1999-2013 Chevrolet Silverado 1500/2500 HD, GMC Sierra, Tahoe, Suburban, Yukon, and Cadillac Escalade. Each unit weighs 9.3 ounces and is constructed from a polished ABS composite housing with a high-tech internal circuit board designed to resist electrical burnout from PWM signals.
Buyers replacing the driver-side actuator on a 2003 Silverado 1500 report a solid fit and immediate function, though they warn that the passenger-side actuator location on these trucks is one of the most difficult in the industry — requiring removal of the entire dashboard, center vents, and sometimes the passenger airbag module. The parts themselves pass the click test and temperature control sweep immediately after installation.
The main limitation is that the 18-month warranty only covers manufacturing defects, not wear from normal cycling. Some units may need the HVAC system recalibrated after install by disconnecting the battery for five minutes, then running the climate control through a full cycle. For the price point, these actuators offer good gear durability compared to the brittle white plastic gears found in some early OEM Sierra units.
Why it’s great
- Two actuators included at a competitive mid-range price
- Covers GM full-size trucks and SUVs through 2014
- Polished ABS housing resists thermal cracking
Good to know
- Passenger-side install on GMT800 trucks requires dashboard removal
- Recalibration may be needed — not a simple plug-and-play
6. Dorman 604-107 HVAC Blend Door Actuator
Dorman’s 604-107 is the go-to actuator for GMT400 Chevrolet/GMC pickups (1995-1999) and early 2000s Pontiac Grand Prix models. Its plastic housing and composite gear set rated at 100 RPM mimic the original metal/plastic hybrid design that GM used in this era, but Dorman’s version replaces the metal shaft retainer with a nylon clip that some buyers prefer to avoid snapping the HVAC case tabs during insertion.
Installers of 1995-1997 Chevy Tahoe and K1500 trucks report that swapping the blend door actuator behind the glovebox can be done in 90 minutes without removing the dashboard — a major advantage over later GMT800 designs. The actuator works for both the temperature blend door and the vent mode door on these trucks, which simplifies troubleshooting. After installation, cycling the temperature knob from full cold to full hot with the engine running is necessary to orient the motor’s internal stop.
The main drawback is the all-plastic construction: while it avoids the metal-on-plastic wear that caused original units to fail, the nylon output arm can still warp if the HVAC case runs at extreme temperatures (>180°F). This is a budget-friendly option for older trucks where replacing the actuator every 3-4 years is still cheaper than a dealer part.
Why it’s great
- Direct fit for GMT400 pickups without dash removal
- Works for both blend and mode doors on many models
- Nylon gear avoids snapping tabs unlike original metal clip
Good to know
- All-plastic housing may warp under extreme heat over time
- Requires manual recalibration by cycling temperature knob
7. Motorcraft YH-1769 A/C Heater Blend Door Lever
The Motorcraft YH-1769 is a genuine Ford-spec actuator for the mode door in 2004-2008 Ford F-150s and 2011-2019 Ford Explorer PIU (Police Interceptor Utility). Despite the product listing calling it a “blend door lever,” this part actually controls the vent mode selection — routing air between defrost, panel, and floor. Buyers with 2005 F-150s confirm it installs on the driver side above the gas pedal, not behind the radio.
The metal construction of the output lever is a standout feature at this price tier: whereas many budget actuators rely entirely on plastic, the YH-1769 uses a metal shaft interface that resists stripping when the mode cam binds. The 4.23-ounce weight reflects the denser materials. Several owners with 2016 Ford Explorer PIU note that the spline alignment requires a 1-foot hemostat or long needle-nose pliers to hold the actuator in place while tightening the 8mm retaining screw.
The biggest risk is misidentification: the YH-1769 is frequently confused with the blend door actuator for the same vehicle. If your symptom is inconsistent temperature rather than incorrect air direction, you need the blend door actuator (different part number), not this mode door unit. Double-check that the air blows only from defrost/floor before purchasing this actuator.
Why it’s great
- Genuine Motorcraft with metal output lever
- Corrects F-150 mode door stuck on defrost/floor
- Lightweight at 4.23 oz, easy to maneuver in tight spots
Good to know
- Controls mode door, not blend door — easy to misorder
- Some units shipped with misaligned internal knob requiring disassembly
FAQ
How do I know if I need a blend door actuator vs a mode door actuator?
Why does my new air door actuator click immediately after installation?
Can I install an air door actuator without removing the dashboard?
Is an OE actuator worth the premium over an aftermarket part?
Final Thoughts: The Verdict
For most users, the best air door actuator winner is the GM Genuine Parts 15-74349 because it delivers guaranteed OE fit for GM trucks and eliminates the mode door guessing game without calibration headaches. If you need multi-position coverage for a Chevy Impala or Corvette, grab the A-Premium B0D4Z3X9B6. And for Toyota/Lexus owners prioritizing a five-minute driver-side blend door swap, nothing beats the A-Premium B07DRHQBD8.
