Nothing ruins a flawless paint finish or a precision plasma cut faster than moisture-laden compressed air. A high-quality air dryer filter is the single most important upgrade you can make to your compressor system, stripping water, oil aerosols, and particulates down to sub-micron levels before they ever reach your tools or workpiece.
I’m Min — the co-founder and writer behind Gadgets Feed. I have spent countless hours digging into the technical specifications and real-world performance data of dozens of compressed air filtration systems to separate the true performers from the ones that just look the part.
Whether you are painting a show car or running a CNC mill, the best air dryer filter eliminates those frustrating imperfections and costly downtime by delivering consistently dry, clean air exactly where you need it.
How To Choose The Best Air Dryer Filter
Selecting the right air dryer filter comes down to matching the filtration stages and micron ratings to your specific application. A simple water trap might be fine for topping off tires, but any task demanding a flawless finish — painting, plasma cutting, or running sensitive pneumatic controls — requires a more sophisticated approach.
Filtration Stages: How Dry Is Dry?
A single-stage particulate filter (5 to 40 microns) catches rust and scale but lets water vapor and oil aerosols pass right through. A two-stage system adds a coalescing filter (down to 0.01 microns) that merges tiny droplets into larger ones that can be drained. The ultimate setup is a three-stage system with a desiccant dryer; the desiccant beads chemically adsorb water vapor, delivering air dry enough that you won’t see any moisture at the tool even after hours of use. If you demand professional-grade results, do not settle for less than three stages.
Micron Rating and SCFM: Precision vs. Flow
The micron rating tells you the particle size the filter stops — lower numbers mean finer filtration. A 5-micron element is coarse, a 0.3-micron coalescing filter is good, and a 0.01-micron element is excellent for oil removal. However, finer filtration restricts airflow. You must match the filter’s SCFM (Standard Cubic Feet per Minute) rating at your operating pressure to the maximum consumption of your largest tool. A filter rated for 16 SCFM will starve a plasma cutter that needs 30 SCFM, causing poor performance regardless of air quality.
Bowl Material: Polycarbonate vs. Metal
Polycarbonate bowls are cheap and allow you to see water buildup at a glance, but they become brittle and crack under high pressure or when exposed to solvents and synthetic compressor oils. Metal bowls (usually aluminum) are heavier and require a sight glass to check levels, but they are rated for higher pressures and are chemically resistant. For any setup above 150 PSI or in a shop using automotive paints or thinners, a metal bowl is the only safe and durable choice. The best air dryer filter systems almost always use metal bowls for the coalescing and desiccant stages.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| NANPU 3-Stage 1/2″ NPT | Premium 3-Stage | Pro painting & plasma | 0.01 micron coalescing + desiccant | Amazon |
| PneumaticPlus SAU430 | Premium 3-Stage | CNC & industrial tools | 10/0.1 micron, 250 PSI max | Amazon |
| THB_EDGE 3-Stage | Mid-Range 3-Stage | Heavy-duty shop work | 0.01 micron, 175 PSI, auto drain | Amazon |
| PneumaticPlus PPC3C | Mid-Range 2-Stage | Small shop painting & airbrushing | 5/0.3 micron, 140 PSI | Amazon |
| Motor Guard M-30 | Specialty Single-Stage | Ultra-fine aerosol removal | 0.01 micron, 125 PSI | Amazon |
| BLCH AC4000-04 | Budget Filter/Regulator | General air tool protection | 5 micron, 145 PSI, 141 CFM | Amazon |
| DeVilbiss QC3 | Professional Paint System | Serious automotive painting | 3-stage with desiccant, 1.4 lbs | Amazon |
In‑Depth Reviews
1. NANPU 1/2″ NPT 3-Stage Air Dryer Filter
The NANPU 3-stage system delivers a complete filtration arsenal: a 5-micron particulate filter and regulator in stage one, a 0.01-micron coalescing filter in stage two, and a desiccant dryer in stage three. With a flow rate of 141 CFM at up to 175 PSI, it supports high-demand tools like plasma cutters and HVLP spray guns without starving them of air volume. The metal bowls with sight glass on every stage provide safety and quick visual checks of moisture accumulation.
Users consistently report zero water breakthrough even after full days of painting trucks or running CNC plasma tables. The package includes two spare coalescing elements and four bags of desiccant beads, so you are set for many replacement cycles. A few users noted the included fittings are best replaced with heavier-duty pipe fittings for a permanent installation, but the core filtration performance is excellent right out of the box.
If you need bone-dry, oil-free air for critical work and want a system that can grow with your shop, the NANPU is the best air dryer filter for serious results. Its combination of aggressive micron ratings and high flow capacity makes it a standout in the premium category.
Why it’s great
- True 3-stage system down to 0.01 micron for flawless finishes
- High 141 CFM flow rate supports demanding tools
- Includes spare elements and desiccant beads for extended use
Good to know
- Included inlet/outlet fittings may need upgrading for permanent installs
- Larger footprint requires dedicated wall space
2. PneumaticPlus SAU430-N04G-MEP 3-Stage
The PneumaticPlus SAU430 is a Korean-manufactured 3-stage unit with a maximum supply pressure of 250 PSI, making it one of the most robust options for industrial or high-pressure shop lines. Stage one uses a 10-micron particulate element, stage two drops to a 0.1-micron coalescing element, and the built-in regulator handles up to 150 PSI operating pressure. The all-metal bowls with sight glass are standard, and the manual drain allows precise control over purging.
Owners running CNC mills and plasma cutters praise its ability to deliver completely dry air when installed with proper drop-leg piping upstream. The compact design is notably smaller than some competitors, which simplifies mounting in tight spaces. A few users pointed out that the promotional images can be confusing regarding self-draining capability, but the manual drain works reliably when serviced regularly.
For shops that need industrial-grade pressure ratings and Korean build quality, the SAU430 is a wise investment. It is particularly well-suited for setups where lines run at pressures above what polycarbonate bowls can handle safely.
Why it’s great
- 250 PSI max supply pressure, ideal for high-pressure systems
- Compact metal bowl design with reliable manual drain
- Proven performance with CNC mills and industrial tools
Good to know
- Coalescing element is 0.1 micron, not 0.01 micron
- Advertised as self-draining but actually features a manual drain
3. THB_EDGE 3-Stage Heavy Duty Industrial
This THB_EDGE system delivers a full 3-stage process in a single package with 3/4″ NPT ports, the largest inlet size in this roundup. Stage one is a 5-micron water trap and regulator adjustable from 7 to 175 PSI. Stage two uses a 0.01-micron coalescing filter that triggers a red indicator when the element needs changing. Stage three is a desiccant dryer whose beads shift from blue to pink at saturation. The internal float auto drain on stage one simplifies maintenance significantly.
Users report fantastic results for tractor and car painting, noting the dramatic improvement in finish quality after installation. The unit includes two bags of desiccant beads and a wall-mount bracket. Some buyers did experience minor leaks out of the box that were resolved by moistening the gaskets with air tool oil before tightening, and the pressure relief knob feels less robust than the rest of the assembly.
For the price, this is an exceptional entry into three-stage drying. The auto drain and large NPT size make it a compelling choice for shops that need high-volume, dry air without the premium markup of the top-tier brands.
Why it’s great
- Large 3/4″ NPT ports for high-flow applications
- Internal float auto drain reduces maintenance tasks
- Includes desiccant beads and wall mount bracket
Good to know
- Gaskets may need oiling to seal properly out of the box
- Pressure relief knob feels less durable at higher pressures
4. PneumaticPlus PPC3C-N02G 2-Stage Combo
The PneumaticPlus PPC3C is a two-stage filter and regulator combo with a 5-micron particulate filter followed by a 0.3-micron coalescing filter, all in a single compact body with 1/4″ NPT ports. It is rated for 16 SCFM at 90 PSI and a maximum operating pressure of 140 PSI, making it well-suited for small compressors used in airbrushing and detail painting. The poly bowl with guard and manual drain keep the unit lightweight and easy to monitor.
Users appreciate the professional look and easy installation, often mounting it at the end of a cooling rack before a hose reel. Opinions diverge on long-term longevity: some report flawless performance after months of use, while others experienced leaks from the drain valves and top seals after about 18 months. The pressure gauge is notably small and difficult to read in a bright shop.
For hobbyists and light-duty use, the PPC3C is a strong mid-range choice. However, if you plan to run high-moisture tools daily, the leak reports suggest you may eventually outgrow this unit and want to upgrade to the all-metal, three-stage designs.
Why it’s great
- Compact 2-stage design saves wall space
- Easy to install with quick-release fittings
- Good price for entry-level coalescing filtration
Good to know
- Poly bowl not rated for pressures over 150 PSI or solvents
- Long-term seal leaks reported after about 18 months of use
5. Motor Guard M-30 Submicronic Filter
The Motor Guard M-30 is a legendary submicronic filter that uses a cellulose-based element to capture particulates, condensed moisture, and oil aerosols down to 0.01 microns. It is made in the USA with a metal housing and has a proven track record spanning decades. The maximum pressure rating of 125 PSI and 45 CFM airflow make it best used as a final polishing filter downstream of a primary water separator.
Painters and plasma cutter operators swear by this unit, calling it “the cat’s ass” for eliminating fisheye issues in paint and providing clean air for precision cuts. The 1/4″ NPT inlet and outlet are located close together on the bottom, which can make for awkward piping compared to units with top-mounted ports. Overall build quality is solid, and the replacement element is widely available.
If you already have a good water separator and need a final stage to scrub out the last traces of oil and mist before the air reaches your tool, the Motor Guard is your best air dryer filter option. It does exactly one thing, and it does it better than almost anything else at this price.
Why it’s great
- Legendary 0.01 micron filtration for oil and mist removal
- Made in the USA with a proven, decades-long track record
- Perfect as a final polishing filter in a multi-stage setup
Good to know
- Bottom-mounted inlet/outlet can make piping difficult
- Not a standalone solution; works best with a pre-filter

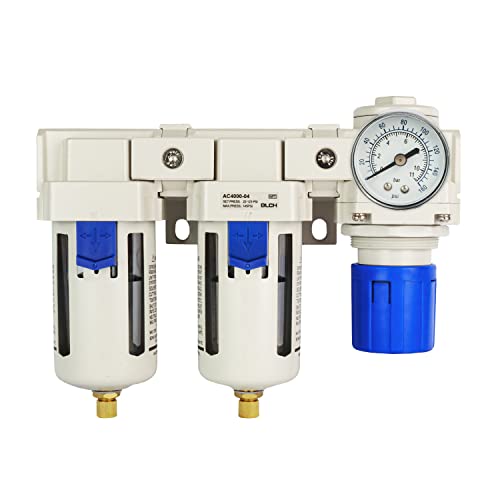

6. BLCH AC4000-04 Filter-Regulator Combo
The BLCH AC4000-04 is a single-stage filter-regulator combo with a 5-micron brass element and a semi-auto drain. It connects via 1/2″ NPT and flows up to 141 CFM at 145 PSI max, making it a high-volume option for protecting air tools from large debris and bulk water. The poly bowl is protected by a metal guard, and the integrated gauge reads 0-160 PSI.
Users report that it effectively keeps moisture out of paint lines for all-day truck painting projects. A few noted burrs on one port and that it is not a genuine Wilkerson unit, but the all-metal construction and brass element deliver good value. Some found the dial gauge to be the weakest component in terms of precision, but the overall assembly holds pressure well and has no leaks when installed with quality thread tape.
For budget-conscious buyers who just need to keep slugs of water out of their air lines without demanding sub-micron cleanliness, the BLCH is a practical entry-level filter. It is a straightforward upgrade over running no filter at all, but serious painting applications will want a coalescing stage downstream.
Why it’s great
- High 141 CFM flow rate at a very accessible price
- Brass 5-micron element offers long service life
- All-metal body with poly bowl guard for durability
Good to know
- Single-stage only; no coalescing or desiccant drying
- Dial gauge is less precise than premium alternatives
7. DeVilbiss 130525 QC3 Air Filter and Dryer
The DeVilbiss QC3 is a complete 3-stage air control unit designed specifically for automotive painting. It filters oil, water, and humidity in a compact, wall-mountable package that weighs only 1.4 pounds. The first stage removes bulk water, the second stage coalesces fine mist, and the third stage uses desiccant to dry the air to a dew point suitable for show-quality finishes. An embedded pressure regulator and gauge give you precise control at the point of use.
Professional painters love the QC3 for eliminating craters, specks, and fisheyes from their work. The unit is easy to service, and the desiccant change indicator takes the guesswork out of maintenance. Some units ship with the desiccant cartridge butterfly nut loose, which can cause the cartridge to detach and affect performance, so it is wise to disassemble and check the internal connection upon arrival. The universal fit and straightforward installation make it a favorite for small garage setups that demand big results.
If your primary use case is automotive or furniture painting and you want a dedicated system from a trusted brand in the finishing world, the DeVilbiss QC3 is the best air dryer filter for achieving a flawless, defect-free finish every time.
Why it’s great
- Purpose-built for automotive painting with excellent results
- Lightweight and compact for easy wall mounting
- Easy-to-read desiccant change indicator simplifies maintenance
Good to know
- Desiccant cartridge may arrive loose; inspect before installation
- Best suited for light to medium duty painting, not high-volume shops
FAQ
Is a 0.01 micron coalescing filter enough for automotive painting?
Can I use a polycarbonate bowl bowl with a coalescing filter running 150+ PSI?
How often should I replace desiccant beads in my air dryer filter?
Final Thoughts: The Verdict
For most users, the best air dryer filter winner is the NANPU 3-Stage 1/2″ NPT because it delivers true 0.01 micron coalescing filtration plus desiccant drying in a single package with a high 141 CFM flow rate, making it ideal for everything from plasma cutting to automotive painting. If you want industrial pressure ratings and Korean build quality, grab the PneumaticPlus SAU430. And for a dedicated painting-focused system from a trusted brand, nothing beats the DeVilbiss QC3 for show-quality finishes.
