Whether you are aerating a septic system, powering a hydraulic press, or inflating off-road tires on the trail, an air motor pump converts compressed air into usable fluid or pneumatic power. The challenge is that the category spans delicate linear diaphragm units for wastewater treatment to brute-force hydraulic power packs for 10-ton shop presses, making a misstep expensive.
I’m Min — the co-founder and writer behind Gadgets Feed. My analysis for this guide involved comparing flow rates in liters per minute, maximum pressure ratings in PSI, duty cycles, and real-world rebuildability across nine units to isolate the best options for distinct job sites.
After cross-referencing specs with verified owner experiences extending over a decade of continuous use, I have compiled the definitive list of the best air motor pump models for septic aeration, hydraulic shop applications, and portable job-site air supply.
How To Choose The Best Air Motor Pump
Selecting the right unit for your task requires understanding three fundamental variables: the type of fluid or air being moved, the required pressure, and the environment. A pump designed for a septic tank will fail under the backpressure of a hydraulic ram, and a high-pressure hydraulic unit is overkill for pond aeration.
Pressure vs. Flow Rate
The most common mistake is prioritizing one metric over the other. For hydraulic applications like a shop press or frame machine, you need maximum pressure measured in PSI — units like the BESTOOL and TEMCo deliver up to 10,000 PSI. For aeration, you need volume measured in liters per minute (L/min) or cubic feet per minute (CFM) at low pressure — a linear diaphragm pump like the HIBLOW or Blue Diamond excels here. A portable compressor like the DEWALT strikes a middle ground for pneumatic nailers and tire inflation.
Duty Cycle and Rebuildability
Industrial and septic applications often run pumps 24/7 for years. Look for units designed for continuous duty with rebuild kits available. Linear diaphragm pumps (HIBLOW, Medo) are inherently suited for constant operation because they generate less heat and have fewer friction points. High-pressure hydraulic pumps should include a two-stage release and internal relief valve to protect the system. Check if replacement diaphragms or piston seals are readily available — a rebuildable pump at a higher upfront cost almost always beats a disposable budget model over a five-year period.
Power Source and Portability
Shop-based hydraulic pumps typically run on standard 115V household current and are stationary, relying on foot-pedal actuation to keep hands free. Septic aerators are also corded electric and must be UL listed for outdoor use if installed outside. For mobile users — off-roaders, service techs, or contractors — a 12V DC compressor like the ARB twin-motor unit provides on-demand air away from power outlets. If you need hydraulic power in the field, an air-over-hydraulic pump powered by a shop air compressor is the standard solution.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| OTC 4020 | Air Hydraulic | Heavy-Duty Shop Presses | 10,000 PSI / 98 cu in oil capacity | Amazon |
| ARB CKMTA12 | 12V Compressor | Overlanding & Air Lockers | 6.16 CFM / 174 L/min flow rate | Amazon |
| HIBLOW HP-80-0117 | Linear Diaphragm | Septic System Aeration | 80 L/min / 3.6 PSI max | Amazon |
| TEMCo HP0000 | Air Hydraulic | Construction & Field Repair | 10,000 PSI / 103 cu in capacity | Amazon |
| DEWALT DWFP55130 | Portable Compressor | Trim Nailers & Tire Inflation | 3.0 SCFM @ 90 PSI / 200 max PSI | Amazon |
| HugeHard MEDO LA-80BN | Piston Pump | Continuous Pond Aeration | 3.32 CFM / 86 Watts | Amazon |
| BESTOOL Air Hydraulic | Air Hydraulic | Auto Body Frame Machines | 10,000 PSI / 1.6 L reservoir | Amazon |
| Pondmaster AP-60 | Linear Diaphragm | Koi Pond & Dry Well Aeration | 90 L/min / 5.66 PSI / 45 dBA | Amazon |
| Blue Diamond ET 80 | Linear Diaphragm | Residential Septic & Small Ponds | 75 L/min / 0.1 Bar | Amazon |
In‑Depth Reviews
1. OTC 4020 Air Powered Hydraulic Pump
The OTC 4020 is the gold standard for shop-based hydraulic power. It develops a full 10,000 PSI hydraulic pressure from just 100 PSI of shop air, and its 98 cubic inch oil reservoir is sufficient for most single-acting rams, presses, and pullers. The two-stage release mechanism allows a fast ram return without the hydraulic shock that can damage components.
Owner reports confirm units lasting 20-43 years in daily commercial service, which is unparalleled in this category. The foot-pedal design keeps both hands free for positioning workpieces, and the internal relief valve prevents over-pressurization even if the operator is distracted. This is built for abuse, with metal construction and a baked powder finish.
The only downside is the weight and stationary nature — this is not a portable field unit. While a small number of recent quality complaints exist, the collective owner consensus overwhelmingly points to a unit that, once purchased, becomes the last hydraulic pump you will ever need to buy.
Why it’s great
- Manufactured to industrial standards with a proven 20+ year service life
- Two-stage release minimizes shock and allows precise ram control
- Lifetime Marathon warranty provides unmatched peace of mind
Good to know
- Heavier and bulkier than most competitors
- Foot pedal requires a firm, flat mounting surface
2. ARB CKMTA12 Twin Compressor
The ARB CKMTA12 is the undisputed leader in 12-volt mobile air. Its twin-motor, twin-cylinder design pushes 6.16 CFM (174 L/min), making it the highest-flowing compressor in its voltage class. It is specifically engineered to operate air lockers and inflate tires simultaneously, and the thermal protection prevents shutdown on the trail.
Real-world testing shows it can air up four 33-inch tires from 12 to 36 PSI in under ten minutes. The motors use ball bearings instead of bushings and PTFE-impregnated carbon fiber piston seals, reducing friction at high operating temperatures. The included wiring loom is thorough, though users note it is overkill if you are not wiring in lockers.
The unit is compact enough to mount under a passenger seat, but installation does require moderate electrical skill. It operates at a moderate noise level and is capable of continuous duty, which is rare for a 12V unit. This is the definitive choice for serious overlanders and vehicle-based pneumatic systems.
Why it’s great
- Highest flow rate of any 12V compressor in its physical footprint
- Thermal protection ensures reliability during extended inflation sessions
- Purpose-built for ARB Air Locker integration
Good to know
- Wiring harness is complex for installations without lockers
- Premium pricing reflects the specialized overlanding market
3. HIBLOW HP-80-0117 Septic Linear Air Pump
The HIBLOW HP-80-0117 is the best-selling septic aerator in the United States for good reason. It delivers 80 liters per minute at a maximum pressure of 3.6 PSI, which is exactly the operating envelope required for residential sewage treatment systems. The linear diaphragm design means it is oil-free, energy-efficient, and quiet enough to sit near a house without causing disturbance.
An often-overlooked feature is the built-in brass barb for connecting an external septic alarm, giving homeowners early warning of system failure. The pump is UL rated for outdoor use, and the chassis is designed to be rebuilt up to two times using a service kit — each rebuild costs a fraction of a full replacement. Owners report installation taking minutes.
While the 3.6 PSI pressure limit means it is not suitable for deep pond aeration at 10+ feet, it is perfectly matched to the backpressure profile of a typical septic tank diffuser. This is a purpose-specific pump that excels at its single job.
Why it’s great
- Dominant market share in septic aeration proves reliability
- Rebuildable design extends service life significantly
- Integrated brass barb for alarm system connection
Good to know
- Low maximum pressure limits it to shallow aeration applications
- Price is higher than generic diaphragm pumps
4. TEMCo HP0000 Air Hydraulic Pump
The TEMCo HP0000 is a direct competitor to the OTC 4020, offering the same 10,000 PSI rating with a slightly larger 103 cubic inch oil capacity. It features all-metal construction with a baked powder Tuff-Coat finish designed to resist corrosion on construction sites and in maintenance yards. The pump is fully rebuildable, with components available from an American manufacturer backed by a 5-year warranty.
Users consistently report a faster flow rate than generic Chinese imports, noting that it pushes 12 tons on a 20-ton press without hesitation. The foot-actuated operation is responsive, and the included 3/8-inch NPT quick coupler and dust cap make connecting hydraulic lines straightforward. The compact footprint (11 x 5 x 7.5 inches) fits easily under a workbench.
The most common owner criticism is that the 4-foot hose is too short for many setups, requiring an aftermarket extension. The pedal also lacks a gradual release mechanism, meaning the ram drops immediately when the pedal is released. For field use where a shorter hose is adequate, this represents strong value.
Why it’s great
- Faster flow than budget competitors for increased productivity
- Corrosion-resistant finish suited for outdoor job sites
- Fully rebuildable with a comprehensive 5-year warranty
Good to know
- Included hose is short at only 4 feet
- No gradual ram release; immediate drop on pedal release
5. DEWALT DWFP55130 Portable Compressor
The DEWALT DWFP55150 hits the sweet spot for the home garage or remodeling contractor. It delivers 3.0 SCFM at 90 PSI from a 2.5-gallon tank with a 200 PSI maximum, providing enough capacity for trim nailers, brad staplers, and tire inflation without the noise of a traditional pancake compressor. At 71.5 dBA, it is quiet enough for indoor conversations.
The oil-free pump eliminates maintenance, and the 12-amp motor draws less current to reduce breaker tripping. Dual quick couplers allow two tools to be connected simultaneously, and the roll cage protects the core components. The unit weighs only 36 pounds and can be stored or operated vertically.
Users note it is not suited for continuous-duty tools like sanders or impact wrenches due to the small tank size and 3.0 SCFM output. The drain valve is a convenient ball valve, and the cord wrap keeps storage tidy. It is the best option for light-duty pneumatic work where portability and low noise matter most.
Why it’s great
- Quiet operation at 71.5 dBA suitable for indoor use
- 200 max PSI provides fast tank recovery
- Oil-free pump eliminates maintenance routines
Good to know
- Limited capacity for continuous-demand pneumatic tools
- Short power cord requires an extension for larger garages
6. HugeHard MEDO LA-80BN Piston Air Pump
The HugeHard MEDO LA-80BN is engineered for years of continuous 24/7 operation, making it the top choice for septic and pond aeration where reliability is non-negotiable. It moves 3.32 CFM (80 L/min) at a sustained 5.05 PSIG, consuming only 86 watts. Multiple verified owners report 12 to 20 years of uninterrupted service with only biannual filter cleaning.
Unlike diaphragm pumps that rely on flexing rubber components, this unit uses a piston design with all-metal internal construction. This makes it far more resistant to wear over time, though it is slightly noisier at 45 dBA than some linear alternatives. It is UL rated for outdoor use, though mounting it off the ground in a sheltered location extends life dramatically.
The primary downside is the initial cost, which is higher than commodity diaphragm pumps. However, owners who replaced cheaper units that failed annually find the MEDO pays for itself within two years. For mission-critical aeration, this is the most dependable choice available.
Why it’s great
- Documented 12+ year lifespan in continuous 24/7 service
- All-metal piston pump with superior durability
- Energy-efficient at only 86 watts
Good to know
- Higher purchase price than diaphragm alternatives
- Slightly louder than linear designs at 45 dBA

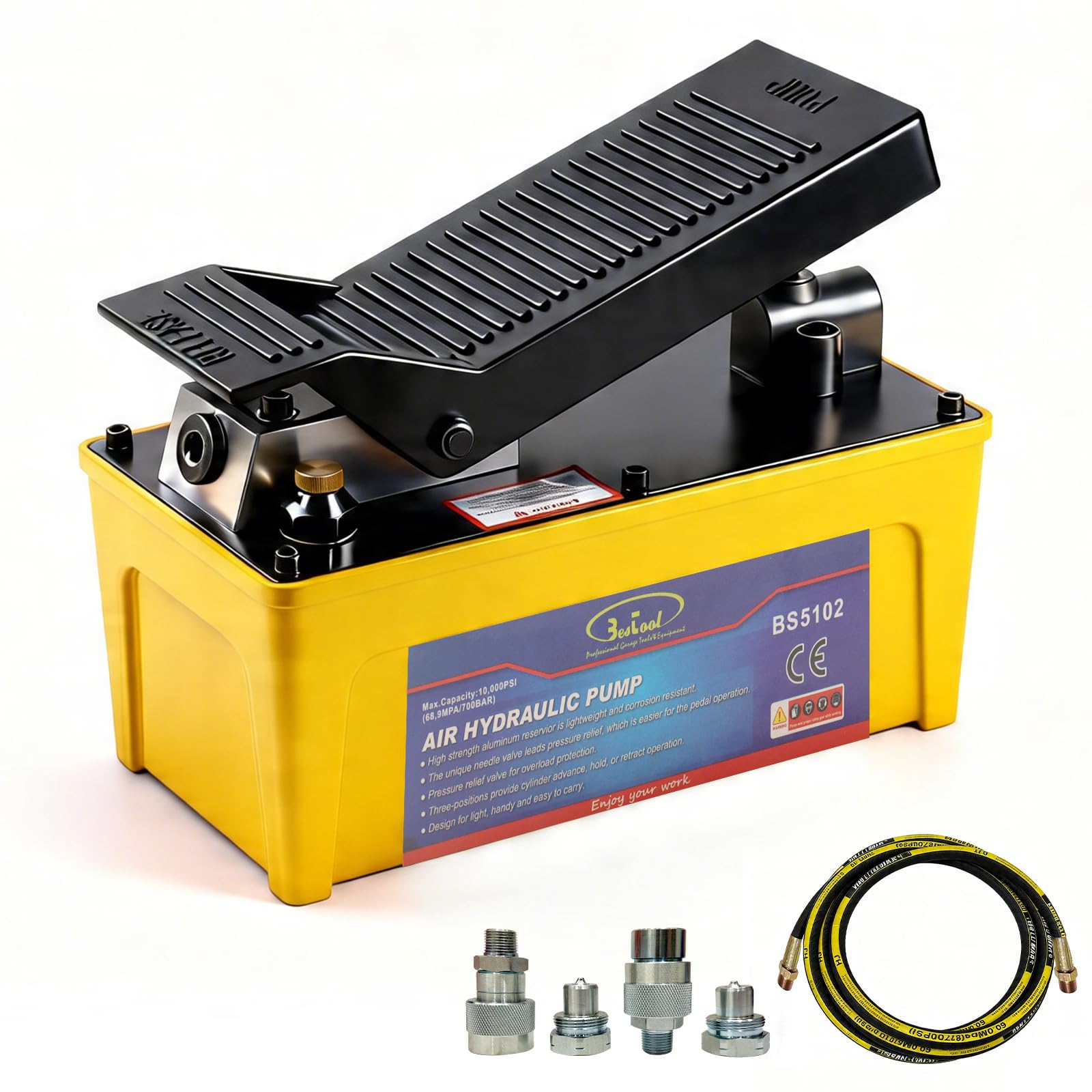

7. BESTOOL Air Hydraulic Pump
The BESTOOL Air Hydraulic Pump delivers professional 10,000 PSI hydraulic pressure at a more accessible price point than the OTC or TEMCo. It includes a 1.6-liter aluminum reservoir, a 3/8-inch NPT quick coupler, and a 6.5-foot high-pressure hose with steel wire reinforcement. The aviation-grade aluminum pump core resists corrosion in automotive shop environments.
It is specifically noted by owners as a perfect drop-in replacement for the BendPak RBJ4500 bridge jack, with mounting holes aligning exactly. The 2-stage release mechanism allows fast or metered ram return, and the internal relief valve protects the system against over-pressurization. The foot treadle design leaves hands free for positioning.
Quality control on the included hose has been a reported issue, with one owner experiencing a leak that required swapping to an old hose. The pump itself is solid, but buyers should inspect the hose assembly before installation. For the price, it represents excellent value for automotive body work and light industrial use.
Why it’s great
- Perfect OEM replacement for BendPak lift pumps
- Aviation aluminum construction resists shop corrosion
- Full 10,000 PSI output with two-stage release
Good to know
- Included hose has been reported as a leak source
- Reservoir capacity is smaller than premium competitors
8. Pondmaster AP-60 Air Pump
The Danner Pondmaster AP-60 is a well-established workhorse for pond and dry well aeration. It delivers 90 liters per minute (5,500 cubic inches per minute) with a maximum pressure of 5.66 PSI — sufficient for depths up to 10 feet. The 14-outlet manifold allows distribution to multiple diffusers, making it ideal for larger ponds or systems requiring multiple aeration points.
The oil-less motor is energy-efficient at only 60 watts, and the noise level of 45 dBA is quiet enough to be unobtrusive. Owners report units surviving four winters outdoors with annual diaphragm changes, though some internal screws may strip over time. A rebuild kit is available, extending the service life significantly beyond disposable pumps.
The all-plastic, hermetically sealed housing is corrosion-resistant, but it is not as robust as the metal-cased MEDO for heavy-duty septic use. The most common issue reported is diaphragm failure after 1-2 years, which correlates with the need for a rebuild rather than unit replacement. For the price, it is a strong pond aeration performer.
Why it’s great
- 14-outlet manifold supports multi-point aeration systems
- Very quiet at 45 dBA for residential settings
- Energy-efficient design draws only 60 watts
Good to know
- All-plastic construction less rugged than metal pumps
- Diaphragms require periodic replacement every 1-2 years
9. Blue Diamond ET 80 Linear Diaphragm Pump
The Blue Diamond ET 80 is a budget-conscious option for residential septic and small pond aeration. It delivers 75 liters per minute through an all-aluminum chassis that is both UL and CE approved — making it suitable for NSF-certified sewage treatment systems. The 1/2-inch ID bronze fitting provides reliable corrosion resistance at the connection point.
Owners running this unit on a 1/10-acre pond for six consecutive summers report it starts immediately each year without winterization. For septic replacement, installation is straightforward with included fittings, and it runs at a similar noise level to the OEM pumps it replaces. The pump is rated for continuous automatic operation.
Noise is the most common complaint — it is noticeably louder than the premium HIBLOW unit, producing a steady hum audible indoors. The service life appears variable, with one owner reporting first-year failure while others exceed five years. Rebuilding the unit can be tricky and may not restore original quietness, making the total cost of ownership close to buying new.
Why it’s great
- All-aluminum chassis with UL/CE/TUV safety certifications
- Proven six-year performance in outdoor pond applications
- Compatible with NSF-certified septic systems as OEM replacement
Good to know
- Audible hum is louder than comparable premium pumps
- Rebuild process may not fully restore original performance
FAQ
What is the difference between a linear diaphragm pump and a piston pump for aeration?
Can I use a 12V compressor like the ARB CKMTA12 to run air tools continuously?
What type of hydraulic fluid should I use in an air-over-hydraulic pump?
Final Thoughts: The Verdict
For most users, the best air motor pump winner is the OTC 4020 because it combines proven 20-year lifespan, 10,000 PSI output, and an unbeatable lifetime warranty for shop hydraulic work. If you need mobile 12V air for overlanding and tire inflation, grab the ARB CKMTA12. And for continuous 24/7 septic or pond aeration where reliability is paramount, nothing beats the HugeHard MEDO LA-80BN.
