When your air compressor tank creeps past its safe pressure limit, the only component standing between a controlled release and a catastrophic rupture is a properly rated relief valve. These small brass fittings are the unsung safety-critical hardware that every shop compressor, portable unit, or stationary tank absolutely requires — and a single failed valve can turn a routine workday into a dangerous overpressure event.
I’m Min — the co-founder and writer behind Gadgets Feed. My deep market research and spec-by-spec analysis of dozens of air relief valves, from thread sizing to ASME certification and pop-off accuracy, drives every recommendation in this guide.
After evaluating thread types, pressure ratings, flow capacity, and construction materials across seven models, I’ve built a definitive reference for anyone shopping for an air relief valve for air compressor system.
How To Choose The Best Air Relief Valve For Air Compressor
An air relief valve may look like a simple brass fitting, but selecting the wrong one for your compressor can lead to leaks, premature cycling, or dangerous overpressure conditions. The three most critical factors are thread size and type, set pressure rating, and construction durability.
Thread Size and Connection Type: NPT Compatibility
The overwhelming majority of compressor tanks use NPT (National Pipe Taper) threads. Common inlet sizes are 1/4″ MNPT for standard portable and shop compressors, 1/8″ MNPT for smaller pneumatic accessories and heating system vents, and 1/2″ MNPT for larger industrial tanks. Always measure the existing port or check your compressor manual before ordering — a mismatched thread cannot be made safe with adapters alone.
Set Pressure Rating: Matching Your Compressor’s Max PSI
The relief valve’s set pressure should match or slightly exceed the compressor’s maximum rated tank pressure. For a typical 150 PSI tank, a 150 PSI set valve is correct. For 175 or 200 PSI compressors, a 200 PSI rated valve is needed. Installing a valve with a lower PSI rating than the tank causes nuisance popping; a higher rating defeats the safety purpose entirely. Check the flow coefficient (SCFM or CFM) as well — it must be high enough to vent the compressor’s full output in a failure scenario.
Material and Construction: Brass and Beyond
Nearly all residential and light-commercial relief valves are machined from solid brass for corrosion resistance and high-temperature ductility. Premium valves may incorporate stainless steel internal springs or seats for extended cycle life. If your compressor operates in extreme temperatures (below -65°F or above 250°F), verify the valve’s rated temperature range. ASME certification adds an independent third-party validation of pop-off accuracy and flow performance.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Milton S-1090-200 | Premium Safety Valve | ASME-compliant industrial use | 200 PSI / 170 CFM / 1/4″ MNPT | Amazon |
| Bonuci 4-Pack 150 PSI | Multi-Pack Value | Replacing multiple tank valves | 150 PSI / 178 CFM / 1/4″ NPT | Amazon |
| Bonuci 4-Pack 200 PSI | High-Pressure Multi-Pack | 200 PSI rated compressors | 200 PSI / 178 CFM / 1/4″ NPT | Amazon |
| Therwen Valve & Gauge Set | Combo Kit | Refresh old compressor gauges | 150 PSI / 49 SCFM / 1/4″ NPT | Amazon |
| Hydro Master Auto Vent | Automatic Vent Valve | Hydronic heating systems | 150 PSI / 240°F / 1/8″ MNPT | Amazon |
| Ei 1/2″ NPT 150 PSI | Large Port Valve | Large tank / 1/2″ port compressors | 150 PSI / -65°F to 400°F / 1/2″ NPT | Amazon |
| Rolair 131B Pilot Unloader | Unloader Valve | Gas compressor unloader replacement | 125-150 PSI adjustable / 40 dB | Amazon |
In‑Depth Reviews
1. Milton S-1090-200 1/4″ MNPT ASME Safety Valve
The Milton S-1090-200 is the reference standard for ASME-compliant safety valves in the air compressor world. Its 1/4″ MNPT brass body delivers bubble-tight sealing up to 10% below the 200 PSI pop-off set point, meaning zero weep or slow leak during normal compressor operation. The 170 CFM flow rate ensures that even a high-output pump can be fully relieved without backpressure building inside the valve body.
Milton has been manufacturing air accessories since 1943, and this valve carries that legacy with precision machining and consistent pop-off accuracy. The included branding and packaging reflect industrial-grade quality control. Buyers report that it trips within a few PSI of its 200 PSI rating and resets reliably without hunting or chattering — a critical safety behavior that cheaper valves sometimes fail to replicate.
Made in the USA, this valve is the right choice for anyone who needs documented ASME compliance for insurance, code, or workplace safety requirements. It costs a bit more than commodity packs, but the certified performance and long service life justify the premium for professional shops and serious DIYers who demand verified safety hardware.
Why it’s great
- ASME certified — meets safety code requirements
- Bubble-tight seal below 10% of set pressure
- Consistent pop-off at rated 200 PSI
Good to know
- Single valve only — no multi-pack value
- Not adjustable — fixed 200 PSI set point
2. Bonuci 4 Pcs 1/4″ Male 150 PSI NPT Pressure Relief Valve
The Bonuci 150 PSI four-pack delivers an outstanding cost-per-valve ratio for anyone managing multiple compressors, portable tanks, or simply wanting spares on hand. Each unit is machined from solid brass with 1/4″ NPT threads and a 150 PSI set pressure — the most common specification for residential and small-shop compressors up to 150 PSI tank rating. The 178 CFM flow capacity is generous enough to vent most single-stage pumps quickly.
Included seal thread locks on each valve simplify installation and reduce the chance of leaks at the threaded joint. The temperature range spans -65°F to +250°F, making these suitable for outdoor or unheated shop environments where extreme cold can cause brittle failure in inferior fittings. Customers consistently report that the valves pop off near their rated pressure and reseat without persistent leakage.
Keep in mind that these are not ASME certified; they serve as reliable replacement parts for non-code applications. If you need four valves to refresh an entire fleet of hobbyist compressors, this pack is the most economical path to a safer workshop without sacrificing brass durability.
Why it’s great
- Four valves in one purchase — excellent spare value
- High 178 CFM flow handles large pumps
- Brass construction with thread sealant included
Good to know
- No ASME certification
- Set pressure fixed at 150 PSI only
3. Bonuci 4 Pcs 1/4″ Male NPT 200 PSI Pressure Relief Valve
This 200 PSI variant of the Bonuci four-pack is purpose-built for compressors with higher tank ratings, typically 175 PSI to 200 PSI max pressure. It shares the same solid brass body and 1/4″ NPT thread as the 150 PSI version, but the internal spring and seat are calibrated to pop off at 200 PSI. The 178 CFM flow rating remains identical, providing the same venting capacity for high-pressure pumps.
Customer feedback shows that most units pop off very close to the 200 PSI spec, though a minority of buyers have reported one valve in a pack tripping slightly below 190 PSI. This variance is not uncommon in non-ASME commodity valves, but it means users relying on exact 200 PSI protection should test each valve upon installation. The included thread sealant makes mounting straightforward on any standard 1/4″ NPT port.
For the price of a single premium valve, this pack gives you four units that are well-suited to maintaining a fleet of 200 PSI rated compressors or keeping backups in the toolbox. Just verify your compressor’s max pressure rating before ordering — using a 200 PSI valve on a 150 PSI tank provides no overpressure protection.
Why it’s great
- High 200 PSI rating for modern compressors
- Multi-pack allows spares or multi-tank setup
- Brass body with wide temperature tolerance
Good to know
- Pop-off accuracy can vary between units
- Not ASME certified

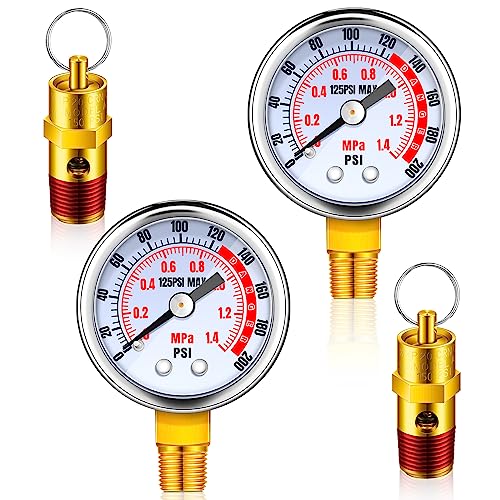

4. Therwen 4 Pcs Air Compressor Parts Replacement and Air Gauge Set
The Therwen set bundles two 150 PSI relief valves with two 0-125 PSI pressure gauges, creating a complete refresh kit for an aging compressor manifold. Each relief valve uses 1/4″ NPT brass construction with a 150 PSI set pressure and a flow rate of 49 SCFM — adequate for hobbyist and small-shop compressors but significantly lower than the 170+ CFM of premium valves. The gauges are stainless steel with clear 2-inch faces for easy reading.
Customers who have installed this set on older Ingersoll Rand and similar compressors report that the threads match the OEM manifold ports perfectly, and the gauges provide accurate readings. The included valve is best suited to compressors with moderate pump output; high-CFM pumps may overwhelm its 49 SCFM venting capacity during a full failure event. The brass valve body feels well-machined with no sharp burrs.
This is an excellent option if you need both a relief valve and replacement gauges simultaneously. Buying them together costs less than sourcing individual components. However, if you only need the valve, the lower flow rating and included gauges you may not use make the dedicated valve packs more efficient choices.
Why it’s great
- Complete gauge and valve refresh in one package
- Accurate 0-125 PSI stainless steel gauges
- Brass valve threads match OEM manifolds
Good to know
- Valve flow limited to 49 SCFM
- Includes parts you may not need
5. Hydro Master Automatic Air Vent Valve 1/8 Inch Brass
The Hydro Master is an automatic air vent valve — distinct from a standard pop-off relief valve. It uses a float mechanism to automatically bleed trapped air from hydronic heating systems, not to protect a compressor tank from overpressure. Its 1/8″ MNPT thread is smaller than typical compressor ports, and its primary application is radiators and heating manifolds where manual bleeding is inconvenient.
Machined from heavy-duty Italian brass, this valve handles up to 150 PSI and 240°F, making it suitable for high-temperature hydronic loops. The automatic operation means that any air accumulating at the high point of the system is vented without user intervention, maintaining consistent heat transfer and system efficiency. Installation is straightforward with Teflon tape on the 1/8″ male thread.
This is not a replacement for a compressor tank relief valve. Use it only for its intended purpose — automatic air elimination in closed-loop water or glycol heating systems. If you need a compressor safety valve, choose one of the 1/4″ NPT options above. For heating professionals and homeowners with baseboard radiators, this valve solves the persistent problem of air-bound zones.
Why it’s great
- Automatic float-venting — no manual bleeding
- Solid Italian brass construction
- Handles high-temperature hydronic systems
Good to know
- 1/8″ thread — not for standard compressor tanks
- Auto vent, not a pop-off safety valve

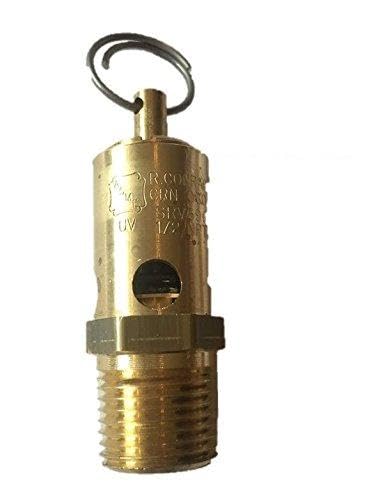

6. New 1/2″ NPT 150 PSI Air Compressor Safety Relief Pressure Valve
This 1/2″ NPT safety relief valve from Ei fills a specific niche: compressors and tanks with larger-than-standard 1/2″ NPT ports. The valve is made in the USA with a brass body and stainless steel internal components, offering an operating temperature range of -65°F to 400°F — the widest temperature tolerance among all products reviewed here. The 150 PSI set pressure suits tanks with a 150 PSI max rating.
Customer reports indicate that this valve pops off around 152 PSI and resets at 149 PSI, demonstrating a tight 3 PSI blowdown margin that minimizes pressure loss after a relief event. Some buyers noted that it does not fit Coleman brand compressors that use 1/4″ ports without bushing adapters — a reminder to always confirm your port size before purchasing. The brass finish and stainless steel seat promise corrosion resistance in humid environments.
If your compressor or receiver tank has a 1/2″ female NPT port, this is one of the only dedicated 1/2″ options available at a reasonable price point. For standard 1/4″ port compressors, an adapter bushing would be required, but using adapters on safety valves is not recommended by most manufacturers.
Why it’s great
- 1/2″ NPT fits large-tank compressors
- Wide -65°F to 400°F temperature range
- Tight 3 PSI blowdown margin
Good to know
- Single valve — no multi-pack option
- Does not fit 1/4″ port compressors without adapter
7. Rolair 131B Pilot Unloader Valve with Muffler
The Rolair 131B is a pilot-operated unloader valve, a specialized component that differs fundamentally from a simple pressure relief valve. Its job is to vent residual pressure from the compressor pump head and discharge line when the compressor stops, allowing the motor to restart under no load. This prevents start-up current surge and extends motor and pump life on gas-powered and larger electric compressors.
Factory set between 125 PSI and 150 PSI with adjustment capability, the 131B is a direct replacement for Rolair, Jenny, and Emglo compressors. The built-in muffler reduces the venting noise to approximately 40 dB — significantly quieter than the sharp hiss of an open unloader port. Customers report that installation is straightforward, and the valve restores proper start-up behavior to compressors that had been experiencing hard-starting or continuous load issues.
This is not a tank safety relief valve. It is a maintenance and performance component for the pump unloader circuit. If your compressor struggles to start or the unloader line hisses constantly, this Rolair part is the correct fix. For tank overpressure protection, pair it with one of the dedicated relief valves listed above.
Why it’s great
- Adjustable 125-150 PSI unloading pressure
- Integrated muffler reduces vent noise
- Direct OEM replacement for Rolair/Jenny/Emglo
Good to know
- Unloader valve, not a tank relief valve
- Specific to certain compressor brands
FAQ
Can I use a 200 PSI relief valve on a 150 PSI air compressor tank?
What does NPT mean on a relief valve thread?
Why does my relief valve leak or weep air when the compressor runs normally?
Final Thoughts: The Verdict
For most users, the air relief valve for air compressor winner is the Milton S-1090-200 because its ASME certification, precise 200 PSI pop-off, and 170 CFM flow deliver verified safety for professional and serious home shops. If you want multi-pack value for a 150 PSI compressor, the Bonuci 4-Pack 150 PSI offers an unbeatable cost per valve with solid brass reliability. And for a complete gauge and valve refresh, the Therwen combo kit pairs two functional valves with accurate stainless steel gauges in one economical bundle.
