That moment when the water temperature starts fluctuating or a puddle appears under the tank is the moment every homeowner dreads. Finding the right replacement part quickly can mean the difference between a simple DIY fix and a full tank replacement.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours analyzing technical specifications, cross-referencing OEM part numbers, and reading hundreds of user reports to identify which water heater components actually deliver on their promises and which are more likely to cause frustration.
The market is flooded with generic components that rarely fit right, but we’ve sorted through the noise to find the best american water heater parts that keep your system running reliably without the premium markup of a service call.
How To Choose The Best American Water Heater Parts
The most common mistake homeowners make is buying the cheapest part online without checking voltage ratings, thread sizes, or connection types. A mis-spec’d thermostat or element can cause erratic temperature swings, leave you with lukewarm water, or trip safety limit switches repeatedly. Here are the specific factors you need to match to your system.
Thermostat Types and Voltage Ratings
Electric water heaters use either snap-action KST thermostats or Thermo-O-Disc (TOD) styles, and they are not always interchangeable. The KST 200&203 dual-thermostat set is purpose-built for 120V–480V systems and includes an overheat safety cutout. If your unit uses an Apcom-style thermostat, the Alltemp KST set directly replaces it without adapter plates. Always confirm your current thermostat’s voltage range — a 120V thermostat on a 240V circuit will fail quickly.
Anode Rod Material and Length
Magnesium anode rods provide stronger corrosion protection than aluminum rods, making them the better choice for areas with soft water or if you notice a sulfur smell. The physical length of the rod, such as the 44-inch flexible design, must match your tank’s vertical clearance. Flexible segmented rods solve the common problem of accessing the anode in tight crawlspaces because each hinged segment is under 12 inches long. Always verify the thread size — standard is ¾” NPT — and use the included hex socket to avoid stripping the fitting.
Thermopile vs. Thermocouple for Gas Heaters
Gas water heaters that use a standing pilot often rely on a thermopile rather than a thermocouple. A thermopile generates a higher millivolt output (typically 750mV) to power both the gas valve and the electronic control board. The Reliance 100112328 is a 21-inch thermopile assembly designed for Bradford White, Rheem, and related brands. If your pilot light stays lit but the burner fails to ignite, the thermopile is the most likely culprit before the gas valve itself.
T&P Relief Valve Ratings
The temperature and pressure relief valve is a critical safety component. The Rheem SP8346 is rated for 210°F maximum temperature and 150 PSI maximum pressure with a CSA capacity of 105,000 BTU/hr. The inlet and outlet are both ¾” NPT. Never install a T&P valve with a lower PSI rating than your tank’s specification — doing so can cause premature leakage or fail to relieve pressure during an overheat event.
The Complete Tune-Up Kit Approach
Replacing both heating elements and both thermostats at the same time is often cheaper and more practical than spot-fixing one failed component. The Alltemp EWH-01 kit includes two 4500W 240V copper elements, two gaskets, the upper KST203 thermostat, and the lower KST200 thermostat. If your system is over five years old, a full tune-up kit eliminates the guesswork of which component fails next and restores original heat recovery performance.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Alltemp EWH-01 Tune-Up Kit | Tune-Up Kit | Complete electric water heater refresh | 2x 4500W 240V copper elements + 2 thermostats | Amazon |
| Reliance 100109136 Repair Pack | Repair Pack | Reliance/Rheem electric water heaters | Upper thermostat + elements in one box | Amazon |
| Eau 44″ Flexible Anode Rod | Anode Rod | Reducing tank corrosion and sulfur smell | 44″ magnesium, segmented, ¾” NPT | Amazon |
| Rheem SP8346 T&P Valve | Relief Valve | Safety pressure relief replacement | ¾” NPT, 150 PSI, 105K BTU/hr | Amazon |
| Alltemp KST 200&203 | Thermostat Set | Dual-element electric heater thermostat swap | 120-480V, 90-150°F range, UL certified | Amazon |
| Reliance 100112328 Thermopile | Thermopile | Gas pilot light and burner ignition fix | 21″ length, 750mV output | Amazon |
| Apcom WH10-A Thermostat | Thermostat | Bradford White upper thermostat replacement | Direct-fit for Bradford White, touch control | Amazon |
In‑Depth Reviews
1. Alltemp EWH-01 Electric Water Heater Tune-Up Kit
This tune-up kit eliminates the guesswork of diagnosing which single component failed. It includes two 4500W 240V copper heating elements, the upper KST203 thermostat, the lower KST200 thermostat, and two element gaskets. The Thermo-O-Disc (TOD) style thermostats cover a 90°F to 150°F adjustment range and operate across 120V to 480V, making them compatible with nearly any residential electric water heater regardless of age.
Both thermostats incorporate a built-in overheat safety protector, which is the same layer of protection found on original equipment parts. The copper elements are chrome-plated for corrosion resistance, and the included wrench fits standard 1-1/2-inch hex heads. If you own a home over five years old, proactively replacing all four components in one afternoon is far more cost-effective than emergency troubleshooting when the water goes cold on a holiday weekend.
Users consistently report restored water temperature recovery within the first 24 hours, and the snap-action bimetal disc design ensures the contacts separate cleanly without arcing, extending the service life well beyond generic unbranded thermostats. Carrying this kit in your toolbox means you can handle any electric heater failure with one purchase.
Why it’s great
- Includes upper and lower thermostats plus two 4500W elements in one box
- TOD-style thermostats work with Apcom-compatible water heaters
- Built-in overheat safety protector on every thermostat
Good to know
- Element wrench may not fit extremely tight factory-installed elements without an impact driver
- Not compatible with single-element or non-electric water heaters
2. Eau 44 Inch Flexible Magnesium Anode Rod
Anode rods are the sacrificial component that prevents your steel tank from rusting, yet most homeowners never inspect them. This 44-inch magnesium rod is segmented into four hinged parts, each under 12 inches long, so you can snake it into an attic, crawlspace, or tight closet without bending the metal. Magnesium is the preferred material for areas with soft water or if you’ve noticed a rotten-egg sulfur odor, as it more actively corrodes instead of your tank.
The package includes a 27mm chrome-finished hex socket and Teflon sealing tape, saving you a separate trip to the hardware store. The standard ¾-inch NPT thread fits Rheem, Reliance, Richmond, Kenmore, GE, and A.O. Smith heaters. Many factory-installed rods are tightened to over 150 ft-lbs and may require an impact wrench or breaker bar for initial removal, but once out, the hinged design makes annual inspections practical.
Users who replaced nine-year-old factory rods note that the magnesium rod offers a higher electrochemical potential than aluminum, providing stronger tank protection. If you cut a portion of the rod to fit a shorter tank, a simple hacksaw through the unthreaded section works cleanly. Replacing this part every two to three years is the single most effective way to double your water heater’s lifespan.
Why it’s great
- Segmented flexible design fits tight spaces without bending the metal
- Includes 27mm socket and Teflon tape for immediate installation
- Magnesium composition prevents sulfur odors better than aluminum rods
Good to know
- Factory rod may require impact wrench to loosen initially
- Heavy paint on threads may need to be cleaned to ensure zero-Ohm grounding
3. Rheem SP8346 Temperature and Pressure Relief Valve
The temperature and pressure relief valve is the most overlooked safety device in a home, yet it prevents catastrophic tank rupture. The Rheem SP8346 is rated for 210°F maximum temperature and 150 PSI maximum pressure, with a CSA capacity of 105,000 BTU/hr. Both the inlet and outlet are ¾-inch NPT ports, and the 7-1/4-inch overall length with a 3-inch sensor probe ensures proper insertion into the tank.
The stainless steel exterior finish resists the corrosion that often seizes older valves, making future replacement easier. The SPD8346 is a direct OEM replacement for Rheem, Ruud, and many Whirlpool gas and electric models, and it also fits other brands using a standard ¾-inch NPT port. A leaking T&P valve is often mistaken for a condensation drip, but if water discharges steadily, the valve seat has failed and needs immediate replacement.
Users frequently report that swapping this valve takes only one tool — a pipe wrench — and costs a fraction of a plumber’s service fee. The valve opens cleanly at the rated pressure and reseats without weeping, which is the failure mode of cheaper generics.
Why it’s great
- OEM-grade replacement with 150 PSI and 210°F ratings
- Stainless steel exterior resists corrosion and seizing
- Direct fit for Rheem, Ruud, and many Whirlpool models
Good to know
- Corrosion on old valve seat may require careful extraction to avoid damaging tank threads
- Not designed for commercial high-capacity water heaters above 105K BTU/hr
4. Alltemp KST 200&203 Electrical Water Heater Thermostat
When you only need to replace the thermostats rather than the elements, this set from Alltemp gives you the KST203 upper thermostat and KST200 lower thermostat in one package. Both are UL certified, operate across 120V to 480V, and feature an adjustable range from 90°F up to 150°F. The KST203 is designed as a top-style upper thermostat for dual-element water heaters, with a snap-action bimetal disc that ensures fast contact separation under high electrical loads.
The KST200 lower thermostat uses a mounting tab that snaps into the bracket on the tank surface, making swap-out a five-minute job. Both are interchangeable with Apcom-style and Thermo-O-Disc styles, so they work across Rheem, Reliance, Richmond, State, GE, and A.O. Smith electric heaters. The built-in safety switch prevents the tank from overheating if the main thermostat fails, adding a redundant safety layer.
Several users purchased this set after finding the original upper thermostat had failed while the lower was still functional. The adjustable temperature dial lets you fine-tune the water temperature precisely, and the UL mark gives confidence that the internal contacts won’t weld shut during a surge. If your water heater is less than eight years old and only one thermostat is acting up, this set solves it without overspending on a full tune-up kit.
Why it’s great
- UL certified for safety and reliability
- Works across 120V to 480V systems without modification
- Interchangeable with Apcom and TOD thermostat styles
Good to know
- Does not include elements or gaskets — thermostat-only kit
- Upper and lower thermostats are distinct parts; ensure correct orientation during installation
5. Reliance Water Heater 100109136 Electric Water Heater Plumber Repair Pack
The Reliance 100109136 Plumber Repair Pack is a targeted kit that includes one upper thermostat and the associated heating elements, designed specifically for Reliance, Rheem, and Ruud electric water heaters. The kit comes in a compact package with a 17.65-inch width and 43.05-inch height, containing everything you need for a single-thermostat replacement without the extra parts you don’t need. The chrome finish on the elements provides anti-corrosion protection that extends their operational life in hard-water environments.
This pack is ideal if you have diagnosed that only the upper thermostat or elements have failed, which is common when you get lukewarm water at the tap but the tank is full. The included elements match the standard 4500W 240V configuration found in most residential 40- and 50-gallon tanks. The manufacturer-part-number compatibility ensures a direct swap without needing wire adapters or mounting modifications.
Customers who installed this pack report that it resolved inconsistent water temperature in about 30 minutes. The kit’s narrow focus makes it a good backup to keep in the garage for emergencies, especially if your family depends on a single water heater. It’s less comprehensive than the full tune-up kit but more affordable when you know which component failed.
Why it’s great
- OEM-matched components for Reliance, Rheem, and Ruud heaters
- Chrome-finished elements resist scale buildup
- Compact kit with only the parts needed for upper element replacement
Good to know
- Does not include lower thermostat or lower element
- Requires a separate element socket tool for removal of old parts
6. Reliance Water Heater 100112328 21″ Thermopile Assembly
Gas water heaters with standing pilot lights rely on a thermopile to generate the millivoltage required to open the main gas valve. The Reliance 100112328 is a 21-inch thermopile assembly that directly replaces the unit in Bradford White, Rheem, and Envirotemp gas heaters. If your pilot light stays lit but the burner fails to ignite when the thermostat calls for heat, the thermopile is almost certainly the problem before you assume the gas control valve is faulty.
The 21-inch length provides enough reach for most standard gas heater pilot assemblies, and the red wire insulation is clearly marked for correct polarity. Users have reported this thermopile working reliably for over three years after installation, saving hundreds of dollars in service call fees. The assembly is manufactured under the Reliance brand with full warranty coverage, giving better quality assurance than generic no-name thermopiles that may drift in output within months.
One important installation note is that the nut on the assembly may need to be trimmed or cut off for compatibility with certain Bradford White models, but this is a simple operation with wire cutters. For gas heaters, the thermopile output should measure 750mV or more at the gas valve terminals when the pilot is lit — anything below 400mV means it’s time for replacement. This part solves the most common gas heater mid-life failure without replacing the entire burner assembly.
Why it’s great
- Direct replacement for Bradford White, Rheem, and Envirotemp gas heaters
- 21-inch length fits standard pilot assemblies without extension
- Branded Reliance quality with manufacturer warranty
Good to know
- Compatibility with some Bradford White models may require cutting the nut off
- Not suitable for systems using a standalone thermocouple instead of a thermopile

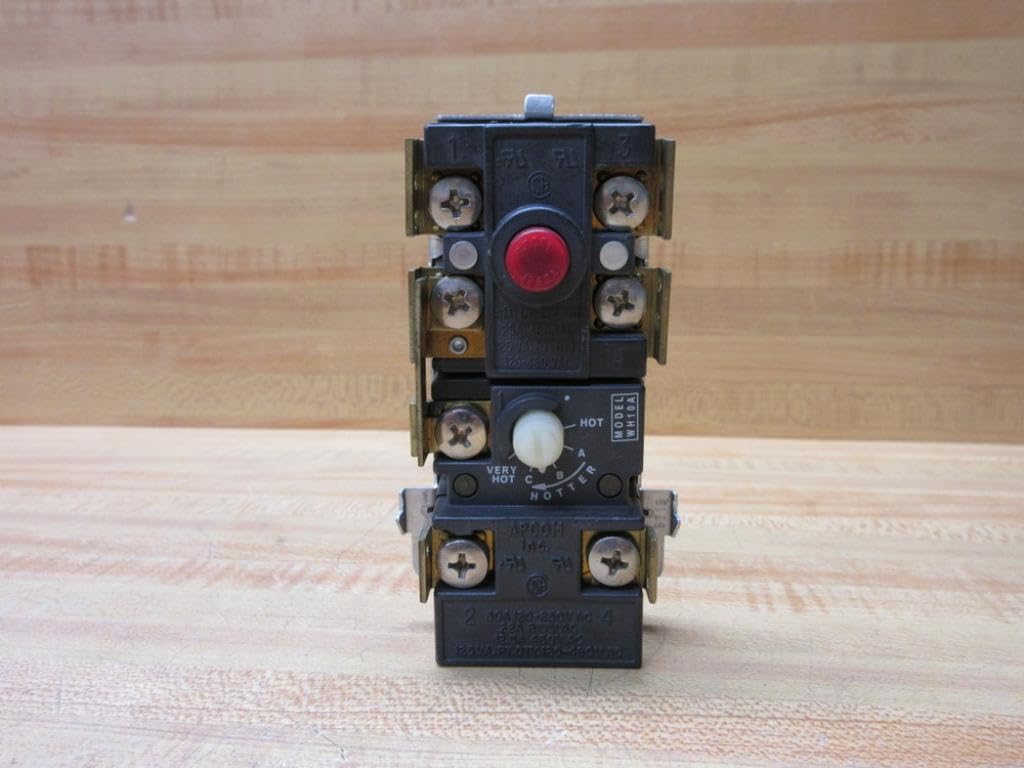

7. Apcom WH10-A Bradford White Upper Water Heater Thermostat
When your Bradford White water heater delivers lukewarm water at all taps, the upper thermostat is usually the first component to suspect. The Apcom WH10-A is a direct-fit upper thermostat designed specifically for Bradford White models, with a temperature display and touch control for precise adjustment. The plastic housing weighs just 3.2 ounces and mounts directly in the factory bracket without any modification, making it the simplest swap in this guide.
The thermostat is not smart-home compatible, which is actually a plus for reliability — there are no circuit boards or Wi-Fi modules to fail inside the metal junction box. Apcom is the OEM supplier for Bradford White thermostats, so the part number WH10-A matches exactly what your heater shipped with from the factory. The temperature display gives you visual confirmation that the setpoint is correct, unlike older bi-metallic thermostats that can drift over time.
Users consistently praise how easy the installation is for anyone comfortable working around electrical components. Many recommend replacing the lower thermostat at the same time, as both are subjected to the same wear cycles.
Why it’s great
- OEM direct-fit for Bradford White water heaters — no adapter plates needed
- Temperature display and touch control for precise setpoint adjustment
- Extremely lightweight and easy to install in under 10 minutes
Good to know
- Only an upper thermostat — does not include a lower thermostat
- Not compatible with Rheem, A.O. Smith, or other non-Bradford White brands
FAQ
Can I mix upper and lower thermostat brands in my water heater?
How do I check if my thermopile is bad before buying a replacement?
How often should I replace the anode rod in my water heater?
Will a 4500W element work in a water heater originally rated for 3500W?
Final Thoughts: The Verdict
For most users, the best american water heater parts winner is the Alltemp EWH-01 Tune-Up Kit because it covers every common failure point — both thermostats and both elements — in one package at a single purchase price. If you are dealing with a sulfur smell or a tank that is nearing the end of its original anode rod, grab the Eau 44″ Flexible Magnesium Anode Rod to extend your tank’s life by years. And for gas heaters with a pilot that stays lit but a burner that won’t fire, nothing beats the Reliance 100112328 Thermopile Assembly for restoring full ignition without replacing the gas valve.
