A poorly sealed or flimsy attic access door bleeds conditioned air, invites pests, and makes a routine trip into the crawl space feel like a gamble. Whether you are covering a rough opening after a plumbing repair or replacing a warped builder-grade panel, the material gauge, latch type, and insulation barrier matter far more than most homeowners realize.
I’m Min — the co-founder and writer behind Gadgets Feed. I analyze hundreds of technical spec sheets and customer reviews for home improvement products each month, zeroing in on the steel thickness, hinge design, and load capacity details that separate a one-time install from a future headache.
After reviewing dozens of models across multiple price tiers, I have sorted through the steel panels, spring-loaded hatches, and pull-down ladder systems to identify the very best options. If you are searching for the best attic access door, this guide breaks down the critical measurements, materials, and locking mechanisms you need to consider before cutting into your drywall.
How To Choose The Best Attic Access Door
A simple metal panel and a full pull-down ladder serve completely different roles. The choice comes down to access frequency, insulation needs, and whether the opening needs to blend into a finished ceiling.
Steel Gauge and Material Strength
The gauge number tells you the thickness of the steel. A 20-gauge panel weighs around 9.8 pounds and suits light-duty ceiling access for electrical or plumbing repairs. An 18-gauge frame offers noticeably better resistance against warping, especially in humid attic environments. Premium units like the Elite 1000 use 18-gauge steel throughout with a 14-gauge stainless steel cam latch — a significant upgrade that resists sagging over decades of use.
Latch Mechanism and Security
Screwdriver latches require a tool to open the door, which deters casual access and keeps the door flush against the frame. Cam latches use a quarter-turn motion and are quicker for frequent inspection points. Spring-loaded recessed latches provide a tool-free push-to-close action but may not seal as tightly against air leakage. For a finished ceiling, a flush cam lock that sits nearly invisible is the cleanest option.
Rough Opening Dimensions
A 24 x 24 inch nominal panel actually requires a rough opening of 24-3/8 x 24-3/8 inches to accommodate the mounting flange. Measure your existing hole or frame the new opening with this excess in mind. If you are installing a pull-down ladder, the standard rough opening is 22.5 x 54 inches. Always measure the ceiling height (from floor to ceiling joist) before ordering any drop-down system, as most ladders adjust between 7’8” and 10’3”.
Insulation and Thermal Break
An uninsulated steel door in the ceiling creates a thermal bridge that can cause condensation in winter and heat gain in summer. Some premium access doors include a foam core or a reflective radiant barrier. For pull-down ladders, the panel lid itself often lacks insulation, so adding a removable foam panel on top of the closed ladder is a common retrofit to maintain the conditioned envelope of the living space below.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Elite 1000 Metal Access Door (Cam Latch, 22×30) | Mid-Range | Professional-grade ceiling access | 18 Gauge steel frame, 14 Ga. stainless cam latch | Amazon |
| Premier 3000 Series (Screwdriver Latch, 24×24) | Mid-Range | Simple flush drywall repair cover | 20 Gauge steel, removable door | Amazon |
| Premier 2002 Series (Screwdriver Latch, 24×24) | Mid-Range | Universal flush mount, tile or drywall | Deep flanges for 5/8” drywall | Amazon |
| Fengze 1.2mm Spring Loaded (24×24) | Mid-Range | Tool-free push latch ceiling access | 1.2 mm thick steel, spring press latch | Amazon |
| AVGVLIJ Aluminum Attic Ladder (7’8”-10’3”) | Premium | Frequent access with handrail support | 375 lbs load, 5-step aluminum | Amazon |
| Thctvous 10FT Attic Ladder (25×54) | Premium | Heavy-duty wide opening stability | 350 lbs, non-slip 3” rungs, ANSI 14.9 | Amazon |
| WTRAVEL Aluminum Loft Stairs (22.5×54) | Premium | Smooth gas-shock folding, wide steps | 375 lbs, 12-step aluminum, 41.3 lbs | Amazon |
| Vantic 10FT Attic Ladder (22.5×54) | Premium | Wood rail alternative with gas rod assist | 350 lbs, solid pine rails, 57 lbs | Amazon |
| BlueTex Insulation Kit (10×8 FT) | Budget | Garage door insulation retrofit | 2 mm reflective foam, radiant barrier | Amazon |
In‑Depth Reviews
1. Elite 1000 Metal Access Doors (Cam Latch, 22×30)
Linndor’s Elite 1000 brings a professional-grade build to the attic access market. The frame and door are both formed from 18-gauge steel, while the cam latches use 14-gauge 304 stainless steel — a combination that virtually eliminates sagging and keeps the door flush with the drywall even after years of use. The 7/16-inch return lip hides the cut edge of the drywall cleanly.
Installation is straightforward with the pre-drilled frame, and the galvannealed steel resists rust in the humid attic environment. The keyed cylinder lock includes two matching keys, making it suitable for commercial inspections or rental properties where code compliance matters. The white baked enamel finish accepts paint easily if you need to match a specific ceiling color.
The three-cam latch system provides a tight seal around the perimeter, reducing air leakage compared to single-point latches. At 22 x 30 inches, the opening offers generous clearance for accessing HVAC equipment or large ductwork.
Why it’s great
- 18-gauge frame and door resist warping better than standard 20-gauge panels
- Three stainless steel cam latches secure the door evenly without flex
- Keyed lock and USA manufacturing meet many commercial building requirements
Good to know
- Heavier than basic panels at roughly 15 pounds; two-person install is easier
- Requires parallel framing support; works best if you frame the opening with 2×4 blocking
2. WTRAVEL Aluminum Attic Ladder (22.5×54)
WTRAVEL’s aluminum ladder takes the hassle out of the pull-down routine. The gas shock system slows the descent and helps lift the ladder back into the ceiling with minimal effort — a feature usually found on ladders costing significantly more. The 375-pound load capacity means you can carry stored boxes or tools without worrying about structural integrity.
The folding mechanism uses heavy-duty hinges with non-slip footing on the bottom of each leg. The 12-step aluminum construction spans ceiling heights from 7’8” to 10’3” with adjustable leg sections. At 41.3 pounds, the ladder is light enough for a single person to lift into position during installation, though you’ll want a helper for the ceiling trim frame.
The integrated handrail adds security when climbing, and the anti-skid steps prevent slipping even when the ladder is used in unconditioned spaces. The aluminum frame won’t rust or warp, making this a solid long-term investment for a primary attic access point.
Why it’s great
- Gas-shock assist makes lowering and raising the ladder feel effortless
- Widened steps and handrail provide stable footing at the top of the climb
- 375-pound capacity handles heavy storage boxes and building materials
Good to know
- Rough opening must be exactly 22.5 x 54 inches; no adjustment for smaller holes
- Legs may need trimming for ceiling heights below 8 feet
3. AVGVLIJ Aluminum Attic Ladder (7’8”-10’3”)
The AVGVLIJ attic ladder proves that you don’t need to spend top dollar for a reliable folding ladder. The aluminum alloy frame supports up to 375 pounds while staying light enough for one-person operation. The five-step design unfolds quickly and locks into place with heavy-duty hinges that prevent wobbling during ascent.
The non-slip foot mats grip the floor below the attic opening, and the integrated handrail provides an extra point of contact for balance. This ladder fits the standard 22.5 x 54 inch rough opening and adjusts to ceilings between 7’8” and 10’3”. The metallic grey finish resists corrosion in unconditioned attic spaces.
Users with frequent attic access (100+ trips over three months) reported no structural issues or loosening of the hinge pins. The compact folded profile leaves almost all of the ceiling space clear for storage around the opening.
Why it’s great
- High 375-pound capacity without the heavy wood rail weight
- Non-slip foot mats and handrail improve safety on every climb
- Aluminum construction eliminates rust and rot common with wood ladders
Good to know
- No gas-shock assist; lowering requires a bit more control
- Some users noted shipping costs can be high for large items
4. Vantic 10FT Aluminum Attic Ladder (22.5×54)
Vantic takes a hybrid approach by pairing solid pine side rails with a reinforced plywood base and an aluminum frame. This construction provides the stability of wood underfoot without the excessive weight of a fully wooden ladder. The gas rod assist system ensures the ladder rises smoothly and closes softly, reducing the risk of pinched fingers.
The 3-inch slip-resistant steps meet ANSI 14.9 safety standards, and the diagonal stabilizing bars keep the ladder square when deployed. At 57 pounds, this is the heaviest ladder in the lineup, but the weight translates directly into a rock-solid feel during use. The legs adjust from 7’6” to 10’3” with a simple locking mechanism.
Users consistently praise the clear, detailed instructions and the straightforward installation process. The extra lag bolts and hardware included in the package mean you won’t be making a hardware store run mid-project.
Why it’s great
- Solid pine rails provide a sturdy feel that aluminum-only ladders sometimes lack
- Gas rod assist enables smooth, controlled closing
- Exceeds ANSI safety standards with 3-inch wide slip-resistant steps
Good to know
- Heavier than aluminum-only models at 57 pounds; two-person install recommended
- Rough opening must be exactly 22.5 x 54 inches
5. Thctvous 10FT Attic Ladder (25×54)
If your attic opening is a non-standard 25 x 54 inches, or you simply want more shoulder room when climbing, the Thctvous ladder delivers. The extra width compared to the standard 22.5-inch opening makes carrying boxes or seasonal decorations significantly easier. The ladder is made from high-strength carbon steel and aluminum with a 350-pound load capacity.
The 3-inch non-slip rungs provide a secure foothold even when stepping onto the ladder in socks. The integrated handrails and heavy-duty hinges eliminate the side-to-side wobble that can make taller ladders feel unstable. This model complies with ANSI 14.9 standards, which means it passed independent testing for structural integrity.
The pneumatic springs assist with the initial lowering and cushion the final few inches of closure. Users report the operation is quiet enough for early-morning attic access without waking the household. The metallic grey finish blends well with most ceiling trim.
Why it’s great
- Extra-wide 25-inch opening provides more comfortable access than standard ladders
- Pneumatic springs ensure quiet, controlled operation
- ANSI safety certification guarantees tested load rating
Good to know
- Requires a precise 25 x 54 inch rough opening; not compatible with standard 22.5-inch holes
- Heavier construction at 50 pounds; definitely a two-person job
6. Premier Access Doors 3000 Series (24×24)
The Premier 3000 Series is a straightforward, no-frills 24 x 24 inch access panel built from 20-gauge steel with a white powder-coated finish. The removable door detaches completely during installation, which makes it easier to position and paint before final assembly. The screwdriver latch keeps the door securely closed without protruding hardware.
This panel is designed to fit a rough opening of 24-3/8 x 24-3/8 inches, giving you the standard 3/8-inch gap for adjustment. The pre-drilled holes and included mounting brackets align perfectly between 16-inch on-center studs. The 9.8-pound weight makes it easy for one person to handle without assistance.
Customers consistently note that the finish takes paint well — many reported a successful match after just two coats of standard latex or oil-based paint. It’s ideal for covering plumbing access, electrical junction boxes, or steam shower generators in a finished ceiling or wall.
Why it’s great
- Removable door allows for easy painting and framing during installation
- Powder-coated white finish takes paint with excellent adhesion
- Fits the standard 24-3/8 inch rough opening for simple retrofits
Good to know
- 20-gauge steel is lighter and more prone to denting than 18-gauge panels
- Screwdriver latch requires a tool for every open/close cycle
7. Premier Access Doors 2002 Series (24×24)
The Premier 2002 Series shares the same 24 x 24 inch footprint as the 3000 Series but differentiates itself with deeper mounting flanges that reach studs even through 5/8-inch drywall. This extra depth eliminates the need for additional shimming or furring strips, reducing installation time. The steel construction feels noticeably thicker than budget panels, and the powder coating arrives scratch-free thanks to the excellent Styrofoam packaging.
The screwdriver latch locks securely into the frame and the door sits flush in both drywall and tile surfaces. The flush universal mount design means you can install it in a tiled shower wall without the door protruding past the face of the tile. The mounting brackets grab the studs directly rather than relying on drywall anchors, which is a significant reliability upgrade.
Users report that the panel seals well against air movement when fully closed, which helps maintain indoor air quality and temperature control in the attic. The fit tolerances are tight enough that the door does not rattle or vibrate even in walls with sound systems nearby.
Why it’s great
- Deep flanges work with thick drywall and tile without extra blocking
- Packaging prevents transit damage — a common issue with cheaper steel panels
- Flush mount sits perfectly in both drywall and tile finishes
Good to know
- Requires some assembly out of the box; not ready to install immediately
- Screwdriver latch is the only locking option; no keyed lock available
8. Fengze 1.2mm Spring Loaded (24×24)
Fengze’s access panel uses 1.2 mm thick steel — roughly equivalent to 16-gauge, making it one of the thickest non-commercial panels available. The spring-loaded press latch opens and closes without any tool, which is convenient for frequent access to wiring, HVAC dampers, or irrigation control boxes. The 24 x 24 inch size fits the standard rough opening pattern.
The weight comes in at 9.4 pounds, which is surprisingly manageable given the steel thickness. The white painted finish is basic but functional for ceiling applications. The panel works for both wall and ceiling mounting, and the 12-month warranty provides reassurance against manufacturing defects.
A notable concern in customer feedback involves packaging — multiple units arrived with bent corners due to insufficient protection during shipping. If you order this panel, inspect it immediately upon delivery and be prepared to file for a replacement if the edges are damaged. When the panel arrives intact, it performs as a robust, tool-free access solution.
Why it’s great
- 1.2 mm steel (approx. 16-gauge) provides superior dent resistance
- Spring-loaded latch requires no tools for quick access
- Light enough for one-person installation despite the thick metal
Good to know
- Reports of corner damage in transit due to insufficient packaging
- Paint finish is basic and may require refinishing for a perfect match

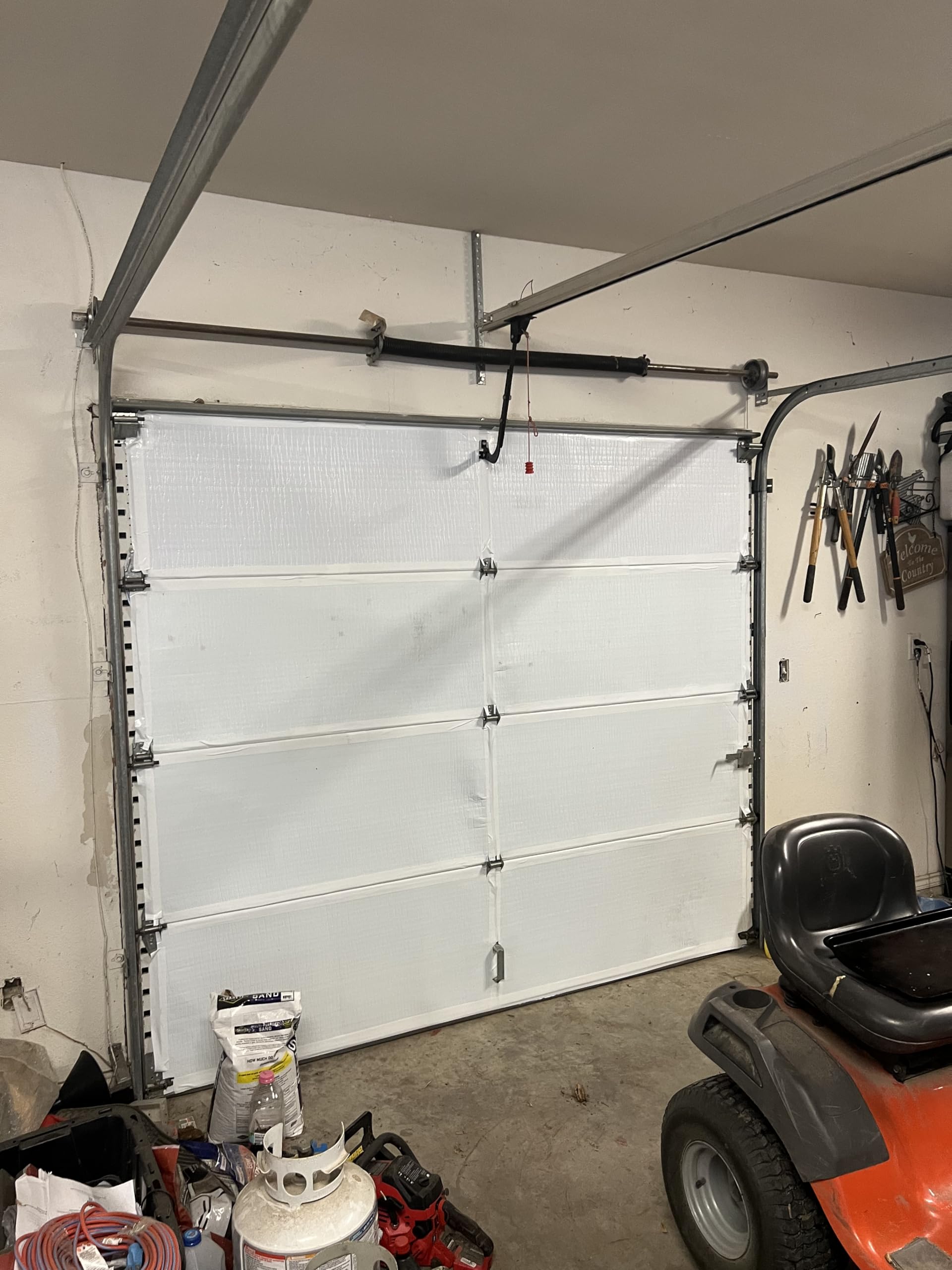

9. BlueTex Insulation Kit (10×8 FT)
While not a traditional access door, the BlueTex Insulation Kit solves the problem of garage door heat transfer that makes attic ladder access uncomfortable. The 2 mm closed-cell foam core with a pure aluminum foil surface blocks up to 97% of radiant heat when installed with a 1/4-inch air gap. The kit includes 3M double-sided tape, white seam tape, screws, and washers for a complete DIY install.
The tearproof radiant barrier is significantly more durable than bubble foil alternatives. It resists punctures from storage boxes brushing against the door and can be cleaned with a damp cloth. The 55-foot roll covers a single 10 ft wide by 8 ft high residential garage door.
Users in hot climates report noticeable temperature reductions in the garage, making the space usable for exercise or storage during summer months. The instructions are straightforward, though careful measuring and cutting are required for the best results. The double-sided tape may run short if your door has extra brackets requiring more cuts than standard.
Why it’s great
- Reflective aluminum foil blocks 97% of radiant heat transfer
- Tearproof and puncture-resistant surface outlasts bubble foil alternatives
- Complete kit with tape and cutting tool included for one-box installation
Good to know
- Requires precise cutting and measuring for a clean fit on paneled garage doors
- Double-sided tape quantity may be insufficient for doors with many brackets
FAQ
Can I install an attic access door myself without professional help?
What size attic access door do I need for a standard 16 inch on-center stud spacing?
Should I get a screwdriver latch or a cam latch for my attic door?
How do I insulate around my attic access door?
Final Thoughts: The Verdict
For most users, the best attic access door winner is the Elite 1000 Metal Access Door because its 18-gauge steel frame and three-point cam latch system provide commercial-grade durability without requiring a full ladder assembly. If you need a full pull-down ladder for frequent attic storage access, grab the WTRAVEL Aluminum Attic Ladder for its gas-shock assisted operation and 375-pound load capacity. And for a budget-friendly steel panel that tackles simple plumbing or electrical access, nothing beats the Premier Access Doors 3000 Series.
