Adding auxiliary lights, a winch, a fridge, or a stereo amplifier to your vehicle or boat quickly turns your engine bay into a spaghetti junction of unsecured wires. That mess isn’t just ugly—it’s a fire hazard waiting for a single vibration to create a short circuit against bare metal. A proper power distribution hub centralizes every new circuit into one grounded, fused, and organized block.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent hundreds of hours analyzing the construction, amperage ratings, bus-bar materials, and real-world reliability data of dozens of auto fuse blocks to separate the marine-grade solutions from the weekend-warrior shortcuts.
Whether you’re wiring a campervan, redoing a classic car’s electrical system, or installing accessories on a Jeep, choosing the best auto fuse block means comparing circuit counts, waterproofing methods, and bus-bar quality before you tighten a single screw.
How To Choose The Best Auto Fuse Block
A fuse block is the central nervous system for your 12V accessory wiring. Pick the wrong one, and you’ll either run out of circuits, trip a breaker because the total amperage rating is too low, or fight corrosion within a single season. Three factors will guide your decision more than any brand badge.
Circuit Count vs. Future Expansion
A 4-circuit block forces you to daisy-chain multiple accessories on one fuse, which defeats the purpose of individual circuit protection. Count every device you plan to wire today—lights, compressor, radio, USB chargers, inverter—then buy a block with at least two empty slots for the next project. A 10-way or 12-way block offers breathing room for under .
Total Amperage Rating and Bus-Bar Material
Every block has a total rating (e.g., 100A or 300A) and a per-circuit rating (usually 30A). Add up the fuse values of all your accessories—if you plan to run 80A worth of gear, a 100A block is fine, but a 300A block gives a massive safety margin. Tin-plated copper bus bars resist corrosion far better than raw brass or steel, especially in marine or under-hood environments.
Water and Dust Protection
A clear snap-on cover blocks dust and incidental splashes, but it is not a waterproof seal. For engine-bay or exposed outdoor mounting, look for a block with a rubber gasket between the lid and base, or a fully sealed design like the Blue Sea Systems 5056. If you mount a non-sealed block in a dry location (cabin, trunk, under the dash), a simple cover is perfectly adequate.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Qidoe 12 Way 300A | Premium Value | High-power builds with dual power inputs | 300A total / 40A per circuit | Amazon |
| Blue Sea 5056 4-Circuit | Premium | Weather-exposed engine bay installations | 80A total / sealing gasket | Amazon |
| True Mods 10 Way | Mid-Range | All-in-one power + ground in one block | 100A total / integrated negative bus | Amazon |
| Snlazp 12 Circuit | Mid-Range | Organized setups needing dedicated ground per circuit | 100A total / matched pos/neg terminals | Amazon |
| Blue Sea 5045 4-Circuit | Premium | Tight spaces where quality and compact size matter | 100A total / single-sided terminals | Amazon |
| DaierTek 6 Way Relay Box | Mid-Range | Projects needing built-in relays and fuses together | 20A per circuit / pre-wired relay harness | Amazon |
| Seachoice 10 Gang | Budget | Simple, cost-effective marine replacement | 30A per circuit / ungrounded plastic base | Amazon |
In‑Depth Reviews
1. Qidoe 12 Way Blade Fuse Block 300A
This 12-circuit block stands apart with its 300A total rating and 40A per-circuit capacity—enough headroom to feed a winch, light bar, fridge, compressor, and audio system simultaneously without testing the limits of the bus bar. The dual positive power inputs are a genuine feature: out of the box both inputs share a single rail, but a simple trace cut on the PCB separates them into two isolated banks, giving you six circuits on constant power and six on ignition-switched power.
The housing uses flame-resistant PBT plastic, and each circuit gets its own red LED indicator that lights up when a fuse blows. The transparent cover provides splash and dust protection with thumbscrews for tool-free access. The package includes 20 mixed fuses and two label stickers, so you can get organized immediately.
One nuance: separating the dual inputs requires opening the case and breaking the copper trace between V1+ and V2+, which voids the “out of box” dual-rail configuration. For users who need true isolated constant and ignition banks, this 60-second mod makes the Qidoe panel the most versatile unit under .
Why it’s great
- Massive 300A total rating handles nearly any accessory load
- Dual positive inputs let you separate always-on and switched circuits
- LED indicators per circuit speed up troubleshooting
Good to know
- Dual rails require a simple but mod to separate
- Cover is splash-resistant, not submersible

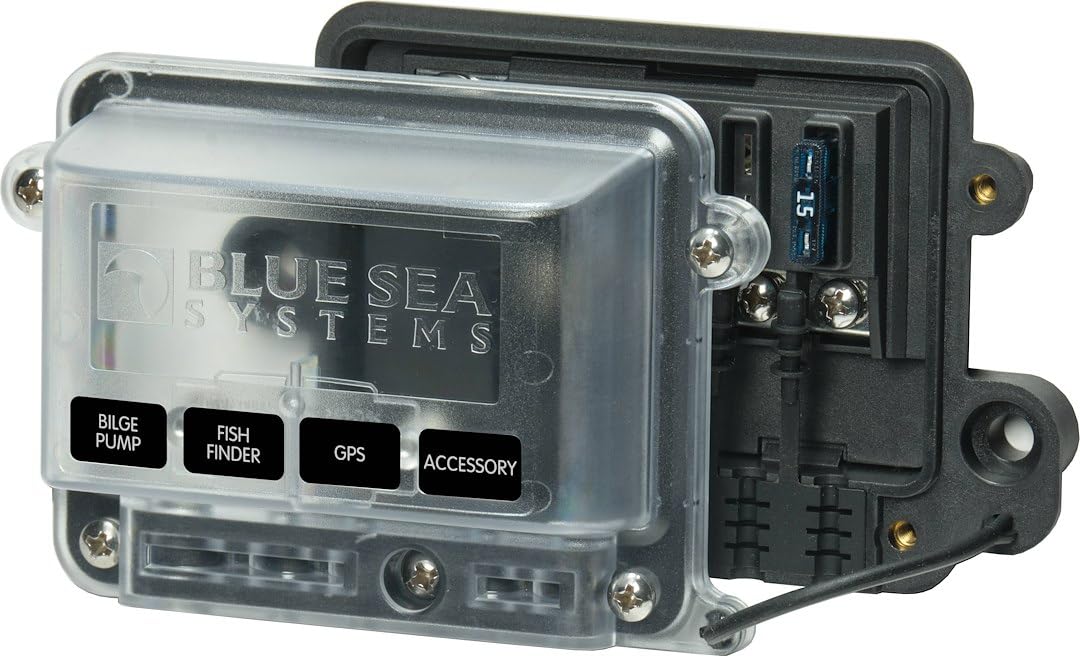

2. Blue Sea Systems 5056 ST-Blade Water-Resistant 4 Circuit
Blue Sea Systems built the 5056 specifically for environments where moisture is guaranteed. A rubber gasket between the clear lid and the base creates a water-resistant seal that holds up against engine-bay washdowns, heavy rain, and marine spray—but it is not rated for submersion. The block accepts ATO/ATC fuses or low-profile circuit breakers, and input wiring runs from 8 AWG down to 4 AWG for a clean, low-resistance feed.
Each of the four circuits is rated at 25A with an 80A block maximum, which aligns perfectly for a focused build: add a compressor, a set of lights, a radio, and a USB panel without exceeding capacity. The included 2-amp through-hole mount is compatible with 1/4-inch screws, and the front face’s retained fasteners prevent dropped screws during install. Three wire plugs are supplied so unused ports remain sealed.
At over , this is the most expensive unit here, and the 4-circuit count demands discipline about how many accessories you power. If you need more than four circuits, Blue Sea sells identical water-resistant blocks that nest together, allowing you to scale capacity while maintaining the same gasket-sealed design across multiple blocks.
Why it’s great
- Genuine water-resistant gasket for harsh location mounting
- Accepts ATO/ATC fuses and low-profile circuit breakers
- Retained cover screws prevent hardware loss
Good to know
- Only 4 circuits—expansion requires buying a second block
- Price is 2-3x higher than equivalent non-sealed blocks
3. True Mods 10 Way Blade Fuse Block with Ground Negative Bus
True Mods bundles ten ATO/ATC fuse circuits with an integrated negative bus bar into a single compact housing, eliminating the need for a separate ground distribution block. The tin-plated copper bus bars and PBT plastic base are mechanically strong, and the total 100A rating with 30A per circuit covers most aftermarket accessory loads comfortably. Each circuit has a red LED that illuminates when the fuse blows, making nighttime roadside diagnosis fast.
The transparent cover snaps on securely to protect against dust and incidental splash, though it is not gasket-sealed for engine-bay use. The surface-mount design requires only four screws, and the molded base accepts up to a single large-gauge input wire. Users on golf carts, vans, and overland trailers report it as a direct upgrade from factory blocks with more circuits and centralized grounding.
Be aware that the LED indicator circuit can pass a tiny trickle current even with the fuse removed, causing the light to glow dimly. This does not affect normal operation but is worth noting if you are diagnosing a total power disconnect. For a clean, organized install in a dry location, this block delivers premium features at a mid-range price point.
Why it’s great
- Integrated negative bus bar simplifies wiring and reduces parts count
- Blown-fuse LEDs identify faults instantly without a multimeter
- Ten circuits offer room for expansion beyond initial install
Good to know
- LED indicator may glow faintly when fuse is removed
- Clear cover is not watertight—mount in a dry location
4. Snlazp 12 Circuit Waterproof Fuse Block with Negative Bus
The Snlazp 12-circuit block takes a different approach from the True Mods: instead of a single common ground bus, it provides a dedicated negative terminal next to each positive screw. This arrangement allows you to run individual ground wires back to the block rather than relying on a shared return path, which is advantageous for sensitive electronics or when chassis grounding is inconsistent. The clear cover locks securely with a friction latch, and LED indicators glow red on blown circuits.
The housing is molded from PBT material with a claimed damp-proof design, but the lock mechanism on the cover is plastic-on-plastic without a rubber gasket, so treat it as splash-resistant rather than waterproof. The kit includes 20 assorted fuses (5A through 25A), a safety clip, two label stickers, and 24 ring terminals—everything needed for a first-time install. The 100A total rating with 30A per circuit matches the True Mods, but the max 32V DC operating voltage covers both 12V and 24V systems.
One practical observation: the paired positive/negative terminals require more wiring than a common-ground block, but they yield a cleaner and more traceable layout. For a campervan or boat where ground paths are inconsistent, the Snlazp design prevents ground-loop headaches that a single shared bus can introduce.
Why it’s great
- Dedicated ground per circuit eliminates ground-loop issues
- Comprehensive accessory kit includes fuses, terminals, and labels
- LED indicators on every circuit for instant fault detection
Good to know
- Cover is friction-latched without a water-tight gasket
- Terminal screws are small—careful torque to avoid stripping
5. Blue Sea Systems 5045 ST Blade Fuse Block 4 Circuit
The 5045 is the compact standard that many automotive electricians trust for tight dash, glovebox, or pillar installations. All screw terminals line up on one side, freeing the opposite end for wire routing and reducing the footprint compared to blocks with terminals on both sides. The clear insulating cover snaps over the top to protect against accidental shorts, and Blue Sea includes four write-on circuit labels to keep everything identified.
Tin-plated copper buses handle up to 100A total with 30A per fuse slot, and the corrosion resistance is notably better than unplated brass blocks found in budget alternatives. Surface-mount anchors accept #8 screws, and the unit weighs only 4 ounces, making it easy to secure with double-sided tape in locations where drilling is undesirable. Users have mounted it in Jeeps, race cars, and boat consoles with zero reported corrosion after years of service.
The trade-off is the same as with the 5056: just four circuits. If your project only needs power for a dash cam, DRLs, a phone charger, and maybe one more accessory, this is a bulletproof choice. For a full auxiliary setup, you will need a larger unit or stack multiple 5045 blocks, which adds cost and wiring complexity compared to a single 10- or 12-way block.
Why it’s great
- Ultra-compact footprint with single-sided terminals for tight spaces
- Tin-plated copper buses resist corrosion far better than brass
- Clear cover with write-on labels keeps circuits organized
Good to know
- Only 4 circuits—not suitable for large accessory builds
- No integrated negative bus; separate ground distribution required
6. DaierTek 6 Way Pre-Wired Waterproof Relay Box
This DaierTek box is distinct because it combines six relays and six fuse slots in one pre-wired enclosure, saving you the effort of building a relay harness from scratch. Each relay channel uses 12 AWG heavy-duty wires (red for power, black for ground, blue for signal), and the 20A continuous contact rating handles standard lighting, fans, pumps, and compressors. The color-coded wiring makes connecting to switches and loads nearly foolproof.
The case includes a top cover with a rubber gasket that blocks dust and splashing water, though user reports note that the wire entry points lack individual seals, so moisture can wick through the harness if the box is mounted in a direct rain path. The relays are rated for 12V DC operation with 50-ohm coils, and the included fuses can be swapped out based on your load requirements. The panel-mount tabs allow secure bolting to a flat surface.
Where this box excels is simplicity: instead of buying relays, a relay socket, a fuse block, and wiring them together, this is one assembly with two power inputs (constant battery and ground) and six switched outputs. If you need to control multiple high-draw devices like off-road lights and an air compressor, the DaierTek box cuts installation time by more than half compared to a wiring-it-yourself approach. Just be aware that the water resistance is adequate for splash but not submersion.
Why it’s great
- Pre-wired relays and fuses in one box—dramatically reduces wiring time
- Color-coded wires simplify switch and load connections
- Rubber gasket lid provides splash resistance for engine bays
Good to know
- Wire entry points are not individually sealed against moisture
- Only 6 circuits; high-power builds need a larger unit
7. Seachoice ATO/ATC Fuse Block 10 Gang with Ground Bar
The Seachoice 10-gang block is a no-frills fuse distribution panel that has been a marine replacement staple for years. At a budget-friendly price, it gives you ten ATO/ATC positions with a molded-in ground bar, a black plastic base, and a total current rating of 30A at 12V DC. The construction is simple: two rows of five fuse holders with screw terminals for input and output wires, plus a dedicated grounding stud. It is used as a direct replacement for factory blocks in boats, campers, and older vehicles.
The plastic base measures 5.75 inches by 1 inch and is designed for surface mounting with four screws. There is no LED indicator, no transparent cover, and no gasket—just a bare, functional block. For a dry interior install like under a dash or in a camper cabinet, this simplicity works fine. The tin-plated copper ground bar provides a corrosion-resistant common return path.
However, this block lacks any form of splash protection, so it is not suitable for engine bays, marine cockpits, or open trailer applications without adding your own enclosure. The screw terminals are small and do not accept thick cables larger than about 10 AWG comfortably—use it for low-current accessories like cameras, interior lights, and USB chargers. For the price, it is a reliable workhorse for simple, dry-location wiring.
Why it’s great
- Ten circuits at an entry-level price point
- Common form factor for direct replacement in boats and RVs
- Integrated ground bar simplifies wiring
Good to know
- No cover, LED, or splash protection—interior use only
- Small screw terminals limit input wire size to about 10 AWG
FAQ
Can I use an ATO fuse block for a 24V system?
Should I buy a block with an integrated negative bus or a separate ground bar?
Final Thoughts: The Verdict
For most users, the best auto fuse block winner is the Qidoe 12 Way 300A because its 12 circuits, dual switchable power rails, and massive 300A capacity handle everything from a simple light bar install to a full campervan electrical system with room to expand. If you need water-resistant sealing for an exposed engine bay, grab the Blue Sea 5056. And for a budget-friendly, high-circuit-count project in a dry location, nothing beats the value of the True Mods 10 Way.
