Factory dashboards hide more than they show, delivering vague warning lights instead of the real-time oil pressure, coolant temperature, and voltage data your engine needs to survive. Without precise monitoring, a minor overheating event or a drop in oil pressure can escalate into a full engine rebuild before you even notice a problem. Dedicated aftermarket gauges close that blind spot, giving you the live data stream required to catch mechanical issues early, tune for performance, or simply drive with confidence.
I’m Min — the co-founder and writer behind Gadgets Feed. I spend hundreds of hours researching the technical specifications, build materials, and real-world performance of automotive instrumentation to help you separate accurate, durable gauges from novelties that fail when it matters most.
Whether you are restoring a classic car, monitoring a high-horsepower build, or just tired of idiot lights, this guide to the best auto meter gauges will help you select the right sender type, display format, and sensor range for your specific platform.
How To Choose The Best Auto Meter Gauges
Selecting the right gauge kit requires matching the sender type, the display style, and the mechanical interface to your specific vehicle and powertrain. The wrong choice can mean inaccurate readings, difficult installation, or even engine damage from undetected faults.
Mechanical vs Electric Senders
Mechanical gauges use a physical tube—typically nylon or copper—to carry pressurized fluid (oil or coolant) directly to the gauge head. They require no electrical power to operate, which makes them ideal for vehicles with weak or non-existent electrical systems, such as classic restorations or bare-bones race cars. However, routing hot transmission fluid or engine oil into the cabin introduces a potential leak path and fire hazard if the line is damaged. Electric gauges, by contrast, use a sender unit at the engine block that converts pressure or temperature into an electrical signal. Auto Meter’s race-proven air-core electric instruments keep hazardous fluids completely outside the passenger compartment and are compatible with both 12‑volt and 16‑volt electrical systems, making them the safer, more modern default for most builds.
Sender Thread and Adapter Compatibility
The sender that screws into your engine block, transmission case, or intake manifold must match the port thread pitch. The most common standard for aftermarket senders is 1/8” NPT (National Pipe Thread). Many gauge kits include bushings or adapters to step up to 3/8” or 1/2” NPT ports, but older or non-domestic engines may require metric adapters. If you are installing on a compact tractor, a marine engine, or an import car, verify that the included fittings match your block before you drill or tap anything. Bosch and Auto Meter both ship with multiple adapters, but Bosch kits have been reported to lack metric conversion fittings in some cases.
Display Type and Dial Finish
Gauge faces come in black dial / black bezel (stealth), white dial / chrome bezel (classic or retro), and silver bezel (ultra-lite race look). The choice is aesthetic, but the legibility of the needle against the background under direct sunlight and at night is a functional concern. Incandescent perimeter lighting—the standard in Auto Meter’s Z-Series and Ultra-Lite lines—produces a warm glow that can lean white rather than green depending on the bulb covers used. Upgrading to an LED bulb improves clarity and color temperature but may require a different bulb socket.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Auto Meter 7000 Invision LCD | Premium | Full digital dash replacement | 12.3-inch LCD display | Amazon |
| Auto Meter 4337 Ultra-Lite Water Temp | Premium | Electric coolant monitoring | 100-250 °F range | Amazon |
| Auto Meter 2397 Autogage Console | Premium | Mechanical oil/water/volt triad | 270° sweep bronze bourdon tube | Amazon |
| Auto Meter 2640 Z-Series Trans Temp | Mid-Range | Electric transmission temp gauge | 1/8” NPT sender included | Amazon |
| Bosch SP0F000054 Triple (Black) | Mid-Range | Value triad with black dial | 72” nylon tubing kit | Amazon |
| Bosch SP0F000046 Triple (White) | Mid-Range | Value triad with white dial | 12-volt internal lighting | Amazon |
| KONNWEI KW206 OBD2 HUD | Budget | Digital all-in-one OBD2 monitor | 3.5-inch color LCD | Amazon |
In‑Depth Reviews

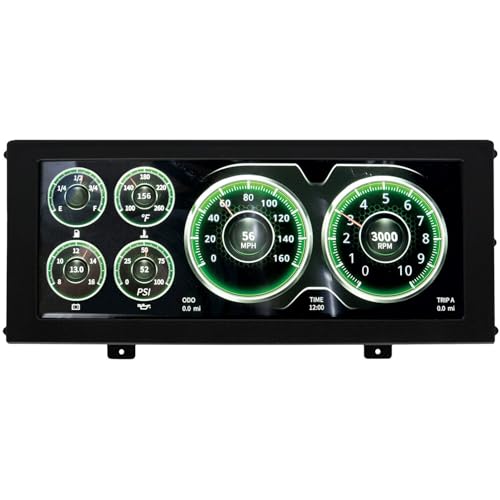

1. AutoMeter 7000 Invision LCD Display Complete System
The AutoMeter 7000 Invision is a complete digital dash replacement built around a 12.3-inch LCD screen that can display hundreds of engine parameters, data logs, and configurable layouts. It is the only product on this list that replaces the entire instrument cluster, making it the definitive choice for high-end restomods, pro-touring builds, and race cars where space and real-time telemetry are critical. The unit is ISO/TS certified, the same quality standard that allows Auto Meter to supply OEM manufacturers.
Installation is not a simple plug-and-play swap for most vehicles. The outer bezel / housing face is sold separately, and several owners report that the display is about 1/8” too tall for a standard 1979 Cutlass dash, requiring cutting to fit. The system works perfectly once integrated, but the total cost with the bezel and any custom wiring can push the entry price well beyond the base figure. For a fully custom dashboard with a clean, modern look, the capability is unmatched.
Long-term reliability appears solid based on owner reports of using it as a direct speedometer replacement and general-purpose data hub. The 1-year manufacturer warranty covers defects, but returns on opened units have been problematic for some buyers. This is a professional-level component for serious builders who already understand CAN bus wiring and have the fabrication skills to mount it flush.
Why it’s great
- Full customizable 12.3” LCD dash with telemetry logging
- ISO/TS certified to OEM quality standards
- Eliminates mechanical tubing and sender clutter entirely
Good to know
- Outer bezel/housing sold separately
- May require dash cutting for fitment in some classics
- Not returnable after opening per some reports
2. Auto Meter 4337 Ultra-Lite Electric Water Temperature Gauge
The Auto Meter 4337 Ultra-Lite electric water temperature gauge delivers a clean silver bezel and a 100-250 °F range that covers normal operating temps as well as the critical zone where heads warp. The air-core electric movement provides quick, accurate readings without routing a hot water tube into the cabin. The kit includes a 1/8” NPT sender, plus 3/8” and 1/2” NPT bushings, giving you flexibility for different intake manifold and thermostat housing ports.
Owners consistently praise its accuracy during daily driving and report that it works far better than entry-level generic gauges. The incandescent perimeter lighting is functional, but several users note that at night the gauge is difficult to read. Replacing the incandescent bulb with an LED improves clarity, though some find even an LED insufficient for nighttime visibility. The sender threads must be sealed with thread sealant during installation to prevent coolant seepage.
For a street rod or classic car where you want factory-style reliability with a modern temperature readout, the 4337 is the right choice. The wiring is simpler to route than a mechanical capillary tube, and the gauge body is light enough to mount in a standard 2 1/16” pod or dash hole.
Why it’s great
- Air-core electric movement keeps hot coolant out of the cabin
- Comes with 1/8”, 3/8”, and 1/2” NPT adapters
- Clean silver Ultra-Lite look fits modern and classic dashes
Good to know
- Incandescent bulb can be difficult to see at night; LED upgrade recommended
- Sender requires thread sealant during install
3. AUTO METER 2397 Autogage Black Console Oil/Volt/Water Gauge
The Auto Meter 2397 Autogage console is a three-in-one mechanical gauge cluster that monitors oil pressure, voltage, and water temperature in a single 2.3125-inch housing. The bronze bourdon tube movement with 270° needle sweep and durable nylon gearing makes this a straightforward choice for vehicles with minimal electrical systems or for owners who want mechanical direct readings. The kit includes 1/4”, 3/8”, and 1/2” NPT adapters, plus a bulb and socket assembly with red and green covers.
Users report clean installation on classic platforms like the 1970 Monte Carlo and 1957 Chevrolet, with no leaks from the supplied hoses after proper routing. The mechanical oil pressure line is about 4 feet long, which some A-pillar pod installers found too short, requiring an extension. The water temperature tube is similarly limited, so if you are mounting the gauge far from the engine block, plan for extra length. The lighting can be overly bright with stock bulbs; some users swap to lower-wattage bulbs for a dimmer dash glow.
Accuracy is generally reliable, though one owner noted the temp gauge reads about 7°F higher than their EFI controller sensor. For mechanical gauge enthusiasts who prefer a direct reading without electrical middlemen, this triad is a proven performer that has been a favorite for over two decades.
Why it’s great
- Mechanical movement needs no electrical power to operate
- Includes adapter bushings for multiple NPT sizes
- 270° sweep bronze bourdon tube for smooth needle movement
Good to know
- Oil and water tubes are short; extensions may be needed for remote mounts
- Lighting can be too bright; aftermarket lower-watt bulbs help
4. AUTO METER 2640 Z-Series Electric Transmission Temperature Gauge
The Auto Meter 2640 Z-Series features a 2 1/16-inch electric transmission temperature gauge designed specifically to monitor transmission fluid temps without the risk of a mechanical line leaking hot ATF into your cabin. The air-core electric movement provides accurate readings and works with both 12-volt and 16-volt electrical systems. The kit comes with a 1/8” NPT temperature sender, plus 3/8” and 1/2” NPT adapters to fit various transmission pan or cooler line ports.
Owners appreciate the subdued appearance that blends well with factory-style dashboards and report consistent readings that correlate with driving behavior—a sudden spike under load that drops back during cruising. The incandescent perimeter lighting produces a glow that several users describe as more white than green, which can clash with OEM green dash lighting. Swapping bulb covers helps, but the white-tinted output is a common point of criticism. The unit is light at 1.6 ounces and easy to wire.
For drivers towing heavy loads, running a built automatic, or simply wanting to extend transmission life, the 2640 gives you the specific temperature feedback you need. The sender threads require sealant, but the install is otherwise straightforward.
Why it’s great
- Electric sender eliminates hot ATF leak risk into the cabin
- Compatible with 12V and 16V electrical systems
- Subdued Z-Series face suits daily-driver and classic interiors
Good to know
- Perimeter light outputs a white rather than green glow
- Sender thread requires sealant during installation
5. BOSCH SP0F000054 Style Line 2″ Triple Gauge Kit (Black Dial)
The Bosch SP0F000054 Style Line kit provides oil pressure (mechanical), water temperature, and voltmeter gauges in a unified 2-inch black-dial, black-bezel package. This is a cost-effective way to outfit a classic truck or budget build that has lost original instrumentation or never came with it. The kit includes a 72-inch high-temperature nylon tubing assembly with 1/8” and 1/4” NPT thread fittings, along with mounting hardware and 12-volt internal lighting.
Buyers report straightforward installation, typically taking around three hours in a classic Mustang. The oil pressure sender uses a standard 1/8” NPT thread, which required a special sender socket for one owner. The edge-lit design—rather than true backlighting—is dim at night for some users; aftermarket 3mm LEDs that fit the bulb sockets solve the issue cleanly. One owner noted the vacuum gauge reads about 1 unit off, but the voltmeter and water temp gauges have been reliable over several months of use.
For an older truck that you want to keep road-worthy without spending premium money, this Bosch triad is a solid entry-level choice. The nylon tubing can handle the heat and vibration of a daily driver, and the black-on-black aesthetic keeps the dash looking clean.
Why it’s great
- Complete three-gauge set at a budget-friendly price
- Includes high-temp nylon tubing and all mounting hardware
- Installation is straightforward for DIY builders
Good to know
- Edge-lit design is dim at night; LED upgrade recommended
- Mechanical oil gauge requires routing a tube into the cabin
6. BOSCH SP0F000046 Style Line 2″ Triple Gauge Kit (White Dial)
The Bosch SP0F000046 is the white-dial, chrome-bezel counterpart to the black-dial kit, offering the same oil/water/volt triple-gauge configuration with a brighter, more retro aesthetic. These gauges are a popular choice for 1950s-era restorations and hot rods where the contrast of white faces and red needles against a black-and-yellow dash provides a period-correct look. The kit includes the same 72-inch nylon tubing and 12-volt internal lighting as its black-dial sibling.
Installation feedback mirrors the black-dial version, with owners fitting the set onto SBC 305 engines and 1957 Fords without major issues. The mechanical oil and water lines use standard 1/8” NPT brass fittings that work on cast-iron engine blocks but may not thread correctly into aluminum manifolds without an adapter. One user installed them on a 1990 John Deere 1070 tractor after rodent damage and reported the gauges still functioning in 2025—a solid testament to durability in a high-vibration agricultural environment.
If your build has a classic, bright interior where a white dial will pop, this kit matches the look while keeping costs low. The mechanical sender lines mean you need direct routing, but the total hardware included covers most domestic V8 applications.
Why it’s great
- White dial and chrome bezel provide classic hot rod appearance
- Same proven Bosch internals as the black-dial kit
- Durable enough for tractor vibration use over many years
Good to know
- Lacks metric adapter fittings for some import or aluminum blocks
- Mechanical lines must be carefully routed to avoid kinks
7. KONNWEI KW206 Car OBD2 HUD Digital Meter Gauge
The KONNWEI KW206 is a digital multi-gauge that pairs the simplicity of an OBD2 scanner with a 3.5-inch color HUD display, showing speed, RPM, coolant temperature, fuel consumption, voltage, and dozens of other real-time parameters. It plugs directly into any 2003 or newer OBD2 port and includes an auto sleep/wake feature that preserves battery life. This is the only product in this roundup that also functions as a diagnostic code reader, capable of reading and clearing check-engine-light codes.
User experiences vary significantly with this unit. Many report accurate speed and temperature monitoring on platforms like the 2011 Crown Vic and 2008 Prius, praising the customizable layout and alarm system for overheating or RPM over-rev. Others encountered issues after a few days—screen glitches after bumps, failure to clear DTCs after two years of use, and random reboots with beeping. The build quality is plastic and lightweight, and the included adhesive tape for dashboard mounting is weak; using a stronger 3M pad is recommended.
For a budget-conscious driver who wants a one-stop digital gauge and code reader without permanent wiring, the KW206 delivers impressive functionality. It is not suitable for a show-car build or for someone who demands decade-long reliability, but for monitoring a daily driver, it is a useful tool at a low entry cost.
Why it’s great
- Combines multi-gauge display with OBD2 diagnostic scan tool
- Plug-and-play with no permanent wiring or sender installation
- Customizable alarms for RPM, speed, coolant temp, and voltage
Good to know
- Build quality and long-term reliability are inconsistent per user reviews
- Adhesive mount is weak; aftermarket pad is recommended
FAQ
Can I install a mechanical oil pressure gauge in a modern daily driver?
What is the difference between 1/8” NPT and 1/4” NPT sender threads?
Final Thoughts: The Verdict
For most users, the best auto meter gauges winner is the Auto Meter 4337 Ultra-Lite because it combines the safety of an electric sender, a clean silver bezel that matches most dashes, and the proven reliability of Auto Meter’s air-core movement. If you want a complete no-power-required mechanical triad, the AUTO METER 2397 Autogage gives you bronze bourdon tube accuracy for classic builds. And for a full digital dash upgrade with telemetry logging, nothing beats the AutoMeter 7000 Invision.
