That flickering dome light, the clock that won’t stop, or a finicky alternator can silently drain your battery overnight, leaving you stranded. An automatic battery disconnect switch is the definitive fix, cutting the circuit the moment the engine is off or voltage drops, so your starter has the juice it needs every single time.
I’m Min — the co-founder and writer behind Gadgets Feed. Over many hours of research into battery isolators, smart relays, and high-current disconnect mechanisms, I’ve analyzed the specifications that separate a reliable safeguard from a potential fire hazard.
This buying guide breaks down the best options in 12V, 24V, and 48V systems, comparing continuous amp ratings, standby current draw, and build quality to help you pick the perfect automatic battery disconnect switch for your vehicle, boat, or RV.
How To Choose The Best Automatic Battery Disconnect Switch
Selecting the right battery disconnect switch is about matching the device’s electrical capacity to your vehicle’s demand. Modern options range from basic rotary knobs to smart relays that sense voltage and can be triggered remotely.
Continuous vs. Cranking Current Rating
The continuous current rating (measured in amps) tells you how much power the switch can handle from your alternator and accessories without overheating. For most cars, 250A continuous is sufficient, but a large truck, RV, or boat with a winch may need 500A. The cranking or instantaneous rating—often 900A to 5000A—must cover the starter motor’s initial surge.
Standby Current & Smart Features
Ironically, a disconnect switch that consumes power while the vehicle is off defeats its purpose. Premium smart switches advertise an ultra-low standby current of about 5mA (0.005A). Look for models with automatic low-voltage disconnect (LVD) thresholds, typically around 11.8V for a 12V system, to prevent over-discharge without manual intervention.
Form Factor: Rotary vs. Relay-Based Remote
A manual rotary switch is simple, robust, and locks with a padlock for security, but requires you to pop the hood. A relay-based remote disconnect lets you cut power from inside the cabin or from 70 meters away with a key fob, adding anti-theft capability. Consider which convenience level fits your daily use case.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Spartan Power 300A | Rotary Switch | Heavy-duty RV/Marine | 300A continuous, IP54 | Amazon |
| Matell Remote Switch | Smart Relay | Anti-theft & parasitic drain | 2400A crank, IPX6 | Amazon |
| QuickCar Racing 55-010 | Rotary Switch | Racing/Street rod panel mount | 125A continuous, 2.5″ handle | Amazon |
| Trosfina Remote Switch | Smart Relay | Auto LVD & remote control | 250A cont, 70m range | Amazon |
| FEITON 500A Lock-Out | Rotary Switch | Agricultural & high-current 36V | 500A continuous, lockable | Amazon |
| AWBLIN Volt Display | Rotary Switch | Real-time battery monitoring | 250A cont, IP65 | Amazon |
| VSTM Upgrade 300A | Rotary Switch | Budget-friendly with voltage display | 300A peak, 5-60V DC | Amazon |
In‑Depth Reviews
1. Spartan Power Battery On/Off Disconnect Switch 300A
The Spartan Power switch is built with a copper contact block rated for 300A continuous and 900A cranking for 30 seconds, giving it real headroom for a large RV house battery bank or a marine dual-battery setup. The IP54 ingress protection rating means it handles splashes and dust, which is critical for an engine bay or an exposed boat console.
Its simple two-position rotary design produces a satisfying click when toggled, and the casing accommodates both front and rear panel mounting with included screws. Owners of off-grid solar systems and travel trailers consistently praise its robust feel and the assurance that no current is leaked when the knob is in the OFF position.
One caveat: some users report the knob requires a firm grip to turn, so plan to mount it in an easily accessible spot, not buried behind a panel. Matching the lug size to your battery cable is also essential for a secure connection.
Why it’s great
- High 300A continuous rating with a 900A crank surge for diesel engines and inverters.
- Ignition-protected casing meets marine safety standards for fuel vapor areas.
Good to know
- Rotary action is slightly stiff; test the location before permanent mounting.
- Supplied hardware may not match all battery terminal bolt sizes.
2. Matell 12V Battery Disconnect Switch
The Matell unit is an electrically operated relay that supports both remote key fob and a physical backup button, so you never have to lift the hood. Its 45mm² pure copper core handles 2400A instantaneous current, making it suitable for engines up to 4.0L, and the IPX6 waterproof rating ensures it survives engine bay pressure washing.
With an ultra-low standby current of just 5mA, this switch solves parasitic drain without itself becoming a drain. The intelligent anti-misoperation feature locks out the power-off command when the engine is running, preventing a sudden shutdown while driving—a critical safety detail for a remote-cut device.
Installation is straightforward for a relay system, but those with recessed or flat-top battery posts (common on European vehicles) will find the included flat terminal adapter helpful. Owners of Jeeps and Corvettes report it completely solves phantom battery drain issues with zero impact on engine starting.
Why it’s great
- Remote fob operation (up to 30m) plus manual override for convenience and security.
- Intelligent lockout prevents accidental power cut while the engine is running.
Good to know
- Rated for 120A continuous, not ideal for high-draw inverters or winches.
- Installation on recessed battery posts may require adapter shims for a snug fit.
3. QuickCar Racing Products 55-010 Master Disconnect Switch
Built for the track, the QuickCar 55-010 features a red anodized aluminum handle and a black mounting panel that fits into a standard 2.5-inch hole. This switch is designed as a visual and physical master cutoff for race cars, street rods, and classic Land Rovers where NHRA or local safety tech inspection requires a clearly marked external kill switch.
Its 125A continuous and 12V rating is sufficient for most gasoline engines without high-draw audio or air conditioning, and the rotary action is direct and positive. The switch uses ring terminals and does not include a voltage meter or smart features, prioritizing simplicity and mechanical reliability above all else.
Installation requires access behind the panel, so the mounting surface thickness should not exceed 1/4 inch. Some users found the mounting nut hard to tighten on thicker dashboards, so plan for a thin panel or a dedicated bracket.
Why it’s great
- Race-proven aluminum design with a large handle that is easy to grab even with gloves.
- Universal panel mount fits custom dashboards, boats, and classic car retrofits.
Good to know
- Rated for only 125A continuous, limiting use with high-output alternators or large inverters.
- Does not include a lock-out feature; add a padlock on the handle hole for security.

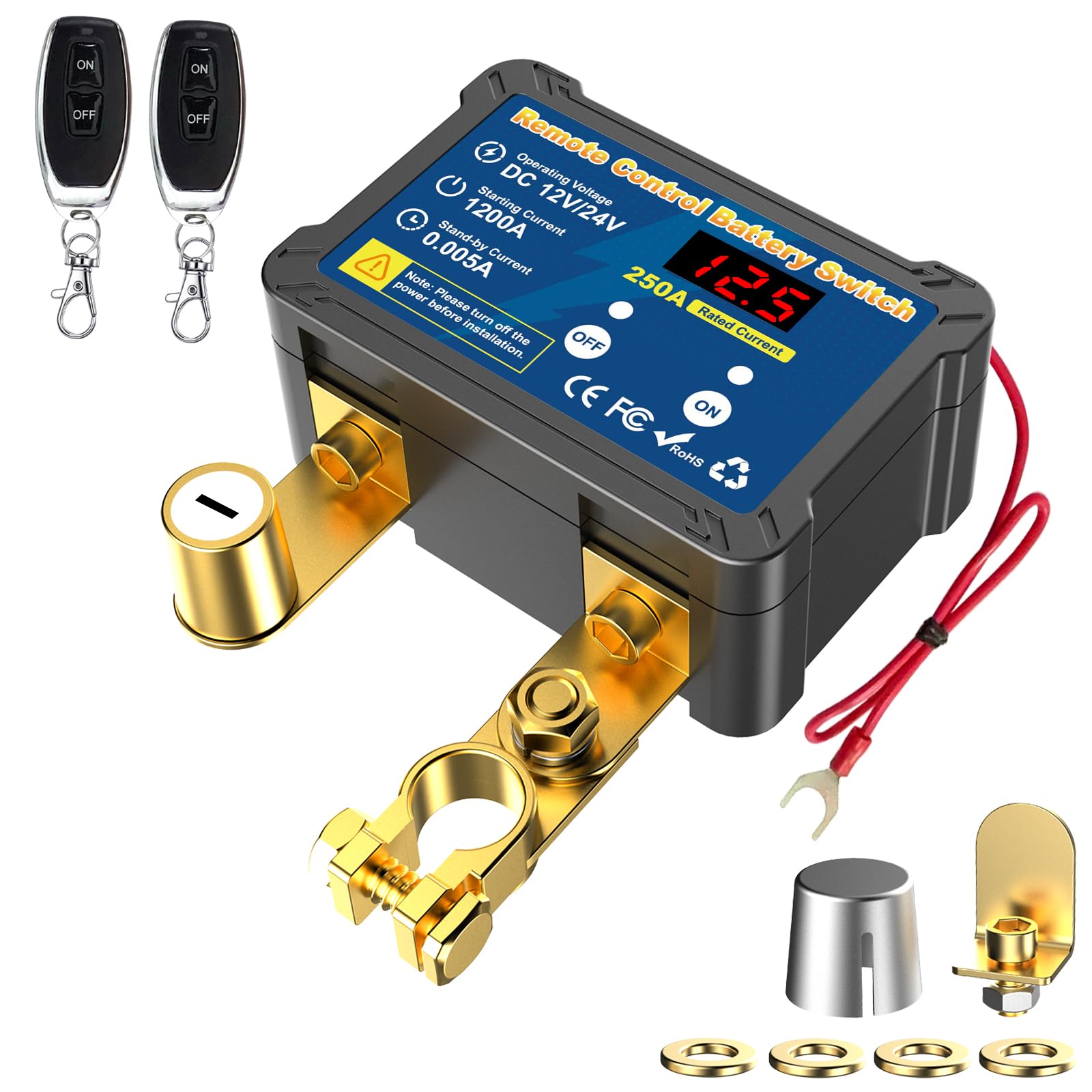

4. Trosfina Remote Battery Disconnect Switch 12V, 250A
The Trosfina switch combines a magnetic latching relay with intelligent voltage monitoring: it automatically cuts power when the battery drops below 11.8V and reconnects when voltage climbs over 13.6V (e.g., while driving). This protects against both parasitic drain and accidental over-discharge from leaving the interior lights on.
With a 250A continuous and 1200A cranking rating, it is robust enough for most cars, light trucks, RVs, and boats. The remote works up to 70 meters, giving you a real anti-theft deterrent from across a parking lot. The standby current is a mere 5mA, so the relay will not flatten the battery during long-term storage.
Some users noted the bracket for the battery post was a tight fit on certain Japanese battery posts and needed a bit of sanding. The push-button manual override is less intuitive than a rugged toggle, but it functions reliably for emergency disconnects.
Why it’s great
- Automatic voltage disconnect at 11.8V and reconnect above 13.6V for hands-off operation.
- Long 70-meter remote range for convenient security and access.
Good to know
- Post shims may be needed for non-standard battery terminal sizes.
- Manual override is a small button, not a heavy-duty knob.
5. FEITON 500A Battery Cut Off Switch with Lock-Out Plate
When you need to manage extreme current—like a 36V trolling motor bank, a diesel pickup with dual alternators, or agricultural equipment—the FEITON 500A switch is built for the job. It features 10mm threaded copper studs and a watertight metal housing to withstand mud, rain, and engine heat without corroding.
Beyond its raw capacity, the lock-out plate accepts a standard padlock, which makes it a favorite for fleet managers and municipal utility vehicles who need to prevent unauthorized operation or theft. The heavy-duty rotary handle is large enough to turn even with thick work gloves.
Physical size is the main trade-off; this switch is significantly larger than typical 250A units. Ensure you have 4-5 inches of clearance behind the mounting surface for the studs and cable lugs. It is best installed on a flat panel with a hole saw for the 20247 replacement pattern.
Why it’s great
- Massive 500A continuous and 5000A instantaneous rating for the most demanding 12-36V systems.
- Integrated padlock provision prevents tampering by unauthorized users.
Good to know
- Bulkier than standard switches; requires generous mounting space.
- Not recommended for typical passenger cars due to its large form factor.
6. AWBLIN Upgrade Battery Disconnect Switch with Voltmeter
The AWBLIN switch integrates a bright blue LED digital voltmeter directly into the knob, giving you an instant readout of your battery’s state of charge without needing a separate multimeter or battery monitor. The display only activates when the switch is ON, consuming about 30mA, and shuts off entirely to prevent drain when the system is isolated.
Its nylon 66 housing offers better high-temperature resistance than standard ABS, and the copper-plated silver contacts ensure low resistance and oxidation resistance over time. With a 250A continuous rating and compatibility from 5V to 60V DC, it handles everything from a 6V vintage motorcycle to a 48V solar golf cart.
Installation is straightforward with the included removable side plates and a rubber gasket for splash-prone areas. The voltage readout can be hard to see in direct sunlight due to the blue LED brightness, but it is highly legible in dim engine bays and at night.
Why it’s great
- Built-in voltmeter provides real-time battery health monitoring at a glance.
- Wide voltage range (5-60V DC) covers automotive, marine, and solar applications.
Good to know
- Blue LED display may be washed out in bright sunlight.
- Display draws 30mA when active, though it shuts off completely with the switch.
7. VSTM Upgrade Battery Disconnect Switch with Digital Voltage Display
The VSTM switch delivers an affordable entry point for voltage display and battery isolation. It includes a large bright LED screen that shows real-time voltage, a nylon casing with high-temperature tolerance, and copper-plated silver contacts for reliable conductivity. The included hardware offers three mounting methods, accommodating different cable entry angles.
Suitable for 5-60V systems, it is rated for 250A continuous and 300A for 30-minute bursts. Users report it works great in fish houses, boats, and off-road rigs, with a satisfying rotary knob action. The manual includes a small arrow indicator to orient the display correctly during installation.
While functional and durable, the knob can feel slightly less precise compared to premium Spartan or FEITON units. It is best used as a secondary cutoff or for lower-amp accessory circuits where budget is the primary concern.
Why it’s great
- Voltmeter display and 300A capacity at a very accessible price point.
- Flexible mounting with three different cable routing configurations.
Good to know
- Knob action is not as crisp as premium rotary switches.
- Instructions are minimal; some trial and error needed for wiring orientation.
FAQ
Can I install a remote battery disconnect on a modern car with sensitive electronics?
How do I know if I need a 250A or 500A continuous switch?
Will a manual rotary switch drain my battery if left in the ON position?
Final Thoughts: The Verdict
For most users, the automatic battery disconnect switch winner is the Spartan Power 300A because it balances high continuous current capacity, ignition protection, and straightforward mechanical reliability at a fair price. If you want remote convenience and automatic low-voltage cutoff, grab the Matell 12V Remote Switch. And for high-current diesel or agricultural equipment, nothing beats the FEITON 500A with Lock-Out.
