Our readers keep the lights on and my morning glass full of iced black tea. As an Amazon Associate, I earn from qualifying purchases.7 Best Automatic Charging Relay | Stop Killing Your Start Battery

Check Price on Amazon

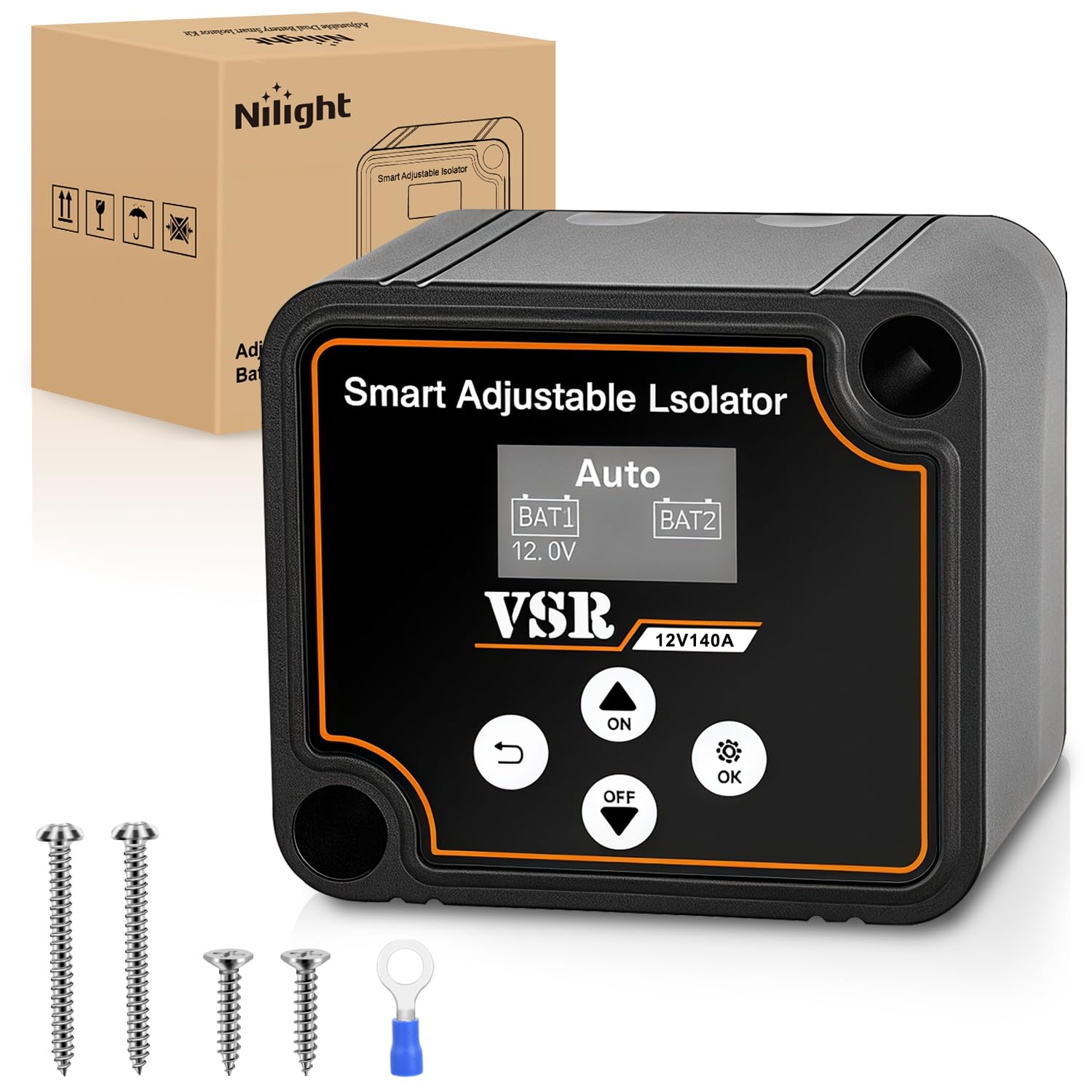

The Nilight stands out because it offers adjustable cut-in and cut-out voltage settings (11.0V to 14.0V), a feature typically reserved for premium units. This is critical for lithium iron phosphate batteries that require a higher absorption ceiling or for smart alternators that dip below 13V during regenerative braking. The 140A continuous rating covers most aftermarket alternators found in trucks and vans, and the IP65 housing keeps the contacts safe during water crossings or engine bay pressure washing.

The integrated LED display shows real-time battery voltage, which simplifies troubleshooting and eliminates the need for a separate voltmeter in the charging circuit. The adjustable delay timer (3-60 seconds) prevents the relay from chattering during transient voltage spikes, a common failure point on fixed-delay units. The auto/manual mode switch gives you the option to force-connect the banks for emergency jump-starts or to isolate them during welding work.

Several users reported the terminal openings are tight for 4 AWG wire, so you may need to open the housing slightly for heavy-gauge installations. A handful of durability complaints surfaced in marine environments, where continuous vibration and salt exposure can shorten the life of the plastic casing. Overall, the adjustability and feature set at this price tier make it the most versatile option for custom dual-battery builds.

Check Price on Amazon

The Blue Sea 7610 is the benchmark for marine-grade automatic charging relays. Its hermetically sealed, vaporproof contacts are ignition-protected per SAE J1171, meaning it can be safely installed in gasoline engine compartments where explosive fumes may accumulate. The 12/24 volt auto-ranging input means it accepts both standard 12V and 24V house banks without manual switching, a major advantage for dual-voltage yachts or overlanding rigs with 24V starting systems.

The 120A continuous rating supports alternators up to that output, and the relay includes a start isolation feature that temporarily disconnects house loads during engine cranking, protecting sensitive electronics like GPS units and chartplotters from voltage dips. The included remote control switch offers an off/auto/on three-position operation with an illuminated bezel, so you can manually override the relay for emergency joining or forced isolation when working on the electrical system.

The main downside is the 120A limit — this unit cannot support high-output alternators above 120A or massive inverter loads. Additionally, the relay produces a distinct audible clunk when engaging, which is mechanically normal but may surprise owners expecting a silent solid-state switching action. For builders with large house banks or car audio systems, the ML-7622 is a better fit.

Check Price on Amazon

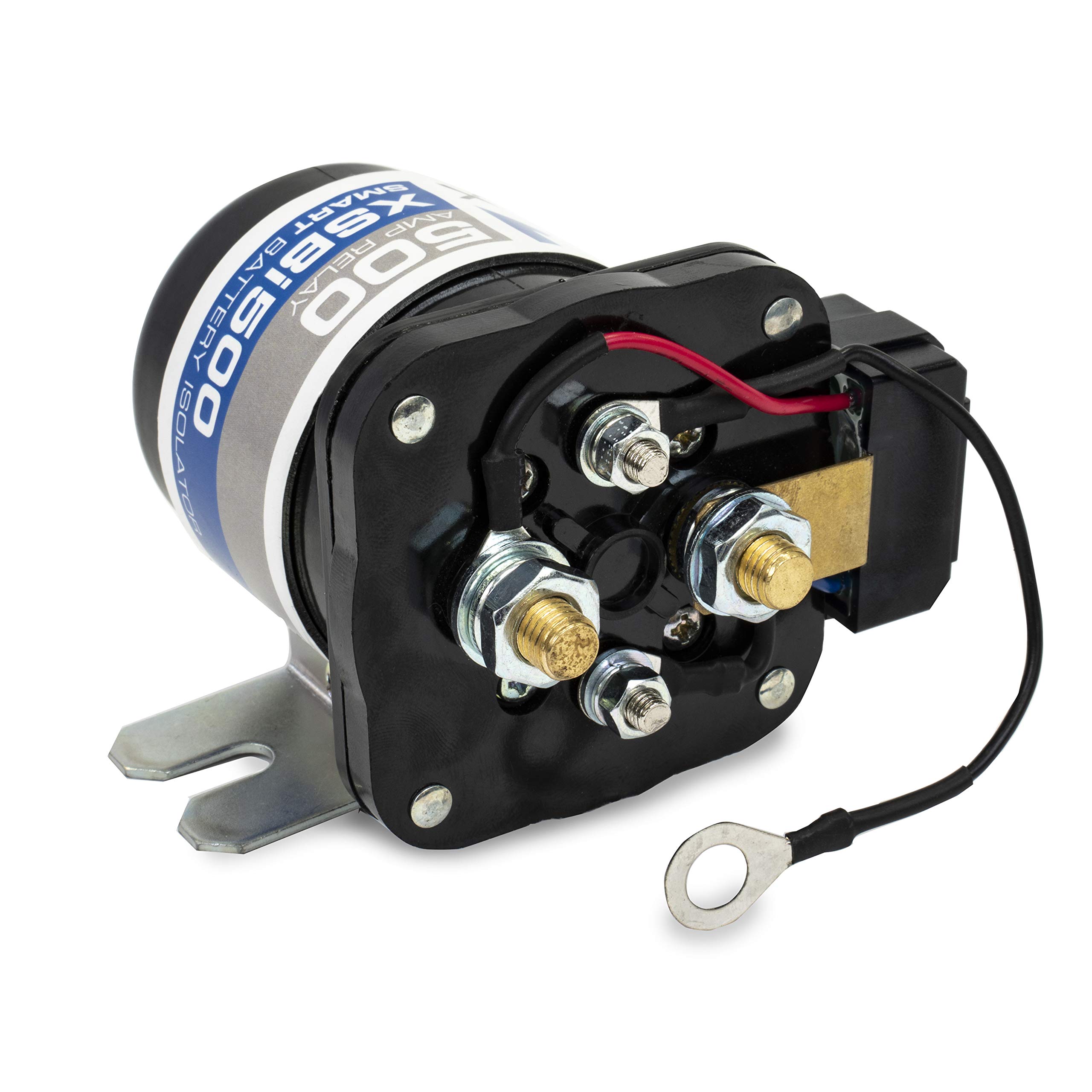

The NVX XSBI500 is the only relay in this roundup specifically designed for high-current mobile audio systems. With a 500A continuous rating and a 700A surge capacity, it can handle multiple mono subwoofer amplifiers without voltage sag or contact welding. The microprocessor control uses a dual-sensing topology — it monitors voltage on both battery banks and intelligently combines them only when the alternator is producing sufficient current, which prevents the audio battery from draining the starting battery during bass-heavy playback.

Unlike traditional diode-based isolators that introduce a 0.5-0.7V voltage drop, this relay uses a solid-state switching architecture that passes nearly full alternator voltage to both banks. The silver alloy contacts minimize resistance and heat buildup at high currents. The draw is less than 1A when engaged, and the manual flat on/off button allows you to bypass the automatic mode for battery-to-battery jump-starts or forced isolation while welding.

The trade-off is a premium price that puts it in the same range as the Blue Sea ML-7622, but without the marine ignition protection or remote switch included in the box. The instructions lack a recommended fuse amp rating for the control wire, and the included hardware is minimal — you may need to purchase ring terminals and fusing separately. It is also physically delicate; dropping the unit can break the internal components.

Check Price on Amazon

The Blue Sea ML-ACR 7622 is the most capable automatic charging relay in this comparison, designed for large battery banks in boats, RVs, and van conversions. Its 500A continuous rating supports alternators up to that output and can handle the surge loads from inverters, windlasses, and thruster systems. The ML-ACR uses a latching solenoid that draws less than 0.1A when engaged, minimizing parasitic drain on the electrical system — a critical advantage for liveaboard vessels where every milliamp counts.

The included ML-Series remote Control Contura switch (PN 2146) provides three distinct operating modes: automatic (charges whichever bank needs it), combined (forced parallel for emergency starting or bulk charging), and lock-off (physically prevents the relay from closing during maintenance). The lock-off capability is a unique safety feature that allows you to service the battery bank with complete confidence that the relay won’t accidentally close and arc. The Deutsch DTM connector ensures a weathertight seal on the control wire.

The relay is physically large and heavy (1.74 lbs), which can make mounting in tight under-hood spaces challenging. The labeling on the housing is difficult to read in low light, and the installation manual could be more detailed about wire gauge recommendations for 500A circuits. It is also the most expensive option here, making it overkill for a simple two-battery car audio setup.

Check Price on Amazon

The VEVOR kit bundles a 140A voltage-sensitive relay with 6 meters of pre-terminated cable, making it an ideal entry point for DIY installers who need a turnkey solution without sourcing separate wire and connectors. The 13.3V cut-in and 12.8V cut-out thresholds follow the standard VSR profile, and the IP65 waterproof housing protects the relay in engine bays, under chassis tabs, or behind dash panels. The compact 2.66-inch cube footprint fits into tight spaces that larger relays cannot.

The included wiring is long enough to route from a front battery under the hood to a house battery in the trunk or under a van seat. The copper contact material and screw terminals accept up to 4 AWG lugs without modification. Multiple positive customer reviews confirm successful installations on Polaris Rangers, camper vans, and solar-based dual-battery setups where the relay intelligently charges the house bank whenever the engine runs.

The relay lacks adjustable voltage thresholds, which means it cannot be tuned for lithium batteries or smart alternators that operate below 13V. The included wiring uses standard PVC insulation that should not be routed near exhaust manifolds or high-heat sources. Some buyers noted the instructions are minimal, so mechanical aptitude with 12V wiring is prerequisite.

Check Price on Amazon

The MaySpare 140A kit delivers the essential VSR functionality — 13.3V cut-in, 12.8V cut-out — at a price that makes dual-battery upgrades accessible for budget-conscious car and SUV owners. The silver alloy contacts provide lower electrical resistance than standard copper contacts, reducing heat buildup at the junction under sustained 140A loads. The package includes all necessary wiring, ring terminals, and a mounting bracket, so you don’t need additional purchases for a basic install.

The 140A continuous rating is sufficient for most passenger vehicle alternators up to 150A, and the compact panel-mount design fits on fender wells or firewall surfaces. The relay works with AGM, flooded, and gel batteries, and the 3-terminal design (input, output, ground) simplifies the wiring diagram for first-time installers. Several users reported successful installations on Dodge Caravans, Subaru Outbacks, and Jeep Wranglers where the VSR kept the auxiliary battery topped off during camping trips.

The reliability record shows a split: many units work flawlessly for years, but a minority of buyers received defective units that failed to close at 13.8V or died completely within two weeks. Smart alternator owners reported that the 13.3V cut-in threshold is too high for vehicles that float at 12.5V during eco-driving — you may need to turn on the headlights or defroster to force the alternator above 14V. The included fusing is not marine rated, so saltwater installations require additional corrosion protection.

Check Price on Amazon

The KeyLine Iso-Pro140 targets off-road vehicles like Polaris RZR and Ranger with a comprehensive wiring kit that includes a 140A VSR, pre-terminated cables, marine-grade brass terminals, and heat shrink tubing. The 13.3V cut-in and 12.8V cut-out thresholds are paired with a solid-state design that eliminates voltage drop across the isolation point. The IP65 rating ensures the relay survives water crossings, mud splashes, and the constant vibration of rough trails.

The kit is engineered for DIY installation under the hood of a side-by-side or in the battery compartment of an ATV. The included cables are long enough for most frame layouts, and the tinned copper lugs resist corrosion better than bare copper. The 12-month warranty and 30-day money-back guarantee provide a safety net that many anonymous off-brand VSRs lack. The relay supports a wide range of 12V battery types including AGM, gel, and standard flooded.

Several long-term users reported instability after one to two months in extremely rough Polaris Ranger applications, with the relay causing shifting behavior that was only resolved after removing the unit. The included cables are short (12-inch and 24-inch sections), so you may need additional wire for remote battery locations. The solid-state design cannot be serviced in the field, so a failure means full replacement rather than contact cleaning.
