A loose or corroded electrical terminal can turn a simple wiring project into a chronic headache of intermittent failures, voltage drops, and fried circuits. The right automotive electrical terminals create a gas-tight, vibration-resistant connection that ensures reliable current flow year after year, whether you are restoring a classic car, rewiring a boat, or building a custom audio system.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent hundreds of hours cross-referencing metal thickness, insulation types, gauge compatibility, and real-world user feedback across the top-rated terminal kits on the market to separate durable performers from brittle waste.
After evaluating hundreds of user reports and spec sheets, this guide cuts through the noise to help you pick the right connectors for your project. This is the definitive resource for finding the best automotive electrical terminals that deliver secure crimps and long-term corrosion resistance every time.
How To Choose The Best Automotive Electrical Terminals
Automotive electrical terminals are small components, but their material composition, insulation type, and gauge range determine whether your wiring project lasts one season or a decade. Here are the critical factors to evaluate before buying.
Barrel Material — Copper vs. Brass vs. Tinned Copper
Copper offers the best conductivity and lowest voltage drop, but bare copper corrodes quickly in engine bays and marine environments. Tinned copper barrels combine high conductivity with corrosion resistance. Brass is cheaper and stiffer but has higher resistance, which can generate heat under sustained current loads. For critical circuits like alternator feeds or starter wiring, copper or tinned copper is the right choice.
Insulation Type — Nylon vs. Heat Shrink vs. Non-Insulated
Nylon-insulated terminals provide good mechanical protection and color coding for gauge identification, but they offer no waterproofing. Heat shrink terminals with a dual-wall adhesive lining create a 360-degree environmental seal that blocks moisture, salt, and vibration. Non-insulated ring and fork terminals require you to add separate heat shrink tubing, which gives you more flexibility but adds an extra step. For exposed or outdoor connections, heat shrink insulation is non-negotiable.
Gauge Range and Stud Size Compatibility
Red terminals cover AWG 22–16, blue covers AWG 16–14, and yellow covers AWG 12–10. Many kits include multiple stud sizes (#10, 1/4″, 5/16″, 3/8″) for ring and fork terminals. Verify that the stud diameter in the kit matches your terminal block, battery post, or ground stud — mismatched sizes cause loose connections that vibrate apart.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| TICONN 250Pcs Heat Shrink | All-in-One | Versatile waterproof connections | 3:1 heat shrink ratio with adhesive lining | Amazon |
| haisstronica 120PCS Fork Spade | Marine Grade | Corrosion-resistant spade connections | Pure copper, tin-plated, 1/3 shrink ratio | Amazon |
| Tanbupu 360Pcs Ring | Bulk Ring | High-volume ring terminal projects | 360 pieces, 4 stud sizes, double-wall adhesive | Amazon |
| ROCKDIG 260PCS Ring Fork | Non-Insulated | High-temp or custom shrink applications | 99.9% pure copper, 0.75-1.0mm thickness | Amazon |
| TICONN 200Pcs Nylon Spade | Insulated Spade | Quick-connect automotive and home use | Thick tinned brass, 400V max rating | Amazon |
| Oiojuct 240Pcs Butt Splice | Butt Splice | Waterproof inline wire splicing | Copper barrel, polyolefin heat shrink | Amazon |
| TAILONZ PNEUMATIC 300Pcs Fork | Budget Fork | High-quantity, low-cost general repairs | Plastic + copper, 300-count, #8 stud | Amazon |
In‑Depth Reviews
1. TICONN 250Pcs Heat Shrink Wire Connectors Kit
The TICONN 250-piece kit is the most versatile all-in-one terminal assortment available. It includes ring, fork, spade, butt splice, and quick-disconnect connectors across red, blue, and yellow gauge ranges, all with dual-wall 3:1 ratio heat shrink tubing. The thick tinned copper barrel resists corrosion and creates a gas-tight crimp that delivers minimal voltage drop even under sustained 12V loads in engine bay environments.
The 3:1 shrink ratio with heat-activated adhesive lining provides a 360-degree waterproof seal that exceeds standard 2:1 terminals. Users report that the connectors hold wire securely with professional-grade crimping tools and withstand exposure in marine and underground applications. The organized box keeps terminals sorted by type and gauge, reducing fumbling during projects.
For DIY enthusiasts and professionals alike, this kit eliminates the need to buy individual connector packs. The included ring stud sizes #10, 1/4″, 5/16″, and 3/8″ cover virtually every common automotive and marine fastening point, making this a one-stop solution for rewiring trailers, boats, or classic cars.
Why it’s great
- Five connector types in one kit cover nearly every repair scenario
- Thick tinned copper barrel prevents corrosion and ensures stable current flow
- Dual-wall adhesive heat shrink creates true waterproof marine-grade seals
Good to know
- Requires a quality ratcheting crimper for best results with the thicker barrel
- Some users prefer non-insulated terminals for high-temp sensor wiring

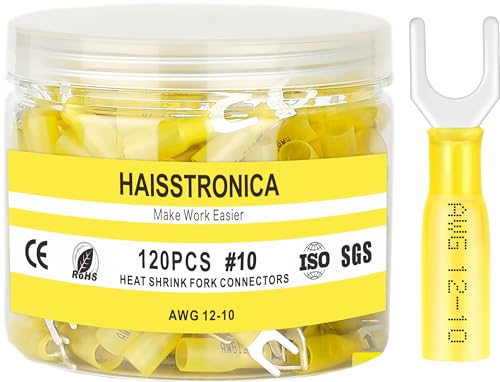

2. haisstronica 120PCS Heat Shrink Fork Spade Connectors
The haisstronica 120-piece set focuses exclusively on fork spade connectors in yellow 12-10 AWG gauge, making it the best choice for larger-gauge applications where current draw peaks. The pure copper barrel with tin-plated coating delivers high conductivity and voltage stability while actively resisting galvanic corrosion in marine salt environments.
Each heat shrink tube is pre-printed with size markings, which speeds up wire matching and reduces errors during repetitive work. The 1/3 heat shrink ratio and polyolefin insulation tube provide effective dust and moisture protection. Users report that these terminals handle the vibration of boat electronics and automotive engine compartments without loosening or corroding.
The #10 stud size is ideal for common marine and automotive terminal blocks, fuse holders, and distribution posts. While the kit is limited to fork spade connectors, the dedicated sizing means you get a higher quality per-terminal build than general assortments that spread thinner over more types.
Why it’s great
- Pure copper with tin plating offers superior conductivity and corrosion protection
- Pre-printed size markings on each tube speed up installation
- Focused 12-10 AWG range is ideal for high-current marine and automotive circuits
Good to know
- Only includes fork spade connectors — no ring, butt, or quick-disconnect types
- Limited to #10 stud size; larger studs require additional terminals
3. Tanbupu 360Pcs Heat Shrink Ring Wire Connectors
The Tanbupu 360-piece kit is the highest-count ring terminal assortment in this lineup, offering four stud sizes (#10, 1/4″, 5/16″, 3/8″) across all three gauge ranges. The double-wall heat shrink design uses hot melt adhesive that, when heated, fully encapsulates the crimp area and shrinks to one-third of its original size, creating a robust environmental seal.
High-purity copper construction ensures excellent conductivity and wear resistance for reliable 12V DC performance. Users have successfully applied these terminals in RV wiring projects, truck accessory installations, and Chevy Tahoe switch retrofits, noting that the heat shrink seals tightly without gaps. The multi-colored storage box keeps terminals organized by size and gauge.
While the plastic of the shrink tubing requires a bit more heat than premium-grade alternatives, the resulting connection is solid and moisture-proof. For budget-conscious buyers who need a large quantity of ring terminals in multiple sizes, this kit delivers the best per-terminal value without sacrificing the dual-wall adhesive benefit.
Why it’s great
- Highest piece count at 360 with four stud sizes for maximum flexibility
- Dual-wall adhesive heat shrink provides genuine waterproof protection
- High-purity copper ensures stable current flow with minimal resistance
Good to know
- Heat shrink plastic feels less premium and needs higher heat to activate adhesive
- Storage box compartments are shallow — terminals may mix during transport
4. ROCKDIG 260PCS Copper Ring Fork Terminals
The ROCKDIG 260-piece set is built for users who prefer non-insulated terminals and want control over their own heat shrink or solder protection. Made from 99.9% pure copper with tin plating, these ring and fork terminals offer exceptional conductivity with a maximum voltage rating of 600V — the highest in this guide. The material thickness varies by gauge: 0.75mm for AWG 22-16, 0.8mm for AWG 16-14, and 1.0mm for AWG 12-10.
UL specification compliance adds an extra layer of confidence for professional or critical applications. The tin plating resists corrosion during soldering, and users report that the terminals take solder well when additional joint strength is needed. They have been used successfully in vintage Jeep wiring harness restorations and general automotive circuit repairs.
The main trade-off is the lack of pre-installed insulation — you must add your own heat shrink tubing and apply it separately. However, this gives you the freedom to choose tubing color, length, and shrink ratio. The included storage box is basic, but the terminals themselves are well-formed and free of burrs.
Why it’s great
- 99.9% pure copper with 600V rating handles demanding electrical loads
- UL spec met — suitable for professional and safety-critical installations
- Thicker metal gauges provide durable, long-lasting crimp connections
Good to know
- No pre-installed insulation — requires separate heat shrink tubing purchase
- Basic storage box may need replacing for regular shop use
5. TICONN 200 Pcs Nylon Spade Quick Disconnect Connectors
The TICONN 200-piece nylon spade assortment is the go-to choice for quick-disconnect applications where terminals are frequently removed and reconnected. These male and female spade connectors use thick tinned brass with a maximum voltage rating of 400V, providing a strong, secure crimp that reduces voltage drop and heat buildup compared to thinner foil-grade brass connectors.
The nylon insulation is color-coded red, blue, and yellow matching standard AWG ranges, making gauge identification immediate without measuring. Users report that the spades fit snugly onto mating male terminals on battery banks and fishing electronics, with several noting they upgraded from cheaper connectors whose metal was noticeably thinner and weaker.
These are not waterproof, so they are best suited for interior cabin, dry bay, and protected connector block applications rather than exposed engine or marine locations. The storage case has been reported to arrive cracked in some shipments, but users consistently say the connector quality itself warrants repurchase regardless of the case.
Why it’s great
- Thick tinned brass barrel prevents short circuits and heat buildup
- Color-coded nylon insulation for instant gauge identification
- 200-piece count covers most common automotive quick-connect needs
Good to know
- Nylon insulation does not provide moisture or waterproof protection
- Storage case packaging can crack during shipping
6. Oiojuct 240Pcs Heat Shrink Butt Connectors Kit
The Oiojuct 240-piece kit is dedicated entirely to butt splice connectors, making it the best option for inline wire repairs, extensions, and sensor splices where a waterproof join is essential. The copper barrel connectors are paired with polyolefin heat shrink tubing that, when crimped and heated, produces a moisture-proof seal around the wire insulation.
Users report that the connectors crimp tightly with standard tools and that the heat shrink activates cleanly with a heat gun or even a hairdryer. The organized case keeps the three gauge sizes separated, and the UL-spec compliance confirms the connectors meet basic electrical safety standards. Several reviewers specifically noted success splicing lighting circuits and repair leads on outdoor equipment.
The kit does not include ring, spade, or fork terminals, so it is not a standalone solution for full wiring harnesses. But for anyone focused on joining wires end-to-end with reliable insulation, this dedicated assortment offers better consistency than mixed kits that only include a handful of butt splices.
Why it’s great
- Dedicated butt splice kit with 240 pieces covers most gauge combinations
- Heat shrink seals effectively against moisture for outdoor and automotive use
- UL spec met for confidence in electrical safety standards
Good to know
- Only butt splice connectors — no ring, spade, or fork terminals included
- Heat shrink tubing is standard polyolefin, not dual-wall adhesive
7. TAILONZ PNEUMATIC 300 Pcs Insulated Fork Spade Connectors
The TAILONZ PNEUMATIC 300-piece set is the highest-quantity budget option for insulated fork spade terminals. The plastic-insulated copper connectors cover AWG 22-10 with color-coded red, blue, and yellow jackets, and the #8 stud size fits many common screw terminal blocks found in automotive and HVAC equipment. Maximum current ratings are 19A for red, 27A for blue, and 48A for yellow.
Users report that the connectors crimp easily and hold fast on mini split wiring and general electrical repairs. The plastic insulation is fully molded rather than nylon, which provides decent protection but does not seal moisture out. The largest yellow terminals are noted by some users as slightly thin for the wire gauge, so they are best suited for moderate-load applications rather than high-amp alternator or starter circuits.
The biggest trade-off is the fixed #8 stud size and the lack of other terminal types or stud options. If your project requires exclusively fork connectors for #8 screws and you need a large quantity on a tight budget, this kit delivers the best per-unit cost. For more demanding environments, the heat shrink kits higher in this list are a better long-term investment.
Why it’s great
- 300-piece count offers the lowest per-terminal cost in this guide
- Crimps easily with standard tools and holds fast in screw terminals
- Color-coded insulation for quick gauge identification
Good to know
- Largest yellow terminals are thinner than premium alternatives for 10 AWG
- Limited to #8 stud size and fork spade type only
FAQ
Can I use non-insulated automotive terminals without heat shrink tubing?
What is the difference between spade and fork terminals?
Why do my crimped connections keep failing even with quality terminals?
Final Thoughts: The Verdict
For most users, the best automotive electrical terminals winner is the TICONN 250Pcs Heat Shrink Kit because it offers the broadest connector variety with genuine dual-wall waterproof heat shrink and thick tinned copper barrels at a mid-range price. If you want marine-grade fork spade connectors with pure copper construction, grab the haisstronica 120PCS Fork Spade Set. And for high-volume ring terminal projects on a budget, nothing beats the Tanbupu 360Pcs Ring Connector Kit.
