Replacing press-fit ball joints without a proper C-frame press is a gamble that often ends with damaged control arms, stripped threads, or a trip to the shop. The repetitive shock of a hammer can warp surrounding metal, and pickle forks often destroy the joint’s rubber boot before it even pops out. A dedicated ball joint press kit solves this by applying controlled, even hydraulic or mechanical force straight through the joint’s axis, making removal predictable and installation precise.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent hundreds of hours analyzing suspension tool load ratings, C-frame throat depths, adapter compatibility across domestic and import platforms, and the real-world durability reported by professional mechanics and DIY owners alike to bring you this focused guide.
Whether you are refreshing the front end of a half-ton pickup or servicing a Jeep Wrangler, finding the best ball joint press kit means matching the tool’s throat depth and adapter count to the specific axles and joint sizes on your vehicle.
How To Choose The Best Ball Joint Press Kit
A press kit’s core job is to deliver straight, force-controlled pressure without bending or slipping. The three variables that determine success are the C-frame’s structural rigidity, the adapter set’s compatibility with your vehicle’s axle type, and the forcing screw’s resistance to galling under high torque. Ignoring any of these leads to frustration or broken parts.
C-Frame Throat Depth and Steel Hardness
The throat depth defines the maximum height of the joint stack you can fit. A standard depth runs around 4 to 5 inches, while an XL press pushes past 9 inches for tall adapters on Super Duty and Ram 3500 trucks. The C-frame should be forged from medium-carbon steel hardened to at least HRC 30 to avoid flexing or stretching under continuous impact gun use.
Adapter Count and Vehicle-Specific Coverage
A generic set with 6 to 9 tubes may cover half the market, but you need specific adapters for Dana 30, 35, 44, 60, and GM metric threads. Check that the kit includes a live-center forcing screw plug for floating ball joints and a notched foot that clears grease zerk fittings on top-mount joints.
Impact Gun Readiness and Thread Galling Prevention
A cordless 1/2-inch impact driver can deliver over 700 ft-lb of torque. If the jackscrew’s threads are coarse or the steel is soft, galling occurs within three uses. Kits with a thread pitch finer than 5 TPI and a hardened screw (HRC 28+) withstand repetitive impact without seizing. Always lubricate threads with anti-seize or heavy grease before each job.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Orion Motor Tech 23pc | Premium | Chrysler & Ford trucks | 9.0 in throat, AISI 1045 steel | Amazon |
| OTC 6295 Front End Set | Professional | Pitman arm & tie rods | 5-piece, blow-molded case | Amazon |
| Astro Pneumatic 78100 Goliath | XL Frame | 1-ton & Super Duty trucks | 9.1 in throat, forged alloy steel | Amazon |
| Powerbuilt 940579 Master Kit | Mid-Range | U-Joints & press-fit ball joints | 10-piece, heavy duty case | Amazon |
| VEVOR 25pc Ball Joint Kit | Value | Dana 44 & JKU Jeeps | 25-piece, HRC 32-38 C-clamp | Amazon |
| Astro Pneumatic 7868 Adapter Set | Adapter Add-on | GM/Dodge pickups pre-1997 | 8 adapters, live center plug | Amazon |
| Powerbuilt 648626 Front End Kit | Budget | Tie rod & pitman arm service | 6-piece, plastic case & photos | Amazon |
In‑Depth Reviews
1. Orion Motor Tech Master Ball Joint Press Kit, 23pc
This 23-piece kit stands apart because of its 9-inch C-frame opening and specialty 4-point sockets designed for Chrysler upper ball joints (1-59/64 in. and 2-9/64 in.). The extra-long jackscrew distributes force evenly across the joint axis, reducing the chance of cocking the adapter during a tough press. Multiple receiving tubes let it cover GM, Ford, Jeep, and Dodge platforms in both 2WD and FWD applications.
The AISI 1045 carbon steel construction and black oxide finish resist corrosion and edge deformation even when driven by a high-torque impact wrench. At nearly 30 pounds, the kit feels dense and overbuilt compared to lighter competitor sets. The integrated storage case keeps all 23 pieces organized with dedicated cutouts for each adapter and tube.
Users report smooth installation on Jeep Liberty, Lexus GX470, and Ford F350 axles without damage to the C-frame or threads. The only caveat is that the 9-inch press frame is sold separately from some competitor kits — here it is included, making this a complete solution for heavy trucks without needing to buy a second frame.
Why it’s great
- 9-inch throat depth fits tall adapter stacks for Super Duty trucks
- Chrysler-specific 4-point sockets eliminate guesswork on threaded upper ball joints
- Forged 1045 carbon steel resists flex under high torque
Good to know
- Screw threads feel coarse; grease before every use to prevent galling
- Case is large and bulky for tight toolbox drawers
2. OTC 6295 Front End Service Set
The OTC 6295 is not a full ball joint press kit but a curated set of five specialty pullers and separators that every front-end technician needs. It includes two pitman arm pullers (large and small), two ball joint separators, and three tie rod pullers — all forged from high-carbon steel. The focus here is on separating stubborn tapered joints without damaging threads or boots.
Each tool is machined to precise tolerances, which means they fit snugly around the joint without slop that can cause bending. The blow-molded case keeps everything organized and fits into standard-depth toolbox drawers, a feature professional mechanics value when space is tight. The set is designed to work across GM, Ford, Dodge, and import platforms.
Reviews consistently highlight that the OTC set saves time on rusted suspension components where hammering fails. The forcing screws require lubrication before first use, and users found that using grease instead of penetrating oil eliminates thread drag and popping noises. This kit is ideal as a complement to a C-frame press.
Why it’s great
- Forged steel construction resists bending on seized pitman arms
- Compact case fits standard toolbox drawers
- Covers ball joint, tie rod, and pitman arm separation in one box
Good to know
- Does not include a C-frame press for installing press-fit ball joints
- Threads can gall with dry use; grease is mandatory
3. Astro Pneumatic 78100 Goliath Ball Joint XL C-Frame Press
The Goliath is not a full kit but a standalone C-frame press built for maximum clearance. Its 9.1-inch throat depth is nearly triple that of standard frames, which is essential when using tall stacked adapters on 1-ton and 3/4-ton trucks. The frame is forged from alloy steel and is thick enough to survive repeated use with high-torque impacts without warping.
Included are both long and short drive screws so you can keep the working length compact for tight wheel well spaces. The notched foot allows pressing out ball joints without removing the top grease fitting, saving time on every job. The frame weighs 14.5 pounds and is built to handle the abuse of professional shop environments.
Mechanics report completing ball joints on multiple Ford Super Duty, Ram 3500, and heavy-duty trucks without any frame deformation. The paint finish flakes off after the first heavy use, but this is cosmetic and does not affect structural performance. This press is best paired with a universal adapter set like the Astro 7868.
Why it’s great
- 9.1-inch throat fits large adapters on Super Duty trucks
- Notched foot clears top-mount grease zerks without removal
- Forged alloy steel frame resists deformation under impact gun use
Good to know
- Adapter set sold separately — not a complete kit
- Paint flakes off after first use; steel underneath is fine

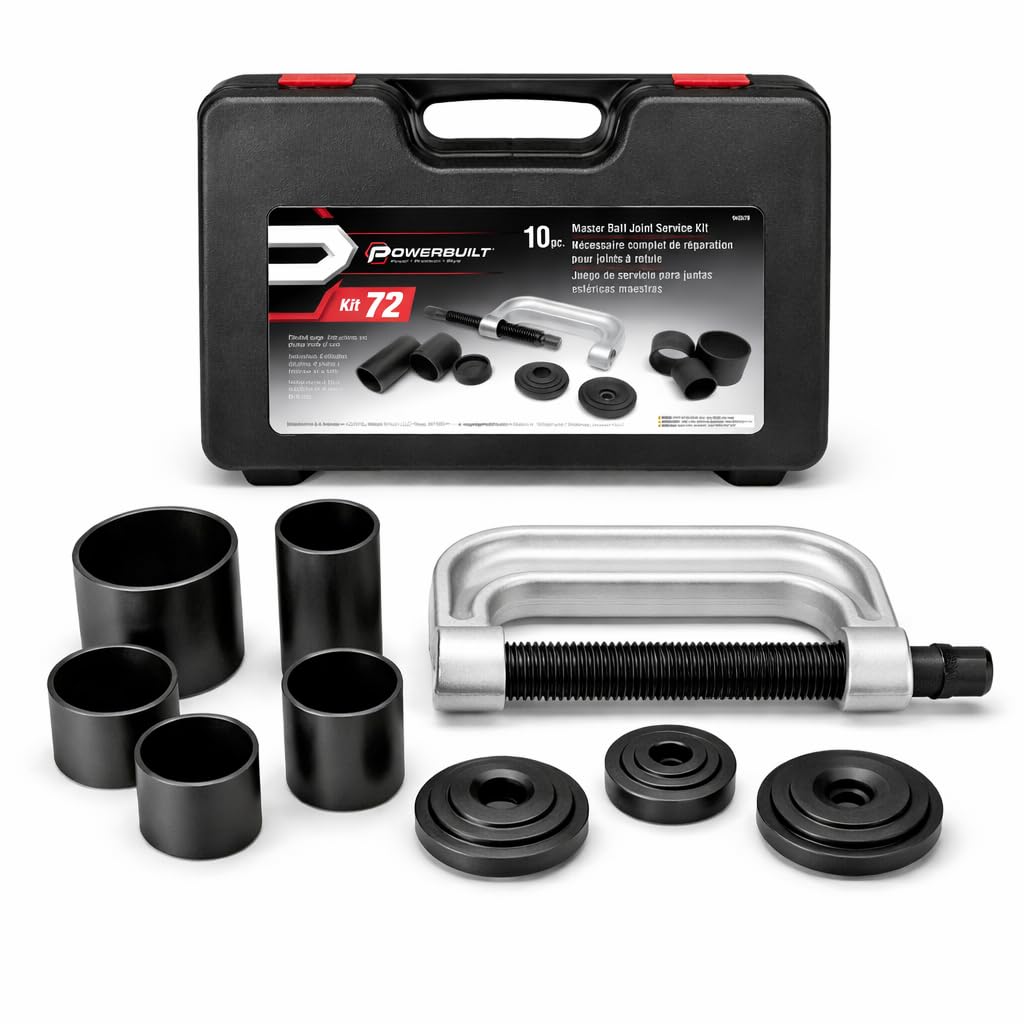

4. Powerbuilt 940579 Ball Joint Master Service Tool Kit, 10 Piece
The Powerbuilt 940579 is a 10-piece kit that includes a C-frame press, forcing screw, and a set of adapters capable of servicing press-fit ball joints and U-joints on domestic and import rear-wheel-drive cars, plus Ford, GM, and Dodge 2WD and 4WD pickups. The press is built with a forged frame that holds up well against repeated use without bending.
The included instructions feature photo step-by-step guidance, which is helpful for first-time users. The blow-molded case has molded slots for each adapter, making it easy to see if any piece is missing. The kit does not include Chrysler-specific 4-point sockets, so owners of those vehicles will need a separate adapter.
Users note that the kit works well on a wide range of vehicles from Ford Taurus to E-450 ambulances. Professional technicians mention it is a solid OTC-style design at a lower entry point. The forcing screw should be greased before each use to maintain smooth operation and prevent galling under high torque.
Why it’s great
- Forged C-frame resists bending on heavy-duty jobs
- Photo instructions help DIY users through first ball joint replacement
- Compact case stores adapters in organized molded slots
Good to know
- No Chrysler 4-point sockets included
- Adapter labels in case may fade over time
5. VEVOR 25pc Ball Joint Press Kit
VEVOR’s 25-piece kit is one of the most complete value-oriented options on the market. It includes 9 adapters, 7 receiving tubes, a plug, installation cup, receiving cup, and removal adapter — all stored in a portable carrying case. The C-clamp hardness is rated at HRC 32-38 and the jackscrew at HRC 28-36, achieved through multi-process heat treatment. This makes the kit capable of handling Dana 28, 30, 35, 44, and 60 axles common on Ford, GM, Dodge, Jeep, and IHC vehicles.
The black oxide coating provides corrosion protection, and the 27.7-pound kit feels substantial. Users report successful ball joint removal on Jeep JKU and other 4x4s using a battery-powered 1/2-inch impact driver. The press structure holds up well, though the thread tolerance may have some side-to-side play that reduces precision compared to premium kits.
Instructions are minimal and the adapter sizes are not labeled, which can be confusing for first-time users. This kit is best suited for occasional use or DIY hobbyists who need broad coverage at a low entry price. Grease the threads before each job to keep the screw running smoothly.
Why it’s great
- 25-piece set covers Dana 44 and 60 axles
- Heat-treated C-clamp resists bending under impact loads
- Affordable entry point for DIY mechanics
Good to know
- Adapters not labeled; requires trial and error to size
- Screw has slight side-to-side play in C-frame slot
6. Astro Pneumatic 7868 Master Ball Joint Adapter Set
The 7868 is an adapter-only set designed to expand the capability of an existing C-frame press. It includes all the receiving tubes and removing/installing adapters needed for GM, Ford, and Dodge 2WD and 4WD pickups, vans, and SUVs through 1997. The set also includes a live-center forcing screw plug for floating ball joints.
The adapters are machined from steel that can withstand impact gun abuse — users report only slight bending on one offset adapter due to a poor working angle on a 2003 Dodge Ram 2500. The blow-molded case keeps the 9-pound set organized, though the case may arrive damaged in shipping. The kit works with both Astro and OTC C-frame presses.
Professional mechanics value the set for covering larger vehicles that require wider adapters than standard kits provide. The only downside is that buying this alongside a full press kit can result in duplicate adapters. It is best purchased as a complement to the Astro Goliath or similar XL frame.
Why it’s great
- Expands C-frame coverage to heavy-duty GM/Ford/Dodge trucks
- Live-center plug handles floating ball joints
- Adapters hold up under impact gun abuse
Good to know
- Duplicates adapters if you already own a full press kit
- Case is prone to damage during shipping
7. Powerbuilt 648626 Front End Vehicle Service Kit, 6 Piece
The Powerbuilt 648626 is the most budget-conscious option in this guide, covering basic front-end service with a pitman arm puller, ball joint separator, and tie rod removal tools. It is a 6-piece set that arrives in a heavy-duty carrying case with plastic-laminated instructions featuring detailed photos. The tools are polished steel and fit a wide range of standard suspension components.
The ball joint separator is a fork-style tool, not a C-frame press, meaning it works by prying joints apart rather than pressing them out. This approach is faster for separating tapered joints but can damage rubber boots. The tie rod puller works cleanly and is a significant upgrade over hammering.
Customer feedback highlights that the tools feel solid for the price and that the set works well for side jobs and occasional maintenance. It is not designed for complete press-fit ball joint replacement — you will need a separate C-frame press for that. This kit is best for owners who mainly need tie rod and pitman arm removal.
Why it’s great
- Very affordable entry into front-end service tools
- Photo instructions clear enough for first-time use
- Compact case stores everything neatly
Good to know
- Fork-style separator can damage ball joint boots
- No C-frame press — cannot handle press-fit ball joint installation
FAQ
Can a ball joint press kit be used with an impact wrench?
What is the difference between a ball joint separator and a ball joint press?
Will a universal ball joint press fit a Dana 60 axle?
Why does my forcing screw keep binding when pressing out a ball joint?
Final Thoughts: The Verdict
For most users, the best ball joint press kit winner is the Orion Motor Tech 23pc Master Kit because it combines a deep 9-inch throat with Chrysler 4-point sockets and AISI 1045 carbon steel construction at a competitive price. If you need a standalone C-frame for heavy-duty truck work, grab the Astro Pneumatic Goliath 78100. And for a budget-friendly 25-piece set that covers Dana axles, nothing beats the VEVOR 25pc Kit.
