A bench multimeter isn’t just a handheld meter on a desk; its core promise is higher resolution, better stability over time, and often the ability to log data or remote-control measurements. Finding the right one means balancing count depth, accuracy specs, and safety ratings for your specific lab, workshop, or industrial environment.
I’m Min — the co-founder and writer behind Gadgets Feed. My analysis of these 9 units involved cross-referencing datasheets, scrutinizing user calibration reports, and mapping specs like count depth, sampling rate, and connectivity to real-world measurement scenarios.
The best bench multimeter combines a resolution of 55000 counts with a stable 0.05% DC accuracy, a clear dual-line display, and USB or SCPI remote control for data logging and automated testing. best bench multimeter
How To Choose The Best Bench Multimeter
Selecting the right bench multimeter goes beyond just picking a brand. You need to match the meter’s core specs — count resolution, connectivity, and safety rating — to your specific diagnostic or development workflow.
Count Resolution and Accuracy
The “count” value (e.g., 19999, 55000, or 50000) defines how many distinct readings the meter can display. A 55000-count meter can show 5.4999V, while a 19999-count meter maxes out at 1.9999V on the same range. This extra resolution is vital when measuring small voltage changes in circuit analysis or calibration work. Accuracy, often stated as a percentage of reading plus a number of digits, determines how close the displayed value is to the true signal.
True RMS and Measurement Modes
True RMS (Root Mean Square) is non-negotiable when measuring non-sine waveforms like those from variable frequency drives or switching power supplies. Without it, readings can be grossly inaccurate. Also consider 2-wire vs 4-wire resistance measurement: 4-wire eliminates lead resistance for precise low-ohm measurements, critical for current shunts and contact resistance testing.
Connectivity and Data Logging
A bench multimeter should log data unattended. Look for internal memory (typically 1000 points), USB or LAN interfaces, and SCPI command support for automated test equipment setups. Some meters offer software for PC control and real-time graphing, which is essential for long-term drift analysis or temperature monitoring.
Safety Ratings and Build
Even on a bench, safety matters. CAT II 600V or CAT III 1000V ratings ensure the meter can handle transients from mains-connected equipment. A benchtop form factor often means a stable base, clear display, and replaceable fuses. Consider whether the meter runs on AC power or a rechargeable battery, as battery-powered units offer portability at the cost of continuous runtime.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Sigent SDM3045X | Premium Benchtop | Precision lab work with 4-wire resistance | 55000 counts, 0.01% DC accuracy | Amazon |
| Fluke 87V | Industrial Handheld | Field and shop troubleshooting | 6000-20000 counts, low-pass filter | Amazon |
| Fluke 289 | Premium Logging Meter | Advanced data logging with TrendCapture | 50000 counts, 10A/20A range | Amazon |
| OWON XDM2041 | Portable Benchtop | High-speed readings with dual display | 55000 counts, 65 readings/sec | Amazon |
| OWON XDM1041 | Compact Benchtop | Budget-friendly 55000-count accuracy | 55000 counts, TFT screen | Amazon |
| Fieldpiece SC440 | HVAC Clamp Meter | HVACR diagnostics with inrush current | 6000 counts, microamps DC | Amazon |
| Crenova 8045 | Compact Bench/Hybrid | USB data logging and PC connectivity | 30000 counts, 5000mAh battery | Amazon |
| Klein Tools MM720 | Auto-Ranging Handheld | Stray voltage detection with LoZ mode | 6000 counts, TRMS | Amazon |
| FNIRSI 2C53T | Handheld 3-in-1 | Oscilloscope/multimeter/signal gen combo | 19999 counts, 50MHz scope | Amazon |
In‑Depth Reviews
1. Siglent Technologies SDM3045X 4-1/2 Digit Multimeter
The Siglent SDM3045X is a true benchtop instrument with dual display, True RMS, and a basic DC accuracy of 0.01%. It supports 2-wire and 4-wire resistance, capacitance, diode, frequency, period, and temperature with built-in cold junction compensation. With USB host, USB device, and LAN interfaces, plus SCPI command support, it integrates seamlessly into automated test systems.
Users confirm excellent value, with a calibration certificate included out of the box. The trend graphing function lets you visualize measurement drift over time, and the menu system is intuitive enough for both hobbyists and professionals. One user noted a firmware update resolved a boot issue after extended storage, with Siglent providing direct support.
Up to 150 readings per second in high-speed mode and a solid build make this meter a workhorse for the lab. It lacks a fan, staying quiet and cool, and the 4.5-digit resolution (55000 counts) is ideal for calibrating audio gear or precise component matching.
Why it’s great
- Exceptional 0.01% basic DC voltage accuracy
- Includes calibration certificate and LAN interface
- 4-wire resistance for low-ohm precision
- Up to 150 readings/sec in high-speed mode
Good to know
- No built-in battery; requires AC power
- Fanless design limits sustained high-current load
- Stock test leads are serviceable but not premium
2. Fluke 87V Industrial Digital Multimeter
The Fluke 87V is the industry gold standard for handheld industrial multimeters. It features a low-pass filter for accurate frequency measurements on variable frequency drives, Peak Capture to capture intermittents as fast as 250 µs, and switchable resolution from 6000 to 20000 counts. CAT III 1000V and CAT IV 600V safety ratings provide robust protection.
Users praise its ruggedness, with a rubber boot that withstands drops from 10+ feet, a loud continuity beep, and a backlit display readable even from a distance. The included TL75 test leads, AC175 alligator clips, and 80BK temperature probe make it a complete troubleshooting kit for advanced diagnostics.
While it’s a handheld meter rather than a bench unit, its accuracy — verified by users against reference sources — and feature set make it a staple in any serious technician’s toolkit. The true RMS capability and low-pass filter are essential for motor drive work.
Why it’s great
- Built-in low-pass filter for accurate variable frequency drive measurements
- Peak Capture catches transients as fast as 250 µs
- Switchable 6000 to 20000 count resolution
- Extremely durable with CAT III/IV safety ratings
Good to know
- Handheld form factor, not a benchtop unit
- Higher price than many alternatives
- Auto-ranging can be slower in certain modes
3. OWON XDM2041 55000 Count Benchtop Multimeter
The OWON XDM2041 delivers a 3.7-inch 480×320 TFT display with dual-line readout, 55000 counts, and a blistering 65 readings per second in high-speed mode. It supports SCPI remote control, making it suitable for automated testing. The unit measures DC/AC voltage, 2-wire and 4-wire resistance, capacitance, frequency, temperature, and includes diode and continuity tests.
Users consistently note that its accuracy compares favorably to the Fluke 87V and UT61E+, with stable readings and low-value current shunts (30 mΩ, 1.1 Ω, 100 Ω) for precise current measurement. The 1000-point internal logging capability and USB-C charging add modern convenience. One reviewer praised its readability even at 80° off perpendicular.
It runs on a rechargeable battery, offering portability between bench positions. The default speed setting is slow; switching to high-speed mode is essential for fast autoranging. A single current port serves all ranges, simplifying connections.
Why it’s great
- Excellent 55000-count resolution at a competitive price
- 65 readings/sec in high-speed mode
- SCPI support for automated test setups
- 4-wire resistance measurement included
Good to know
- Default speed setting is slow; high-speed must be activated manually
- Included probes have thick insulation and blunt tips
- No temperature probe included; uses generic leads

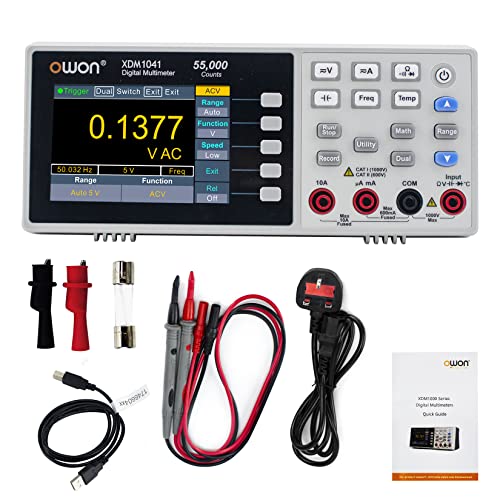

4. OWON XDM1041 55000 Count Portable Multimeter
The OWON XDM1041 shares many of the XDM2041’s best features in a slightly more compact, portable package. It features a 3.5-inch 480×320 TFT LCD with 55000 counts, DC voltage accuracy of 0.05%, and dual-line display. It measures the standard suite of electrical parameters and includes temperature, continuity, and diode testing.
Users confirm it’s a great budget-friendly benchtop meter with accuracy that matches more expensive competitors when tested against reference parts. The screen is clear and sharp, and the replaceable fuse design adds safety and longevity. It includes a USB port for SCPI remote control and internal data recording of up to 1000 points.
While the continuity test is not instantaneous, the meter is stable and slow by design when autoranging; switching to manual range speeds it up significantly. The included leads are generic, but the overall value is outstanding for a 55000-count instrument.
Why it’s great
- 55000 counts with 0.05% DC accuracy at a low price point
- Compact portable design with USB-C charging
- SCPI remote control and 1000-point internal logging
- Replaceable fuses for safety
Good to know
- Slower autoranging; manual range recommended for speed
- Included leads have high resistance (~130 mΩ)
- Slow continuity test compared to premium meters
5. Crenova 8045 Mini Desktop Digital Multimeter
The Crenova 8045 is a desktop bench multimeter that bridges the gap between handheld and true benchtop units. It offers 30000 counts on a 3.5-inch LCD, True RMS, and 11 measurement functions including dBW/dBmW, max/min/average, and relative math. A 5000mAh rechargeable battery provides up to 10 hours of continuous use, and USB connectivity allows remote control and data logging via PC software.
Users appreciate its versatility, operating flat on a bench, upright with a kickstand, or handheld. The large, bright display and loud continuity beep make it practical for field diagnostics and lab work. The auto-ranging is fast for a meter in this category, and the included kit — leads, K-type thermocouple probe, USB cable, and storage case — is generous.
Accuracy is described as “good enough for general bench use” by reviewers who didn’t verify against standards, but those who did found it satisfactory for all but the most demanding calibration work. It’s an excellent entry point for hobbyists and students.
Why it’s great
- Rechargeable 5000mAh battery for extended portable use
- USB data logging and PC software included
- 30000-count resolution with True RMS
- All-in-one kit with probes, thermocouple, and case
Good to know
- Not designed for high-precision calibration work
- AC power via USB-C only, no dedicated power adapter
- Math functions are basic compared to lab-grade meters
6. Fieldpiece SC440 True RMS Clamp Meter
The Fieldpiece SC440 is a mid-size clamp meter engineered specifically for HVACR professionals. It measures temperature, capacitance, microamps DC for flame diode tests, inrush current, and all standard electrical parameters. True RMS technology ensures accurate readings on VFD-driven equipment. A high-voltage LED and beeper, plus push-button non-contact voltage detection, enhance safety.
Users in the HVAC trade report that this single meter replaces the need for two Fluke units. The included silicone test leads and thermocouple are accurate out of the box, and the carrying case keeps everything organized. One professional noted the need to press the select button after power-on for amp or continuity beep readings, a minor workflow adjustment.
The detachable leads with alligator probe tips enable safe one-handed testing in tight spaces. It runs on a single 9V battery, and the auto/manual ranging is responsive. For HVACR diagnostics, this is a top-tier tool.
Why it’s great
- Dedicated inrush current and microamps DC for flame diode tests
- True RMS for accurate VFD measurements
- High-safety design with NCV and high-voltage alert
- Comes with silicone leads, thermocouple, and carrying case
Good to know
- Requires pressing select button for amp/continuity after power-on
- Clamp meter form factor, not a benchtop unit
- Battery-powered, no rechargeable option
7. Fluke 289 True-RMS Stand Alone Logging Multimeter
The Fluke 289 is the flagship logging multimeter, featuring a 50000-count display, TrendCapture graphical data logging, and a low-pass filter for adjustable speed drives. It measures up to 10A (20A for 30 seconds) and has a 100 mF capacitance range. The ShareLive video call feature (with optional ir3000 FC connector) allows real-time collaboration with your team.
Users describe it as nearly indestructible, with one unit surviving a house fire while the previous one only succumbed to that extreme event. The TrendCapture function lets you zoom in on logged data to identify anomalies over long periods. The large 1/4 VGA display with white backlight is clear even in dim conditions.
Potential buyers should note that the 289 does not include a temperature probe or lead kit in the base package — the kit version offers better value. Some users reported cosmetic defects from poor packaging, but functionality was flawless after calibration. It’s a premium investment for serious diagnostics.
Why it’s great
- TrendCapture graphical data logging for long-term analysis
- 50000-count display with white backlight
- Low-pass filter for accurate ASD frequency measurements
- Rugged, durable build with excellent safety ratings
Good to know
- High price; base package lacks temp probe and lead kit
- Bulky and heavy for a handheld meter
- Some users reported cosmetic packaging issues
8. Klein Tools MM720 Auto-Ranging TRMS Multimeter
The Klein Tools MM720 is an auto-ranging True RMS multimeter with a low impedance (LoZ) mode to eliminate ghost or stray voltages. It measures AC/DC voltage to 1000V, 10A AC/DC current, 60 MΩ resistance, plus temperature, capacitance, frequency, duty cycle, and diode test. The reverse-contrast LCD ensures excellent readability in all lighting conditions.
Users consistently praise the bright, clear display and solid build — the dial feels tight with no wiggle. Test lead holders on the back, a kickstand, and optional magnetic hanger enable hands-free operation. The default 5-minute auto-off is defeatable for extended sessions. One electrical professional noted the stick-on magnetic strip and backported it to other tools.
The MM720 is a great alternative to the Fluke 87V for those on a tighter budget, with many of the same features including LoZ and temperature measurement. It’s fuse-protected with replaceable fuses available on Amazon.
Why it’s great
- LoZ mode eliminates ghost voltages for safe troubleshooting
- High-visibility reverse-contrast LCD display
- Solid build with tight dial and replaceable fuses
- Hands-free operation with kickstand and magnetic hanger
Good to know
- Default 5-minute auto-off can be a nuisance
- Reading speed slower than premium Fluke meters
- No data logging capability
9. FNIRSI 2C53T Handheld Oscilloscope Multimeter
The FNIRSI 2C53T is a 3-in-1 device combining a 50MHz 2-channel oscilloscope, a 19999-count multimeter, and a DDS signal generator capable of outputting 13 waveforms up to 50kHz. It uses an FPGA+MCU+ADC architecture, has a 2.8-inch LCD, and runs on a 3000mAh battery for up to 6 hours of standby. USB Type-C supports 5V/1A charging and data transfer for saving screenshots.
Users confirm excellent value, with the oscilloscope function working well and the display being clear and bright. The multimeter auto-mode is slow, but the scope and signal generator functions are responsive. One reviewer noted the battery life is shorter than expected and the charge time is long, but the overall utility of having three instruments in one portable package is compelling.
It’s important to note the unit defaults to Chinese; switching to English is straightforward in the system settings. The included probes are decent, and the storage case keeps everything organized. It’s an ideal tool for hobbyists and students who need a compact all-in-one solution.
Why it’s great
- Combines oscilloscope, multimeter, and signal generator in one device
- 50MHz bandwidth with 250MSa/s sampling rate
- Built-in 3000mAh battery for portable use
- Excellent value for the feature set
Good to know
- Multimeter auto-mode is slow
- Battery life is shorter than expected under heavy use
- Defaults to Chinese; requires settings change for English
FAQ
What is the difference between a bench multimeter and a handheld multimeter?
What does the “count” specification mean in a multimeter?
Do I need 4-wire resistance measurement on a bench multimeter?
What safety rating should my bench multimeter have?
Final Thoughts: The Verdict
For most users, the best bench multimeter winner is the Siglent SDM3045X because it combines 55000-count resolution, 0.01% DC accuracy, and LAN/USB connectivity at a price that undercuts premium competitors. If you need an industrial-grade handheld with low-pass filter for motor drives, grab the Fluke 87V. And for advanced data logging with TrendCapture, nothing beats the Fluke 289.
