Drilling into brick or concrete without the right bit is a recipe for a stalled project, a burnt-out drill motor, and a lot of wasted time. Standard twist bits meant for wood simply glaze over when they hit the silica in masonry, generating heat that destroys the cutting edge in seconds. A proper masonry bit uses a carbide-tipped head and a specialized flute geometry to shear through the aggregate rather than scrape against it, and the difference in speed and bit life is night and day.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve analyzed dozens of masonry bit sets, cross-referencing customer stress tests and real-world reviews to isolate which designs actually hold up under repeated use against brick, block, and poured concrete.
Whether you are mounting a TV, installing a handrail, or running conduit through a foundation wall, choosing the right bit for drilling brick means matching the shank type to your hammer drill and selecting a carbide grade that won’t dull before the hole is finished.
How To Choose The Best Bit For Drilling Brick
The biggest mistake beginners make is grabbing a standard high-speed steel twist bit and expecting it to chew through brick. It won’t. You need a bit engineered to fracture the material rather than cut it, and that starts with the tip. Every bit in this guide delivers on that fundamental requirement, but the differences in shank type, carbide quality, and flute design determine how long the bit lasts and how fast it clears material out of the hole.
Shank Compatibility Is Non-Negotiable
A rotary hammer drill demands an SDS-Plus shank for full energy transfer. That three-groove locking system allows the bit to hammer and rotate simultaneously without slipping. Standard three-jaw chucks cannot hold an SDS-Plus bit securely, and attempting it risks destroying both the chuck and the bit. If your drill is a standard hammer drill (not a rotary hammer), a hex shank bit is the safer choice — it reduces cam-out and keeps the bit centered under load.
Carbide Grade And Tip Geometry
The tip does the actual fracturing. YG8X tungsten carbide, used by brands like toolant, offers higher impact resistance than lower-grade carbides. A two-cutter or cross-cutter tip geometry splits the impact force into two or four vectors, which reduces walking on smooth brick surfaces and creates a cleaner entry hole. Bits with spear or taper points are best for starting holes in tile or glass but tend to wander on rough brick without a center punch mark.
Flute Count And Dust Evacuation
Dust left in the hole turns into a grinding paste that accelerates tip wear. Two-flute spiral designs are the standard for SDS-Plus bits, balancing strength with reasonable chip clearance. Square flute or ripple flute designs claim faster removal, but in real-world concrete tests, the difference is marginal unless you are drilling deeper than four inches. For deep holes approaching 10 inches or more, a bit with three flutes or a double-thread ripple pattern, like the Wensilon lengthening bit, pulls debris much more aggressively.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| toolant SDS-Plus 7-Piece Set | SDS-Plus Set | Rotary hammer users needing size variety | 7 bits, 5/32″–1/2″, 6″ length | Amazon |
| WildBossy Hex Shank 10-Piece Set | Hex Shank Set | Standard hammer drills; multiple materials | 10 bits, 5/32″–1/2″, hex shank | Amazon |
| DEWALT 3-Piece Masonry Set (DW2571) | Rotary Set | Homeowners drilling mortar and block | 3 bits, spear point, brushed finish | Amazon |
| toolant 1/4″ Hex Shank 10-Pack | Single-Size Bulk | High-volume 1/4″ anchor drilling | 10 bits, 1/4″, hex shank, YG8X carbide | Amazon |
| Sabre Tools 1/2″ x 18″ SDS-Plus | Single Long Bit | Deep holes through thick walls | 1/2″ x 18″, SDS-Plus, 135° point | Amazon |
| Makita 5-Piece SDS-Plus Set | SDS-Plus Set | Occasional concrete and masonry work | 5 bits, 3/16″–1/2″, 6-1/4″ length | Amazon |
| Wensilon 3/4″ x 12″ Lengthening Bit | Single Large Bit | Widening holes; large anchor installation | 3/4″ x 12″, straight shank, double thread | Amazon |
In‑Depth Reviews

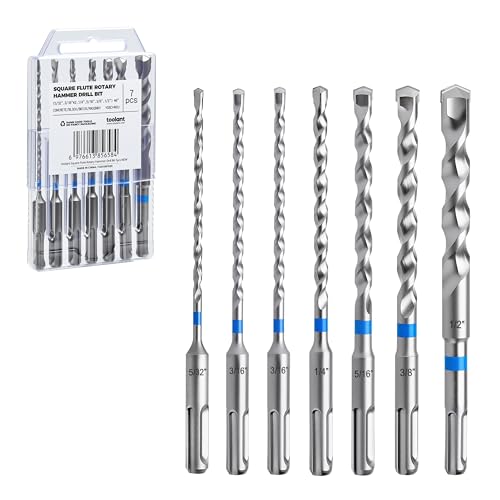

1. toolant SDS-Plus 7-Piece Masonry Drill Bit Set
The toolant SDS-Plus set delivers the best balance of versatility and price for anyone using a rotary hammer. It includes seven bits from 5/32 inch up to 1/2 inch, all 6 inches long, which is enough depth for most anchor and conduit applications. The two-cutter carbide tip and square flute design work together to fracture brick aggregate cleanly and pull dust out of the hole during high-speed operation, reducing the chance of the bit jamming in deep pours.
Users report that these bits outperform local name-brand equivalents at roughly half the per-bit cost, with one user driving a set of top plates into a concrete garage floor without issue after switching to a proper rotary hammer. The set complies with US ANSI sizing standards, so each bit matches standard concrete anchor dimensions precisely. A few reviewers note that the bits struggle in standard hammer drills without the SDS-Plus hammering action, which is expected for this shank type.
The industrial-strength carbide on the tips holds up well against rebar encounters, though prolonged use against steel will dull any masonry bit. The square flute design is noticeably more aggressive at clearing debris than the round flutes on cheaper sets, making this set a strong daily driver for medium-duty masonry work.
Why it’s great
- Full size range for anchor compatibility
- Square flute evicts dust faster than round flute designs
- Carbide stays sharp through dozens of holes in brick and block
Good to know
- Only compatible with SDS-Plus rotary hammers, not standard drills
- Case could be more rugged for job site storage
2. WildBossy Hex Shank 10-Piece Concrete Drill Bit Set
The WildBossy set is the right choice for homeowners who use a standard hammer drill rather than an SDS-Plus rotary hammer. The hex shank locks into the chuck with more surface contact than a round shank, reducing the bit walking that plagues masonry drilling on smooth brick surfaces. This set contains ten sizes from 5/32 inch to 1/2 inch, making it easy to match common wall anchor diameters without buying multiple packs.
The tungsten steel carbide tips cut through brick and concrete block cleanly, and users report successful drilling through ceramic tile when run at low speed without hammer mode. The color-coded storage case keeps the bits sorted and accessible, which reviewers mention as a significant convenience over loose bit storage. On brick walls, the bits create round, consistent holes that hold anchors snugly.
One limitation is that the hex shank reduces the drill’s effective reach slightly compared to a round shank, though for standard wall depths under 2 inches this is irrelevant. The bits are not designed for rebar, and users who hit steel embedded in concrete will dull the tip quickly. For brick, block, and tile work around the house, this set offers great material versatility for the price.
Why it’s great
- Hex shank prevents slipping in standard drill chucks
- Works on tile, glass, and brick with proper speed adjustment
- Color-coded case keeps bits organized
Good to know
- Not suitable for SDS-Plus rotary hammers
- Carbide edge wears faster in poured concrete than brick
3. toolant 1/4″ Hex Shank Concrete Drill Bit 10-Pack
When your job calls for dozens of 1/4-inch holes for tapcon anchors or concrete screws, this bulk pack from toolant delivers redundancy at a low per-bit cost. Each bit uses the shockproof hex shank design that provides excellent stability in hammer mode, and the YG8X tungsten carbide tip is the same industrial-grade carbide used in toolant’s larger sets. The spear point tip centers reliably on brick surfaces without walking.
Reviewers consistently note that these bits outlast their expectations for the price point, with one user drilling through concrete, cinder block, and even rock without chipping or dulling. The heat-treated steel body resists bending under side load, which is a common failure mode for cheaper masonry bits when the drill wanders. The bits work well in standard hammer drills and cordless impact drivers with a hex chuck adapter.
The obvious trade-off is that you only get one size, so this pack does not cover situations where you need 3/16-inch or 3/8-inch holes. For a dedicated 1/4-inch anchor installation project, however, having ten bits on hand means you can rotate them as they heat up, extending the life of each individual bit. This is a smart option for anyone drilling 50 or more holes in brick or concrete block in a single session.
Why it’s great
- Bulk quantity reduces per-bit cost significantly
- YG8X carbide holds up against concrete aggregate
- Hex shank keeps the bit from slipping in high-torque drills
Good to know
- Only available in 1/4-inch diameter
- Not designed for SDS-Plus rotary hammers
4. Sabre Tools 1/2″ x 18″ SDS-Plus Rotary Hammer Drill Bit
Drilling through a 14-inch stone foundation or a multi-wythe brick wall demands a bit with enough length to reach the far side without binding. The Sabre Tools SDS-Plus bit offers a full 16 inches of effective cutting length with an 18-inch overall length, meaning it can punch through walls that standard 6-inch bits cannot touch. The two-flute self-centering carbide tip keeps the hole straight even when starting at an angle on uneven brick surfaces.
Real-world users report drilling through concrete walls in under 10 minutes using a Dewalt SDS hammer drill, with the spiral flute design effectively evacuating dust and keeping the bit cool. One reviewer noted that the bit struggled with smaller 2Ah batteries but performed effortlessly when paired with a 6Ah high-output battery, which highlights the torque demand of a bit this long. The tip survived the full job and remained in fair condition afterward.
The 135-degree split point helps prevent wandering on smooth concrete, though a pilot hole from a shorter bit is still recommended for critical alignment. This bit is a single, specialized tool — it will not replace a general-purpose set — but for anyone running cables, pipes, or anchor bolts through thick masonry walls, it is the most cost-effective option that actually reaches through.
Why it’s great
- 16-inch cutting depth handles thick foundation walls
- Two-flute design clears dust effectively at depth
- Compatible with all major SDS-Plus rotary hammers
Good to know
- Requires a powerful SDS rotary hammer with large battery
- Single bit only — no size variety
5. Makita 5-Piece SDS-Plus Drill Bit Set (D-07973)
Makita’s 5-piece SDS-Plus set serves as a compact starter kit for anyone who owns a rotary hammer and needs the most common concrete bit sizes: 3/16, 1/4, 5/16, 3/8, and 1/2 inches, each 6-1/4 inches long. The hardened tungsten carbide tips are braised to the steel body using a process that resists the tip snapping off during lateral stress, a failure point common with cheaper bits on dense brick. The taper point geometry creates a clean entry wound that reduces spalling on the brick face.
Users confirm that the bits look like new after drilling multiple 1/4-inch holes in hard concrete, and the aggressive flute design moves debris efficiently in vertical and horizontal drilling. The set is a favorite for occasional use — homeowners who drill into brick or block a few times a year and want bits that will still be sharp five years from now. The trust in Makita’s engineering is a real factor here, with multiple reviews citing confidence in the brand’s consistency.
The caveat is that this set is only for SDS-Plus rotary hammers, and several buyers mistakenly purchased it for standard keyed chucks, leading to frustration. The bits are sharp out of the box and retain their edge well, but they are not designed for rebar-heavy concrete or daily commercial use. For the weekend warrior drilling into brick and masonry, this set offers reliable performance without overspending on specialty bits that never get used.
Why it’s great
- Covers five essential concrete anchor sizes
- Tungsten carbide tips resist wear on brick and block
- Makita quality control ensures consistent sharpness
Good to know
- Only usable with SDS-Plus rotary hammers
- Not suited for high-volume daily commercial drilling
6. DEWALT Rotary Masonry Drill Bit Set, 3-Piece (DW2571)
The DEWALT DW2571 is the most entry-level masonry bit set from a major brand, and its performance matches its position in the lineup. The three bits use a spear point tip that works well on mortar joints and cinder block but struggles to gain purchase on hard kiln-fired brick. Users report success when drilling into mortar specifically, but the bits fail to penetrate solid brick even when used in an impact driver, which points to a softer carbide alloy than higher-tier DEWALT offerings.
For the beginner homeowner drilling holes to hang Christmas lights or mount a small shelf on a block wall, these bits work well with water lubrication and a steady hand. The brushed finish offers minimal friction reduction, but the bits are noticeably less aggressive than the carbide-tipped competition in this guide. One user drilled 12 holes 1.5 inches deep with the 1/4-inch bit and reported the bit was still intact, which is respectable for its intended light-duty use case.
The set contains only three bits, and the sizing is not printed on the shanks, which slows down bit changes. This is a fine starter set for a homeowner who expects occasional use on soft masonry, but anyone drilling into dense brick or concrete repeatedly will want the toolant or WildBossy sets for their sharper carbide tips and better dust clearance.
Why it’s great
- Low-cost entry point for beginners
- Works well on mortar and cinder block
- Familiar DEWALT brand with wide availability
Good to know
- Spear point struggles to bite into hard fired brick
- Only three pieces with limited size range

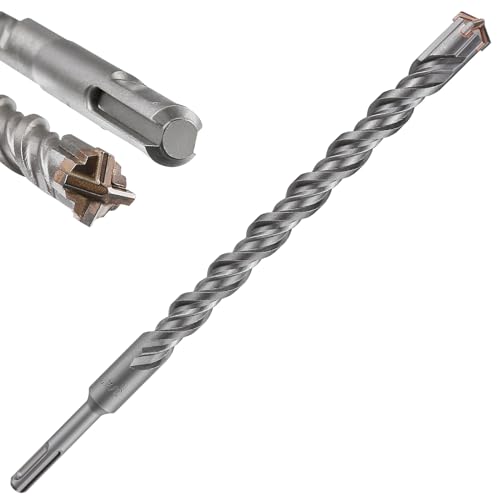

7. Wensilon 3/4″ x 12″ Lengthening Concrete Drill Bit
The Wensilon 3/4-inch lengthening bit is a specialty tool for jobs that require large-diameter holes in concrete or stone, such as routing a larger spigot body through a foundation wall or installing a heavy-duty anchor. The cross-type double-thread carbide cutter head provides aggressive bite, and the ripple flute design with three flutes aggressively pulls stone powder out of the hole. The effective cutting length is 10 inches, which is enough for most wall thicknesses.
Users report drilling 40 to 60 holes in concrete before the carbide shows significant wear, which is excellent for a bit in this price range. The bit requires a genuine rotary hammer, not a hammer drill, to deliver the full impact force needed for the 3/4-inch diameter. One user cautions that the bit grabs aggressively just before breaking through, which can twist the drill and injure the wrist if not braced properly.
The straight shank design means this bit fits standard three-jaw drill chucks, but at 3/4 inch diameter and 12 inches long, the rotational mass is significant, and the bit demands a drill with high torque. The included plastic storage tube protects the carbide cross cutter between uses. This is not a bit for everyday use, but when you need to open a 3/4-inch hole through thick masonry, nothing else on this list will do the job.
Why it’s great
- Cross-type double-thread cutter pulls through concrete fast
- 10-inch effective length for thick walls
- Triple-flute design evacuates heavy debris efficiently
Good to know
- Aggressive grab at breakthrough can twist the drill violently
- Large diameter requires high-torque rotary hammer
FAQ
Can I use an SDS-Plus bit in a standard hammer drill?
Why does my masonry bit smoke when drilling brick?
How do I stop the bit from walking on smooth brick?
What is the difference between a masonry bit and a concrete bit?
Final Thoughts: The Verdict
For most users, the bit for drilling brick winner is the toolant SDS-Plus 7-Piece Set because it delivers the right size range, aggressive square flute dust clearance, and industrial-grade carbide at a price that undercuts name-brand competition. If you use a standard hammer drill instead of a rotary hammer, grab the WildBossy Hex Shank 10-Piece Set for its secure hex grip and tile-friendly cutting capability. And for deep holes through thick foundation walls, nothing beats the Sabre Tools 18-inch SDS-Plus bit.
