A cable machine for your home gym replaces a room full of single-purpose equipment, but the gap between a smooth, stable system and a wobbly, frustrating one comes down to pulley bearings, steel thickness, and weight-stack design. A poorly built unit binds under load, rattles during reps, and limits the exercise angles needed for true muscle isolation. The right one feels predictable on every rep — from lat pulldowns to cable crossovers — and occupies a footprint that matches your available floor space.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent hundreds of hours comparing frame gauges, pulley ratios, cable routing systems, and weight-stack tolerances across dozens of home gym cable machines to find the ones that deliver commercial-grade feel without requiring commercial-grade square footage.
This guide breaks down the important specifications you need to evaluate before purchasing. Read on to find the best cable machine for home gym that matches your training goals and room constraints.
How To Choose The Best Cable Machine For Home Gym
Every cable machine on this list balances four variables differently: frame rigidity, pulley smoothness, exercise range, and floor footprint. Prioritize the two that matter most for your space and training style before comparing specific models.
Frame Stability and Steel Gauge
The most critical spec for any cable machine is the steel tube dimensions and thickness. A unit built with 14-gauge or thicker 2-inch square tubing resists torsional twisting during unilateral cable crossovers and lat pulldowns. Thinner tubing, common on entry-level machines, introduces lateral wobble that destabilizes your base during heavy rows or presses. Also check the number of frame-to-frame connection tabs — eight or more triangulated points distribute load better than a simple four-bolt base.
Pulley Ratio and Resistance Feel
A 2:1 pulley ratio means you lift half the weight on the stack per arm — the resistance feels lighter, and the cable travels twice as far. A 1:1 ratio delivers the full stack weight directly, producing a heavier, more commercial-gym feel. Machines with a 1:1 ratio are preferred for strength-focused work like heavy lat pulldowns and seated rows, while 2:1 systems suit higher-rep toning and rehabilitation work. Some units allow you to switch between ratios by re-routing the cable, offering the best of both worlds.
Weight Stack Size and Plate Loading Compatibility
Selectorized weight stacks eliminate the hassle of handling plates, but you are capped at the stack’s maximum. Most home units offer 150 to 190 pounds per side. Adding a plate-loading post on top of the stack lets you exceed that limit as you progress. If you plan to train heavy, look for a machine with a post-loading design or a frame that accepts standard Olympic weight plates. Also verify the stack uses steel plates, not concrete-filled plastic — steel slides more reliably and lasts decades longer.
Exercise Range and Cable Routing
The vertical travel of each pulley carriage and the swivel range of the pulleys themselves determine what exercises are possible. Look for carriages that move the full height of the upright, allowing both high-pulley exercises (lat pulldowns, tricep pushdowns) and low-pulley movements (seated rows, bicep curls). Pulleys with 180 degrees of rotation let you stand anywhere around the machine, expanding your exercise angles. Machines with independent left and right carriages enable true bilateral training, where each arm works independently.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Major Fitness Drone2 | Smith + Cable | Heavy strength training | 1:1 aluminum pulleys | Amazon |
| DONOW Smith Machine | Smith + Dual Stack | Full system versatility | 352 lbs dual weight stacks | Amazon |
| Body-Solid PCCO90X | Functional Trainer | Pure cable crossover work | 190 lb weight stack, 180° pulleys | Amazon |
| Mars Sportsroyals HPM02 | Multi-Station | Leg press + cable work | 150 lb weight stack | Amazon |
| SunHome SH-910 | Smith + Dual Station | Two users training together | Dual 138 lb stacks | Amazon |
| Eonfit E2 | Power Cage + Cable | 360° rotating cable arms | 1200 lb frame capacity | Amazon |
| Mikolo K6 | Power Cage + Cable | Entry-level all-in-one | 1500 lb capacity, 2:1 cables | Amazon |
| MAJOR FITNESS Drone1 | Power Cage + Cable | Compact cable crossover | 85″ height, 500 lb drop test | Amazon |
| JEEKEE H12 | Power Cage + Cable | Independent dual pulleys | 2000 lb frame rating | Amazon |
| YOLEO Power Cage | Power Cage + Cable | Fold-away storage | 1700 lb capacity, folding frame | Amazon |
| Marcy MWM-989 | Multi-Gym | Simple total body station | 150 lb selectorized stack | Amazon |
In‑Depth Reviews
1. Major Fitness Drone2 Advanced Training Smith Machine
The Drone2 combines a power cage, Smith machine, and dual cable crossover system into a single frame with a 1:1 pulley ratio. The aluminum pulleys reduce friction compared to the standard nylon or steel pulleys found on budget units, delivering smooth, nearly silent cable travel during lat pulldowns and seated rows. The frame uses 2-inch commercial-grade steel uprights rated for 2000 pounds, and the Smith machine guides use linear bearings for consistent vertical tracking.
The included accessories set covers dip handles, a T-bar, tricep rope, ankle straps, a lat pulldown bar, and a weightlifting belt. The 1:1 ratio means the full weight stack resistance reaches your hands without the feather-light feel common on 2:1 systems. Users report the Smith machine catches are well-spaced for safety, and the cable routing is intuitive enough to switch between exercises without rethreading. The concrete-filled plastic weight plates are the main compromise — they function fine but lack the premium feel of solid steel stacks.
Assembly requires two people and roughly 4 to 6 hours, with the hardware bag being somewhat disorganized. The weight stack stickers peeled off on some units after a few months. For anyone building a serious home gym and wanting both a guided barbell and independent cables in one footprint, this is the most capable all-in-one available at this tier.
Why it’s great
- True 1:1 pulley ratio for heavier, commercial resistance feel
- Aluminum pulleys glide smoothly with minimal noise
- Smith machine guides use linear bearings for stable tracking
- Comprehensive accessory package covers nearly every exercise
Good to know
- Weight stacks use concrete-filled plastic plates, not solid steel
- Hardware bag arrives disorganized; expect a long assembly process
- Weight stack stickers may peel off after repeated use
2. DONOW Smith Machine with Weight Stacks
The DONOW Smith machine integrates a full power rack, a guided Smith barbell, and a dual cable crossover system fed by two independent weight stacks rated at 176 pounds each (352 pounds total). The dual stacks mean you can superset cable crossovers with Smith squats without any plate swapping. The cables run through enclosed steel covers, which improves safety by containing the moving parts and gives the machine a polished, commercial look.
The Smith machine uses linear bearings on the guide rods, producing smooth vertical motion with no lateral slop. The frame is built from 2-inch alloy steel and supports a total capacity of 2240 pounds. The cable pulleys are smooth and quiet, and the weight stacks adjust in kilogram increments — a minor inconvenience if you think in pounds. The machine requires roughly 9 feet of room width and 7 feet of depth, so measure your space before purchasing.
Assembly takes 8 to 10 hours solo, and the written instructions skip steps, making the assembly video essential. The weight stack pins and selector rods feel robust, and the dual cable handles allow simultaneous use by two people. For a single machine that replaces a Smith station, a squat rack, and a functional trainer, the DONOW delivers the highest total weight capacity in this roundup.
Why it’s great
- Two independent 176 lb weight stacks for simultaneous training
- Steel-enclosed cable covers improve safety and aesthetics
- Linear bearings on Smith rod give smooth guided motion
- 2240 lb frame capacity handles heavy lifting safely
Good to know
- Assembly is lengthy and instructions are vague without the video
- Weight stacks are labeled in kilograms only
- Requires substantial floor space — about 9 feet wide
3. Body-Solid Best Fitness Functional Trainer PCCO90X
The Body-Solid PCCO90X is a dedicated functional trainer, not a power cage hybrid. Its defining feature is the pair of swiveling pulleys that rotate a full 180 degrees, allowing you to pull from any angle around the machine. The eight sealed ball-bearing pulleys create minimal friction, and the patented nylon bushing technology on the weight-stack guide rods eliminates the metal-on-metal binding that cheaper machines develop over time.
The 190-pound weight stack per side is adequate for intermediate cable work, and the 2:1 cable ratio makes the resistance feel manageable for beginners while still loading enough for tricep pushdowns and lat pulldowns. The frame dimensions are generous — 112 inches wide — which is necessary for true cable crossover movements. The unit weighs 118 pounds, which is lighter than cage hybrids but still stable during use when the base is properly spaced.
Several users noted that the lower pulley cables can pull the legs inward under heavy loads, requiring an aftermarket L-brace for wider stance exercises. The cables and plastic weight stack feel functional rather than premium, but the machine has held up reliably for years of regular use with occasional silicone lubricant on the guide rods. For someone who already owns a squat rack and only needs a dedicated cable crossover, this is the most direct solution.
Why it’s great
- 180-degree pulley rotation enables unlimited exercise angles
- Eight sealed ball-bearing pulleys stay smooth under load
- 190 lb weight stack supports progressive cable training
- Patented nylon bushing prevents binding on guide rods
Good to know
- 112-inch width requires significant floor space
- Lower cables may pull legs inward at heavy loads
- Weight stacks and cables look functional rather than premium
4. Sportsroyals Multifunctional Workout Station HPM02
The Sportsroyals HPM02 stands out for including a dedicated leg press station alongside the standard cable pulldown and butterfly arms. The leg press footplate is adjustable front-to-back and accommodates users from 5’2” to 6’3”. The 150-pound selectorized weight stack drives the cables, and the frame uses 70 by 50 millimeter heavy-duty steel tubing with 2-millimeter wall thickness — thicker than most machines in its class.
The H-base design keeps the machine planted during explosive leg presses, and the non-slip foot pads protect flooring. The butterfly arms have five positions, the seat has four adjustment points, and the preacher curl pad is removable. The cable pulley system runs on steel shafts and delivers smooth, quiet motion. The included accessories are generous: lat pulldown bar, tricep rope, ankle strap, ab crunch attachment, and leg press pedal.
Assembly is straightforward thanks to step-labeled hardware bags, and the build took about three hours with two people. The weight stack is sufficient for cable exercises, though advanced lifters may wish for more than 150 pounds on lat pulldowns. The leg press resistance is limited by the same stack, so heavy leg work is not an option. For a compact unit that combines cable crossover function with a leg press, this machine is a strong value.
Why it’s great
- Integrated leg press station with adjustable footplate
- Thick 2mm wall steel tubing for frame rigidity
- Hardware bags are labeled by assembly step
- Includes six accessories for full-body training
Good to know
- 150 lb stack limits heavy lat pulldowns
- Leg press resistance is limited by the same weight stack
- Assembly instructions are printed small; video is helpful
5. SunHome Multifunction Home Gym SH-910
The SunHome SH-910 is designed for couples or training partners who want to work out simultaneously. It combines a Smith machine on one side with a dual cable crossover station on the opposite side, each powered by its own 138-pound selectorized weight stack. Both stacks are independent, so each user adjusts resistance without interfering with the other. The frame is made from 2-inch commercial-grade steel and supports up to 2000 pounds.
The Smith machine uses smooth linear bushings for guided motion, and the cable pulleys operate quietly with minimal friction. The unit supports over 100 exercise combinations, including simultaneous movements like one partner doing Smith squats while the other performs cable crossovers. The machine ships in four boxes, and assembly is a significant project — many users report 5 to 8 hours of build time, especially solo.
The cable guide cord on the weight stack has been noted to be about 2 inches short, making the selector pin adjustment slightly difficult. The seat is non-adjustable, which limits positioning for taller users during seated rows. The Smith machine release hook can feel finicky until you get used to the motion. Despite these details, the dual-user capability is unique at this price, and the frame feels solid during heavy squats.
Why it’s great
- Two independent 138 lb stacks allow simultaneous workouts
- 2000 lb frame handles heavy Smith machine loads
- Smith and cable stations offer over 100 exercises
- Smooth linear bushings on Smith guide rods
Good to know
- Weight stack cable guide is slightly short
- Seat is non-adjustable, limiting user positioning
- Assembly is lengthy and requires 2–3 people for top section
6. Eonfit E2 Power Cage
The Eonfit E2 uses a unique articulating arm design — each cable carriage is mounted on a rotating arm that swings 360 degrees. This allows you to position the pulleys anywhere: out to the sides for chest flys, directly above for lat pulldowns, or at any angle in between. The arms unlock the ability to train muscle groups from angles impossible with fixed vertical carriages, and the range of motion is extensive.
The frame uses 14-gauge 2-inch steel with 1-inch hole spacing at 3-inch increments. The unit weighs roughly 220 pounds and supports a total capacity of 1200 pounds. The cable pulleys are smooth out of the box, though many users opt to upgrade to aluminum pulleys for even less friction. The included attachments cover J-hooks, safety arms, dip bars, weight storage pins, a landmine, tricep rope, and lat pulldown bar.
Assembly is the main challenge — the left and right cable arms are not labeled, so you must watch the video closely to route the cables correctly. A few users reported that bottom welds prevented a completely flush fit on the base. Once assembled, the cage is rock-solid with no wobble during cable crossover work. For lifters who value exercise variety and freedom of movement over top-end weight capacity, the E2 is a versatile choice.
Why it’s great
- 360-degree rotating arms enable unique exercise angles
- 14-gauge steel frame with 1200 lb capacity
- Can be upgraded to aluminum pulleys for smoother operation
- Wide attachment set covers all major exercises
Good to know
- Cable arms are not labeled; routing can be confusing
- Some units have bottom weld issues affecting flush fit
- Assembly video is essential — written instructions are minimal
7. Mikolo K6 Power Cage
The Mikolo K6 combines a 1500-pound capacity power cage with a cable crossover system at a budget-friendly price. The cable system uses a 2:1 ratio, which cuts the perceived resistance in half — suitable for volume work and toning but not for heavy strength loading. The frame uses 2-by-2-inch steel uprights and includes eight reinforcing tabs to reduce rack wobble during explosive movements.
The K6 includes a lat pulldown bar, tricep rope, cable handles, dip bars, a landmine, and a footplate for low rows. The pulley carriages use four roller wheels on each side that glide over the uprights, protecting the frame from wear. The internal cage dimensions are 41 inches deep and 60 inches wide, enough to fit most weight benches for in-cage squats and presses.
Some units arrived with minor paint chips or bent pieces that required hammering straight. The included attachments use hollow tubing rather than solid steel, so they feel less premium than commercial gym accessories. The pulley occasionally sticks on the washer-spring assembly and needs a nudge to reset. For budget-conscious buyers who need a rack and cables in one package, the K6 delivers decent functionality for the price.
Why it’s great
- 1500 lb frame capacity handles heavy squat loads
- Roller pulley carriages protect uprights from wear
- Included footplate enables low row exercises
- Wide internal cage fits most weight benches
Good to know
- 2:1 cable ratio reduces resistance — not for heavy strength
- Attachments use hollow tubing, not solid steel
- Pulley may occasionally stick and require manual reset
8. MAJOR FITNESS Drone1 Power Cage
The Drone1 from Major Fitness is a power rack and cable crossover hybrid designed specifically for low-ceiling basements. The 85-inch height fits under most standard basement joists, and the pull-up bar can be positioned between joists if needed. The frame has been drop-tested at over 500 pounds, confirming its structural integrity for rack pulls and failed squat attempts.
The cable system uses standard steel pulleys that are smooth when lubricated with silicone spray. The carriage design is simple but functional, and the cable routing enables both high and low pulley exercises. The footprint is 63 by 66 inches, and the stabilizing rods can be omitted if ceiling clearance is extremely tight — the rack remains stable without them. Major Fitness provides lifetime support and free training plans for beginners and intermediates.
Assembly takes about 2.5 hours with a single person using an impact driver. A few units shipped with missing pulley parts, but customer service responded quickly with replacements. The cables have a tendency to twist during use, requiring periodic straightening. The overall build quality is good for the price, and the compact dimensions make it a strong choice for garages and basements with limited height.
Why it’s great
- 85-inch height fits low basement ceilings
- Drop-tested at 500 lbs for safety verification
- Lifetime after-sales support from manufacturer
- Compact 63″ x 66″ footprint
Good to know
- Cables tend to twist during use and need straightening
- Some units arrive with missing pulley parts
- Silicone lubricant is required for smooth pulley operation

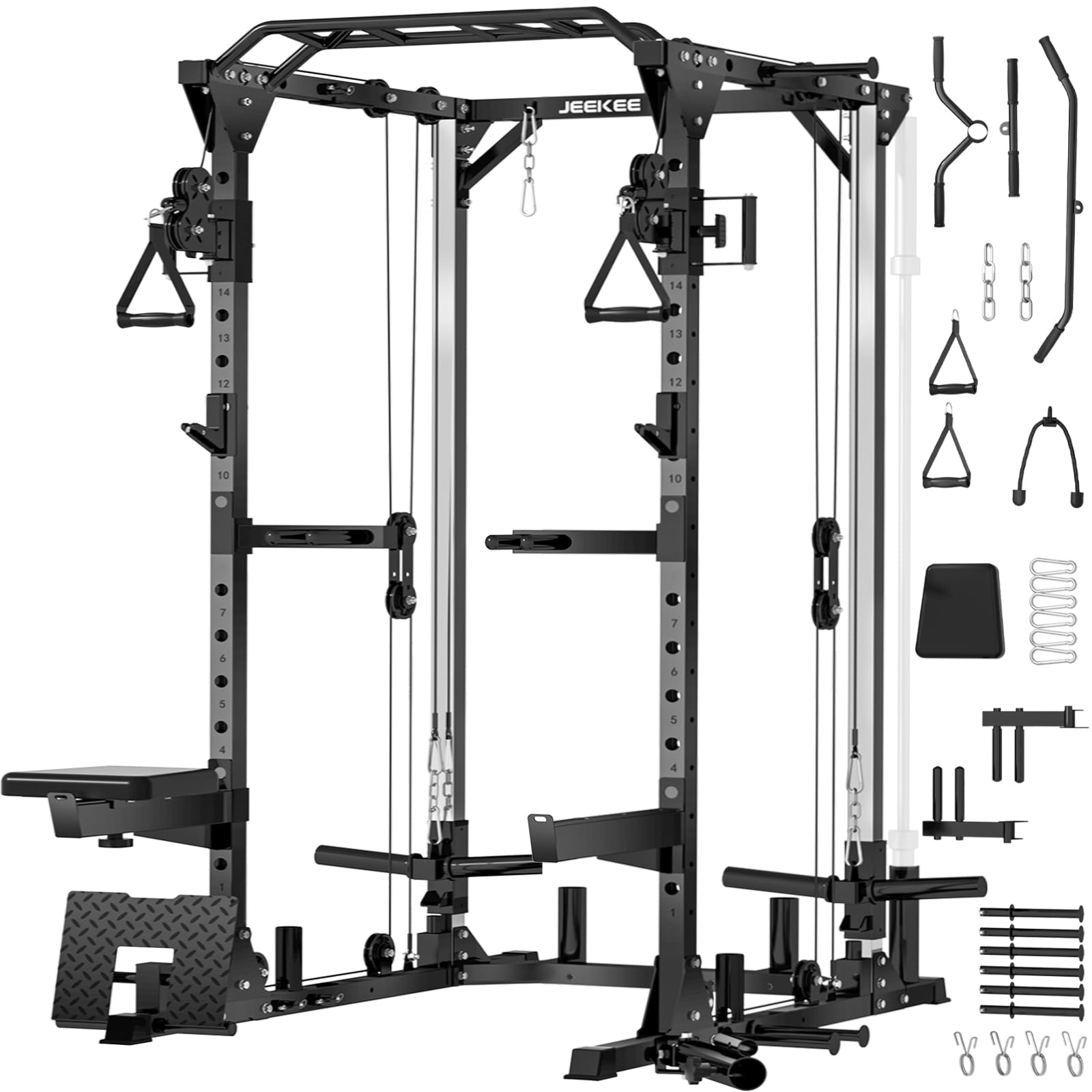

9. JEEKEE H12 Power Cage
The JEEKEE H12 pairs a 2000-pound rated power cage with an independent dual pulley cable system that allows supersets and drop sets without rerouting cables. The frame is built from 50-by-50-millimeter commercial-grade steel with 1.5-millimeter thickness and reinforced by 10 connection tabs plus triangular stabilizing bars. The cable pulleys run on precision bearings and support up to 500 pounds of resistance per side.
An unusual feature is the removable adjustable seat cushion that mounts on the safety arms for lat pulldowns. This prevents body swinging during pulldown sets and improves back isolation. The H12 includes over 20 attachments, including J-hooks, safety arms, dip bars, a lat pulldown bar, cable handles, a tricep rope, and band pegs. The pull-up bar is integrated into the top frame and works for wide and narrow grips.
Some users reported that the provided bolts use a less common size, requiring a specific wrench. The cables are serviceable but benefit from silicone lubricant for optimal smoothness. The pulley carriages are not as smooth as those on dedicated functional trainers, but they perform well for the price. For anyone wanting a high-capacity rack with independent cables, the H12 offers impressive specs at a budget-friendly price.
Why it’s great
- 2000 lb frame capacity with 10 reinforcing tabs
- Independent dual pulleys allow superset training
- Removable adjustable seat improves lat pulldown stability
- Includes 20+ attachments for full-body workouts
Good to know
- Bolts use a less common size; check your toolset
- Cable smoothness improves with lubricant
- Pulley carriages are not as refined as dedicated functional trainers
10. YOLEO Smooth Pulley System Power Cage
The YOLEO Power Cage solves the space problem with a vertical fold-away design. When not in use, the machine collapses to less than 20 percent of its deployed footprint and stores flat against a wall. Deployed, it functions as a full power cage with a 1700-pound capacity and a dual cable pulley system. The frame uses commercial-grade 2-inch steel tubing, which provides an unusually stable base for a folding machine.
The cable system includes adjustable pulley carriages with 13 height positions on the main tower and 9 adjustment points on the horizontal seat. The seat slides and locks with a quick-release knob: locked for stable seated rows and unlocked for rowing motion that combines strength with cardio. The included accessory kit covers a low row bar, lat pulldown bar, triangle handle, tricep rope, and clamps.
Some users reported minor cosmetic damage during shipping, such as scratched tubes, and a few noted that the J-hooks may scratch the barbell sleeve. The pulley system is smooth and quiet, and the frame remains wobble-free during heavy cable work. The folding mechanism is mechanical and straightforward — no hydraulics or complex latches. For anyone with extremely limited floor space who still wants a full cage and cable system, the YOLEO is the only practical option.
Why it’s great
- Vertical folding design reduces footprint by 80%
- 1700 lb frame capacity remains stable when deployed
- 13 pulley height positions and 9 seat adjustments
- Quick-release seat locks for strength work or rows
Good to know
- J-hooks may scratch barbell sleeves
- Some units arrive with cosmetic tube damage
- Seat design limits some seated row positions
11. Marcy Multifunction Steel Home Gym MWM-989
The Marcy MWM-989 is a traditional multi-gym rather than a power cage hybrid. It uses a single 150-pound selectorized weight stack that drives dual press arms, a lat pulldown bar, a low row cable, and detachable preacher curl pads. The frame is built from heavy-duty steel tubing with guard rods that keep the weight stack aligned during use. The weight stack includes a safety lock to prevent unauthorized use — useful for households with children.
The dual press arms perform chest press and vertical butterfly movements by removing or inserting a single pin. The seat is ergonomically shaped with high-density foam padding and adjusts in height. The preacher curl pad detaches for isolated bicep work, and the leg station attaches for leg extensions and curls. The footprint is relatively compact at 68 by 42 inches.
The cables are notably short — users over 5 feet 7 inches found the range of motion restricted for lat pulldowns. The included forearm and ankle attachments feel basic and may need upgrading. Assembly takes about three hours, and a gym mat is recommended to prevent slippage on smooth floors. For beginners who want a simple, straightforward weight-stack machine without the complexity of a power cage, the Marcy is a solid entry point.
Why it’s great
- 150 lb selectorized stack eliminates plate handling
- Dual press arms switch between chest press and butterfly
- Safety lock prevents accidental use by children
- Compact 68″ x 42″ footprint
Good to know
- Cables are too short for users over 5’7″
- Included attachments are basic quality
- Requires a gym mat for stability on smooth floors
FAQ
Do I need a 1:1 or 2:1 pulley ratio for home use?
Can I add extra weight plates to a selectorized stack?
How much floor space does a cable machine really need?
Why does my cable machine feel jerky or uneven?
What weight stack size should I start with?
Final Thoughts: The Verdict
For most users, the cable machine for home gym winner is the Major Fitness Drone2 because it combines a 1:1 cable ratio, aluminum pulleys, a full Smith machine, and a power cage in a single frame that fits a home gym footprint. If you need the highest total weight capacity for dual-user training, grab the DONOW Smith Machine. And for a dedicated cable crossover experience without power cage complexity, nothing beats the Body-Solid PCCO90X with its 180-degree rotating pulleys and smooth bearing system.
