A dim headlight beam on a pitch-black trail isn’t just an inconvenience — it’s a hazard. A quality LED light bar for your car transforms night driving from guesswork into daylight confidence, revealing deer, ditches, and turns well before your low beams ever could. But with lumen counts ranging from 4,000 to 48,000 and beam patterns that vary wildly, picking the wrong bar can leave you with glare, poor coverage, or a housing that fogs up after one rainstorm.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent years analyzing automotive lighting specs, comparing beam-pattern optics, and parsing real-world durability reports to separate the bars that actually hold up from those that flood with moisture on the first muddy trail.
This guide cuts through the marketing wattage to find the bars that deliver real visibility. Whether you need a slim single-row for a tight bumper gap or a triple-row monster for wide-open desert runs, I’ve pulled the specs that actually matter. Here is my researched pick for the best led light bar for car buyers who want actual performance, not just a bright box.
How To Choose The Best LED Light Bar For Car
The market is flooded with bars claiming astronomical wattages and raw lumen counts that rarely translate to usable road light. Three measurements separate a genuinely useful bar from a glary disappointment: beam pattern, build quality, and thermal management.
Beam Pattern: Spot vs. Flood vs. Combo
Spot beams throw a concentrated pencil of light far down the road but leave the shoulders dark. Flood beams wash a wide area close to the vehicle — great for trailside visibility but weak at distance. A combo bar combines both with dedicated reflectors, giving you a usable middle ground for highway speeds and tight off-road maneuvers. Most serious buyers prefer a combo beam because it covers the most scenarios without requiring two separate bars.
Build Standards: IP Rating and Housing Material
An IP67 rating guarantees dust-tight and protection against temporary immersion — enough for rain crossings and pressure washes. IP68 adds sustained submersion for deep mud holes. The housing should be die-cast aluminum (not stamped steel) with a thick heat-sink fin array. Thin fins or plastic end caps often mean poor heat dissipation, which shortens LED lifespan and leads to premature dimming.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Auxbeam 52 Inch 300W | Premium Dual Row | Maximum coverage & build quality | 300W, 30,000 Lumens, IP68, 5D Lens | Amazon |
| Rigidhorse 32 Inch Curved | Mid-Range Curved | Wide curved coverage & value | 240W, 48,000 Lumens, IP68 | Amazon |
| OFFROADTOWN 40 Inch Single Row | Premium Slim Single Row | Sleek profile, massive light output | 400W, 40,000 Lumens, IP68 | Amazon |
| TERRAIN VISION 50 Inch Triple Row | High-End Triple Row | Extreme brightness for open terrain | 288W, Triple Row, IP67 | Amazon |
| LASFIT 22 Inch | Mid-Range Compact | Premium optics in a compact size | 20x 3W OSRAM Chips, IP67, 70,000h life | Amazon |
| Nilight 20 Inch 126W | Budget Compact | Entry-level off-road or ATV light | 126W, 6,000 Lumens, Combo Beam | Amazon |
| Nilight 36 Inch 234W | Budget Full-Size | Large budget bar covering wide area | 234W, 16,380 Lumens, Combo Beam | Amazon |
In‑Depth Reviews
1. Auxbeam 52 Inch 300W LED Light Bar
The Auxbeam 52-inch dual-row bar uses 100 individual 3W LED chips to produce a 6500K daylight-white beam that one owner described as “like driving in the daytime.” Its 5D lens design and pending aperture system shape the light output to minimize glare, giving you a clean 30-degree spot zone flanked by 60-degree flood coverage. Real-world current draw is a modest ~3 amps for the entire bar, and the IP68 waterproof rating has survived full submersion in mud and water according to a four-year review.
The included plug-and-play wiring harness is a major convenience — it comes complete with a relay, fuse, and switch, so you avoid the typical headache of sourcing separate components. The die-cast aluminum housing uses thick heat-sink fins to keep temperatures in check, and the entire assembly feels heavy and dense compared to budget alternatives. The stainless mounting brackets are corrosion-resistant, and the bar fits most trucks, SUVs, and Jeeps with universal mounting slots.
The one well-documented downside is a high-speed whistle caused by air rushing over the 5D lens at highway speeds. A simple strip of door-edge trim across the top seam fixes the noise for roughly spare change, but it’s an oversight on a bar at this tier. A few users also noted that while the housing is tight, occasionally one of the side screws may allow moisture entry if not sealed with dielectric grease on install. Overall, the Auxbeam delivers a premium light pattern that competes with bars costing multiple times its price.
Why it’s great
- Full plug-and-play wiring harness included — relay, fuse, and switch are in the box.
- IP68 rated housing has proven durable through years of off-road abuse and pressure washing.
- Combo beam pattern provides both long-range spot and wide flood from a single bar.
Good to know
- Lens design produces a loud whistle at highway speeds; fixable with a simple trim strip.
- Side screws can allow moisture if not sealed with dielectric grease during install.
2. Rigidhorse 32 Inch Curved LED Light Bar
The Rigidhorse 32-inch curved bar packs a claimed 48,000 lumens from its 240W single-row design, using 8D reflective cup lenses to throw both flood and spot beams in a combo pattern. Real-world owners mounting it behind grilles on 2012 Suburbans and on rear bumpers consistently report it is brighter than previous dual-row bars they’ve owned. The curve follows the shape of many front bumpers and grilles, creating a sleek factory-integrated look while widening the peripheral coverage angle.
The IP68 rating has been validated through car washes and heavy rain without any reported moisture intrusion in hundreds of reviews. The full die-cast aluminum profile is noticeably heavy, and the 360-degree adjustable brackets make positioning flexible across bumpers, grilles, and roof racks. The color temperature is a crisp 6500K, and the beam pattern shows a defined cutoff that minimizes glare for oncoming traffic when properly aimed.
The main limitation is that the included wiring harness switch lead is about 12 inches too short for a clean install on full-size trucks, requiring the relay to be mounted right near the cab entry or the switch wire to be extended. A few early buyers also noted that the bracket nuts must be accessed with a wrench from the back side — not tool-free. For the price, this curved bar offers one of the highest lumen-per-dollar ratios available and is ideal for drivers who want wide coverage without the bulk of a triple-row bar.
Why it’s great
- Curved housing hugs vehicle contours for a factory-integrated look and wider side coverage.
- Extremely high lumen output (48,000LM) from a compact single-row form factor.
- IP68 rating holds up reliably in all weather conditions without fogging.
Good to know
- Included harness switch lead is short; likely need an extension for full-size trucks.
- Mounting requires wrench access to rear of bracket nuts; no quick-release mechanism.
3. OFFROADTOWN 40 Inch Single Row LED Light Bar
OFFROADTOWN’s 40-inch single row bar is rated at a sky-high 400W peak output with 40,000 lumens, making it one of the most powerful single-row designs on the market. It uses 40 high-quality 10W LED chips behind a 120-degree flood and 30-degree spot optic system. The beam is a clean 6000K tint that avoids the blue-ish cast of cheaper lights. Owners frequently compare its output to Rough Country bars costing significantly more, reporting that it produces less glare while lighting up the same distance.
The housing is only 1.57 inches thick, allowing it to slip into tight bumper gaps and grille openings where double-row bars simply can’t fit. The IP68 water resistance has held up through months of rain without internal fogging, and the 13 heat-sink fins keep the housing cool even during extended night use. The adjustable mounting brackets allow tilt and rotation, making it versatile for roof, bumper, or grille placement.
A few units have shown condensation after the first wash if the small housing screws are not torqued evenly, and the mounting bolt’s captive nut requires access from underneath, which can limit rotation angles during install. Despite this, the current draw measured by owners is only ~1.1 amps per bar at 12V, making it surprisingly efficient for a bar in this power bracket. For buyers who need a slim, sleek bar that punches above its price class, this is a standout choice.
Why it’s great
- Ultra-slim 1.57-inch profile fits in bumper gaps where double-row bars won’t go.
- Excellent efficiency — draws ~1.1A while producing 40,000 lumens of clean 6000K light.
- IP68 seal holds up well against rain and washing without lens fogging.
Good to know
- Housing screws must be evenly torqued; a loose one can allow moisture entry.
- Mounting bracket captive nut limits rotation access from the underside.

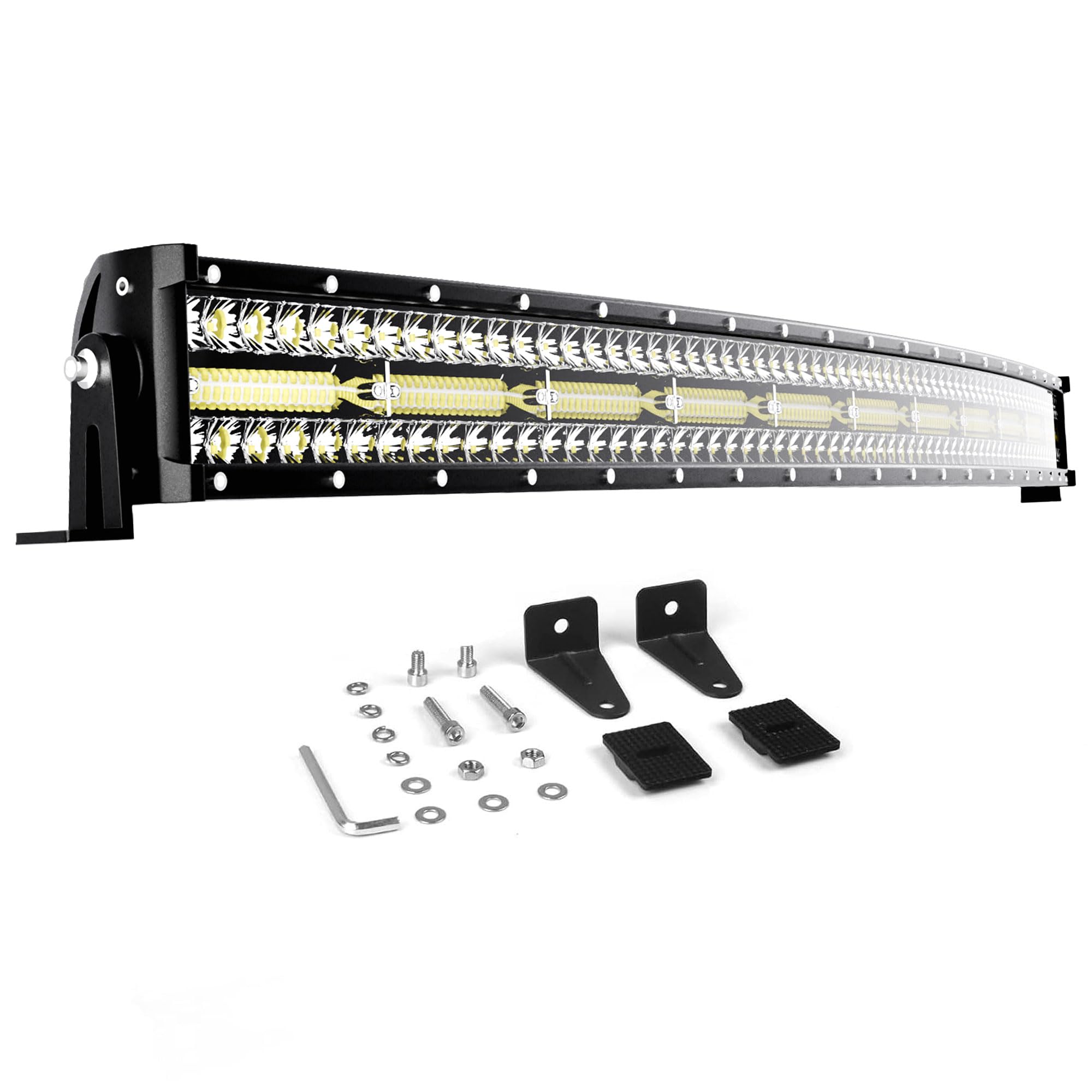

4. TERRAIN VISION 50 Inch Triple Row LED Light Bar
The TERRAIN VISION 50-inch triple row bar uses three rows of LEDs paired with a nest reflector cup design and a wide reflective plate on both sides for multi-angle refraction. The result is a massive wall of light that owners of Polaris 570 and other full-size UTVs describe as “night and day” compared to stock lighting. The tempered glass lens is thicker than the polycarbonate used on most budget bars — scratch-resistant, non-yellowing, and much more robust in a front-impact scenario. The die-cast aluminum housing carries an IP67 rating and an efficient fin array for cooling.
One standout design choice is the 50-inch curved form factor, which mounts easily across wide roofs and heavy-duty front bumpers. The included universal bracket set is functional, but several owners noted that the mounting hardware threads stripped easily under moderate torque and recommended replacing the bolts with aftermarket stainless options. The wiring harness is adequate, though the relay must be kept dry — a single splash shorted one unit.
At 6.4 pounds and 50 inches wide, this bar needs a secure mounting surface with good support across its length. The triple row design is overkill for most daily drivers, but for plowing, clearing trees, or desert night cruising, the sheer flood coverage is unmatched in this price tier. Poor packaging from one warehouse left a unit with a dented housing, so inspect on arrival. For buyers who want maximum area illumination from a single bar, this is the brightest triple-row option at its price point.
Why it’s great
- Triple row and reflective side plates create extremely wide flood coverage for open terrain.
- Tempered glass lens resists scratches and yellowing far better than polycarbonate alternatives.
- IP67 rated housing holds up well to rain, snow, and pressure washing.
Good to know
- Included mounting bolts strip easily; recommended to replace with stainless hardware.
- Large 50-inch footprint requires a wide, sturdy mounting surface and careful bracket adjustment.
5. LASFIT 22 Inch LED Light Bar
The LASFIT 22-inch bar uses 20 premium 3W OSRAM Osloniq P 3737 LED chips with a luminous efficiency of 99.85 lm/W — roughly 25% higher than many same-power bars on the market. The optimized internal reflectors produce a clean 5000K natural daylight beam that reduces eyestrain compared to the harsher 6500K bars. The housing is CNC-machined aircraft-grade aluminum with six dedicated heat-sink fins, and the IP67 seal uses a silicone gasket plus a rubber pad to keep moisture out. Owners report the bar has survived a full Maine winter on salted roads without internal fogging.
The standard DT plug port on the back means this bar works with any universal wiring harness on the market — plug and play without splicing. It fits nearly any vehicle, including ATVs, UTVs, trucks, and sedans, with universal brackets that allow bumper, grille, roof, or rear-pedal mounting. The compact 22-inch size fits easily in lower bumper openings and grille slots where a 32-inch bar won’t fit.
The bar does not include a wiring harness or switch — you must buy those separately, which adds to the total cost and install complexity. A small number of owners experienced initial moisture inside the lens during extremely heavy, sustained rain, though the bar continued to function. For buyers who prioritize optical quality and efficiency over sheer maximum lumen output, the LASFIT delivers premium light character in a small package ideal for focused applications like ditch lighting or reverse lights.
Why it’s great
- High-efficiency OSRAM chips produce a clean 5000K beam with excellent color rendering.
- Compact 22-inch size fits tight grille slots and bumper openings with ease.
- CNC-machined aluminum housing with 6 heat-sink fins provides strong thermal management.
Good to know
- Wiring harness and switch are sold separately, increasing total outlay.
- Very heavy rain can push past the seal on some units; silicone gasket needs to seat perfectly.
6. Nilight 20 Inch 126W LED Light Bar Kit
The Nilight 20-inch 126W kit is a full package: bar, two mounting brackets with rubber inserts, and a wiring harness with a relay and switch. The rubber inserts are a welcome touch — they dampen vibrations and protect the bull bar from scraping. The combo beam pattern (spot for distance, flood for width) uses high-quality LED chips that produce 6,000 lumens of white light. For the price, it is an extremely affordable entry point that still provides genuinely useful nighttime visibility for ATVs, UTVs, and smaller pickups.
Real-world owners report the bar has survived two years of abuse on ATVs, taking impacts from branches and mud without losing brightness or developing moisture issues. The universal fit design with pre-drilled holes allows mounting on tube bumpers, roll cages, and brush guards without drilling. The wiring harness is pre-terminated and straightforward to install, though a few owners of crew-cab trucks found the harness too short and needed to splice in an extension.
The mounting hardware is functional but basic — some owners noted the bolts can loosen over time without thread-locker. The aluminum housing is not as thick as premium bars, and the included instructions are minimal, so first-time installers will need a YouTube guide. For its price, this kit delivers dependable performance and is ideal for those adding their first light bar to a side-by-side or utility vehicle on a tighter budget.
Why it’s great
- Complete kit includes bar, brackets, rubber inserts, and wiring harness with relay and switch.
- Rubber vibration dampers protect the mount surface and reduce rattling during off-road use.
- Combo beam provides both spot and flood coverage in a single compact unit.
Good to know
- Harness length may be too short for full-size crew-cab trucks; splicing may be needed.
- Mounting bolts benefit from thread-locker to prevent loosening on rough terrain.
7. Nilight 36 Inch 234W LED Light Bar
The Nilight 36-inch 234W bar brings a large footprint and medium brightness (16,380 lumens) to a budget price point. The combo beam uses both spot and flood reflectors, and the 6000K color temperature produces a clean white light. The housing is a die-cast aluminum alloy with a silicone sealing strip and a protective PC lens, giving it reliable water resistance for rain and mud crossings. The adjustable slide bracket allows you to position the bar along the mount rail, enabling precise centering on uneven roof racks or bumpers.
Owners have installed these on excavators, trucks, and UTVs with consistent reports of brightness being “very good for the price” and the housing surviving heavy rain without leaking. The bar draws about 3 amps at 12V, making it easy to run without a dedicated heavy-duty alternator upgrade. The kit includes only the bar and mounting brackets — you will need to buy a separate wiring harness and switch if you don’t already have one.
Build quality is decent, but the brackets lack the premium feel of higher-tier Nilight models, and a few owners found the mounting bolts were missing from the package entirely. The finish on the end caps is metal, but the structure is not as robust as double-row bars in the same size class. For buyers who need a wide bar for a large vehicle on a limited budget and have their own harness, this bar provides ample coverage for trail use without breaking the bank.
Why it’s great
- 36-inch length provides wide coverage across large vehicle bumpers and roof racks.
- Low current draw of ~3A makes it suitable for vehicles without high-output alternators.
- Adjustable slide bracket allows precise positioning along the mount rail.
Good to know
- Wiring harness and switch are sold separately; not a complete kit out of the box.
- Inconsistent packaging quality — some units have missing mounting bolts.
FAQ
Can I run an LED light bar without a relay or fuse?
What is the legal brightness limit for an off-road light bar on public roads?
How do I prevent a light bar from whistling at highway speeds?
Final Thoughts: The Verdict
For most users, the led light bar for car winner is the Auxbeam 52 Inch 300W because it delivers a premium 5D combo beam pattern, includes a full wiring harness, and has proven IP68 durability over years of real-world abuse. If you want a slim profile that fits tight bumper gaps without sacrificing output, grab the OFFROADTOWN 40 Inch Single Row. And for maximum flood coverage over wide open terrain, nothing beats the TERRAIN VISION 50 Inch Triple Row.
