Here is the honest problem with buying a linear rail bearing online: nearly every seller lists the same photograph and the same three words — smooth, precise, durable — and none of that tells you whether the rail will arrive straight enough to actually build with. The specs that decide whether you keep a set are rarely the ones sellers advertise. You want the rail diameter and length matched to your load, the block type matched to your mounting plate, and a hardness and coating that survive a garage or a workshop. Get those three right and the rail stops being the part that fails.
I’m Min — the founder and writer behind Gadgets Feed. This guide is built by comparing the manufacturers’ published specifications and the patterns across verified customer reviews, so you get each pick’s real strengths and trade-offs instead of marketing spin.
Below you get the differences that actually change how a rail behaves under load, from supported shafts to profile rails, plus the one spec that predicts how straight your setup will stay. Each pick below is broken down by load rating, rail type, and hardware so you can order the right set once.
Our Picks at a Glance
How To Choose The Best Linear Rail Bearing
Most disappointed rail buyers make the same mistake. They match the length they need and ignore everything else — then the shaft arrives with a bow in it, the block binds halfway down, and the project stalls. Three checks catch nearly all of it.
Match the rail type to the job before anything else
A fully-supported round rail sits inside an aluminum support base along its whole length. That base is why a supported shaft resists flexing under a heavy router or a sliding drawer load, because the bar cannot sag into empty air. A square profile rail, by contrast, is a compact guideway with a block riding on recirculating bearings — it takes less space and suits a lighter, faster carriage. Pick supported rails when weight and rigidity come first, and profile rails when space and smooth travel matter most.
Read the load numbers, not the adjectives
Dynamic load per block is the weight a single block is rated to carry while it is still moving. Static load is what it handles parked. Those two figures tell you how many blocks your carriage genuinely needs. A heavier router sled or a machine-tool slide asks for a bigger, stiffer block, while a keyboard tray or a light 3D printer gantry is fine on a small one.
Check straightness, coating, and mounting holes
Straightness is the single spec that decides whether a rail is usable for precision work, and it is also the one most likely to vary between shipments. Chrome plating over bearing steel is what keeps rust off in a garage or a damp workshop. Finally, count the pre-drilled mounting holes and check which screws ship in the box — hardware that does not line up turns a one-evening build into a drill-and-spacer job.
Quick Comparison
| Model | Best For | Rail Type | Rail Length | Included Blocks | Amazon |
|---|---|---|---|---|---|
| VEVOR SBR20-800mm 2 PCS + 4 SBR20UU★ Best Overall | Heavy router and mill sleds | Fully-supported round SBR20 | 800 mm (31.5 in) x 2 | 4 x SBR20UU | Amazon |
| MGN12H 600mm Linear Rail with MGN12H BlockBest for 3D Printers | Miniature 3D printer and laser builds | Square mini profile MGN12H | 600 mm (23.62 in) | 1 x MGN12H | Amazon |
| 2Pcs SBR20-400mm + 4Pcs SBR20UU Block | Router sleds and shop jigs | Fully-supported round SBR20 | 400 mm (15.7 in) x 2 | 4 x SBR20UU | Amazon |
| VEVOR SBR16-800mm 2 PCS + 4 SBR16UU | Woodworking drawers and camper builds | Fully-supported round SBR16 | 800 mm (31.5 in) x 2 | 4 x SBR16UU | Amazon |
| HGR15-1000mm Linear Slide Rail + 4 Blocks | Rotary and gantry CNC axes | Square profile HGR15, 15 mm width | 1000 mm x 2 | 4 bearing pillow blocks | Amazon |
| ANWOK HGR20-1200mm 2Pcs + 4 HGH20CA Blocks | Long-travel precision and plasma tables | Square profile HGR20 | 1200 mm (47.2 in) x 2 | 4 x HGH20CA | Amazon |
In‑Depth Reviews
1. VEVOR Linear Rail Slide SBR20-800mm 2 PCS and 4 PCS SBR20UU Slide Blocks Linear Guide Rail and Bearings Kit
Our pick — over 4.5★ from 350+ verified ratings; the strongest balance of quality and price.
The long supported rail with the load rating to carry a full-size router without bowing.
Start with the number that decides the job: 882 N of dynamic load per block. That is the weight a single one of the four included SBR20UU blocks is rated to carry while it is still moving, so a router sled or a mill slide built on this set is not straining the bearings. Each block also handles 1370 N while parked, which means a heavy carriage resting on the rail overnight is not working the balls either. With two rails at 800 mm — 31.5 inches each — you get real travel length, and the rails run on a fully-supported carbon-steel shaft set into an aluminum base, so the bar cannot sag in the middle the way a bare shaft does.
What wins people over is the build quality — it is the most-praised trait across the reviews by a wide margin, and the second most-discussed is how well the whole kit simply functions from the start. The surface is chrome-plated over carbon steel for rust resistance, which matters if your shop is a garage. Buyers report a set still going strong: “Used 2 sets for router mount over 3 years; no corrosion/wear in garage.” One caveat worth knowing before you order — unsupported cross travel flexes slightly, and the fix is to bolt a rail to steel plate rather than leave it spanning open air. And one owner out of hundreds hit a bar that arrived bowed, which support replaced, so if precision planing is your goal, check straightness with a straightedge the day it lands.
Against the budget SBR20-400mm set further down, this one gives you 800 mm of rail versus 400 mm — double the travel for a heavier machine. Against the compact MGN12H, it is a different species entirely: 14.1 pounds of supported steel versus 1.1 pounds of mini profile rail, so this is the one you pick when the load is real. It is the crowd favourite here at 4.6 stars across 380+ ratings, and the combination of load rating, length, and chrome plating is why it holds the top spot.
Where It Earns Its Keep
- 882 N dynamic and 1370 N static load per block handles full-size router and mill sleds
- Two 800 mm rails in one kit, so heavy builds get real travel length without buying twice
- Chrome-plated carbon steel and aluminum build resists rust in a garage or damp workshop
- Built-in ball bearings keep travel smooth and low-friction, so you push less and control more
What To Plan Around
- Unsupported cross span flexes a little — mount to steel plate for the stiffest result
- Extra end fittings are a separate purchase on some builds
- Not the tool for a light miniature gantry where a small profile rail fits better
Built for: anyone driving a router sled, slab-flattening jig, or mill slide where weight and rigidity come first.
Look elsewhere if: your machine is a tiny 3D printer or laser head that needs a slim, featherweight rail instead.
2. MGN12H 600mm Linear Rail 23.62” with MGN12H Steel Carriage Block for DIY 3D Printer and Machines
A featherweight mini profile rail for printers and lasers where every gram of moving mass counts.
If your gantry is a 3D printer or a laser engraver, a heavy supported rail is the wrong answer — it adds mass the motors have to drag. This rail weighs 1.1 pounds in total, against 14.1 pounds for the VEVOR SBR20-800mm set, and that gap is the entire point. Its packaging is also far slimmer at 24 x 3 x 0.75 inches, so it ships small and stores easily. It is 600 mm — 23.62 inches — of blackened heavy-duty bearing steel with a single MGN12H stainless carriage block that arrives pre-loaded. The maker suggests M3 T nuts and screws if you are fixing it to 20 series EU aluminium profile, and there are rubber stoppers on each end of the rail so the block cannot slide off the frame.
Quality is the trait buyers single out most, and owners of Ender 5 machines are the loudest fans. One build stayed honest about the break-in: “I used it on my ender 5 core XY build and its been 7-8 months and the rails are still in great shape and still printing fast speeds with them.” The thing to know before you buy is that smoothness is genuinely mixed — some of these arrive quiet, others show minor grinding that fades once you pack the grooves with grease and run the carriage back and forth. Owners mention that running grease down the grooves clears the roughness. Preload is light on some units too, so if you are chasing a true zero-play axis, plan to tension it after mounting.
skip it if you need a long, load-bearing slide for a router table — that is the VEVOR territory. Reach for it if you are upgrading a printer or engraver axis and want the lightest possible moving mass with a rust-resistant blackened finish. Note that it ships as a single rail and one block, not a kit, so order the count your machine actually needs.
Pick this one when: your build is a 3D printer, laser engraver, or plasma cutter gantry that rewards low moving weight.
Skip when: you need multiple rails and blocks or a heavy-load slide — this ships as one rail and one block.
3. 2Pcs SBR20-400mm/15.7 inch Linear Fully-Supported Rail and 4Pcs SBR20UU Block, Linear Motion Bearing Block for SBR20 Linear Guide Rail for CNC Machine
Shorter supported rails that bolt straight into a router sled or a shop jig and just work.
The defining figure here is the screw count: 16 M6x20 screws ship in the box to connect the sliding blocks to your plates, and that is the difference between a rail set you can mount tonight and one that stalls waiting on hardware. You get two 400 mm — 15.7 inch — fully-supported SBR20 rails and four SBR20UU blocks, made from bearing steel and aluminum alloy with a chrome-plated, anti-rust surface. Each block carries a high-precision linear bearing inside, and there is an adjustment handle to set the tightness of the slider, which is how you dial out play once everything is bolted down. At 5.76 pounds the whole set is manageable for one person to align.
Build quality is what this set is known for — it draws the most praise by a clear margin, with value for money next in line. The reviewer stories back that up: a truck-bed drawer slide that held up for 8 months through beach sand and bouncing, and a compound miter saw mounted on “3’11″ rails” that slides flawlessly. A buyer using it for woodworking precision called it “excellent for woodworking precision.” The honest catch is straightness. Multiple customers note a slight curve in the rails, which is fine for a sled that gets clamped to a flat table but can disappoint anyone chasing bench-grade precision. These rails are also very hard steel — reviewers point out dulling a bandsaw blade trying to cut them, so plan on an abrasive chop saw.
Compared with the VEVOR SBR20-800mm set, this gives you half the rail length but the same SBR20 block standard and the same four-block count, so it is the right call when your build footprint is compact. It is a step up in convenience over the ANWOK HGR20, which ships for long travel but needs extra hardware sourced on your own. Four and a half stars across 240+ ratings reflects a set that the vast majority of builders mount and forget.
Router-sled ready: two supported 400 mm rails, four SBR20UU blocks, and 16 M6x20 screws cover a typical sled or jig build without a second order.
Straightness varies: reports of a slight bend are common, and some units arrive with a binding block that needs swapping — support has replaced those quickly, but budget for a return if you are chasing exact precision.
Reach for it if: you want a compact, fully-supported rail set with the mounting screws already in the box for a sled or jig.
Think twice if: your build needs long travel or dead-flat rails from the start, since those are where this set draws its complaints and its length runs short.
4. VEVOR Linear Rail Slide SBR16-800mm 2 PCS and 4 PCS SBR16UU Slide Blocks Linear Guide Rail and Bearings Kit
The lighter VEVOR sibling, sized for drawers, camper builds, and home shop projects.
Two 800 mm — 31.5 inch — SBR16 rails and four SBR16UU blocks land in the box, weighing 8.6 pounds total, which makes this the friendlier choice when the SBR20 kit feels heavier than your project needs. The rails are carbon steel with an aluminum support base and a chrome-plated finish for rust resistance, and the blocks run on quality bearing steel with an aluminum housing. Mounting is deliberately simple: you line the track up with the mouth of the slide, push until it seats, and the maker states it needs no maintenance. The aluminum support stabilizes the shaft so it resists flexing under load, which is why a sliding mechanism feels solid rather than spongy.
What the buyer accounts point to first is quality, with functionality close behind — the smooth carriage travel is what most people notice when they set these up. The real-world use cases are wide, which is the whole reason it earns the “most versatile” tag here. One owner bolted glide rails to a drawer bottom and the slide blocks to the frame with travel-limiting M5 bolts; another used them to mount a toilet in a camper van, and another mounted them on a router table for machining tops and bottoms. That range — woodworking, camper, drawers — is the point. The trade-off buyers keep hitting is straightness. Some units arrive with a bow of about 1/8 inch up in the middle, and the workaround is to mount on double-width risers or clamp to a flat table while fastening. Shorter VEVOR SBR16 rails bought separately came in straight, so the issue tracks to the long shafts rather than the brand.
Against the SBR20-800mm set, this trades a slightly smaller shaft for less weight and an easier install, and both use the same slide-in mounting idea. Choose this one for a drawer, a movable fixture, or a camper mechanism; choose the SBR20 when the load is heavier and you want the bigger block. It sits at 4.6 stars across 310+ ratings, and the versatility is why it is worth a look even if your project is not a CNC machine.
Easy to live with: push-on mounting, no-maintenance claim, and 8.6 pounds make this set undemanding for drawers and camper builds — buyers put it to work in woodworking, van builds, and sliding fixtures alike.
Watch the long shafts: the recurring gripe is a slight middle bow, so plan to clamp to a flat surface while mounting and use shimmed risers if you need it dead flat.
The right buy for: a sliding drawer, a movable fixture, or a camper mechanism where you want supported travel without heavy hardware.
Not the one for: a precision machine-tool axis that needs the shaft flat to a fraction — check straightness on arrival and expect to shim it.

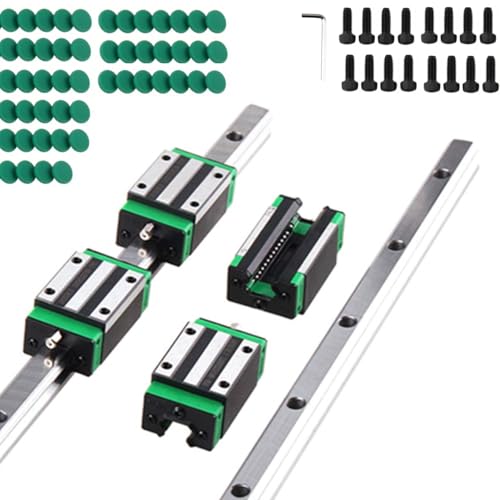

5. Linear Guide Rail 2 X HGR 15-1000mm Linear Slide Rail + 4 X Bearing Blocks Linear Guideway Rail for DIY CNC Routers Lathes Mills
Long 15 mm-wide profile rails built for gantry axes that need smooth travel over a metre.
The headline spec is the length: two 1000 mm rails with a 15 mm rail width, paired with four bearing pillow blocks. That metre of travel is what makes this set attractive for a gantry or an X-axis that has to move a long way, and the HGR15 profile is designed for high-precision linear motion with a low friction coefficient, so the carriage glides rather than drags. The rails are quality bearing steel with an anti-rust surface treatment, and the steel support rail comes with pre-drilled holes so mounting is a bolt-and-go job. At 9.04 pounds the pair is substantial without being back-breaking.
Owners who install these on serious machines are the same people who report zero play and easy out-of-box setup — the most-mentioned positive is quality, and the general read is that these are set up well enough to install without adjustment. A buyer who ran them on the gantry of a home-built rotary CNC machine described smooth motion and increased rigidity and said they would buy more. But there is one clear weakness in the feedback, and you should know it before ordering: the balls can drop out of the blocks, with buyers reporting bearings coming loose after the block slid a few times and no locking mechanism to stop it. The fix is to keep the plastic transport pieces in place until the carriage is on the rail, and to avoid sliding a bare block off the end.
Compare it with the ANWOK HGR20-1200mm set and you get slightly less travel — 1000 mm versus 1200 mm — and a narrower 15 mm rail, but at a lower outlay and with four blocks in the box. Weigh that against the SBR20 supported rails, which hold a shaft inside a base rather than running a profile block on a machined track. Shoppers say it handles a light-duty, low-speed application well. One buyer did flag that screw hole dust caps were not in the box and had to be sourced, so factor a small extra order if you want the holes covered.
Why Builders Choose It
- Two 1000 mm rails with 15 mm width give a metre of travel for gantry and X-axis builds
- Four bearing pillow blocks ship in the kit, so a full carriage is covered
- Pre-drilled mounting holes and anti-rust treated bearing steel keep install fast
- Low friction coefficient suits smooth, quiet linear motion on CNC machines
Before You Order
- Blocks have no locking mechanism — keep the transport pieces in place so the balls cannot escape
- Screw hole dust caps are not included and must be sourced separately
- Not built for high-precision, heavy-load machine work — it suits lighter duty
Suits: gantry, rotary, and X-axis builds that want a metre of smooth profile travel and four blocks straight from the box.
Careful with: the balls falling out of the blocks on removal — if you plan to swap carriages often, that fragility will wear on you.
6. ANWOK 2Pcs Linear Rail HGR20-1200mm 4Pcs HGH20CA Square Type Carriage Bearing Block Linear Guide Rail Set Slide Guide Rod
The long-travel HGR20 kit with square blocks for plasma tables and precision CNC builds.
Two 1200 mm — 47.2 inch — HGR20 rails with four HGH20CA square carriage blocks make this the longest set here. The HGR20 profile is built for high rigidity and high load, running smooth and quiet with a low friction coefficient, and the bearing steel gets a chrome-plated, anti-rust treatment for durability. The blocks are the square carriage type, so they can be assembled to a flange or rectangular mount, and the steel support rail has pre-drilled holes for easy mounting. It weighs in at roughly 6409 g, which is the heft you would expect from this much rail.
The trait that draws the most praise is quality — buyers describe it as exceeding expectations, and the general feel is of a well-packed, well-machined kit with two rails and four blocks. Owners use these beyond CNC machines: one built a DIY keyboard tray and noted it was far smoother than standard drawer slides, and another mounted them on a mini CNC plasma table and found them surprisingly rigid. The honest caveat is support hardware and bearing retention. There is no mounting hardware, tool, instruction sheet, or spec sheet in the box on some units, and one buyer counted only 16 screws for 18 holes and had to buy more. A couple of buyers also report a bearing ball escaping when a block came off the rail, and one slide arriving free while the other binds slightly.
Set it against the HGR15-1000mm set and this gives you 1200 mm of travel versus 1000 mm and a wider HGR20 profile blocks set, for a higher outlay — the trade is length and load capacity for price. Against the SBR20-800mm kit, it is profile rail rather than supported round rail, so it moves a carriage on a machined guideway instead of a shaft in a base. Four and a half stars across 65+ ratings, and the length is the reason to pick it.
What Sets It Ahead
- 1200 mm of HGR20 travel per rail is the longest set here for plasma and CNC tables
- HGH20CA square blocks can mount flange or rectangular for flexible carriage design
- High-rigidity, high-load profile with chrome plating for rust resistance
- Pre-drilled steel support rails make alignment and mounting straightforward
Worth Knowing First
- Mounting hardware and instructions are not always in the box — count your holes and order screws
- Bearing balls can escape if a block comes off the rail, so keep the plastic end caps on
- One slide may arrive bound until you re-grease and seat it
Made for: builders who need the longest travel and the higher load rating of a wide HGR20 profile for a CNC or plasma table.
Plan around: the missing hardware and instructions — buy your screws and keep the end caps on so the balls stay put.
Understanding the Specs
Dynamic vs Static Load Per Block
Dynamic load is the weight a single block is rated to carry while it is still moving; static load is what it holds while parked. On the SBR20-800mm set that means 882 N dynamic and 1370 N static per block. A parked carriage can carry more than a traveling one, so match the dynamic figure to your job.
Supported Round vs Profile Rail
A supported round rail runs its steel shaft inside an aluminum base along the full length, which stops the bar from sagging under weight. A profile rail runs a compact block on a machined guideway with a low friction coefficient, which suits lighter, faster carriages in tight spaces. Choose supported rails for heavy loads, profile rails for tight spaces and fast travel.
Straightness and Mounting Holes
Straightness decides whether a rail is usable for precision work, and it is also the spec most likely to vary between shipments. Pre-drilled mounting holes and the screws in the box decide how quickly you can bolt everything down. If a rail arrives with a bow, clamping it flat while mounting and using shimmed risers is the standard workaround.
Bearing Retention and Preload
Profile blocks can shed their bearing balls if you slide one off the end of the rail, so the plastic transport pieces should stay on until the carriage is seated. Preload is how tightly the block grips the rail — light preload means the carriage may feel loose at first, and you tighten it with the adjustment or set screws after mounting.
FAQ
What is the difference between a supported round rail and a profile rail?
How do I know how many blocks my carriage needs?
Will a 15 mm HGR15 rail fit my CNC build?
Why do my bearings come loose or fall out of the block?
Do these linear rails come with mounting screws and instructions?
How do I fix a rail that arrived slightly bent?
Do I need to grease a new linear rail before using it?
Can I cut a linear rail to a shorter length?
Will these rails resist rust in a garage or damp workshop?
What rail length should I choose for a router sled or drawer?
Final Thoughts: The Verdict
For most builders, the linear rail bearing winner is the VEVOR SBR20-800mm set because it pairs an 882 N dynamic load per block with two 800 mm chrome-plated rails and four blocks — the load capacity and length a real router or mill sled needs. If you want the lightest possible moving mass for a printer or laser, grab the MGN12H 600mm rail, which ships at 1.1 pounds with a pre-loaded stainless block. And for long-travel CNC or plasma work, the ANWOK HGR20-1200mm set is the one to reach for, with 1200 mm rails and four square blocks.
