The moment you need reliable linear motion in an automated system, the pneumatic air cylinder becomes the core component dictating force, speed, and consistency. Choosing the wrong bore or stroke size can mean a mechanism that stalls under load, cycles too slowly, or simply fails to fit the mounting space. This guide cuts through the spec sheets to help you match a cylinder to your actual build.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours analyzing the technical specifications, customer feedback, and real-world performance data of dozens of pneumatic cylinders across multiple brands to identify the models that deliver consistent, leak-free operation for industrial automation and DIY projects alike.
After comparing bore diameters, stroke lengths, port sizes, and build quality across seven models, I have assembled this definitive guide to the best pneumatic air cylinder options currently available on Amazon for buyers who demand reliable actuation.
How To Choose The Best Pneumatic Air Cylinder
Selecting the right cylinder is a matter of matching mechanical requirements to dimensional constraints. Three parameters dominate every decision: bore, stroke, and pressure rating. Ignore any one of them and your project stalls.
Bore Diameter and Force Output
The bore diameter directly determines the theoretical force the cylinder can generate. Force equals pressure times area, so a 63mm bore cylinder delivers roughly 645 lbs of force at 113 PSI, while a 100mm bore nearly doubles that output. Always calculate your required force and select a bore that provides a safety margin of at least 25 percent above the peak load.
Stroke Length and Mounting Space
Stroke is the total travel distance of the piston rod. A longer stroke allows a wider range of motion but increases the cylinder’s retracted length and reduces maximum cycle speed due to higher air volume. Measure your available mounting space carefully — a 500mm stroke cylinder may be fine for a press but completely impractical for a compact indexing table.
Port Size, Thread Type, and Cushioning
Port size controls airflow into and out of the cylinder. A PT1/4 port is common for smaller bores, while larger cylinders use PT3/8 or PT1/2 to maintain adequate flow. Thread compatibility matters — some cylinders use NPT, others use BSPT or G threads, so verify your fittings. Adjustable cushioning at both end caps is essential for high-cycle applications to absorb kinetic energy and prevent metal-on-metal impact.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Baomain SC 63 x 150 | Mid-Range | General automation & can crushing | 63mm bore / 150mm stroke / PT3/8 port | Amazon |
| Baomain SC 63 x 300 | Premium | Long-stroke pressing & lifting | 63mm bore / 300mm stroke / max 280Kgf | Amazon |
| Baomain SC 100 x 200 | Premium | Heavy-duty automation & presses | 100mm bore / 200mm stroke / M20x1.5 rod | Amazon |
| SC Long Stroke 100 x 500 | Premium | Extra-long travel & industrial use | 100mm bore / 500mm stroke / w/ magnetic | Amazon |
| TAILONZ MAL32x200 | Budget | Compact DIY & Halloween props | 32mm bore / 200mm stroke / PT1/8 port | Amazon |
| SC Air SC50X150 | Budget | Entry-level automation projects | 50mm bore / 150mm stroke / PT1/4 port | Amazon |
| TAILONZ SC 50 x 150 | Mid-Range | Versatile clamping & light presses | 50mm bore / 150mm stroke / dual action | Amazon |
In‑Depth Reviews

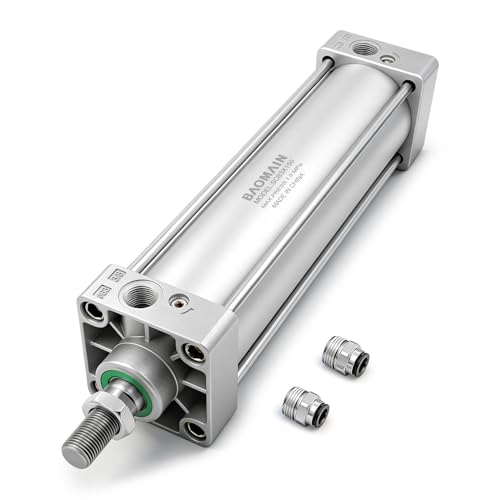

1. Baomain Pneumatic Air Cylinder SC 63 x 150
The Baomain SC 63 x 150 is the most balanced pneumatic cylinder in this lineup, pairing a 63mm bore with a 150mm stroke to generate roughly 645 lbs of force at 113 PSI — verified by users who built can crushers around it. The PT 3/8 port with included 8mm push-in fittings makes air line connection straightforward, while the M16x1.5 threaded piston rod offers a standardized mounting point for custom attachments.
Constructed from high-strength aluminum alloy, the body resists corrosion without adding excessive weight. The double-acting design provides consistent force in both extension and retraction, and the integrated self-lubricating bearing eliminates the need for routine maintenance. Real-world feedback confirms smooth operation, no leaks, and immediate functionality straight out of the box.
For light-to-medium industrial automation, packaging machinery, or DIY presses, this cylinder delivers the best ratio of force-to-stroke without breaking the budget. It hits the sweet spot where bore size, stroke length, and construction quality converge for a wide range of applications.
Why it’s great
- Proven 645+ lbs force output at standard shop pressure
- PT 3/8 port with dual 8mm push-in fittings included
- Self-lubricating bearing for maintenance-free operation
Good to know
- No documentation included with the cylinder
- Mounting screws and rod nut thread pitch must be measured manually
2. Baomain Pneumatic Air Cylinder SC 63 x 300
The Baomain SC 63 x 300 extends the proven 63mm bore platform to a 300mm stroke, making it the right choice when you need a longer range of motion without stepping up to a larger bore. The maximum theoretical force remains at 280 Kgf, and users report that feeding the cylinder with lines sized for the G3/8 port dramatically improves cycle speed compared to undersized plumbing.
Weighing 5.86 pounds, this cylinder is noticeably heavier than the 150mm stroke equivalent due to the longer barrel and piston. The double-acting single-rod design functions reliably, though buyers should note that the cylinder ships without any documentation — you will need M8-1.25 mounting screws and the rod nut is M16-1.5. Standard pipe dope and Teflon tape seal the threads effectively.
This unit is ideal for lifting mechanisms, long-stroke presses, and material handling equipment where travel distance matters more than compactness. The extra stroke length does require careful planning of the retracted mounting dimensions to fit your frame.
Why it’s great
- Long 300mm stroke for extended travel applications
- G3/8 port allows good airflow for faster cycling
- Aluminum construction resists corrosion in shop environments
Good to know
- No documentation included — dimensions must be measured
- Can be slow to actuate if air lines are undersized

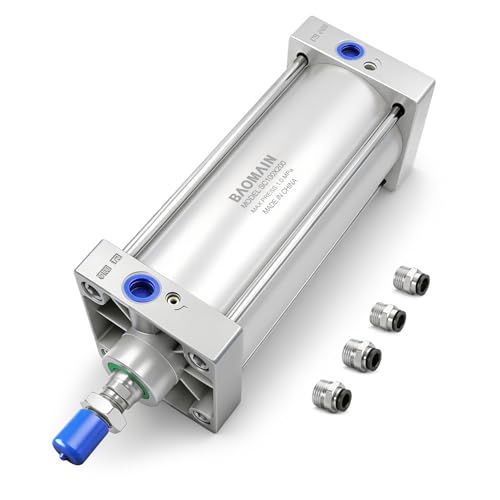

3. Baomain Pneumatic Air Cylinder SC 100 x 200
The Baomain SC 100 x 200 steps into high-force territory with a 100mm bore and 200mm stroke. The theoretical force output at 100 PSI exceeds 1,200 lbs, making this cylinder suitable for serious pressing, clamping, and heavy automation. The PT 1/2 port ensures sufficient airflow to maintain cycle speed, and the included fitting kit provides two 10mm and two 12mm push-in connectors for flexible tubing routing.
The M20x1.5 threaded piston rod is significantly larger than the M16 standard on smaller bores, providing a more robust connection point for high-load tooling. Weighing 8.71 pounds, this cylinder demands sturdy mounting brackets and a adequately-sized air supply. The aluminum alloy body keeps weight manageable while delivering the structural rigidity needed for industrial cycles.
For builders who need substantial force without jumping to hydraulic systems, this cylinder offers premium-level power at a mid-range price point. It fits naturally into packaging line pushers, assembly press stations, and material diverters where reliable high-force double action is non-negotiable.
Why it’s great
- 100mm bore delivers over 1,200 lbs of theoretical force
- PT 1/2 port with four push-in fittings for easy setup
- M20x1.5 heavy-duty threaded piston rod
Good to know
- Heavy unit at nearly 9 pounds — needs solid mounting
- Requires a larger air compressor tank for sustained cycling
4. SC Long Stroke Pneumatic Cylinder 100 x 500
The SC Long Stroke 100 x 500 is the largest cylinder in this comparison, combining a 100mm bore with a 500mm stroke for applications requiring both massive force and extended travel. The PT 1/2 port and aluminum alloy construction mirror the build quality of premium industrial units, and the integrated magnetic feature allows position sensing when paired with compatible reed switches.
Weighing 13.72 pounds, this is a substantial component that requires a strong frame and properly sized air lines to function efficiently. The 500mm stroke extends the retracted length to over 27 inches, so mounting space must be carefully evaluated before purchase. Users report cleanly cut threads, no leaks, and impressive force output that easily handles heavy loads.
This cylinder is best suited for purpose-built industrial machinery, large presses, and material handling lifts where force and travel distance both matter. The extended stroke also makes it a candidate for custom compaction systems or large-scale automation cells.
Why it’s great
- 500mm stroke provides maximum travel for large mechanisms
- Magnetic piston enables position sensing with reed switches
- Solid aluminum build with cleanly finished threads
Good to know
- Very heavy at over 13 pounds — strong mounting required
- Long stroke increases air consumption per cycle

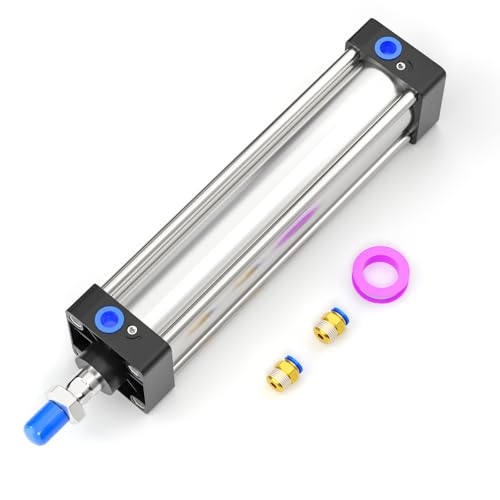

5. TAILONZ PNEUMATIC Air Cylinder SC 50 x 150
The TAILONZ SC 50 x 150 is a well-machined 50mm bore cylinder that punches above its size class. Users report rock-solid extension at 100 PSI for clamping applications, and several have built portable can crushers around this unit — crushing standard aluminum cans to a thickness of 3/8 to 1/2 inch at full stroke. The PT1/4 port is standard for this bore size, and the adjustable buffer helps control end-of-stroke impact.
The aluminum construction feels dense and well-finished, with smooth internal surfaces that minimize seal wear. Some users noted that the blue paint can peel at sharp corners and that the rear screws showed minor rust over time, but none of these issues affected function. The included Y connector and fittings simplify initial setup, though the clevis thread size is larger than expected for this class.
This cylinder strikes a strong balance between size and power for DIY automation, small presses, and clamping fixtures where the 50mm bore provides adequate force without the bulk of a 63mm unit. The overall build quality and TAILONZ reputation for consistency make it a reliable mid-range choice.
Why it’s great
- Proven performance in can crusher builds at 100 PSI
- Solid machining with smooth operation and no leaks
- Adjustable cushioning reduces end-stroke impact
Good to know
- Paint can peel at corners over time
- Rear screws may show surface rust in humid environments
6. TAILONZ PNEUMATIC 32mm Bore 200mm Stroke MAL32x200
The TAILONZ MAL32x200 is a compact double-acting cylinder with a 32mm bore and 200mm stroke, making it an excellent entry point for small-scale automation projects. The PT1/8 port is smaller than what you find on larger cylinders, so flow is limited, but for light-duty applications like Halloween props, prototype mechanisms, and low-force clamping, this unit operates smoothly and reliably.
The aluminum body is lightweight at just 1.63 pounds, and the adjustable buffer helps tame end-of-stroke momentum despite the smaller bore. Users praised the airtight seal and immediate functionality. A minor consideration is that the port threads are not standard 1/8 NPT, BPT, or flare — they seal perfectly with pipe dope and Teflon tape, but you cannot assume standard fitting compatibility without checking.
For makers, hobbyists, and engineers building low-force prototypes, this cylinder delivers reliable performance at a budget-friendly cost. It is not intended for high-load industrial use, but for light automation and proof-of-concept builds, it is a perfectly capable component.
Why it’s great
- Very lightweight and compact for tight mounting spaces
- 100% airtight from the factory — no leaks reported
- Adjustable buffer helps control impact at end of stroke
Good to know
- Port threads are non-standard — seal with pipe dope and tape
- Not suitable for high-force industrial applications
7. SC Air Cylinder 2 inch Bore 6 inch Stroke SC50X150
The SC Air Cylinder SC50X150 offers a 50mm bore and 150mm stroke in a straightforward, no-frills package. The aluminium alloy construction and PT1/4 port are standard for this size class, and the cylinder operates cleanly within the 0-145 PSI range. Users consistently describe the operation as smooth, with responsive actuation and adequate force for indexing tables and light automation tasks.
At 3.19 pounds, it is noticeably lighter than the TAILONZ SC 50 x 150, suggesting a slightly thinner wall construction. This makes it adequate for moderate duty cycles but less suited for high-frequency industrial use. The finish is visually clean, and the cushioning adjustment responds well to fine-tuning. The included fittings allow immediate connection to standard 8mm tubing.
This cylinder is a solid choice for budget-conscious buyers who need a 50mm bore for entry-level automation projects. It performs as expected without surprises, making it a reliable pick for first-time builders or as a replacement in non-critical circuits where cost sensitivity is the primary factor.
Why it’s great
- Smooth operation right out of the box with good cushioning response
- Lightweight build makes mounting and positioning easier
- Standard PT1/4 port compatible with common pneumatic fittings
Good to know
- Lighter construction may limit lifespan under continuous high-cycle use
- No documentation or spec sheet included
FAQ
Can I use a pneumatic air cylinder for a high-force press application?
How do I stop my pneumatic cylinder from slamming at the end of stroke?
What size air compressor do I need for a 63mm bore 300mm stroke cylinder?
Can I use NPT fittings on a cylinder with PT (BSPT) threads?
Final Thoughts: The Verdict
For most users, the best pneumatic air cylinder overall is the Baomain SC 63 x 150 because it delivers proven force output at standard shop pressure with a well-balanced bore-to-stroke ratio that fits a wide range of automation and DIY applications. If you need extended travel for a press or lift, grab the Baomain SC 63 x 300. And for maximum heavy-duty force, nothing beats the Baomain SC 100 x 200.
