Our readers keep the lights on and my morning glass full of iced black tea. As an Amazon Associate, I earn from qualifying purchases.9 Best 2 Post Rack | Best 2 Post Rack for Heavy Network Gear

Check Price on Amazon

The StarTech RK12WALLOA hits the sweet spot between commercial-grade build quality and a form factor that fits standard network closets. Its adjustable depth range (12 to 20 inches) accommodates everything from shallow patch panels to deeper UPS units without requiring a separate extended-rail kit. The 198-pound static capacity handles a fully loaded 12U configuration — think four 24-port patch panels, two 48-port switches, and a handful of active devices — without measurable rail deflection.

Assembly requires some time due to the number of included brackets, but the hardware pack is complete with M6 cage nuts, screws, and plastic washers. Users consistently report that the completed frame feels rock-solid, especially when mounted into studs or a plywood backer. The open-frame design provides unimpeded airflow from all sides, eliminating the need for supplemental cooling in most moderate-density setups.

One detail that separates this rack from cheaper alternatives: the front and rear horizontal brackets are thick enough to prevent twisting during assembly, which keeps the vertical rails perfectly parallel even before wall anchors are tightened. This precision matters when you are sliding equipment into cage nuts — misaligned rails turn a five-minute install into a frustrating fight.

Check Price on Amazon

This 18U variant from StarTech shares the same DNA as the 12U model but adds six more rack units of capacity and an even thicker vertical rail — 2.0mm SPCC cold-rolled steel versus the 1.5mm found on most budget frames. The 200-pound load rating is conservative; the rail structure can handle temporary overloads during equipment shuffling without permanent deformation.

The adjustable depth mechanism works identically to the 12U version, allowing the rear brackets to slide forward or backward across a 12-to-20-inch range. This flexibility is critical when mounting longer devices like a 16-inch-deep UPS or a 19-inch AV receiver in the same rack as shallow 10-inch networking gear. The package ships flat-packed in ISTA-6 certified packaging, which nearly eliminates the risk of bent rails arriving at your door.

Enterprise installers will appreciate the included M6 cage-nut kit with plastic washers — a detail that prevents galvanic corrosion between steel screws and aluminum equipment ears. The open frame also leaves room for toolless vertical PDU mounting on the rear, something few wall-mount 2 post racks offer at this price tier.

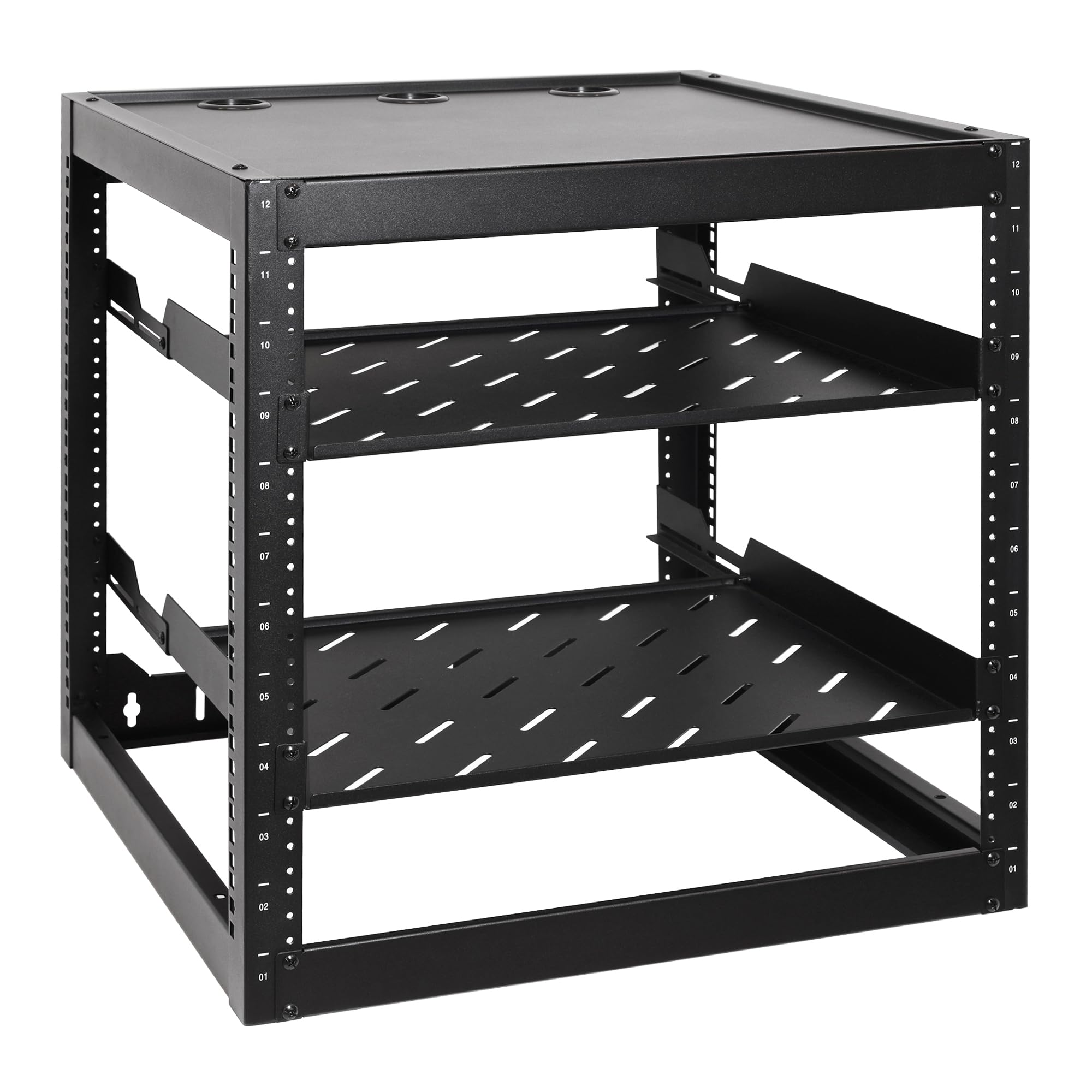

Check Price on Amazon

The RackPath 12U punches above its price bracket by including two vented 1U shelves with rear support brackets — an outlier at this cost level where most competitors ship bare frames. Each shelf is 14 inches deep and can hold heavier standalone devices like a modem, DVR, or desktop UPS without sagging. The 150-pound overall static rating is adequate for a typical home-lab stack: a 24-port PoE switch, patch panels, a router, and a few shelf-mounted devices.

Assembly is straightforward with the included 30× 10-32 screws and 8× M5 wood screws for wall mounting. The cold-rolled steel frame carries a black powder-coat finish that resists scratching during repeated equipment swaps. Users note that the usable rack space measures closer to 10 or 11U because the top and bottom U positions are partially blocked by the frame extrusions — a quirk to plan for when counting U-height for deep equipment.

One trade-off: the welded corners prevent using cage nuts, so you are limited to the supplied 10-32 screws. This is fine for semi-permanent setups but less flexible if you frequently rearrange gear. The rear struts also slightly reduce the effective mounting depth, so confirm your longest device fits the advertised 14-inch shelf depth before committing heavy UPS units to the shelves.

Check Price on Amazon

Tripp Lite’s SR2POST is the benchmark for high-density 2 post racks. At 45U and 800 pounds of rated capacity, this aluminum frame handles full-depth servers, dense patching fields, and multiple PDUs without any visible flex. The round 12-24 threaded mounting holes are numbered — a timesaver when documenting which U slot holds which device in a data sheet or network diagram.

The self-squaring design ensures the vertical rails stay parallel during assembly, and the wide base provides stability without bolting to the floor for moderate loads. If you are loading this rack with heavy UPS units or deep chassis, Tripp Lite recommends floor anchoring, but for switch-and-patch use the rack remains stable on its own. The toolless vertical-PDU and cable-manager mounting is a genuine productivity gain when deploying large cable bundles.

Despite the aluminum frame being lighter than equivalent steel racks, the SR2POST feels dense and well-braced. Users consistently report that assembly takes under ten minutes with just a hex key, and the included D-rings provide basic cable management right out of the box. For IT professionals building out an MDF or a sizable home lab, this is the closest you can get to a data-center-grade relay rack without a custom order.

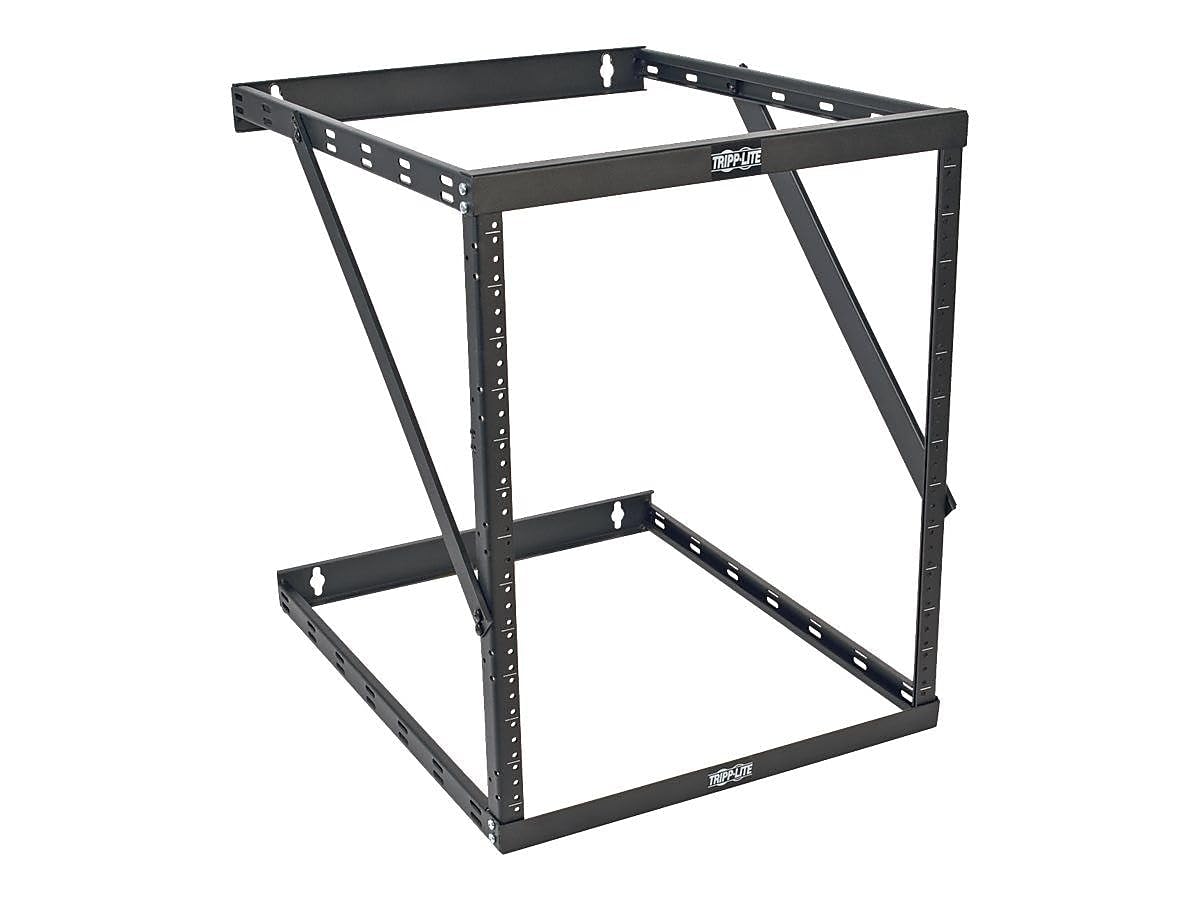

Check Price on Amazon

This Tripp Lite design is the only rack in the roundup that ships as a modular kit: you assemble it as an 8U, 12U, or 22U frame by choosing which vertical rails to install. The 23.5-inch maximum depth is generous enough for most tower UPS units and deeper network switches, making it one of the few wall-mount racks that can swallow a full-depth 1U server.

The 150-pound static rating is consistent across all three height configurations. The assembly includes short and medium vertical rails plus metal support straps that run diagonally across the frame to reduce side-to-side wobble — a common weak point in expandable racks. Users confirm that after bolting into studs or a plywood backer, the rack feels planted even with a loaded 22U stack of patch panels and switches.

The biggest advantage here is future-proofing. If you start with an 8U setup and later upgrade to a 22U configuration, you do not need to buy a whole new rack — just add the longer rails (which are included in the box). This modularity makes it the smart choice for growing home labs or small offices where the equipment footprint will expand over time.

Check Price on Amazon

The Tecmojo 6U is built for shallow network closets where every inch of depth matters. At 18 inches deep with 16-inch-apart mounting holes, it fits standard 19-inch equipment but keeps a slim profile that does not protrude into walkways. The 110-pound static load rating is sufficient for a few patch panels, a 24-port switch, and a small UPS — the kind of lightweight stack found in IDF closets or corner network cabinets.

The standout feature is the 180-degree swing gate that allows rear cable access from either side. This is a real timesaver when the rack is mounted in a tight corner where one side is against a wall — you can hinge the gate to open toward the accessible side without unmounting the entire frame. The dual-mode rails accept either square holes (with cage nuts) or tapped holes, giving you the flexibility to use standard 12-24 screws without extra hardware.

Assembly is straightforward, with a drilling template and video guide included. Users note that mounting the rack requires a perfectly flat wall surface — any unevenness can twist the frame due to its relatively lightweight construction. Once secured, the rack holds its alignment well and provides excellent airflow thanks to the fully open design.

Check Price on Amazon

The Tedgetal 12U wall mount rack stands out for its 230-pound capacity — the highest in the wall-mount category in this roundup, tied only with the StarTech 18U. Made from SPCC cold-rolled steel, the frame supports heavier equipment loads without the sagging that plagues thinner racks. The 18-inch depth is standard for most AV and networking gear, and the 19.7-inch width accommodates rack shelves for non-rackmount devices like video game consoles.

Assembly uses a security torx bit (included) and requires bolting into studs or a solid plywood backer. Users report that the keyhole slots on the mounting brackets accept HeadLok bolts cleanly, which simplifies alignment during installation. The included cage nut set is light (only 11 count), so budget for additional cage nuts if you plan to fully populate all 12U of mounting space.

The open-frame design provides unobstructed airflow and cable access from all sides. The three-year limited warranty and lifetime technical support add peace of mind for a rack at this price tier. The one caveat: the included instructions are sparse, but the build is intuitive enough for anyone who has assembled a 2 post rack before.

Check Price on Amazon

The NavePoint 22U fills a specific niche: a floor-standing 2 post rack that is tall enough for medium-density equipment but compact enough to not dominate a room. The 330-pound capacity comfortably holds a mix of switches, patch panels, and a UPS. The open-frame design and included casters make it easy to roll into position for cable management and then lock it in place (two of the four casters have brakes).

The self-squaring structure with bolt-down provisions keeps the frame stable, though users caution that the 90-degree angle joints can flex under heavy cantilevered loads — distributing weight evenly across both posts is essential. The square-punched holes accept cage nuts, giving you flexibility to swap gear without worrying about stripped threads. The included cage nut supply is generous, with enough for most configurations.

Assembly is more involved than wall-mount racks due to the taller height and additional cross braces, but the result is a stable platform that can serve as the backbone of a growing network setup. The flat-pack shipping means you will spend 30-45 minutes with a hex key, but the end result is a rack that feels significantly more robust than its price suggests.

Check Price on Amazon

The NavePoint 45U is the heavyweight champion of this roundup. With an 881-pound static capacity and 84 inches of vertical space, it can hold a full data-center stack in an open-frame footprint. The cold-rolled steel construction with a black powder-coat finish ensures long-term durability, even in humid environments. The included cable hooks help route bundles cleanly along the rear of the rack.

This rack uses square-punched holes throughout, requiring cage nuts for every device mount. While this adds a step to initial deployment, it offers total flexibility for reconfigurations — you never have to worry about stripped threads. The floor-mount-only design with a self-squaring base provides a stable platform, but the sheer height means you need to distribute weight carefully to avoid top-heavy instability. Users recommend bolting the base to the floor if you plan to load the top half of the rack with heavy equipment.

Assembly is a two-person job due to the tall frame and heavy steel components. The 14.3-inch depth is on the shallower side, so deep servers (over 20 inches) may overhang the rear — plan your cable management accordingly. Despite these quirks, the NavePoint 45U delivers the most capacity per dollar for anyone who needs a full-height relay rack without a four-figure price tag.
