A 4 3/4 inch hole saw is a punishing tool when you pick the wrong one. The wrong choice grabs, overheats, and dulls before you finish the first real cut through stainless steel or concrete block. The right choice delivers a clean circle in minutes with minimal effort. The difference is not brand hype — it is the tooth material, the shank design, and how the pilot bit behaves under load. This guide breaks down exactly those specs so you buy the correct saw for your material the first time.
I’m Min — the co-founder and writer behind Gadgets Feed. My research for this guide involved cross-referencing TCT, bi-metal, and diamond tooth geometries with actual user breakage reports, cutting-depth limitations, and arbor compatibility across seven competing 4 3/4 inch models.
After analyzing hundreds of verified customer reviews and technical specs, this article reveals the only 4 3/4 hole saw that balances raw cutting speed with long-term durability for common home and professional materials.
How To Choose The Best 4 3/4 Hole Saw
A 4 3/4 inch hole saw is a large-diameter cutter that demands matched tooth material and arbor strength. The three variables that decide success are the tooth composition, the shank type, and the effective cutting depth. Ignoring any one of these turns a simple drilling job into a tool-buying cycle.
Tooth Material: TCT vs Bi-Metal vs Diamond
Tungsten Carbide Tipped (TCT) saws handle hard metal, stainless steel, and iron without dulling quickly. Bi-metal M42 saws with 8% cobalt are better for wood, plastic, and thin metal because they resist heat but lack the hardness for abrasive materials. Diamond-tipped saws are strictly for tile, porcelain, granite, and glass — they fail fast on steel or iron. Match the tooth material to your primary workpiece or you will replace the saw after two holes.
Shank and Arbor Compatibility
The standard arbor thread for large hole saws is 5/8-18 UNF. Some carbide models use a 3/8″ three-flatted shank that fits standard drill chucks without a separate arbor. Verify your drill’s chuck capacity — a 3/8″ triangle shank works in most cordless drills, but a 5/8-18 threaded saw requires you to own the matching mandrel. Buying a saw that does not fit your drill is the most common mistake in this category.
Cutting Depth
A standard 4 3/4 hole saw cuts between 1-3/8 inches and 1.75 inches deep in one pass. If you are drilling through a 2×4 or a thick concrete block, you need the deeper variant. Cutting beyond the saw’s depth forces you to break out the core manually, which risks cracking the workpiece or bending the saw body. Check the spec sheet for barrel depth before you order.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| MaxTool 4-3/4″ Bi-Metal | Bi-Metal | Wood, Plastic, Thin Metal | 1.75″ cutting depth, M42 cobalt | Amazon |
| DECKRKAT 4-3/4″ TCT | Carbide | Stainless Steel, Iron, Hard Metal | 120mm TCT, spring-loaded pilot | Amazon |
| GUICGOC 120mm Concrete Saw | Carbide | Concrete, Brick, Cement Block | SDS Plus shank, 7.7mm teeth | Amazon |
| DECKRKAT 4-3/4″ Diamond | Diamond | Porcelain Tile, Granite, Glass | 3/8″ triangle shank, wet/dry | Amazon |
| GSTK 20-Piece Carbide Kit | Carbide | Multi-size, hard metal | 15 size range, 5 extra pilots | Amazon |
| KATA 28-Piece Bi-Metal Set | Bi-Metal | Thin metal, drywall, hardwood | 22 saws up to 121mm, case | Amazon |
| GSTK 26-Piece Carbide Set | Carbide | Heavy duty metal, stainless | 24 saws up to 100mm, no case | Amazon |
In‑Depth Reviews
1. MaxTool 4-3/4″ Bi-Metal Hole Saw 121mm
The MaxTool 4-3/4″ delivers the deepest single-pass cutting depth in this roundup at 1.75 inches, which means you can bore through a 2×4 stud or a thick composite desktop without having to stop and break out the core. Its M42 high-speed steel with 8% cobalt offers excellent heat and wear resistance for mixed-material jobs including metal, wood, plastic, and composite panels.
The variable 4/6 tooth-per-inch pattern reduces vibration noticeably compared to fixed-tooth designs, producing smoother cuts and less chatter at the entry point. The 5/8-18 UNF thread fits standard arbors securely, and the vacuum-hardened teeth stay sharp longer than basic bi-metal blades. Users report clean cuts through Formica-topped desks and plywood without burning or grabbing.
This saw is a premium-tier choice that excels when you need one reliable 4 3/4 inch cutter for general construction and renovation work. The tradeoff is that the bi-metal construction is not ideal for hardened steel or stainless — those materials require TCT or diamond teeth. For wood, plastic, and thin metal, this is the most capable single-saw option available at this size.
Why it’s great
- Deepest 1.75″ cutting depth reduces pass-through work
- M42 cobalt teeth resist heat buildup during extended use
- Variable tooth pitch minimizes vibration and chatter
Good to know
- Not suitable for stainless steel or hardened alloys
- Requires a 5/8-18 arbor mandrel (not included)
- High torque can cause kickback if drill is not braced
2. DECKRKAT 4-3/4″ TCT Hole Saw for Hard Metal
The DECKRKAT TCT hole saw is built specifically for hard metals — stainless steel, aluminum, iron, and copper. The tungsten carbide tipped teeth stay sharp far longer than bi-metal alternatives when cutting abrasive materials, and users report cutting through heat-treated steel and steel trailer frames without losing tooth geometry after 13+ holes.
The kit includes a 4-3/4 inch (120mm) saw with a 1-inch cutting depth, a spring-loaded pilot drill bit for debris extraction, and a hex wrench. The 3/8″ three-flatted shank fits standard drill chucks directly, eliminating the need for a separate arbor. The pre-oiled plastic case provides rust-resistant storage, which matters for carbide tools that can corrode if stored damp.
The main drawback reported by users is that the included pilot bits are brittle and break quickly, especially when drilling at an angle or without proper lubrication. Several reviews recommend swapping the pilot bit for a cobalt alternative before starting. For the price, this is a premium value if you already own good pilot bits and need a serious metal-cutting 4 3/4 inch saw.
Why it’s great
- TCT teeth cut stainless and iron without dulling quickly
- Three-flatted shank fits most drills without an arbor
- Pre-oiled case prevents rust during storage
Good to know
- Included pilot bits are prone to breakage under stress
- 1-inch cutting depth is shallower than bi-metal competitors
- Not intended for wood, tile, or concrete
3. GUICGOC 120mm Concrete Hole Saw
This is the only dedicated concrete 4 3/4 inch hole saw in the lineup. It uses tungsten carbide teeth measuring 7.7mm x 4mm on an alloy steel body, paired with a 220mm SDS Plus connecting rod that locks into rotary hammers. The kit includes a center positioning drill bit and two positioning screws to prevent walk on vertical surfaces.
Users report dry-drilling through 10-inch deep concrete and solid cement block, with the bit still holding life after four deep holes. The water-cooling compatible design keeps the carbide teeth from overheating during extended use, and the price is significantly lower than equivalent Home Depot options. It is not intended for ceramic, tile, or glass — those materials require a diamond core saw instead.
The limitation is that this saw is purpose-built for masonry and will fail quickly on steel, wood, or plastic. The SDS Plus shank also means it only works with SDS rotary hammers, not standard drill chucks. For anyone installing split AC lines, ductwork, or conduit through concrete or brick, this is the correct specialist tool at a mid-range cost.
Why it’s great
- Carbide teeth survive deep concrete drilling with water cooling
- SDS Plus shank provides secure hammer drill connection
- Much cheaper than major brand concrete hole saws
Good to know
- Not compatible with standard drill chucks
- Cannot be used on tile, glass, or ceramic
- Dry drilling requires frequent dust clearing

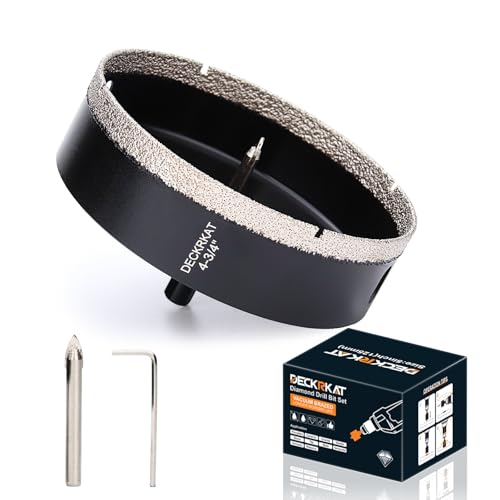

4. DECKRKAT 4-3/4″ Diamond Hole Saw with Pilot Bit
The DECKRKAT diamond hole saw is the only 4 3/4 inch option designed for abrasive hard surfaces like porcelain tile, granite, ceramic, glass, and concrete countertops. The diamond-tipped cutting edge combined with a 3/8″ triangle shank provides good chuck grip, and the wet/dry diamond core design extends bit life significantly when used with water cooling.
Users report cutting four holes through 1.5-inch thick granite from both sides using a plywood template and water spray, producing smooth edges without chipping. The included pilot drill bit centers the cut precisely before removal, after which the diamond saw can be used with a wobbling motion to clear debris and reduce binding. The saw cuts concrete blocks for outdoor lighting with equal effectiveness.
The primary concern is that the saw body can flex and bend on deeper cuts, causing wobble that requires a rigid drill press setup or very steady hand pressure. The cutting depth is only 1-3/8 inches, which limits single-pass capability on thicker stone. For tile and granite work, this is a premium specialized saw, but the flex issue means it is not ideal for production-level masonry cutting.
Why it’s great
- Diamond grit cuts porcelain and granite smoothly
- Wet/dry design extends bit life significantly
- Triangle shank provides secure chuck grip
Good to know
- Body can flex on deep cuts causing wobble
- Only 1-3/8″ cutting depth per pass
- Not suitable for metal, wood, or plastic
5. GSTK 20-Piece Heavy Duty Carbide Hole Saw Kit
The GSTK 20-piece kit provides 15 different hole saw sizes ranging from 12mm to 50mm, plus five extra titanium-plated pilot bits and two replacement springs. This is a mid-range kit built around TCT cemented carbide teeth that handle stainless steel, metal, iron, plastic, aluminum, and fiberglass without dulling as fast as basic HSS sets.
Users highlight that the sharp-toothed blade produces very fast cuts in smoked acrylic and steel, but warn that the aggressive cutting action can cause the drill to catch if not stabilized properly. The double circle design aids chip removal and cooling, which is essential when drilling continuously at high speeds. The kit works with cordless drills, hand drills, and drill presses.
The downside is inconsistent durability — some users report the saw breaks after the first use, while others praise its longevity. This suggests batch variability. The kit does not include a dedicated 4 3/4 inch saw; the largest size is 50mm. If you specifically need a 4 3/4 inch cutter, this kit is not the primary solution, but for someone who needs multiple smaller sizes plus the capability for metal, it is a solid mid-range investment.
Why it’s great
- 15 different sizes cover most small-to-medium holes
- TCT teeth cut stainless and iron effectively
- Extra pilot bits and springs included for replacement
Good to know
- Does not include a 4 3/4 inch saw — largest is 50mm
- Durability varies between units
- Requires coolant for continuous high-speed drilling
6. KATA 28-Piece Bi-Metal Hole Saw Kit
The KATA 28-piece kit is the most complete set in this guide that actually includes a 4 3/4 inch (121mm) blade. It offers 22 bi-metal hole saws from 19mm to 121mm, two mandrels, four drill bits, and a hex key, all housed in a heavy-duty plastic case with designated slots. The M42 steel construction provides rust and wear resistance suitable for thin metal, hardwood, and drywall.
Users report clean cuts through sheet metal with minimal burring, and the case keeps every piece organized and protected. The kit is designed for drills with 3/8″ and 7/16″ chucks. The 4 3/4 inch blade in this set shares the same bi-metal composition as the rest, making it suitable for general construction but not for stainless or hardened steel.
The main criticism is that the case labels sizes in metric only, while the blades themselves have US size stamps that become unreadable after use. Users who store tools by case label may find the metric-only system frustrating. Additionally, removing plugs from the deeper blades can be challenging. For a professional needing a wide range of sizes up to 4 3/4 inches in one organized case, this is a premium kit with good value.
Why it’s great
- Includes a true 4-3/4″ blade in a comprehensive 22-piece set
- M42 bi-metal resists rust and wear on common materials
- Heavy-duty case with designated slots for organization
Good to know
- Case labels are metric-only, US sizes on blades fade
- Plug removal from deep blades can be difficult
- Not suitable for stainless steel, tile, or glass
7. GSTK 26-Piece Heavy Duty Carbide Hole Saw Set
The GSTK 26-piece set offers 24 carbide hole saws ranging from 13mm to 100mm, plus two extra titanium-plated pilot center drills. The TCT alloy steel construction is designed for stainless steel, metal, iron, and plastic, with an upgraded blade alloy that the manufacturer claims extends service life five times longer than standard carbide openers.
Users report cutting through 1/4-inch stainless steel in under a minute and through galvanized metal poles with no issue. The sharp, tipped tooth blade produces fast cuts, and the double circle design aids chip evacuation and heat dissipation. The set works with cordless drills, bench drills, and electric drills, making it versatile for various setups.
The critical drawback is that this set does not include a storage case — each saw comes in individual plastic tubes. This makes organization difficult without a dedicated drawer or toolbox. Several users deducted stars specifically for the missing case. Also, the largest size is 100mm (approximately 3-15/16 inches), so it does not include a true 4 3/4 inch saw. For heavy-duty metal cutting in a range of sizes, this is a budget-friendly option if you can manage storage yourself.
Why it’s great
- Carbide teeth cut stainless and metal very quickly
- 24 size range covers most common hole diameters
- Extra pilot bits included for replacement
Good to know
- No storage case — individual plastic tubes only
- Largest saw is 100mm, not a true 4-3/4″
- Requires coolant and safety gear at high speeds
FAQ
Can a 4 3/4 inch hole saw cut through stainless steel?
What is the correct arbor for a 4 3/4 inch hole saw?
Final Thoughts: The Verdict
For most users, the 4 3/4 hole saw winner is the MaxTool 4-3/4″ Bi-Metal because it delivers the deepest cutting depth and smoothest cut for wood, plastic, and thin metal projects. If you need hard metal cutting capability, grab the DECKRKAT 4-3/4″ TCT for its durable carbide teeth. And for concrete and masonry work, nothing beats the GUICGOC 120mm Concrete Hole Saw at its price point.
