A wall-mounted rack for 19-inch gear solves two problems at once: it reclaims floor space and keeps network switches, patch panels, and AV equipment off the carpet where dust and accidental kicks can cause downtime. The 4U form factor hits the sweet spot for a home lab or a small office IDF — tall enough for a full-size switch plus a patch panel or two, yet shallow enough to tuck under a desk or inside a closet.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve combed through dozens of spec sheets, verified steel thickness claims, and cross-referenced real customer load tests to separate the racks that sag under a 48-port PoE switch from the ones that hold rock-steady for years.
This guide covers seven models with different depth, weight, and enclosure priorities so you can find the right 4u wall mount rack for your specific equipment and mounting surface.
How To Choose The Best 4U Wall Mount Rack
Three numbers matter above everything else when you pick a wall-mount rack for 19-inch gear: the depth in inches, the steel thickness in millimeters, and the load rating in pounds. Ignore any of these and you risk buying a rack that either doesn’t fit your switch or buckles under its weight.
Depth — the first compatibility check
Measure the distance from the front mounting flange of your equipment to the rearmost protrusion (including cables with a 90-degree bend). A 4U rack with a fixed 7.4-inch depth handles shallow patch panels only, while adjustable models stretching to 15.5 inches accommodate a standard 12-inch-deep switch with room for rear cable management.
Weight rating and steel gauge
Most 4U racks carry a 40–66 lb limit. A 48-port PoE switch alone weighs 10–15 lb, but once you add a UPS, patch panels, and cable bundles, the total can hit 40 lb quickly. Look for 1.5 mm cold-rolled steel or thicker — 2.0 mm steel adds noticeable torsion resistance that prevents the rack from twisting when mounted with equipment cantilevered off the front.
Open frame versus enclosure
An open-frame rack gives every component direct access to ambient air, which is ideal for a closet with limited airflow. A vented enclosure with a lockable door keeps curious hands off the cables in a public area, but you lose some passive cooling efficiency unless the box has top and bottom vent knockouts.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| RIVECO 4U | Open Frame | Heavy loads up to 66 lb | 2.0 mm cold-rolled steel | Amazon |
| OCEANHUG 4U | Open Frame | Zero assembly, foldable design | 12 inch depth | Amazon |
| NavePoint 4U Bracket | Open Frame | Adjustable depth 9.5–15.4 inch | 180-degree hinged gate | Amazon |
| Electriduct 4U | Enclosure | Lockable door for public spaces | Solid steel door with key lock | Amazon |
| NavePoint 4U Vented | Enclosure | Vented enclosure, ships assembled | 60 lb weight capacity | Amazon |
| NavePoint Vertical 4U | Open Frame | Ultra shallow depth (7.4 inch) | 44 lb capacity, 2.35 lb rack | Amazon |
| NavePoint 6U | Open Frame | Extra depth (16 inch) for full servers | 6U height, 200 lb capacity | Amazon |
In‑Depth Reviews

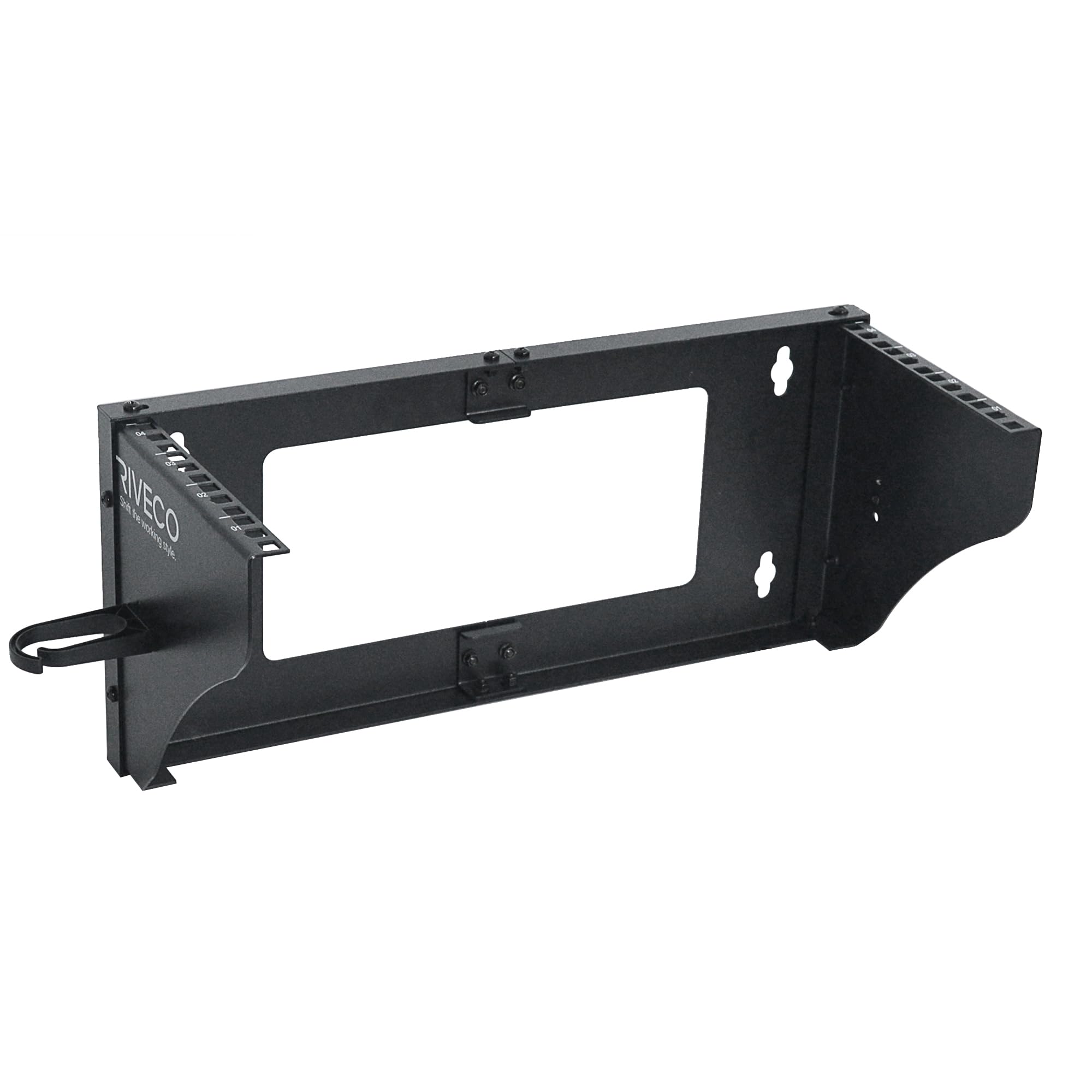

1. RIVECO 4U Wall Mount Rack
The RIVECO 4U uses 2.0 mm cold-rolled steel with a reinforced center joint, which makes it the stiffest open-frame rack in this roundup. Where most competitors use 1.5 mm steel and rely on the wall plate for rigidity, the RIVECO’s middle bracket ties the two side panels together so the rack resists twisting even when a heavy 48-port switch is mounted near one end of the rail.
Real-world builders have loaded this rack with over 60 lb of gear — a full-size switch, patch panels, and a UPS — and reported zero sag. The 8.1-inch internal depth is tight for equipment deeper than 7.5 inches, but the open sides let cables loop out the back without needing rear clearance. Assembly takes about ten minutes with the included hex key, and the kit comes with M6 cage nuts, M5 rack screws, and wall bolts for wood studs or masonry.
One quirk noted by several users: the arms with square holes don’t always align perfectly with the back panel, which can scuff the powder coat during first assembly. Once mounted, the gap doesn’t affect structural integrity, but it means the rack requires a little patience during the initial build.
Why it’s great
- 2.0 mm steel provides exceptional torsion resistance under heavy loads
- Reinforced center joint distributes weight evenly between both side panels
- Includes both M6 and M5 hardware plus wall anchors for masonry
Good to know
- Square-hole alignment can leave a small gap after assembly
- 8.1 inch depth limits compatibility with gear deeper than 7.5 inches
2. OCEANHUG 4U Wall-Mount & Desktop Rack
The OCEANHUG 4U skips assembly entirely — it ships flat and folds into shape, making it the fastest path from box to mounted rack. The 12-inch internal depth accommodates shallow servers, standard 19-inch switches, and most consumer patch panels without forcing cables to bend at sharp angles inside the frame.
The static load rating for wall-mount use is 180 lb, which far exceeds any realistic load in a 4U configuration. A perforated mesh top panel promotes airflow across the equipment, and the rubber feet on the bottom let you set it on a desk or shelf without scratching the surface. The included 1U blank panel adds a little extra rigidity when the rack is wall-mounted, though several users note the supplied drywall anchors are smooth and require a socket to drive — replacing them with toggles or wedge anchors costs very little.
A few builders reported that the rear mounting holes may not hold a heavy UPS securely when the rack is hung vertically, so this model works best with lighter gear like switches, routers, and patch panels. For a desk setup, the fold-out legs and rubber feet make it rock-solid with zero wobble.
Why it’s great
- No tools or assembly required — unfold and mount in under two minutes
- 12 inch depth fits common enterprise switches with room for rear cables
- Can be used as a desktop stand or wall-mounted for flexibility
Good to know
- Included drywall anchors are poor quality — plan to buy your own
- Rear mounting holes may not securely hold very heavy items like a UPS
3. NavePoint 4U Patch Panel Bracket
This NavePoint bracket stands out for its adjustable depth range jumping from 9.5 to 15.4 inches, which lets it fit everything from shallow patch panels to deeper rack-mount UPS units. The 1.5 mm cold-rolled steel construction with a hinged front gate that opens 180 degrees from either side makes cable management at the rear much easier than a fixed-depth frame.
The 40 lb weight limit is lower than the RIVECO or OCEANHUG, but it still handles a fully loaded 48-port switch plus a couple of patch panels without issue. The dual-sided front gate features both threaded and universal square holes, so you can use standard cage nuts or threaded screws depending on your equipment. The rack ships pre-assembled — just unfold the sides and mount it to the wall.
Several users flagged a paint-over issue where the screw holes arrived coated, making it difficult to start the included M5 screws. A quick pass with a tap or a spare bolt clears the threads, but it’s an extra step on an otherwise well-designed bracket. The 16-inch mounting hole spacing works great for wood studs, but if your studs are misaligned, you’ll need to add blocking.
Why it’s great
- Adjustable depth from 9.5 to 15.4 inches fits a wide range of equipment
- Hinged gate opens 180 degrees from either side for easy rear access
- Dual threaded and square hole patterns offer mounting flexibility
Good to know
- Screw holes may arrive painted over and need re-tapping
- 40 lb weight limit means it won’t handle a full-size UPS plus heavy switch
4. Electriduct 4U Wall Mount Rack Enclosure
The Electriduct 4U is a full enclosure with a lockable solid steel door, making it the best choice for equipment installed in public hallways, retail spaces, or school corridors where physical security is a concern. The exterior dimensions are 21.25 inches wide by 13.875 inches deep, and the interior provides 19.25 inches of usable width for standard rack gear with adjustable mounting rails that can be repositioned to match the equipment depth.
Vented side panels allow passive airflow, and punch-outs on the top and bottom panels give you cable entry points without drilling. The door’s key lock acts more as a latch to keep curious fingers off the patch cables — it is not a high-security lock and can be picked or bypassed with basic tools, as several users noted. For a closet or back room, the latch is sufficient; for a truly public-facing installation, consider adding a separate hasp.
The biggest limitation is the internal depth of 13 inches, which rules out deeper enterprise switches or UPS units that require rear clearance. Some buyers also found the mounting bracket spacing (15 inches on center) doesn’t align with standard 16-inch stud spacing, so you may need to install plywood backing or use toggle bolts in drywall. The 12-24 cage nuts are included, but the hardware kit lacks wall mounting screws — you will need to supply your own.
Why it’s great
- Lockable steel door deters tampering in semi-public installation areas
- Adjustable mounting rails fit gear of varying depths inside the enclosure
- Vented side and top panels with rubber-plugged knockouts simplify cable routing
Good to know
- Mounting hole spacing is 15 inches on center, not the standard 16 inches
- 13 inch internal depth limits compatibility with deeper equipment
5. NavePoint 4U Vented Enclosure
This NavePoint 4U ships fully assembled, so you can take it out of the box, mount it to the wall, and load equipment without reaching for a single tool. The cold-rolled steel enclosure with vented slots on the top and sides provides better airflow than a solid-panel box, helping a 24-port PoE switch or a couple of patch panels stay within safe operating temperatures during 24/7 operation.
The max weight capacity is 60 lb, which covers a standard switch plus a shallow UPS or a few patch panels. The vertical or horizontal mounting orientation adds flexibility — you can place it under a desk in landscape mode or mount it vertically against a wall stud. Sixteen sets of cage nuts are included, which is enough for two full devices mounted front and rear.
Some users noted that the steel feels thinner than the 1.5 mm spec sheet suggests — it holds weight fine but flexes a little if you lean on the front door. The lockable front panel is removable with four screws if you want permanent access, but the latch design uses a simple cam lock that shouldn’t be relied upon for true security. This enclosure works best in a home lab or a locked IT closet where the door just keeps dust off the gear.
Why it’s great
- Ships fully assembled — no time wasted on construction
- Vented top and side panels promote airflow without compromising enclosure protection
- Can be mounted vertically or horizontally for placement flexibility
Good to know
- Steel feels slightly thin; the enclosure can flex under pressure
- Lock is a basic cam latch, not a security-grade solution
6. NavePoint 4U Vertical Wall Mount Rack
At only 7.4 inches deep, this NavePoint bracket is the most compact 4U rack in the lineup — ideal for mounting a single shallow switch or patch panel directly against a wall. The entire rack weighs just 2.35 lb, so you can install it on drywall with proper anchors without worrying about the rack itself pulling the fasteners out.
The 44 lb weight limit is enough for a fully loaded 24-port PoE switch and a couple of patch panels, but not for any gear that extends deeper than the rail. Several customers mounted it horizontally under a desk edge to hold a small network switch off the floor — the same bracket design works in both orientations. Powder-coat finish is consistent and resists scratching during installation.
The cage nuts provided are standard 12-24 size, but they can be difficult to seat because the square holes are slightly tight. Users also note that the mounting bracket attaches to the wall using a single row of screws rather than a full backplate, so the rack tends to pivot slightly under load if not anchored at both the top and bottom into solid material. This model is best for lightweight, shallow equipment in a clean, dust-free environment.
Why it’s great
- Extremely compact 7.4 inch depth for tight spaces and shallow equipment
- Very lightweight at 2.35 lb, reducing wall anchor stress
- Works vertically or horizontally under a desk for flexible placement
Good to know
- Single-row mounting may allow pivoting under heavy front loads
- Cage nut holes are tight and can be frustrating to seat
7. NavePoint 6U Wall Mount Rack
Though this rack is technically 6U instead of 4U, it deserves a spot on the list because it solves the single biggest complaint about standard 4U models: not enough depth. At 16 inches deep, this open-frame rack can accommodate full-depth servers and enterprise switches that simply won’t fit in a 4U enclosure, and it still mounts to the wall to keep floor space clear.
The 1.5 mm cold-rolled steel construction carries a 200 lb static load rating, which is more than enough for a shallow server plus a patch panel and a UPS. Assembly takes about five minutes with the four bolts that join the side pieces to the back plate. The open design promotes passive cooling, and the multiple cable-routing slots keep wiring organized without extra accessories.
A few users found the screw holes use M6 threading rather than the standard 12-24 or 10-32 rack screw thread, which means you’ll need to either use the provided M6 screws or buy adapters for your existing rack hardware. The rack also ships with only 12 screws — enough for one device — so plan to order additional screws if you plan to fill all 6U immediately.
Why it’s great
- 16 inch depth fits full-size servers and deep enterprise switches
- 200 lb weight capacity handles heavy combined loads without sag
- Simple 4-bolt assembly gets the rack operational in minutes
Good to know
- Uses M6 threading instead of standard 12-24 rack screw thread
- Only 12 rack screws included — not enough for a full load of gear
FAQ
What does 4U mean in a wall mount rack?
Can I mount a UPS in a 4U wall mount rack?
Do I need cage nuts or threaded screws for a 4U rack?
Final Thoughts: The Verdict
For most users, the 4u wall mount rack winner is the RIVECO 4U because its 2.0 mm steel construction and reinforced center joint deliver the highest load-bearing stiffness in this price tier. If you want a zero-assembly setup with a fold-flat design, grab the OCEANHUG 4U. And for a lockable enclosure that keeps hardware secure in semi-public spaces, nothing beats the Electriduct 4U with its solid steel door and vented side panels.
