The A.O. Smith B813 is the benchmark that other 5HP compressor motors are measured against. With 22 full-load amps on a 56HZ frame and a 7/8-inch flat shaft measuring 2.31 inches, it bolts directly onto most 60-gallon tanks without adapter plates. Owners report that this motor runs noticeably quieter and cooler than factory originals, especially when under-driven to around 850 RPM via pulley reduction.

Multiple long-term reviews confirm the B813 outlasts generic replacements — one user replaced a locally-sourced motor that burned out in a week, and the A.O. Smith has been running for weeks without issue. The copper windings and balanced rotor assembly reduce vibration at the base, which translates to fewer loose fittings over time.

The flat shaft design means you will need the correct pulley with a matching keyway, and the base plate may require slightly enlarged mounting holes on some older tanks. At 43.3 pounds, it is lighter than some competitors, but the build quality and thermal performance make it the safest bet for home shop owners who want a single-time replacement.

Check Price on Amazon

The Baldor 5HP motor from ABB is the gold standard for buyers who prioritize American manufacturing and a service factor that absorbs real overload. With a 1.15 service factor at 21.5 amps (230V) and full reversibility for CW or CCW rotation, this 56HZ frame motor handles dirty power and soft starts better than most. The 7/8-inch shaft diameter matches standard Quincy and Ingersoll Rand pulleys out of the box.

Users replacing factory Ingersoll Rand motors report that the Baldor is noticeably smoother at startup and produces less vibration during the entire pump cycle. The open drip-proof enclosure is fine for indoor shops, but the reinforced alloy steel housing and manual reset overload protector give this motor a noticeably denser feel than budget alternatives. One owner noted it fit his Quincy QT-54 perfectly with zero modification.

The electrical junction box is slightly cramped when using #10 AWG wire, and the shaft center height may differ from some IR-specific 56HZ frames, potentially requiring a new belt guard or shimming. At 50 pounds, it is built like a tank — but measure your bolt pattern carefully if you are replacing a non-Baldor unit.

Check Price on Amazon

The Leeson 120554 occupies a unique spot with its 145T NEMA frame — a larger footprint than the common 56HZ, with a 7/8-inch by 2.25-inch shaft and a full 20.8 amp draw at 230V. The Class F insulation system and manual overload protection make this a strong candidate for compressors that see frequent cycling in light commercial environments. The blue paint is distinctive, but the real value is the coil quality.

Users who swapped out factory Ingersoll Rand motors report the Leeson runs substantially quieter and feels more powerful at the same pulley ratio. One shop owner increased his pulley by 20% to overspeed the pump, and the Leeson handled the extra load without tripping. The electrically reversible design means you can switch rotation without rewiring the capacitor bank, saving time on non-standard pump orientations.

The 145T frame means the base is wider, so verify your bolt pattern before ordering. Returns carry a 10% restocking fee, so confirming fit with Regal Rexnord beforehand is wise. The 50-pound weight and copper windings justify the premium, but only if your compressor accepts the larger frame.

Check Price on Amazon

When you want zero guesswork on an Ingersoll Rand SS5L5 or 2340L5 compressor, this OEM motor is the direct-fit answer. The 56HZ frame, 22 full-load amps at 230V, and 3450 RPM match the factory spec exactly, so the mounting holes, shaft height, and pulley alignment are identical to the original. No drilling, no shimming, no adapter plates.

Multiple industrial users report this motor running for years in daily-use environments without any electrical or mechanical issues. The capacitor start/capacitor run design delivers high starting torque without the sluggish ramp-up that some universal replacements exhibit. The open drip-proof enclosure is adequate for indoor use, and the manual reset overload protector adds a layer of safety against thermal runaway.

A few buyers have noted that the motor lacks visible Ingersoll Rand branding, which creates confusion about warranty support. Some warranty claims have been denied on the basis of incompatibility, despite the OEM part number matching. If you are buying for a non-IR compressor, measure your base first — the bolt pattern is not universal across all 56HZ frames.

Check Price on Amazon

The US Motors 56283138 is built specifically as a replacement for Ingersoll Rand compressors, using a 184T frame that is physically larger than the standard 56HZ. With 24.9 full-load amps and a 1.15 service factor, this motor can handle sustained sandblasting or running heavy pneumatic tools without tripping. The capacitor start/capacitor run design delivers the highest starting torque in this roundup.

Users who installed this on IR SS5L5 units report that it bolts up correctly with no adapter needed, and the startup is noticeably quieter than the original. The steel frame and welded base add rigidity, reducing vibration transfer through the tank. The 7/8-inch by 2.25-inch keyed shaft matches standard IR pulleys, and the manual reset overload is easy to access.

The 184T frame is taller, so verify your belt guard clearance and pulley alignment before ordering. Some users have reported that the duty cycle is short — the motor overheats and needs a cooldown period when running continuous high-draw tools like sandblasters. Measure your incoming voltage; if it drops below 208V, this motor may struggle to start.

Check Price on Amazon

The EMZ EM-05 is a Chinese-made 56HZ frame motor that fills the gap between budget options and premium domestic units. At 22 full-load amps and 3450 RPM, it matches the electrical spec of name-brand 5HP motors, and the 7/8-inch keyed shaft with 2.375-inch length fits most standard compressor pulleys. The open drip-proof enclosure and alloy steel housing keep weight reasonable at under 30 pounds.

Buyers who replaced failed Emerson or Century motors on older Ingersoll Rand and Craftsman compressors report that the EM-05 starts reliably and runs quietly during the first few months. One user noted the windings feel tight and the shaft measures an exact 0.875 inches with minimal runout. The motor is non-reversible CCW-only, so confirm your pump rotation before buying.

The keyway has been reported as slightly loose (0.001–0.002 inches), and the electrical studs are small — requiring 1/4-inch spade connectors rather than standard #10 ring terminals. Several long-term reviews warn of bearing degradation after 4-6 months, leading to overheating and eventual failure. This is a solid short-term solution for light-duty shops, but not a set-it-and-forget-it for daily professional use.

Check Price on Amazon

The Edge Industrial EMZ is a no-frills 56HZ frame motor rated at 22 full-load amps on 230V with a 7/8-inch keyed shaft. It is explicitly non-reversible (CCW only), so pump rotation must be verified before purchase. The copper windings and 1.0 service factor are standard for this class, and the motor ships with a wiring diagram printed on the nameplate for straightforward hookup.

Customer feedback highlights fast shipping and a direct fit on many 60-gallon compressor rebuilds. One user replaced a false-rated 5HP motor and found that the Edge Industrial ran the new compressor head effortlessly, feeling underloaded even at full tank pressure. The motor is compact at 6.5 by 7.5 inches, making it easy to maneuver into tight compressor enclosures.

Warranty issues have been reported — one motor failed after three weeks and the vendor required a 50% restocking fee for returns. Another user reported the motor filled the garage with smoke after several months, and the vendor refused to honor the warranty, claiming the motor was incompatible with Ingersoll Rand pumps. Read the return policy carefully and confirm voltage stability above 208V before buying.

Check Price on Amazon

The P56 frame uses a 5/8-inch shaft and flat rigid base mount, which is smaller than standard 56HZ motors. This means it fits older compressors like 25-year-old Craftsman tanks where the bolt pattern and pulley are non-standard.

Users who replaced worn-out factory motors on 20-gallon and 60-gallon tanks report that the B385 bolts in with some adaptation — typically requiring the inner part of an adjustable 56-frame base and a longer power cord due to the junction box location. One owner upgraded from a 3HP to this 5HP SPL motor and saw a noticeable improvement in fill speed with the same electrical setup.

The 15-amp draw means this motor is not a true 5HP in terms of continuous output — it is a high-torque SPL unit designed for intermittent duty cycles. Several long-term reviews report capacitor failure within days or weeks, with one customer experiencing an exploding start capacitor after four days. If you need real 5HP sustained power, look at the 22-amp motors in this list. The B385 is best for light-use retrofits on older tanks with smaller shafts.

Check Price on Amazon

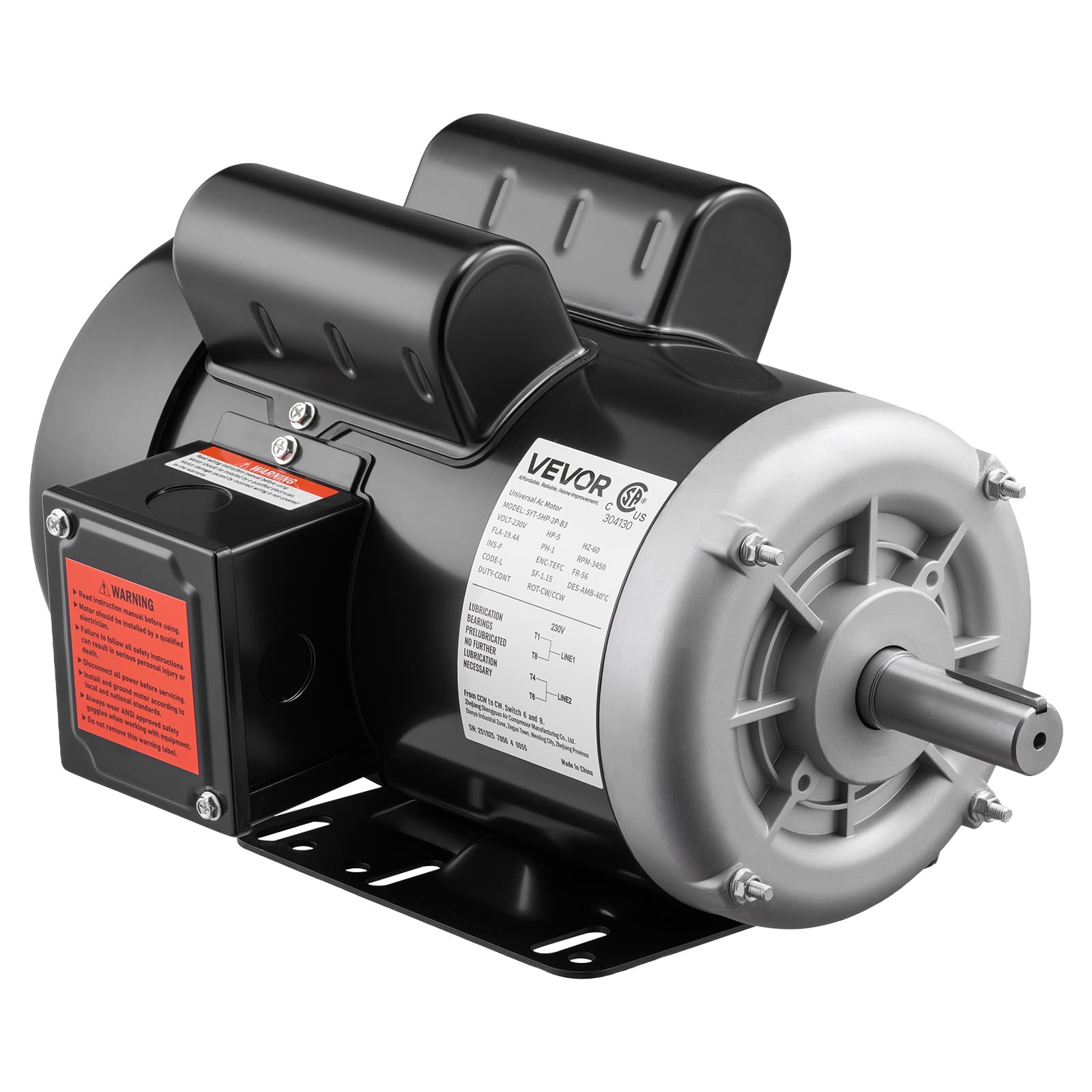

The VEVOR 5HP motor stands out in the budget tier with its Totally Enclosed Fan Cooled (TEFC) design — unusual at this price point — which protects against dust and debris better than open drip-proof alternatives. The rolled steel housing and 10.14 N.m rated torque deliver reliable startup power for water pumps, agricultural machinery, and compressor replacements. CSA certification adds a layer of confidence.

The reversible CW/CCW rotation simplifies wiring for users who need to adapt to different pump orientations, and the manual reset overload protector keeps the motor from cooking itself under sustained load. The 0.875-inch keyed shaft with 2.25-inch length fits standard pulleys, and the included user manual provides basic wiring guidance — though multiple buyers noted the instructions are ambiguous and require external research for correct hookup.

At 51.8 pounds, this is a heavy unit for its class. Several users successfully used it as a replacement for old Craftsman table saws and Delta Unisaws, not just compressors. However, the knock-outs in the junction box are stiff and difficult to remove, and the wiring diagram is poorly translated, causing confusion on capacitor connections. If you are comfortable with basic electrical work, the VEVOR delivers functional 5HP performance without the premium price tag.
