Swapping wheels between heavy-duty trucks with different bolt patterns used to mean custom machining or hunting for rare wheel sets. An 8 lug to 6 lug adapter changes that equation entirely — it lets you mount a common 6-lug rim onto an 8-lug hub, opening up aftermarket wheel options and solving clearance issues without replacing your entire axle assembly. The real challenge is finding an adapter that handles the torque, weight, and vibration of a full-size pickup or SUV without introducing wobble or hardware failure.
I’m Min — the co-founder and writer behind Gadgets Feed. I’ve spent countless hours analyzing the technical specifications, load ratings, and real-world user reports on heavy-duty wheel adapters to separate the precision-machined units from those that compromise on safety.
This guide breaks down the forged construction, center bore fitment, and thread pitch details that determine whether your 8 lug to 6 lug adapter performs reliably under load or becomes a source of vibration and stress on your drivetrain.
How To Choose The Best 8 Lug To 6 Lug Adapter
Choosing the wrong adapter can lead to wheel separation, bearing wear, or persistent vibrations. Focus on three core factors: material and manufacturing process, center bore compatibility, and stud grade and pitch.
Forged 6061-T6 Aluminum vs. Cast Alternatives
Forged 6061-T6 aluminum is the standard for heavy-duty adapters because the forging process aligns the grain structure of the metal, increasing yield strength by roughly 30% compared to cast aluminum. Cast adapters are cheaper but more prone to cracking under the high cyclic loads of a heavy truck or loaded trailer. Always verify the manufacturing method before purchase — listings that say “forged” explicitly cross-reference with CNC-machined details for accuracy.
Center Bore Fitment: Hub-Centric vs. Lug-Centric
A hub-centric adapter has a center bore that matches your vehicle’s hub diameter exactly, transferring the weight of the vehicle through the hub rather than the lug nuts. Lug-centric designs rely on the lug nuts to center the wheel, which can cause vibration if tolerances are loose. For trucks over 8,000 lbs GVWR, hub-centric adapters with the correct center bore (typically 117mm, 121mm, or 130mm depending on the platform) reduce the risk of lug nut loosening and axle stress.
Stud Grade and Thread Pitch
The studs on the adapter must match the thread pitch of your wheels — M14x1.5 for GM and Ram applications, and 9/16”x18 for older Ford Super Duty trucks. Grade 10.9 or 12.9 heat-treated studs are essential for safety; lower-grade studs can stretch or shear under torque. The adapter’s own mounting holes should also use the same thread spec as your vehicle’s factory studs to avoid cross-threading.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| EZISOE 8×6.5 to 8×180 | Mid-Range | Chevy/GMC 8-lug to Ram HD wheels | 1.5” thickness, M14x1.5 studs | Amazon |
| VLAOSCHI 8×6.5 to 8×170 | Mid-Range | 8-lug GM trucks to 8×170 Ram/HD wheels | 2” thickness, 126.15mm bore | Amazon |
| Torchbeam 6×5.5 to 8×180 | Mid-Range | Chevy/GMC 1500 to 8×180 Ram wheels | 1.5” thick, 78mm bore, 12.9 bolts | Amazon |
| KSP 8×180 to 8×180 | Mid-Range | 2011+ Chevy/GMC HD spacing and stance | 2” thick, 130mm bore, 10.9 studs | Amazon |
| PHILTOP 6×5.5 to 8×6.5 | Premium | 1500-series trucks to 8-lug heavy-duty wheels | 2” thick, 108mm bore, 12.9 bolts | Amazon |
| KAX 6×5.5 to 8×6.5 | Premium | 6-lug GM/Ford to 8-lug aftermarket wheels | 2” thick, 108mm bore, 12.9 bolts | Amazon |
| Torchbeam 8×6.5 Hub Centric | Premium | Ford/Ram 8-lug trucks, 4WD offsets | 2” thick, 121mm bore, 9/16” studs | Amazon |
In‑Depth Reviews
1. PHILTOP 6×5.5 to 8×6.5 2-Inch Adapter
The PHILTOP adapter converts a 6×5.5” vehicle bolt pattern to 8×6.5” wheels with a 2-inch thickness, using forged 6061-T6 aluminum and 12.9-grade geomet bolts that resist stretching under heavy loads. The 108mm center bore without a lip means it is a lug-centric design — you’ll want to torque the M14x1.5 nuts to 85-90 ft/lbs and recheck after 25-50 miles to maintain clamping force.
Users on 1972-2025 Ford trucks and Chevy 1500s report zero vibration after proper installation, with the adapter eliminating tire rubbing on leaf springs and suspension components. The black anodized finish holds up against salt and debris during winter towing. It’s also significantly lighter than steel alternatives, reducing unsprung weight.
This is the strongest mid-range option for half-ton owners looking to fit eight-lug aftermarket wheels without stepping up to a full HD axle. The SGS-tested bolts give peace of mind for daily driving and weekend hauling alike.
Why it’s great
- 12.9-grade heat-treated studs handle high torque without stripping
- Forged construction provides fatigue resistance over cast alternatives
- 2-inch thickness clears most calipers and gives proper stance
Good to know
- Lug-centric design — hub centering depends on nut tightening accuracy
- Not compatible with factory 6-lug wheels; only works with 8×6.5” rims
2. KAX 6×5.5 to 8×6.5 2-Inch Adapter
The KAX adapter shares the same vehicle-to-wheel bolt pattern conversion as the PHILTOP (6×5.5” to 8×6.5”) with a matching 2-inch thickness and 108mm bore, but it distinguishes itself with laser-engraved sizing marks on each adapter for easy identification during installation. The 12.9-grade geomet bolts and forged 6061-T6 aluminum provide equivalent strength, with the forging process delivering a 30% higher yield strength compared to cast spacers.
Reviewers praise its fitment on older Ford F-250 HD trucks and Polaris Ranger UTVs for fixing tire rubbing issues against leaf springs. The M14x1.5 thread pitch matches GM and many aftermarket wheel studs. Some users noted the laser branding on the adapter face is less prominent than shown in product photos, but the measurements are clearly legible.
This is a strong equal alternative to the PHILTOP for anyone who prefers visible part-number marking or wants to verify the specs quickly during a roadside tire change. The price reflects premium manufacturing with the same 12.9 hardware grade.
Why it’s great
- Laser-engraved sizing aids quick identification during installation
- Forged construction resists cracking under heavy loads
- 12.9 bolts handle repeated torquing without thread damage
Good to know
- Brand marking on adapter face may be less visible than depicted
- Lug-centric fitment requires careful centering during installation

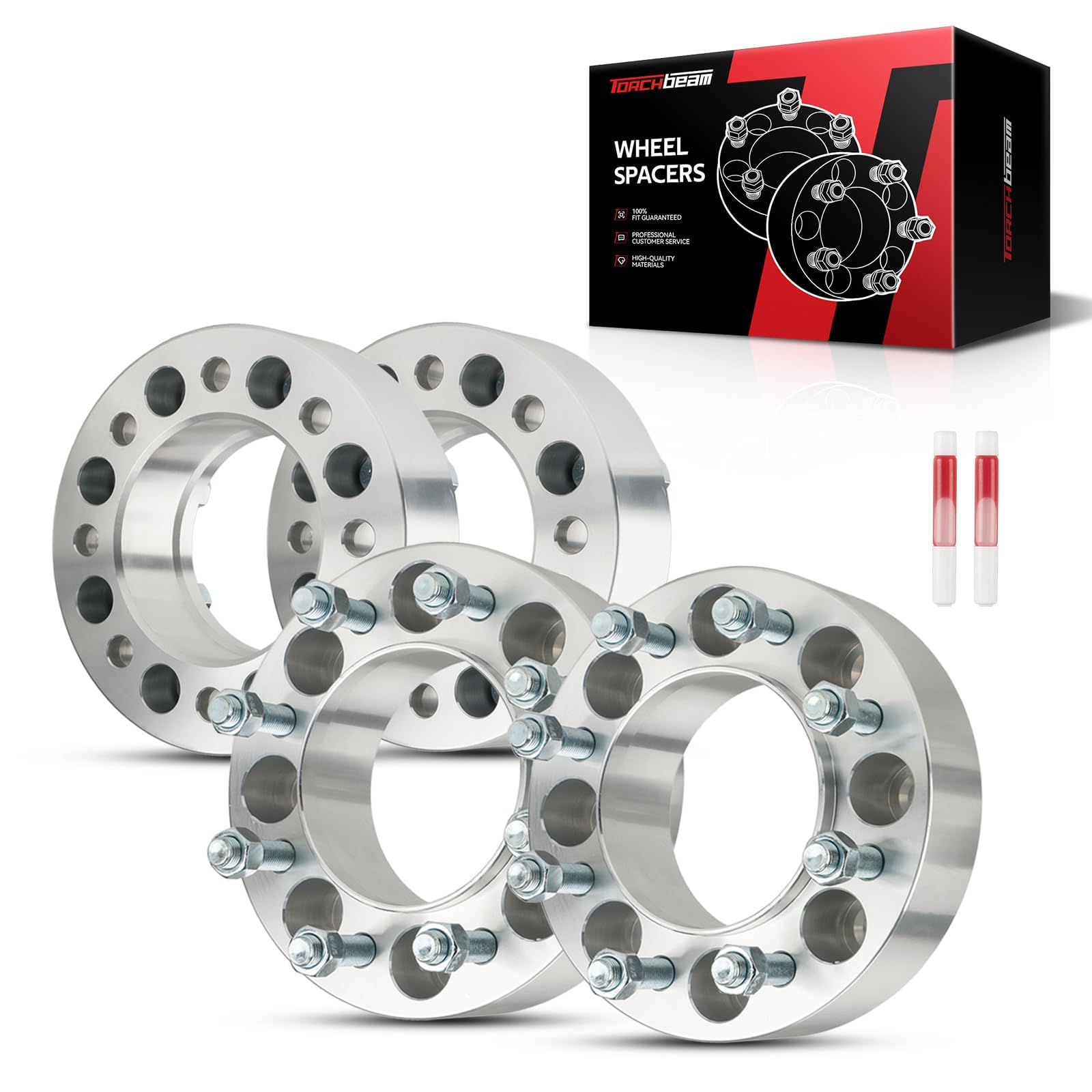

3. Torchbeam 8×6.5 Hub Centric Spacer (4-Pack)
The Torchbeam 4-piece spacer set is designed for applications where the bolt pattern stays the same (8×6.5 to 8×6.5), but your wheels need to clear larger brake calipers or you want a wider track. Its hub-centric design uses a 121mm center bore with a lip that seats directly on the vehicle’s hub, eliminating the guesswork of lug-centric centering. The 9/16”x18 stud pitch is essential for Ford Super Duty and older Ram 2500/3500 trucks.
With a 2-inch thickness and forged 6061-T6 aluminum, the set weighs 25.7 pounds total. Users report perfect fitment on 2016 Toyota Tundra and 1997 Ford F-250 HD, with one extreme case surviving a massive pothole impact while towing 1,500 pounds. The recommended torque spec of 135-145 ft/lbs is higher than M14-based adapters, so a torque wrench with that range is mandatory.
This is the best choice for owners of Ford or Ram 8-lug trucks who want hub-centric precision and the durability of a forged spacer rather than a bolt-pattern converter. The included red thread locker should be used sparingly — several reviewers advise switching to blue Loctite for easier future removal.
Why it’s great
- Hub-centric design centers perfectly on the factory hub for vibration-free driving
- 12.9-grade geomet bolts with 9/16” thread handle heavy torque loads
- Forged construction withstands impacts that would crack cast spacers
Good to know
- Not a bolt-pattern converter — vehicle and wheel patterns must match
- Included red Loctite may require heat for removal; blue recommended
4. EZISOE 8×6.5 to 8×180 1.5-Inch Adapter
The EZISOE adapter converts a factory 8×6.5” bolt pattern on Chevy/GMC 2500/3500 trucks to accept 8x180mm Ram HD wheels, all with a 1.5-inch thickness that minimizes track width increase. The 117mm center bore fits the larger hubs of GM HD trucks, while the M14x1.5 pre-installed studs match the wheel thread pitch. Forged 6061-T6 aluminum with a chrome-plated surface gives it corrosion resistance for wet or salty environments.
Customers confirm a simple bolt-on installation with no vibration up to 300 miles of mixed driving. The design is lug-centric, so proper centering during install is required. The chrome finish is aesthetic but can show scratches more easily than anodized black surfaces. This is the lightest and most affordable option for swapping 8-lug Chevy trucks onto Ram HD wheels without custom machining.
It’s a solid entry point for someone converting a Silverado 2500 to take 2010+ Ram 2500 wheels. The 1.5-inch thickness is suitable for clearing most factory brake calipers without introducing excessive offset stress on wheel bearings.
Why it’s great
- Forged construction at a budget-friendly price point
- Chrome plating resists corrosion in winter conditions
- Pre-installed M14x1.5 studs save installation time
Good to know
- Lug-centric design — careful centering is required
- Chrome finish can be prone to scratching during installation
5. VLAOSCHI 8×6.5 to 8×170 2-Inch Adapter
This VLAOSCHI adapter bridges the gap between 8×6.5” GM/Chevy hubs and 8x170mm wheels found on 2014-2022 Ram 2500/3500 and newer GM HD trucks. The 2-inch thickness and 126.15mm center bore accommodate larger brake packages and provide a 2-inch outward offset. Forged 6061-T6 aluminum with black anodized finish offers superior corrosion protection compared to paint or chrome.
Users have successfully installed these on 1976 Ford F-250 trucks to fit modern Super Duty wheels and on drag trucks for sled pulling without issues. However, one verified review noted the adapter was shipped in reverse orientation (adapting 8×170 hubs to 8×6.5 wheels instead of the intended direction), so double-check the PCD markings before installation. The two-year warranty is a plus for long-term confidence.
This adapter works best when you have a clear fitment match confirmed by measuring your hub PCD. The 2-inch thickness can cause tire rubbing on tight wheel wells if the backspace is insufficient, so check clearance before final torquing.
Why it’s great
- Large 126.15mm bore fits big hub diameters
- Black anodized surface resists chipping and rust
- Two-year warranty covers material defects
Good to know
- Incorrect orientation reported once — verify PCD markings on arrival
- 2-inch offset may require wheel well clearance checks for some trucks
6. Torchbeam 6×5.5 to 8×180 1.5-Inch Adapter
The Torchbeam 6×5.5 to 8×180 converter is targeted at 1500-series Chevy/GMC trucks, Tahoe, Yukon, and Escalade owners who want to mount 8x180mm Ram or aftermarket wheels. The 1.5-inch thickness and 78mm center bore fit smaller hub diameters of half-ton vehicles. Forged under a 10,000-ton press, this adapter uses 12.9-grade heat-treated bolts for reliability at the recommended 85-90 ft/lbs torque.
Buyers report successful installations on 1987 Chevrolet C10 and 2006 Volvo S60 (for custom wheel swaps), suggesting the adapter works across a wide range of 6-lug vehicles in addition to its listed GM fitment. Some users noted these are not hub-centric — the 78mm bore is smaller than typical HD hubs, so centering relies solely on the lug nut cones. Torque wrench discipline is essential.
For anyone in the 1500-class category, this is a reliable mid-range option that doesn’t sacrifice bolt grade. The 1.5-inch thickness keeps the wheel close to the hub, preserving factory steering geometry better than a 2-inch spacer.
Why it’s great
- 12.9 bolts provide high tensile strength for safety
- Forged under high pressure yields 30% stronger than cast
- 1.5-inch thickness maintains near-factory offset
Good to know
- Not hub-centric — centering depends on lug nut seating
- 78mm bore may not center perfectly on all axle hubs
7. KSP 8×180 to 8×180 2-Inch Spacer
The KSP spacer maintains the same 8×180 bolt pattern on both faces, making it a pure wheel spacer rather than a pattern converter. Intended for 2011-2026 Chevy/GMC 2500HD/3500HD trucks, the 2-inch thickness pushes the wheel outward for caliper clearance and an aggressive stance. Its 130mm center bore matches the large hub diameter of modern GM HD axles, and the M14x1.5 studs with thread locker included simplify installation.
Reviews confirm fit on 1994 Chevy K1500 and 2013 Silverado, with users praising the precise machining and snug fit. The cast 6061-T6 construction is lighter than forged equivalents but still durable, though the 10.9-grade bolts are one grade below the 12.9 found on premium options. KSP offers a 12-month free replacement guarantee, which adds protection for budget-conscious buyers.
This is a good entry-level option for owners of Chevy/GMC HD trucks who want stance improvement without spending on forged adapters. Just note it is cast rather than forged, and the 10.9 bolts are adequate for standard street driving but less ideal for extreme towing or off-road abuse.
Why it’s great
- 130mm hub bore fits large GM HD axle hubs perfectly
- Included thread locker simplifies proper installation
- 12-month free replacement policy covers early issues
Good to know
- Cast construction is less impact-resistant than forged
- 10.9 bolts have lower shear strength than 12.9
FAQ
How do I know if 1.5-inch or 2-inch thickness is right for my truck?
Will an 8×6.5 to 8×180 adapter fit my 1999 Silverado 2500?
Can I use these adapters for towing a heavy trailer daily?
Final Thoughts: The Verdict
For most users, the 8 lug to 6 lug adapter winner is the PHILTOP 6×5.5 to 8×6.5 2-Inch because it combines forged 6061-T6 construction with 12.9-grade hardware and a precise 108mm bore at a mid-range price. If you need a hub-centric design for a Ford or Ram 8-lug truck, grab the Torchbeam 4-Pack Hub Centric Spacer. And for a budget-friendly 8×6.5-to-8×180 conversion on Chevy HD trucks, nothing beats the EZISOE 1.5-Inch Adapter.
